The Faital Pro 8HX230 8Ω 8-Inch Coaxial Loudspeaker is an 8-inch coaxial driver with separate LF and HF sections, each specified at 8 Ohm nominal impedance. The LF section has 250 W AES power handling, 94 dB sensitivity and a 70÷4000 Hz frequency range, while the HF section has 30 W AES power handling, 105 dB sensitivity and a 1200÷20000 Hz frequency range. It uses a Ferrite Ring magnet for LF and a Neodymium Ring magnet for HF, with a 100° HF dispersion angle. The driver has a 183 mm baffle cutout diameter and 126.5 mm depth.

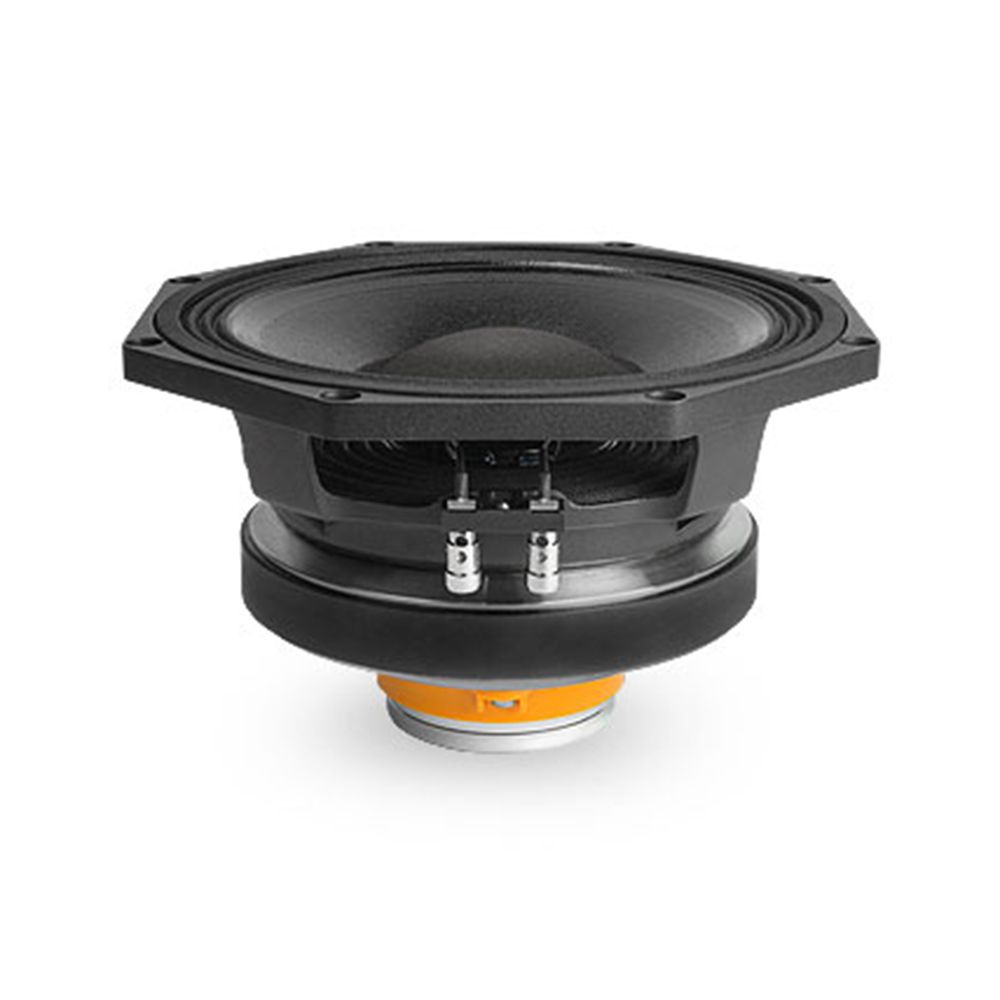

Faital Pro 8HX230 (8Ω, 8-Inch) Coaxial Loudspeaker
RRP: $579.00 ex. GST
Key Features:
- 8-inch coaxial loudspeaker with LF and HF sections
- Nominal Impedance: 8 Ohm for LF and HF
- AES Power Handling: 250 W LF and 30 W HF
- Max Power Handling: 500 W LF and 60 W HF
- Sensitivity: 94 dB LF and 105 dB HF
- Frequency Range: 70÷4000 Hz LF and 1200÷20000 Hz HF
- HF Dispersion Angle: 100°
- LF Magnet: Ferrite Ring; HF Magnet: Neodymium Ring
- LF Basket Material: Aluminum
- LF Demodulation: Aluminum Ring
- LF Cone Surround: Triple Roll
Technical Data
| Nominal Impedance | 8 Ohm LF; 8 Ohm HF |
| Minimum Impedance | 8 Ohm LF; 7 Ohm HF |
| AES Power Handling | 250 W LF; 30 W HF |
| Max Power Handling | 500 W LF; 60 W HF |
| Sensitivity (1W/1m) | 94 dB LF; 105 dB HF |
| Frequency Range | 70÷4000 Hz LF; 1200÷20000 Hz HF |
| Voice Coil Diameter | 65 mm (2.56 in) LF; 37 mm (1.46 in) HF |
| Winding Material | Aluminium |
| Former Material | Glass Fiber LF; Kapton HF |
| Winding Depth | 15 mm (0.59 in) LF; 2.1 mm (0.08 in) HF |
| Magnetic Gap Depth | 8 mm (0.31 in) LF; 2.6 mm (0.10 in) HF |
| Flux Density | 1.12 T LF; 1.85 T HF |
| Min. Cross. Freq. | 1.7 kHz HF |
| Dispersion Angle | 100° HF |
| Diaphragm Material | Ketone Polymer HF |
| Diaphragm Shape | Annular HF |
| Magnet | Ferrite Ring LF; Neodymium Ring HF |
| Basket Material | Aluminum LF |
| Demodulation | Aluminum Ring LF |
| Cone Surround | Triple Roll LF |
| NET Air Volume filled by Loudspeaker | 1 dm^3 (0.035 ft^3) LF |
| Spider Profile | 1x variable height waves LF |
| Fs | 70 Hz |
| Re [LF] | 6.5 Ohm |
| Re [HF] | 5.5 Ohm |
| Qes | 0.31 |
| Qms | 6.0 |
| Qts | 0.29 |
| Vas | 14.7 dm^3 (0.52 ft^3) |
| Sd | 223 cm^2 (34.57 in^2) |
| Xmax | 6.17 mm |
| Xdamage | 15.5 mm |
| Mms | 24.4 g |
| Bl | 15 N/A |
| Le | 0.59 mH |
| Mmd | 20.6 g |
| Cms | 0.21 mm/N |
| Rms | 1.8 kg/s |
| Eta Zero | 1.58 % |
| EBP | 226 Hz |
