The Faital Pro 8HX240 8Ω 8-Inch Coaxial Loudspeaker is an 8 Ohm coaxial loudspeaker with 200 mm (8 in) nominal diameter. Its LF section provides 250 W AES power handling, 500 W max power handling, 94 dB sensitivity and a 70÷4000 Hz frequency range. The driver uses a Neodymium Ring magnet, an aluminum basket, an Aluminum Ring for demodulation and a Triple Roll cone surround. Installation dimensions include a 181 mm (7.13 in) baffle cutout diameter and 125.5 mm (4.94 in) depth.

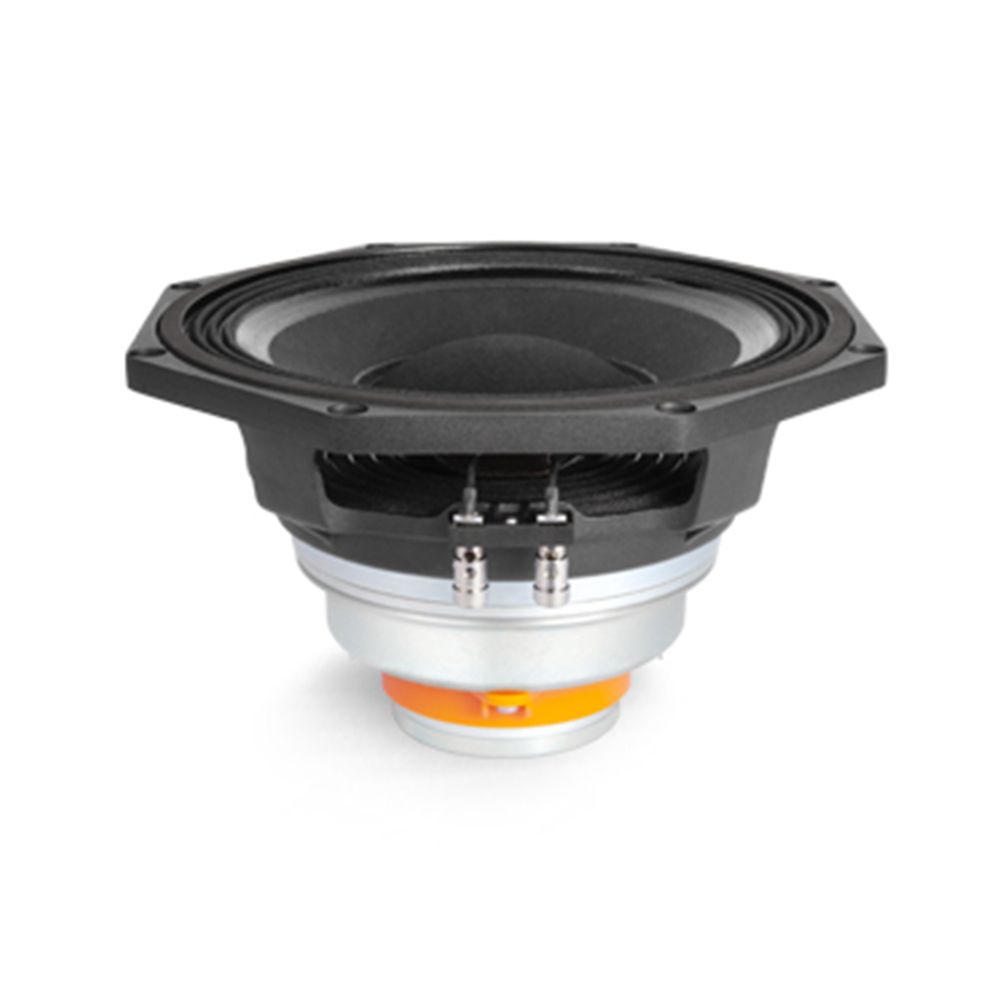

Faital Pro 8HX240 (8Ω, 8-Inch) Coaxial Loudspeaker
RRP: $689.00 ex. GST
Key Features:
- 200 mm (8 in) nominal diameter
- 8 Ohm nominal impedance
- 250 W AES Power Handling (1)
- 500 W Max Power Handling (2)
- 94 dB Sensitivity (1W/1m) (3)
- 70÷4000 Hz Frequency Range
- Neodymium Ring magnet
- Aluminum basket and Aluminum Ring demodulation
- Triple Roll cone surround
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.4 Ohm |
| AES Power Handling (1) | 250 W |
| Max Power Handling (2) | 500 W |
| Sensitivity (1W/1m) (3) | 94 dB |
| Frequency Range | 70÷4000 Hz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fiber |
| Winding Depth | 15 mm (0.59 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.15 T |
| Magnet | Neodymium Ring |
| Basket Material | Aluminium |
| Demodulation | Aluminum Ring |
| Cone Surround (5) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 0.95 dm^3 (0.034 ft^3) |
| Spider Profile | 1x variable height waves |
| Fs | 70 Hz |
| Re [LF] | 5 Ohm |
| Re [HF] | 5.5 Ohm |
| Qes | 0.31 |
| Qms | 8.1 |
| Qts | 0.30 |
| Vas | 12.9 dm^3 (0.46 ft^3) |
| Sd | 223 cm^2 (34.57 in^2) |
| Xmax (6) | 6.17 mm |
| Xdamage (7) | 15.2 mm |
| Mms | 27.7 g |
| Bl | 13.8 N/A |
| Le | 0.49 mH |
| Mmd | 24.0 g |
| Cms | 0.19 mm/N |
| Rms | 1.5 kg/s |
| Eta Zero | 1.34 % |
| EBP | 226 Hz |
