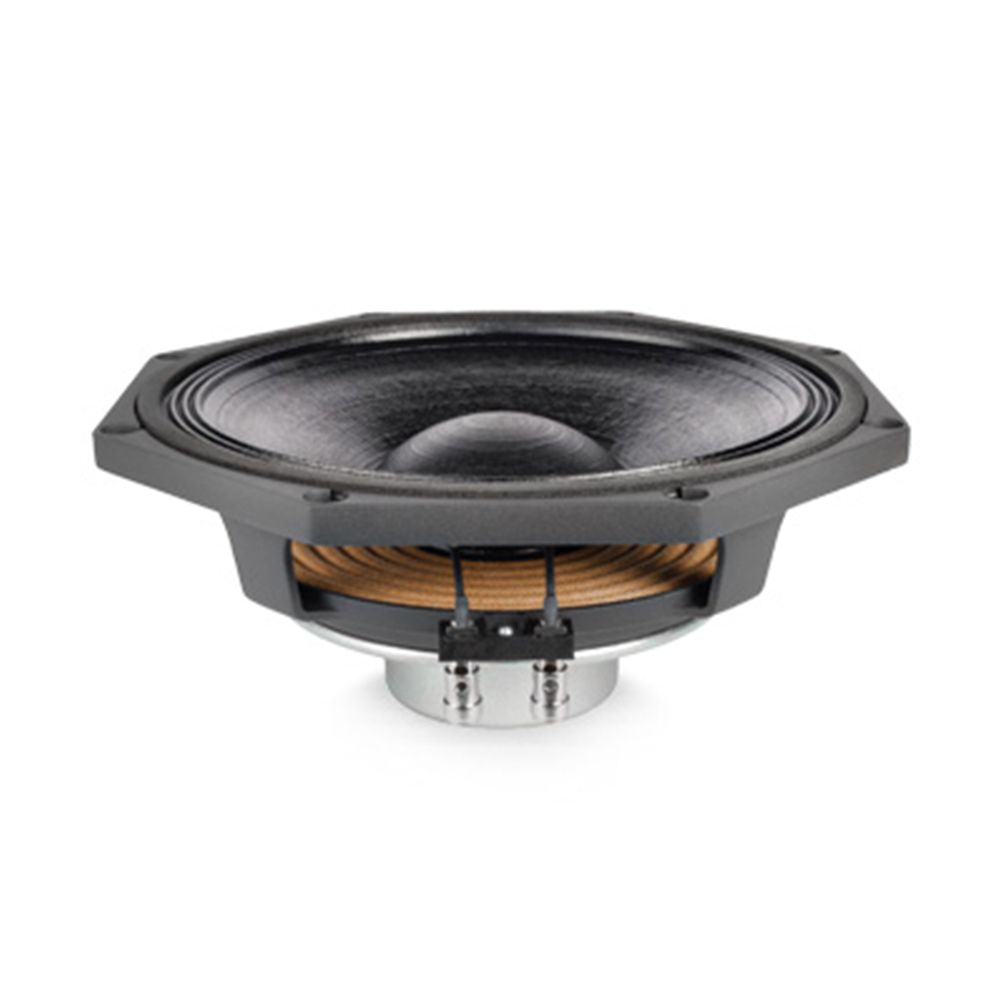

The Faital Pro 8PR150 Professional Woofer is an 8-inch driver with a nominal impedance of 8 Ohm and a 200 mm nominal diameter. It provides 250 W AES power handling, 500 W maximum power handling and 94 dB sensitivity measured at 1W/1m. The driver has a 75÷3000 Hz frequency range, a 52 mm voice coil, an aluminum basket and a neodymium slug magnet. Installation dimensions include a 183 mm baffle cutout diameter, 207.9 mm overall diameter and 93.7 mm depth.
Faital Pro 8PR150 (8 Ohm, 8-Inch) Professional Woofer
RRP: $289.00 ex. GST
Key Features:
- 200 mm (8 in) nominal diameter
- 250 W AES power handling
- 500 W maximum power handling
- 94 dB sensitivity (1W/1m)
- 75÷3000 Hz frequency range
- 52 mm (2 in) voice coil diameter
- Neodymium Slug magnet
- Aluminum basket material
Technical Data
| Nominal Diameter | 200 mm (8 in) |
| Overall Diameter | 207.9 mm (8.18 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 183 mm (7.20 in) |
| Depth | 93.7 mm (3.69 in) |
| Flange and Gasket Thickness | 10.8 mm (0.43 in) |
| Net Weight | 1.5 kg (3.3 lb) |
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling | 250 W |
| Maximum Power Handling | 500 W |
| Sensitivity (1W/1m) | 94 dB |
| Frequency Range | 75÷3000 Hz |
| Voice Coil Diameter | 52 mm (2 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fiber |
| Winding Depth | 12.5 mm (0.49 in) |
| Magnetic Gap Depth | 7.5 mm (0.30 in) |
| Flux Density | 1.1 T |
| Magnet | Neodymium Slug |
| Basket Material | Aluminium |
| Demodulation | Copper Cap |
| Cone Surround | Triple Roll |
| NET Air Volume filled by Loudspeaker | 0.6 dm^3 (0.021 ft^3) |
| Spider Profile | 1x constant height waves |
| Fs | 75 Hz |
| Re | 5.8 Ohm |
| Qes | 0.54 |
| Qms | 4.4 |
| Qts | 0.48 |
| Vas | 16.2 dm^3 (0.57 ft^3) |
| Sd | 233.9 cm^2 (36.25 in^2) |
| Xmax | 5.00 mm |
| Xdamage | 27 mm |
| Mms | 21.2 g |
| Bl | 10.4 N/A |
| Le | 0.2 mH |
| Mmd | 17.2 g |
| Cms | 0.21 mm/N |
| Rms | 2.3 kg/s |
| Eta Zero | 1.2 % |
| EBP | 140 Hz |
