The Faital Pro 8RS250 is an 8-inch professional woofer with a nominal impedance of 8 Ohm and a 200 W AES power handling rating. It provides 93 dB sensitivity and a 60÷6300 Hz frequency range for loudspeaker system applications. The driver uses a ferrite ring magnet, aluminum basket, aluminum demodulation ring and half-roll cone surround. Its 183 mm baffle cutout diameter and 108 mm depth support enclosure planning and replacement-driver selection.

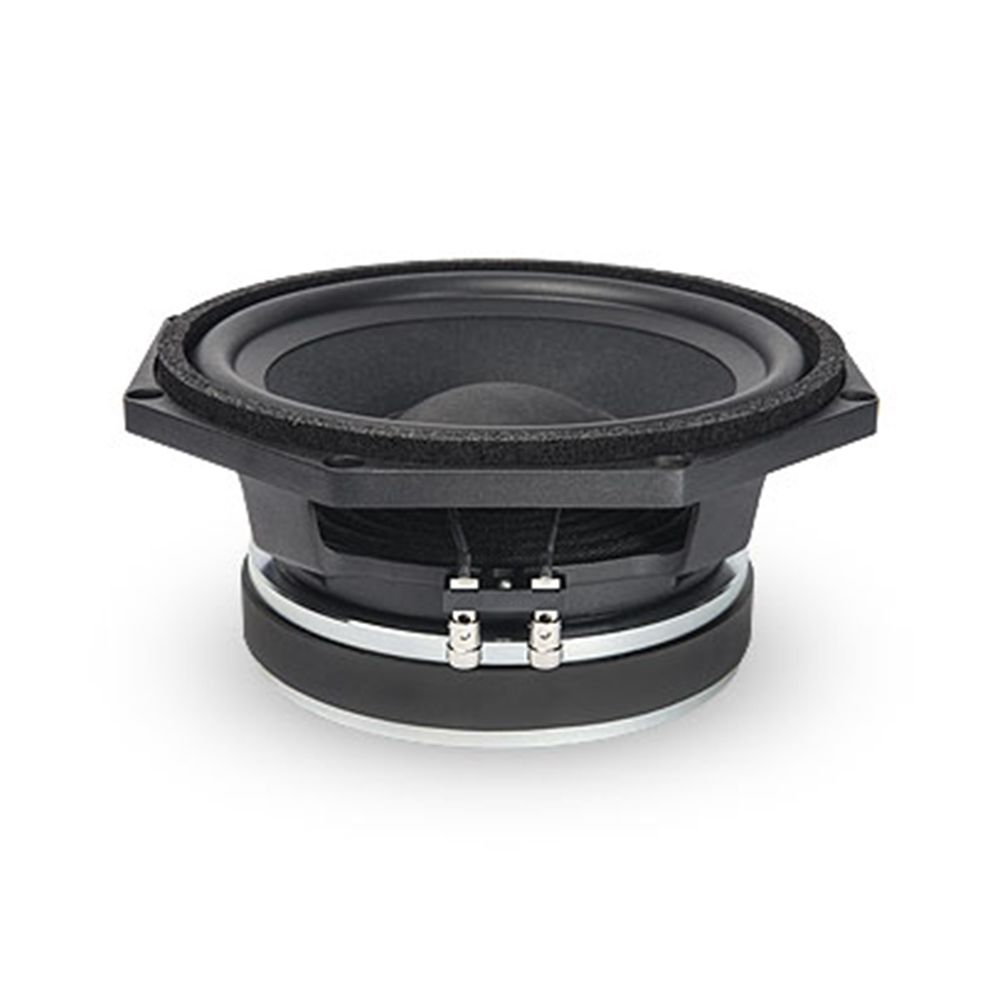

Faital Pro 8RS250 (8Ω, 8-Inch) Professional Woofer
RRP: $299.00 ex. GST
Key Features:
- Nominal Diameter: 200 mm (8 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 200 W
- Maximum Power Handling: 400 W
- Sensitivity (1W/1m): 93 dB
- Frequency Range: 60÷6300 Hz
- Voice Coil Diameter: 52 mm (2 in)
- Magnet: Ferrite Ring
- Basket Material: Aluminum
- Baffle Cutout Diameter: 183 mm (7.20 in)
Technical Data
| Fs | 56 Hz |
| Re | 5.7 Ohm |
| Qes | 0.34 |
| Qms | 5.7 |
| Qts | 0.32 |
| Vas | 18.3 dm^3 (0.65 ft^3) |
| Sd | 223 cm^2 (34.57 in^2) |
| Xmax | 6.92 mm |
| Xdamage | 15.7 mm |
| Mms | 30.6 g |
| Bl | 13.5 N/A |
| Le | 0.35 mH |
| Mmd | 26.8 g |
| Cms | 0.26 mm/N |
| Rms | 1.9 kg/s |
| Eta Zero | 0.93 % |
| EBP | 165 Hz |
