The Faital Pro 8RS350 8-Inch Professional Woofer is an 8 Ohm loudspeaker driver with a 200 mm (8 in) nominal diameter. It provides 300 W AES power handling, 600 W maximum power handling and 90 dB sensitivity, with a 50÷6300 Hz frequency range. The driver uses a ferrite ring magnet, aluminum basket, aluminum demodulation ring and 65 mm voice coil. Installation dimensions include a 183 mm baffle cutout diameter, 210 mm bolt circle diameter and 106.5 mm depth.

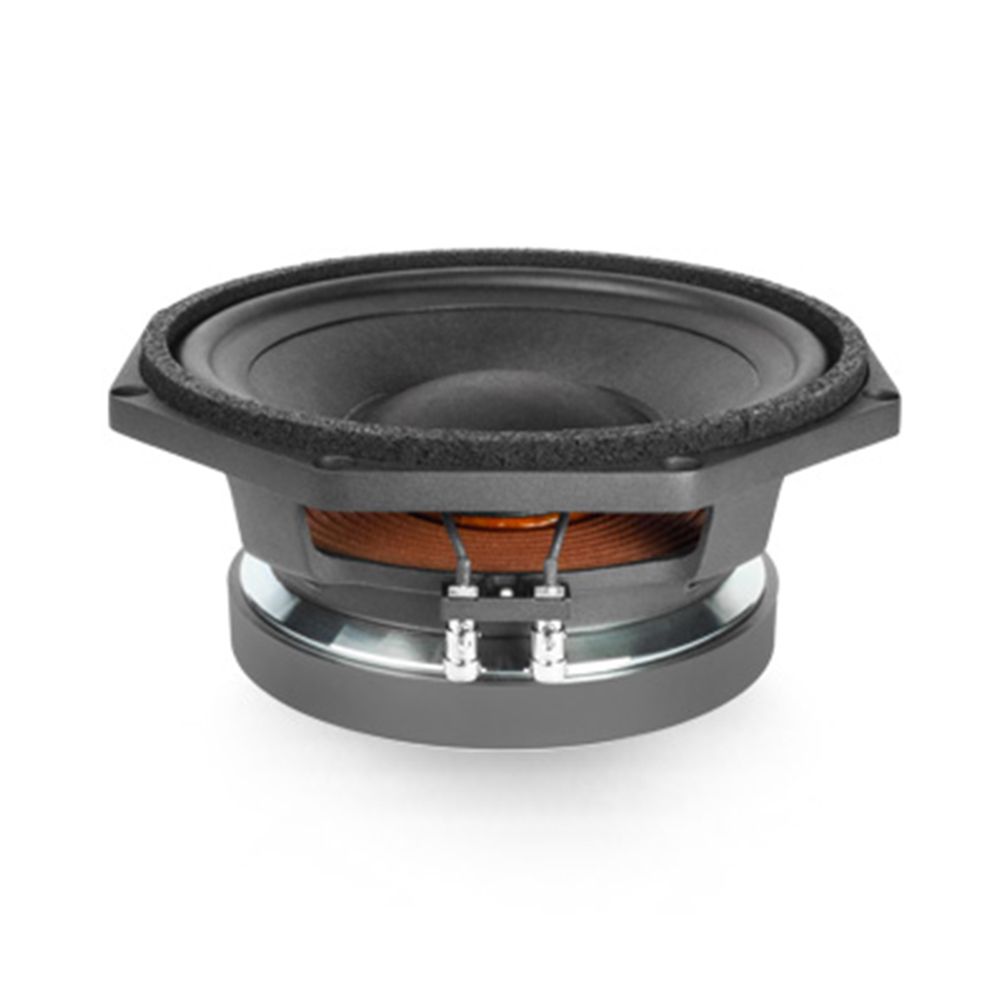

Faital Pro 8RS350 (8 Ohm, 8-Inch) Professional Woofer
RRP: $329.00 ex. GST
Key Features:
- Nominal Impedance: 8 Ohm
- AES Power Handling: 300 W
- Maximum Power Handling: 600 W
- Sensitivity (1W/1m): 90 dB
- Frequency Range: 50÷6300 Hz
- Voice Coil Diameter: 65 mm (2.56 in)
- Magnet: Ferrite Ring
- Basket Material: Aluminum
Technical Data
| Fs | 42 Hz |
| Re | 5.3 Ohm |
| Qes | 0.31 |
| Qms | 6.9 |
| Qts | 0.30 |
| Vas | 23.7 dm^3 (0.84 ft^3) |
| Sd | 226 cm^2 (35.03 in^2) |
| Xmax | 7.37 mm |
| Xdamage | 16.85 mm |
| Mms | 43.3 g |
| Bl | 13.9 N/A |
| Le | 0.6 mH |
| Mmd | 39.5 g |
| Cms | 0.33 mm/N |
| Rms | 1.7 kg/s |
| Eta Zero | 0.54 % |
| EBP | 134 Hz |
