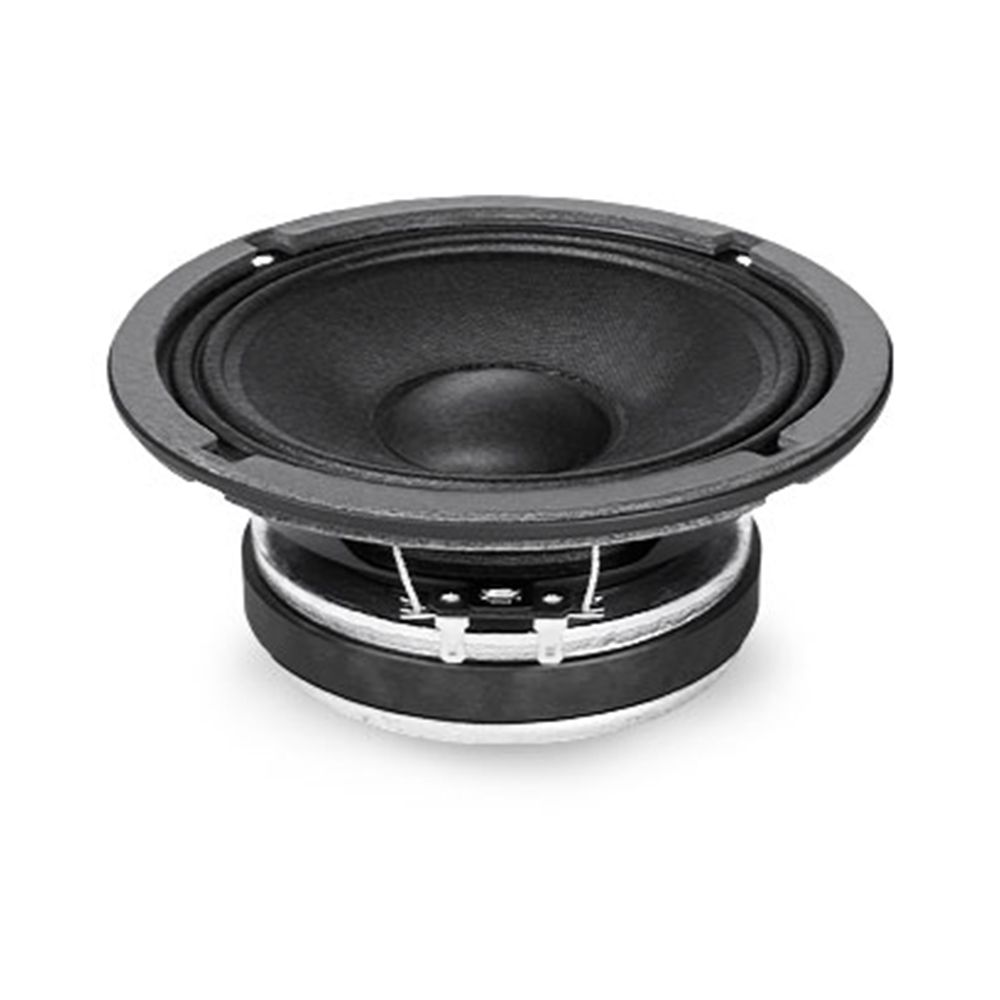

Faital Pro FaitalPRO 6FE200 16 Ohm 6-Inch Professional Woofer is a 160 mm loudspeaker driver for professional speaker applications. It has a nominal impedance of 16 Ohm, 130 W AES power handling and 260 W maximum power handling. The driver provides 95 dB sensitivity and an 85÷6000 Hz frequency range. It uses a ferrite ring magnet, steel basket, 37 mm voice coil, Kapton former and M-Roll cone surround.
Faital Pro FaitalPRO 6FE200 (16 Ohm, 6-Inch) Professional Woofer
RRP: $89.00 ex. GST
Key Features:
- Nominal Diameter: 160 mm (6 in)
- Nominal Impedance: 16 Ohm
- AES Power Handling: 130 W
- Maximum Power Handling: 260 W
- Sensitivity (1W/1m): 95 dB
- Frequency Range: 85÷6000 Hz
- Voice Coil Diameter: 37 mm (1.46 in)
- Magnet: Ferrite Ring
- Basket Material: Steel
- Cone Surround: M-Roll
Technical Data
| Nominal Diameter | 160 mm (6 in) |
| Overall Diameter | 167.4 mm (6.59 in) |
| Baffle Cutout Diameter | 144 mm (5.67 in) |
| Bolt Circle Diameter | 154 mm (6.06 in) |
| Depth | 77 mm (3.03 in) |
| Flange and Gasket Thickness | 8 mm (0.31 in) |
| Net Weight | 2 kg (4.4 lb) |
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 13.6 Ohm |
| AES Power Handling | 130 W |
| Maximum Power Handling | 260 W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Range | 85÷6000 Hz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Winding Depth | 12 mm (0.47 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Basket Material | Steel |
| Demodulation | No |
| Cone Surround | M-Roll |
| NET Air Volume filled by Loudspeaker | 0.45 dm^3 (0.016 ft^3) |
| Spider Profile | 1x constant height waves |
| Fs | 120 Hz |
| Re | 12 Ohm |
| Qes | 0.7 |
| Qms | 10.8 |
| Qts | 0.66 |
| Vas | 4.2 dm^3 (0.15 ft^3) |
| Sd | 131 cm^2 (20.23 in^2) |
| Xmax | 4.17 mm |
| Xdamage | 10.4 mm |
| Mms | 9.9 g |
| Bl | 11.4 N/A |
| Le | 0.65 mH |
| Mmd | 8.2 g |
| Cms | 0.18 mm/N |
| Rms | 0.7 kg/s |
| Eta Zero | 1.03 % |
| EBP | 171 Hz |
