The Faital Pro HF1006 (8Ω, 1-Inch) Compression Driver is a 25.4 mm throat compression driver with an 8 Ohm nominal impedance and a 1÷20 kHz frequency range. It provides 110 dB sensitivity (1W/1m), 60 W AES power handling and 120 W maximum power handling, with a minimum crossover frequency of 1 kHz. The driver uses a 44 mm Al voice coil, Kapton former, Ketone Polymer annular diaphragm and Neodymium Ring magnet.

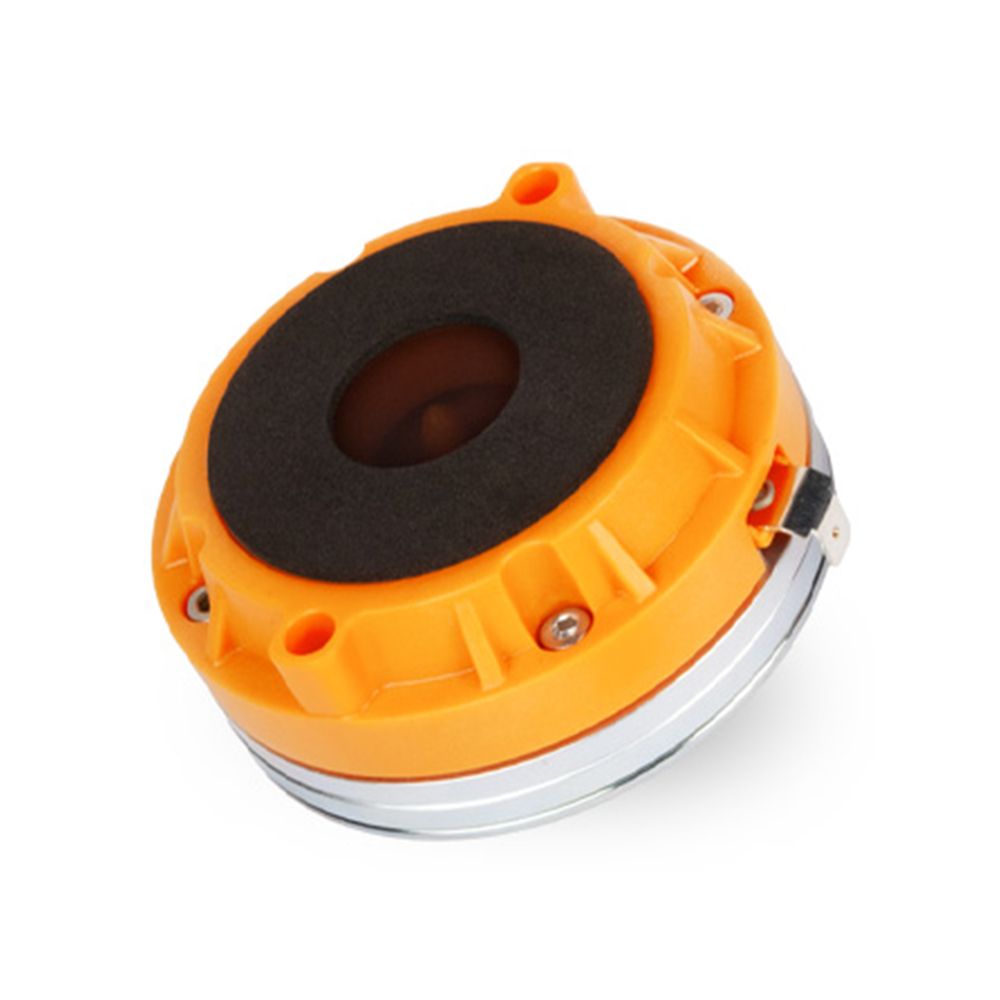

Faital Pro HF1006 (8Ω, 1-Inch) Compression Driver
RRP: $449.00 ex. GST
Key Features:
- 110 dB sensitivity (1W/1m)
- 60 W AES power handling and 120 W maximum power handling
- 1÷20 kHz frequency range
- 25.4 mm (1 in) throat diameter
- Ketone Polymer annular diaphragm with Neodymium Ring magnet
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.5 Ohm |
| AES Power Handling | 60 W |
| Maximum Power Handling | 120 W |
| Minimum Crossover Frequency | 1 kHz |
| Sensitivity (1W/1m) | 110 dB |
| Frequency Range | 1÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 1.7 mm (0.07 in) |
| Magnetic Gap Depth | 3.5 mm (0.14 in) |
| Flux Density | 2.1 T |
| Magnet | Neodymium Ring |
| Re | 5.4 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | Combined Exit |
| NET Air Volume filled by HF Driver | 0.2 dm^3 (0.007 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 87 mm (3.43 in) |
| 180° Mounting Holes Diameter (2xM6) | 76 mm (2.99 in) |
| Depth | 39 mm (1.54 in) |
| Net Weight | 775 g (1.7 lb) |
| Shipping Box (Single carton box) | 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in) |
| Shipping Weight | 890 g (2.0 lb) |
