The Faital Pro HF104 16 Ohm 1-Inch HF Driver is designed for high-frequency loudspeaker applications. It features a 25.4 mm (1 in) throat, a 16 Ohm nominal impedance and a 1.5÷20 kHz frequency range. The driver has 108 dB sensitivity, 40 W AES power handling and 80 W maximum power handling. Its construction includes a Ketone Polymer annular diaphragm, Kapton former and Neodymium Ring magnet.

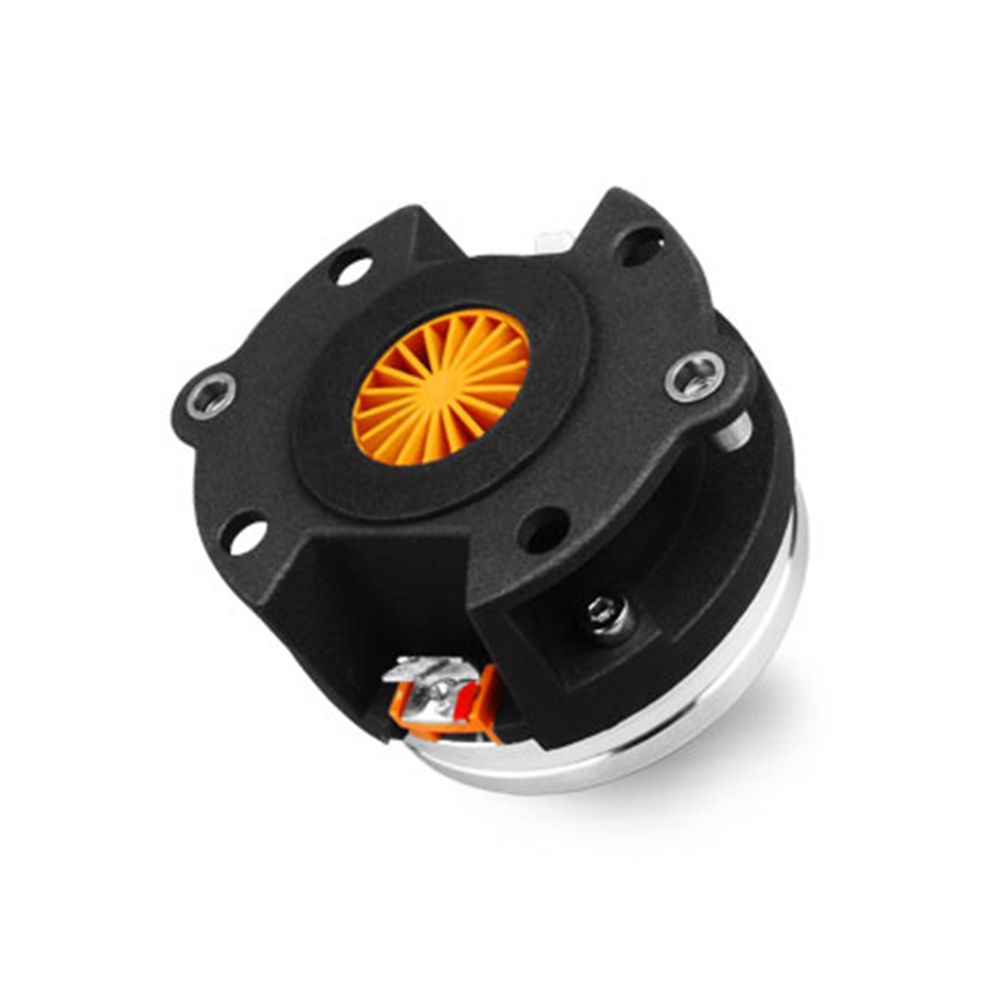

Faital Pro HF104 (16 Ohm, 1-Inch) HF Driver
RRP: $259.00 ex. GST
Key Features:
- Nominal Impedance: 16 Ohm
- Frequency Range: 1.5÷20 kHz
- Sensitivity (1W/1m): 108 dB
- AES Power Handling: 40 W
- Maximum Power Handling: 80 W
- Minimum Crossover Frequency: 1.7 kHz
- Throat Diameter: 25.4 mm (1 in)
- Diaphragm Material: Ketone Polymer
- Magnet: Neodymium Ring
Technical Data
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 13.9 Ohm |
| AES Power Handling | 40 W |
| Maximum Power Handling | 80 W |
| Minimum Crossover Frequency | 1.7 kHz |
| Sensitivity (1W/1m) | 108 dB |
| Frequency Range | 1.5÷20 kHz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 2.6 mm (0.10 in) |
| Magnetic Gap Depth | 2.6 mm (0.10 in) |
| Flux Density | 1.85 T |
| Magnet | Neodymium Ring |
| Re | 11 Ohm |
| Phase Plug Design | Radial |
| Exit Angle | Combined Exit |
| NET Air Volume filled by HF Driver | 0.16 dm^3 (0.006 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 91 mm (3.58 in) |
| 180° Mounting Holes Diameter (2xM5) | 77.5 mm (3.05 in) |
| Depth | 51 mm (2.01 in) |
| Net Weight | 670 g (1.5 lb) |
| Shipping Box (Single carton box) | 98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in) |
| Shipping Weight | 700 g (1.5 lb) |
