The Faital Pro HF105 16 Ohm 1-Inch Compression Driver is a high-frequency driver with a 25.4 mm (1 in) throat diameter and 16 Ohm nominal impedance. It provides 40 W AES power handling, 80 W maximum power handling, and 107 dB sensitivity (1W/1m). The driver operates across a 1.4÷20 kHz frequency range with a 1.7 kHz minimum crossover frequency. It features a 37 mm (1.46 in) voice coil, Ketone Polymer annular diaphragm, Ferrite Ring magnet, and Combined Exit.

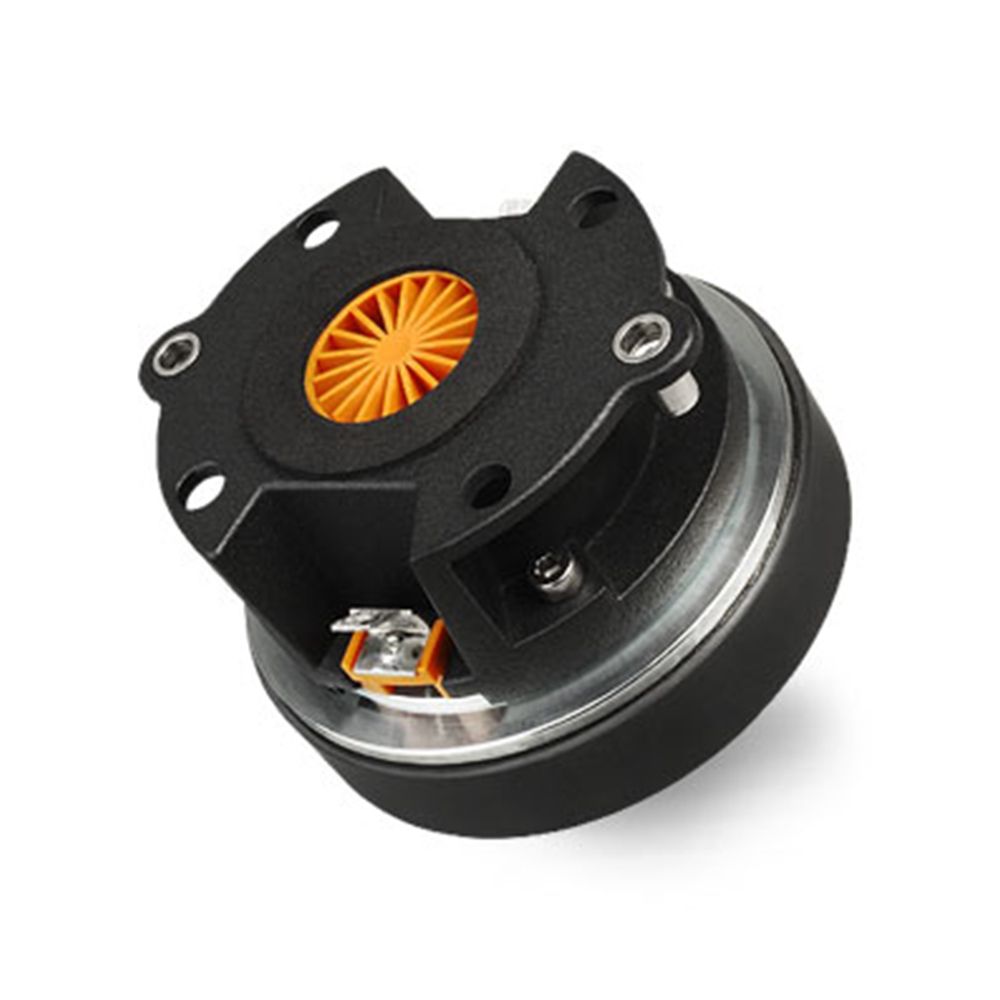

Faital Pro HF105 (16 Ohm, 1-Inch) Compression Driver
RRP: $229.00 ex. GST
Key Features:
- 16 Ohm nominal impedance
- 40 W AES power handling
- 80 W maximum power handling
- 107 dB sensitivity (1W/1m)
- 1.4÷20 kHz frequency range
- 1.7 kHz minimum crossover frequency
- 25.4 mm (1 in) throat diameter
- Ketone Polymer annular diaphragm
- Ferrite Ring magnet
Technical Data
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 13.5 Ohm |
| AES Power Handling | 40 W |
| Maximum Power Handling | 80 W |
| Minimum Crossover Frequency | 1.7 kHz |
| Sensitivity (1W/1m) | 107 dB |
| Frequency Range | 1.4÷20 kHz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 2.4 mm (0.09 in) |
| Magnetic Gap Depth | 2.6 mm (0.10 in) |
| Flux Density | 1.5 T |
| Magnet | Ferrite Ring |
| Re | 11 Ohm |
| Phase Plug Design | Radial |
| Exit Angle | Combined Exit |
| NET Air Volume filled by HF Driver | 0.26 dm^3 (0.009 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 91 mm (3.58 in) |
| 180° Mounting Holes Diameter (2xM5) | 76 mm (2.99 in) |
| Depth | 61 mm (2.40 in) |
| Net Weight | 1.1 kg (2.4 lb) |
| Shipping Box | 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in) |
| Shipping Weight | 1.2 kg (2.6 lb) |
