The Faital Pro HF107 is a 1-inch high-frequency compression driver for professional audio applications. It has a nominal impedance of 16 Ohm, 70 W AES power handling, and 140 W maximum power handling. Sensitivity is 109 dB, with a frequency range of 1.3÷20 kHz and a minimum crossover frequency of 1.3 kHz. The driver uses a Ketone Polymer annular diaphragm, an annular phase plug design, and a ferrite ring magnet.

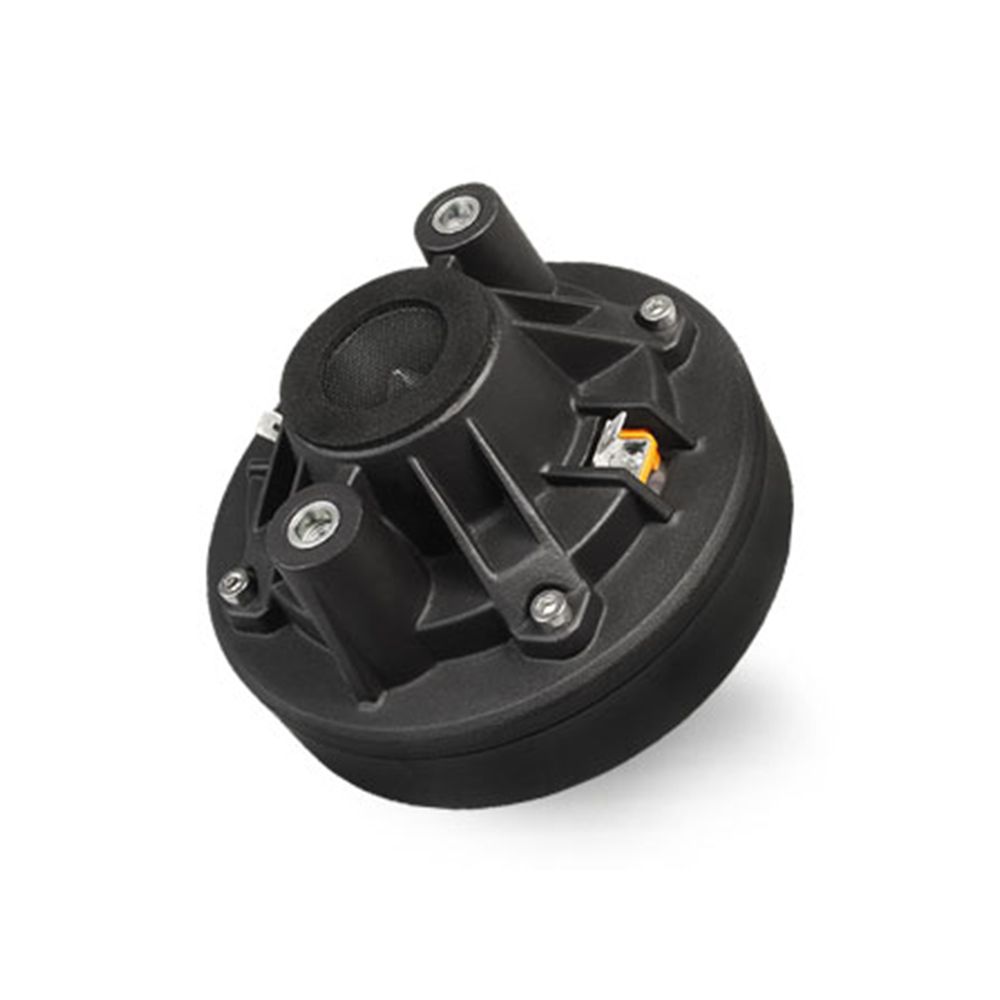

Faital Pro HF107 (16 Ohm, 1-Inch) Compression Driver
RRP: $319.00 ex. GST
Key Features:
- Nominal Impedance: 16 Ohm
- AES Power Handling: 70 W
- Maximum Power Handling: 140 W
- Sensitivity (1W/1m): 109 dB
- Frequency Range: 1.3÷20 kHz
- Minimum Crossover Frequency: 1.3 kHz
- Diaphragm Material: Ketone Polymer
- Diaphragm Shape: Annular
Technical Data
| Minimum Impedance | 13.6 Ohm |
| AES Power Handling | 70 W |
| Maximum Power Handling | 140 W |
| Minimum Crossover Frequency | 1.3 kHz |
| Sensitivity | 109 dB |
| Frequency Range | 1.3÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 2.9 mm (0.11 in) |
| Magnetic Gap Depth | 2.6 mm (0.10 in) |
| Flux Density | 1.9 T |
| Magnet | Ferrite Ring |
| Re | 10.3 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | Combined Exit |
| NET Air Volume filled by HF Driver | 0.5 dm^3 (0.018 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 121 mm (4.76 in) |
| 180° Mounting Holes Diameter | 76 mm (2.99 in) |
| Depth | 75.4 mm (2.97 in) |
| Net Weight | 2.5 kg (5.5 lb) |
| Shipping Box Dimensions | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 2.7 kg (5.8 lb) |
