The Faital Pro HF108 16 Ohm High-Frequency Driver is a loudspeaker part for high-frequency applications. It has a 16 Ohm nominal impedance, 60 W AES power handling and 120 W maximum power handling. The driver provides 109 dB sensitivity and a 1÷20 kHz frequency range, with a 1.3 kHz minimum crossover frequency. It uses a 44 mm voice coil, Dome diaphragm shape and Neodymium Ring magnet.

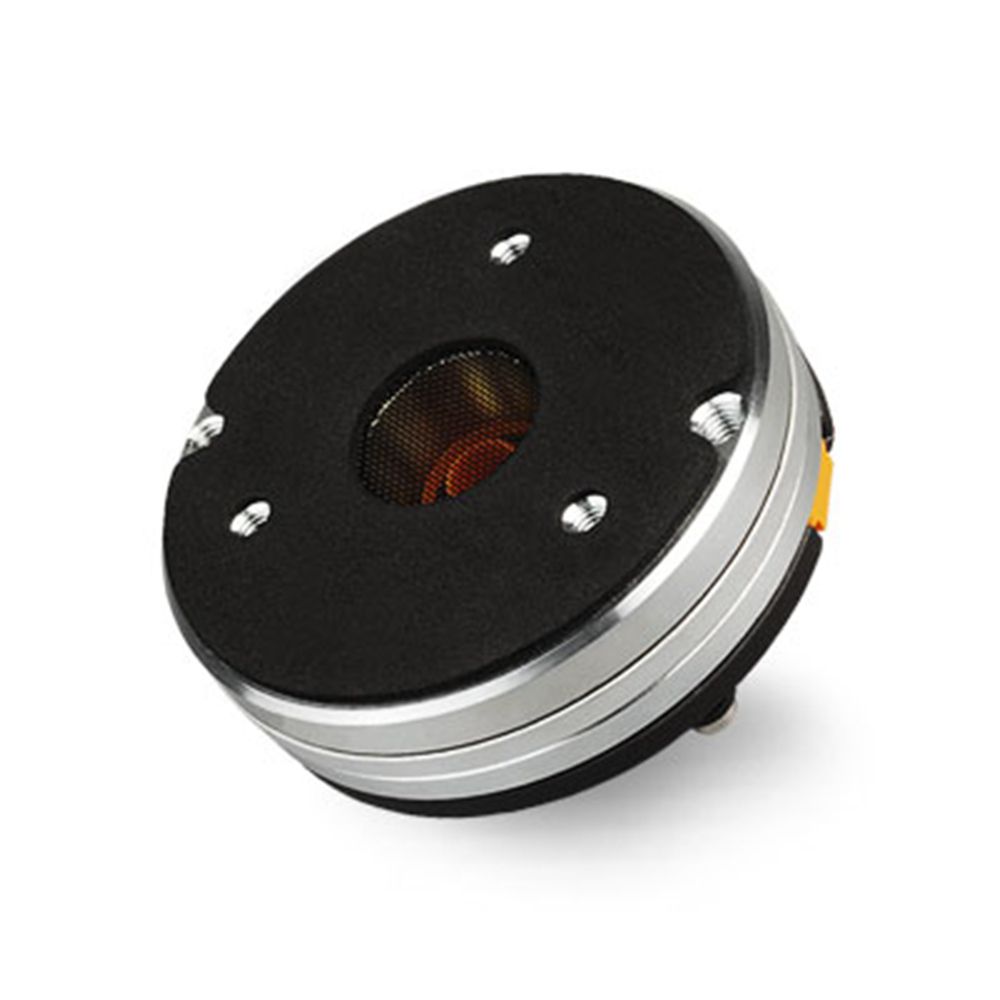

Faital Pro HF108 (16 Ohm, 1-Inch) High-Frequency Driver
RRP: $359.00 ex. GST
Key Features:
- 1″ throat diameter
- 60 W AES power handling
- 120 W maximum power handling
- Sensitivity of 109 dB
- Frequency range of 1 to 20 kHz
- 44 mm voice coil diameter
- Dome diaphragm shape
- Neodymium ring magnet
Technical Data
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 13.2 Ohm |
| AES Power Handling (1) | 60 W |
| Maximum Power Handling (2) | 120 W |
| Minimum Crossover Frequency (3) | 1.3 kHz |
| Sensitivity (1W/1m) (4) | 109 dB |
| Frequency Range | 1÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 2.9 mm (0.11 in) |
| Magnetic Gap Depth | 2.85 mm (0.11 in) |
| Flux Density | 2.1 T |
| Magnet | Neodymium Ring |
| Re | 10.5 Ohm |
| Phase Plug Design | Annular |
| Exit Angle (5) | 31° Conical |
| NET Air Volume filled by HF Driver | 0.195 dm^3 (0.007 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 87 mm (3.43 in) |
| 180° Mounting Holes Diameter (2xM5) | 76 mm (2.99 in) |
| Depth | 41 mm (1.61 in) |
| Net Weight | 800 g (1.8 lb) |
| Shipping Box (Single carton box) | 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in) |
| Shipping Weight | 1.2 kg (2.6 lb) |
