The Faital Pro HF109 16 Ohm 1-Inch High-Frequency Driver is designed for professional audio and sound reinforcement applications. It has a nominal impedance of 16 Ohm, 60 W AES power handling and 120 W maximum power handling. The driver operates across a 1÷20 kHz frequency range with 108 dB sensitivity. It uses a 44 mm voice coil, Ketone Polymer dome diaphragm and annular phase plug design.

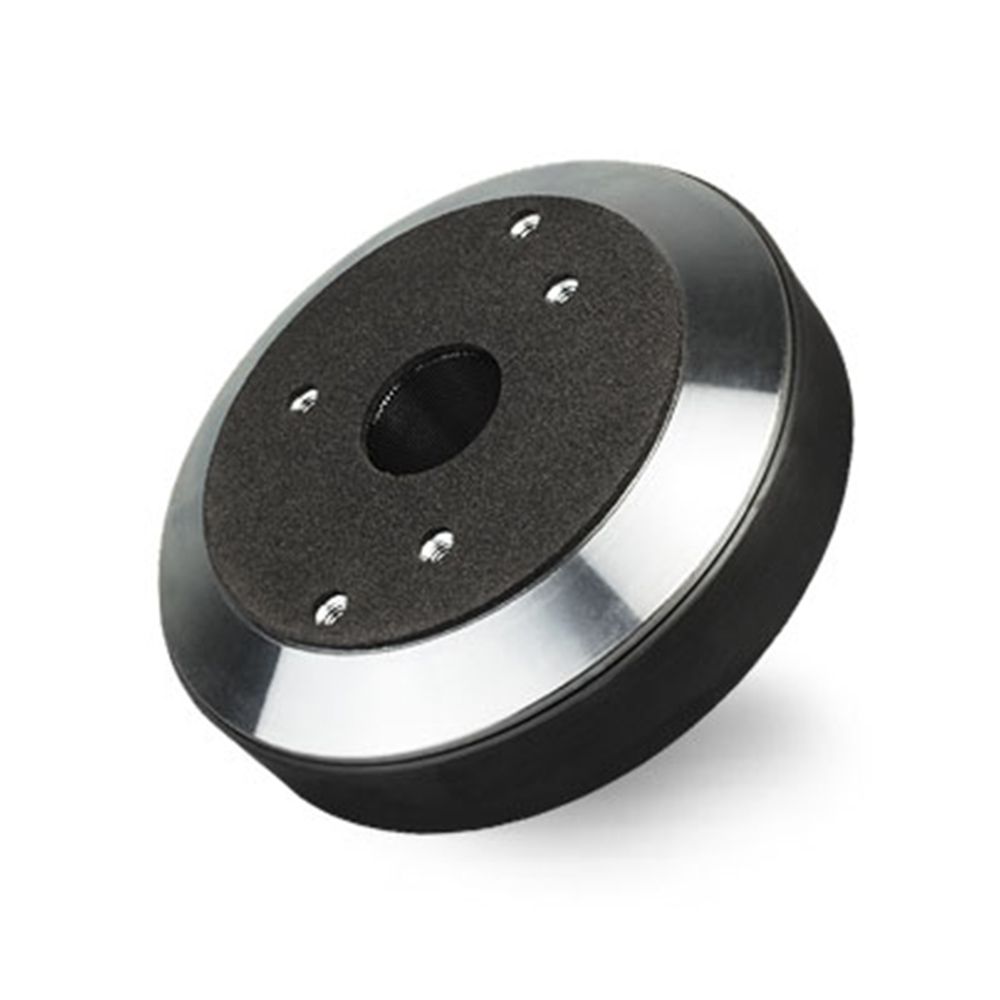

Faital Pro HF109 (16 Ohm, 1-Inch) High-Frequency Driver
RRP: $289.00 ex. GST
Key Features:
- 16 Ohm nominal impedance
- 60 W AES power handling
- 120 W maximum power handling
- 108 dB sensitivity
- 1÷20 kHz frequency range
- 1.3 kHz minimum crossover frequency
- 44 mm (1.73 in) voice coil diameter
- Ketone Polymer dome diaphragm
- Annular phase plug design
Technical Data
| Minimum Impedance | 13.2 Ohm |
| AES Power Handling | 60 W |
| Maximum Power Handling | 120 W |
| Minimum Crossover Frequency | 1.3 kHz |
| Sensitivity | 108 dB |
| Frequency Range | 1÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 2.9 mm (0.11 in) |
| Magnetic Gap Depth | 2.85 mm (0.11 in) |
| Flux Density | 1.8 T |
| Magnet | Ferrite Ring |
| Re | 10.5 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 13° Conical |
| NET Air Volume filled by HF Driver | 0.43 dm^3 (0.015 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 121 mm (4.76 in) |
| 180° Mounting Holes Diameter | 76 mm (2.99 in) |
| Depth | 55 mm (2.17 in) |
| Net Weight | 2.2 kg (4.9 lb) |
| Shipping Box | 185 x 170 x 102 mm (7.3 x 6.7 x 4.0 in) |
| Shipping Weight | 2.5 kg (5.5 lb) |
