The Faital Pro HF10AK 16Ω is a 1-inch high-frequency driver with 60 W AES power handling and 120 W maximum power handling. It has 110 dB sensitivity and a 0.8÷20 kHz frequency range, with a 1.3 kHz minimum crossover frequency. The driver uses a 44 mm voice coil, Ketone Polymer dome diaphragm, Kapton former, and Neodymium Ring magnet. It has a 25.4 mm throat diameter, 21° Conical exit angle, and mounting options with 180° and 120° hole patterns.

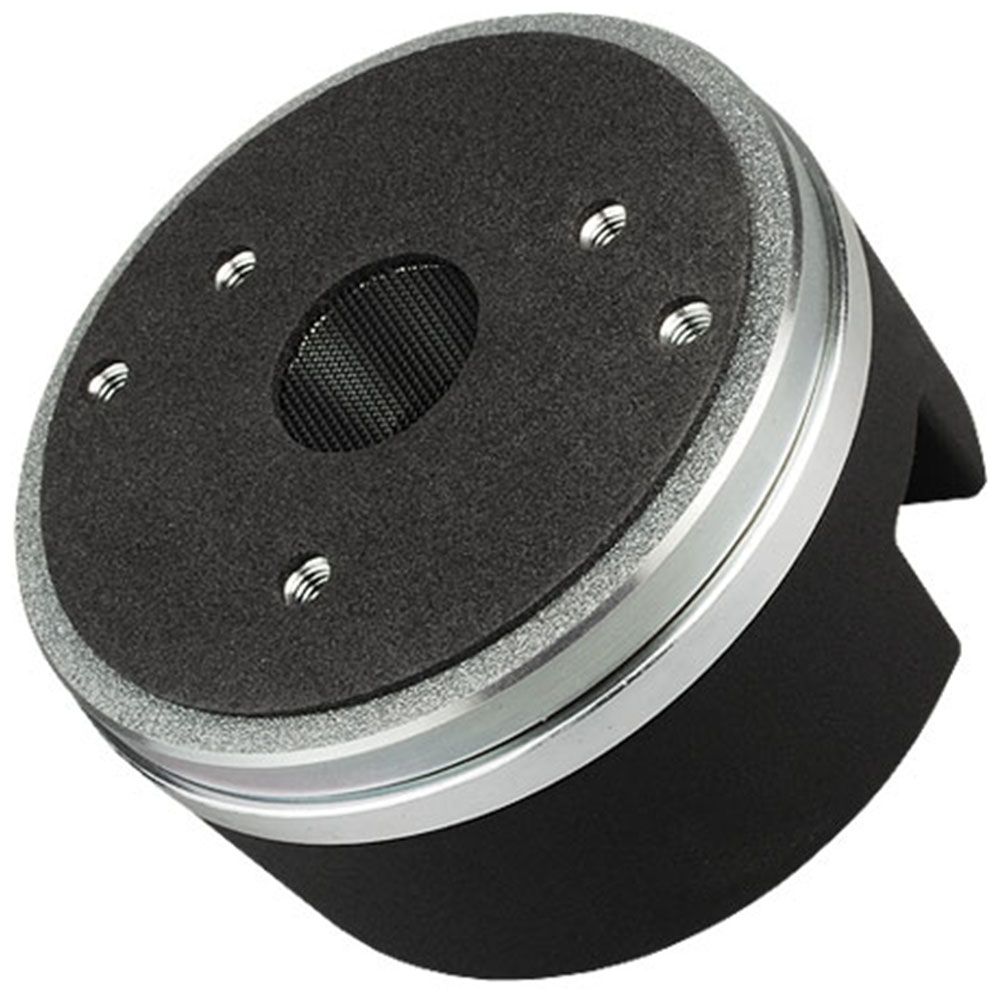

Faital Pro HF10AK (16Ω) 1-inch High-Frequency Driver
RRP: $429.00 ex. GST
Key Features:
- 60 W AES Power Handling
- 120 W Maximum Power Handling
- 110 dB Sensitivity (1W/1m)
- 0.8÷20 kHz Frequency Range
- 1.3 kHz Minimum Crossover Frequency
- Ketone Polymer Dome Diaphragm
- Neodymium Ring Magnet
- 25.4 mm (1 in) Throat Diameter
Technical Data
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 9.6 Ohm |
| AES Power Handling | 60 W |
| Maximum Power Handling | 120 W |
| Minimum Crossover Frequency | 1.3 kHz |
| Sensitivity (1W/1m) | 110 dB |
| Frequency Range | 0.8÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 2.1 mm (0.08 in) |
| Magnetic Gap Depth | 2.65 mm (0.10 in) |
| Flux Density | 1.9 T |
| Magnet | Neodymium Ring |
| Re | 8.2 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 21° Conical |
| NET Air Volume filled by HF Driver | 0.35 dm^3 (0.012 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 102 mm (4.02 in) |
| 180° Mounting Holes Diameter (2xM6) | 76 mm (2.99 in) |
| 120° Mounting Holes Diameter (3xM6) | 57 mm (2.24 in) |
| Depth | 54 mm (2.13 in) |
| Net Weight | 1.4 kg (3.1 lb) |
| Shipping Box (Single carton box) | 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in) |
| Shipping Weight | 1.5 kg (3.3 lb) |
