The Faital Pro HF10AK 8Ω 1-Inch High-Frequency Driver is an 8 Ohm high-frequency driver for loudspeaker applications. It provides 60 W AES power handling, 120 W maximum power handling, and 110 dB sensitivity at 1W/1m. The driver has a 25.4 mm (1 in) throat, a Ketone Polymer dome diaphragm, an Annular phase plug, and a 21° Conical exit angle. Mounting is supported through 180° 2xM6 or 120° 3xM6 hole patterns.

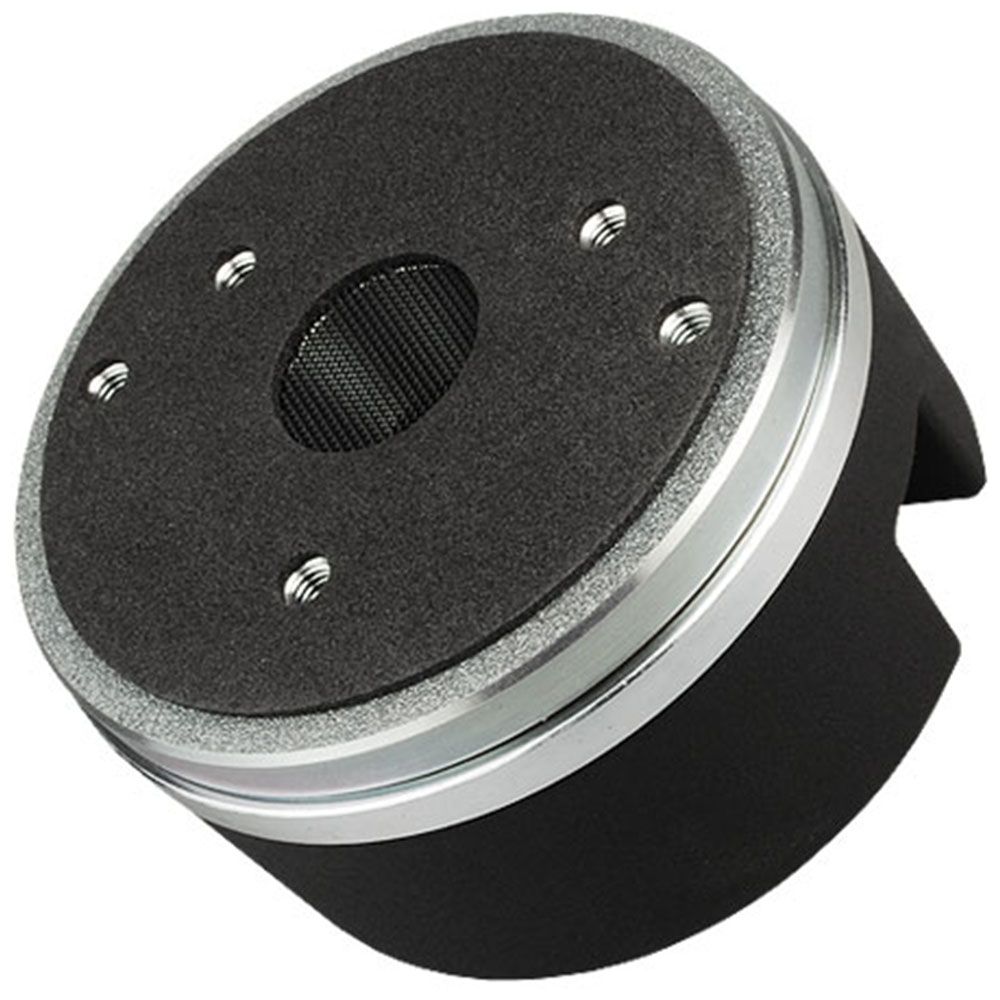

Faital Pro HF10AK (8Ω) 1-Inch High-Frequency Driver
RRP: $429.00 ex. GST
Key Features:
- 8 Ohm nominal impedance
- 60 W AES power handling
- 120 W maximum power handling
- 110 dB sensitivity (1W/1m)
- 0.8÷20 kHz frequency range
- 25.4 mm (1 in) throat diameter
- Ketone Polymer dome diaphragm
- Neodymium Ring magnet
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling | 60 W |
| Maximum Power Handling | 120 W |
| Minimum Crossover Frequency | 1.3 kHz |
| Sensitivity (1W/1m) | 110 dB |
| Frequency Range | 0.8÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 1.9 mm (0.07 in) |
| Magnetic Gap Depth | 2.65 mm (0.10 in) |
| Flux Density | 1.9 T |
| Magnet | Neodymium Ring |
| Re | 5.8 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 21° Conical |
| NET Air Volume filled by HF Driver | 0.35 dm^3 (0.012 ft^3) |
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 102 mm (4.02 in) |
| 180° Mounting Holes Diameter (2xM6) | 76 mm (2.99 in) |
| 120° Mounting Holes Diameter (3xM6) | 57 mm (2.24 in) |
| Depth | 54 mm (2.13 in) |
| Net Weight | 1.4 kg (3.1 lb) |
