The Faital Pro HF1400 is a 1.4-inch compression driver for high-frequency loudspeaker systems. It has a 100 W AES power rating above 0.9 kHz, a 200 W maximum power rating above 0.9 kHz, and a 110 dB sensitivity rating. The driver uses a titanium dome diaphragm, annular phase plug design, and neodymium ring magnet. Its 35.6 mm throat diameter, 130.5 mm overall diameter, and 55 mm depth support integration into compatible loudspeaker assemblies.

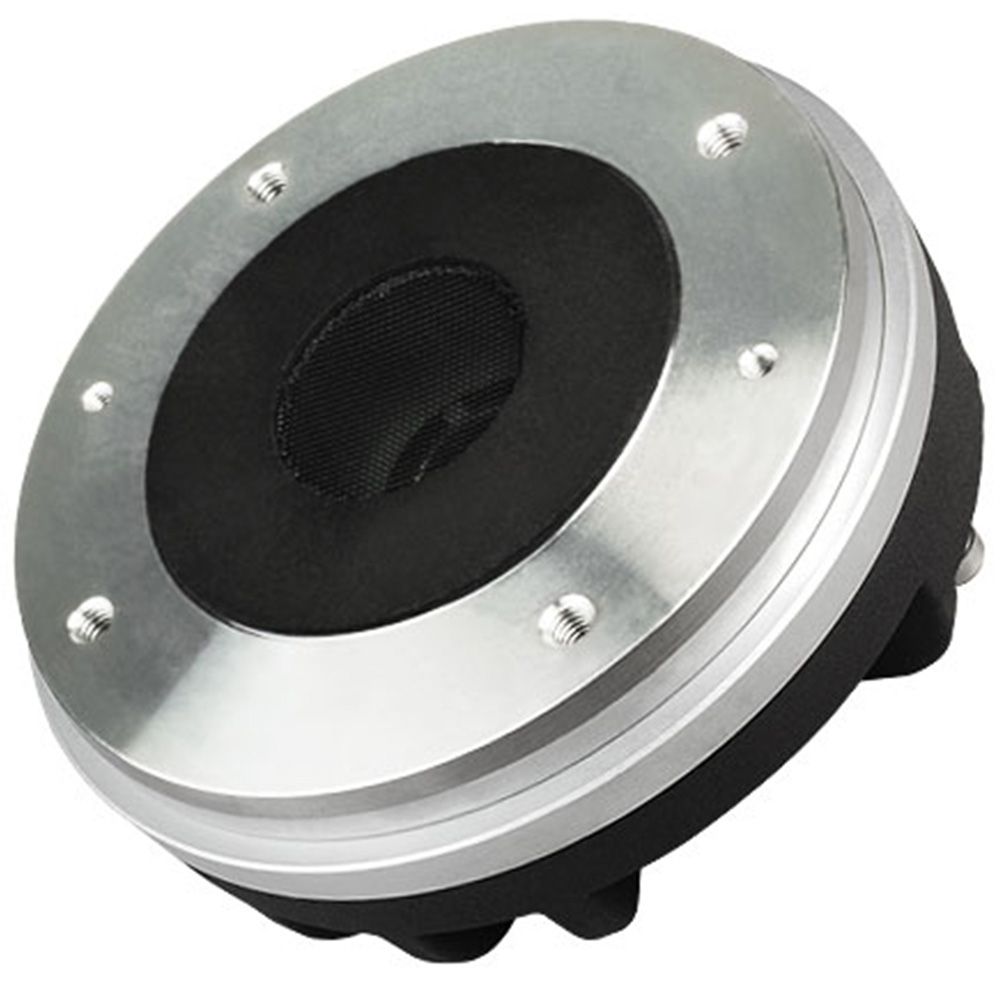

Faital Pro HF1400 (16 ohm) 1.4-inch Compression Driver
RRP: $839.00 ex. GST
Key Features:
- 100 W AES power above 0.9 kHz
- 110 dB sensitivity (1W/1m)
- 0.5÷18 kHz frequency range
- Titanium dome diaphragm
- Neodymium Ring magnet
- 35.6 mm (1.4 in) throat diameter
Technical Data
| Nominal Impedance | 16 Ohm |
| Minimum Impedance | 10.2 Ohm |
| AES Power above 0.9 kHz | 100 W |
| AES Power above 0.65 kHz | 50 W |
| Maximum Power above 0.9 kHz | 200 W |
| Maximum Power above 0.65 kHz | 100 W |
| Minimum Crossover Frequency | 0.9 kHz |
| Sensitivity (1W/1m) | 110 dB |
| Frequency Range | 0.5÷18 kHz |
| Voice Coil Diameter | 74 mm (2.91 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Titanium |
| Diaphragm Shape | Dome |
| Winding Depth | 2.5 mm (0.10 in) |
| Magnetic Gap Depth | 3.2 mm (0.13 in) |
| Flux Density | 1.95 T |
| Magnet | Neodymium Ring |
| Re | 8.2 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 12° Conical |
| NET Air Volume filled by HF Driver | 0.45 dm^3 (0.016 ft^3) |
| Throat Diameter | 35.6 mm (1.4 in) |
| Overall Diameter | 130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) | 102 mm (4.02 in) |
| Depth | 55 mm (2.17 in) |
| Net Weight | 2.5 kg (5.5 lb) |
| Shipping Box (Single carton box) | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 2.7 kg (6.0 lb) |
