The Faital Pro HF141 (16 Ohm) is a high-frequency driver designed for professional audio applications and sound reinforcement systems. It has a 35.6 mm (1.4 in) throat diameter, a titanium diaphragm and a 109 dB sensitivity. The driver provides a 0.5 to 18 kHz frequency range and a maximum power rating of 200 W above 0.9 kHz. Its minimum crossover frequency is 0.9 kHz.

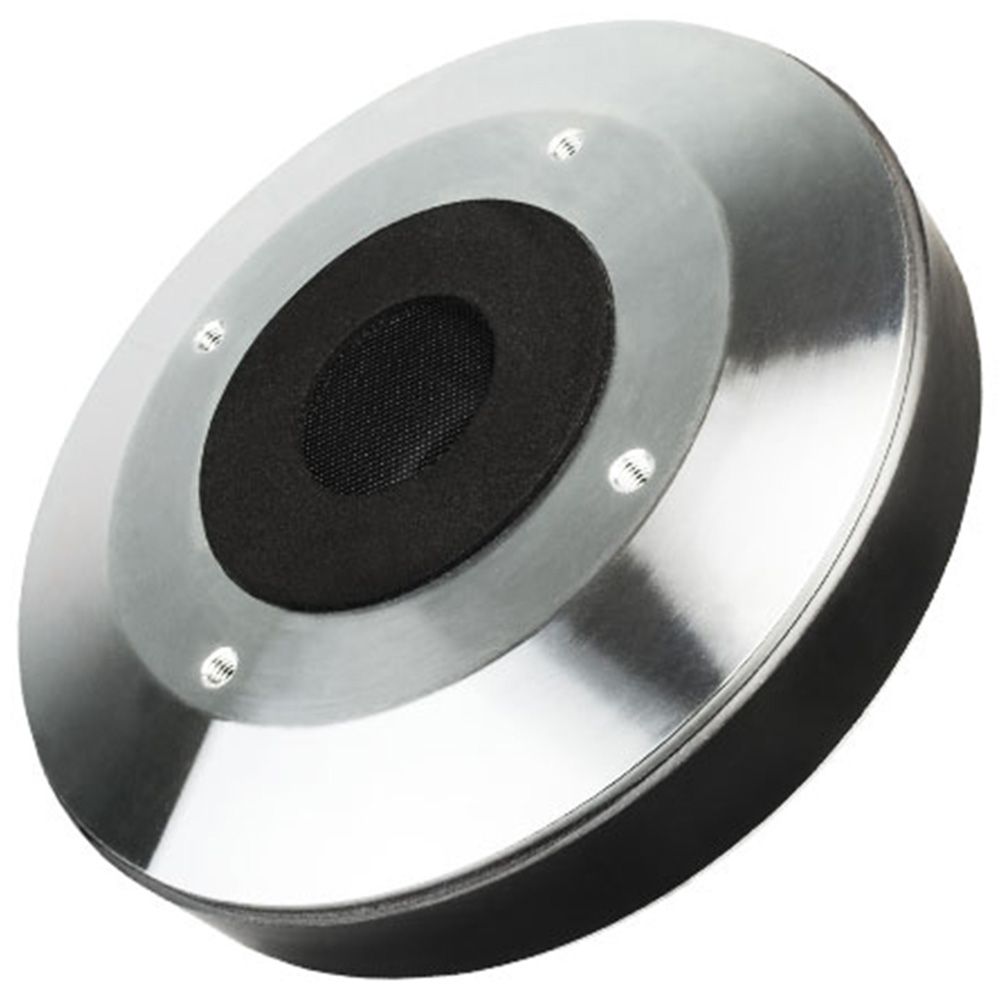

Faital Pro HF141 (16 Ohm) High-Frequency Driver
RRP: $549.00 ex. GST
Key Features:
- Nominal Impedance: 16 Ohm
- Sensitivity: 109 dB
- Frequency Range: 0.5 to 18 kHz
- Throat Diameter: 35.6 mm (1.4 in)
- Diaphragm Material: Titanium
- Maximum Power above 0.9 kHz: 200 W
- Minimum Crossover Frequency: 0.9 kHz
Technical Data
| Minimum Impedance | 9.8 Ohm |
| AES Power above 0.9 kHz | 100 W |
| AES Power above 0.65 kHz | 50 W |
| Maximum Power above 0.9 kHz | 200 W |
| Maximum Power above 0.65 kHz | 100 W |
| Minimum Crossover Frequency | 0.9 kHz |
| Sensitivity (1W/1m) | 109 dB |
| Frequency Range | 0.5÷18 kHz |
| Voice Coil Diameter | 74 mm (2.91 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Titanium |
| Diaphragm Shape | Dome |
| Winding Depth | 2.7 mm (0.11 in) |
| Magnetic Gap Depth | 3.2 mm (0.13 in) |
| Flux Density | 1.7 T |
| Magnet | Ferrite Ring |
| Re | 8.2 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 6° Conical |
| NET Air Volume filled by HF Driver | 1.05 dm^3 (0.037 ft^3) |
| Throat Diameter | 35.6 mm (1.4 in) |
| Overall Diameter | 170 mm (6.69 in) |
| 90° Mounting Holes Diameter | 102 mm (4.02 in) |
| Depth | 66 mm (2.60 in) |
| Net Weight | 4.7 kg (10.4 lb) |
| Shipping Box | 195 x 195 x 141 mm (7.7 x 7.7 x 5.6 in) |
| Shipping Weight | 4.9 kg (10.8 lb) |
| Push Terminals – 16 Ohm Version | 00744209 |
| Recone Kit – 16 Ohm Version | R0743885 |
