The Faital Pro HF142 is a professional high-frequency driver for high-performance applications. It has a 1.4-inch throat, 16 Ohm nominal impedance and a frequency range of 0.7÷18 kHz. The driver provides 110 dB sensitivity and 160 W maximum power above 0.9 kHz. It uses a neodymium magnet and a dome-shaped ketone polymer diaphragm.

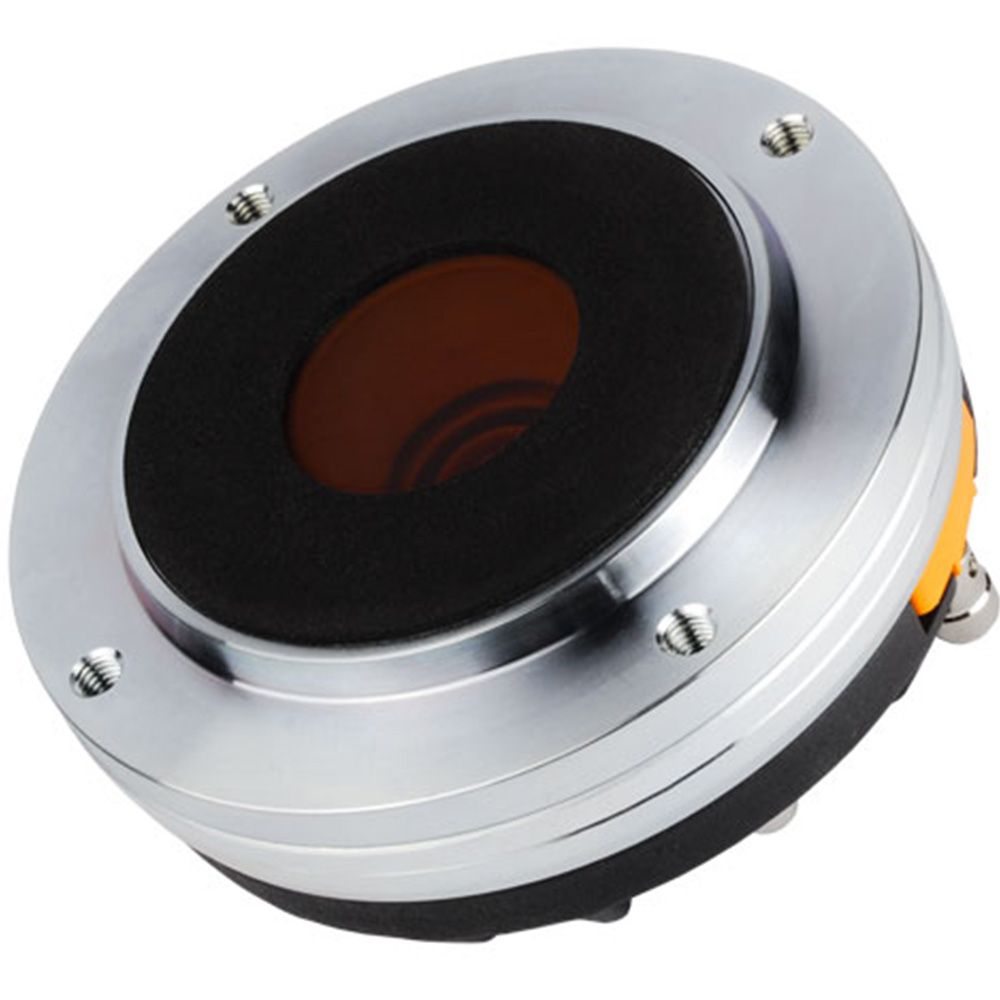

Faital Pro HF142 (16Ω) 1.4-inch Compression Driver
RRP: $569.00 ex. GST
Key Features:
- 16 Ohm nominal impedance
- 160 W maximum power above 0.9 kHz
- 110 dB sensitivity
- 0.7÷18 kHz frequency range
- 65 mm (2.56 in) voice coil diameter
- Ketone Polymer diaphragm
- Neodymium Magnet
- Dome diaphragm shape
Technical Data
| Minimum Impedance | 16.5 Ohm |
| AES Power above 0.9 kHz | 80 W |
| AES Power above 0.65 kHz | 25 W |
| Maximum Power above 0.65 kHz | 50 W |
| Minimum Crossover Frequency | 0.9 kHz |
| Frequency Range | 0.7÷18 kHz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Winding Depth | 2.4 mm (0.09 in) |
| Magnetic Gap Depth | 4.2 mm (0.17 in) |
| Flux Density | 1.8 T |
| Re | 13.4 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 29° Conical |
| NET Air Volume filled by HF Driver | 0.4 dm^3 (0.014 ft^3) |
| Throat Diameter | 35.6 mm (1.4 in) |
| Overall Diameter | 115 mm (4.53 in) |
| 90° Mounting Holes Diameter | 102 mm (4.02 in) |
| Depth | 54.5 mm (2.15 in) |
| Net Weight | 1.64 kg (3.6 lb) |
| Shipping Box Dimensions | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 1.95 kg (4.3 lb) |
