Faital Pro HF1440 is a compression driver for professional loudspeaker systems. It uses a neodymium ring magnet, 86 mm aluminum voice coil on a Kapton former, and a ketone polymer annular diaphragm. The driver is rated at 120 W AES and 240 W peak, with 109 dB sensitivity and a 0.5–20 kHz frequency range. It has a 1.4 in throat, 4×M6 mounting pattern, and 75 mm depth for integration into touring rigs and fixed installations.

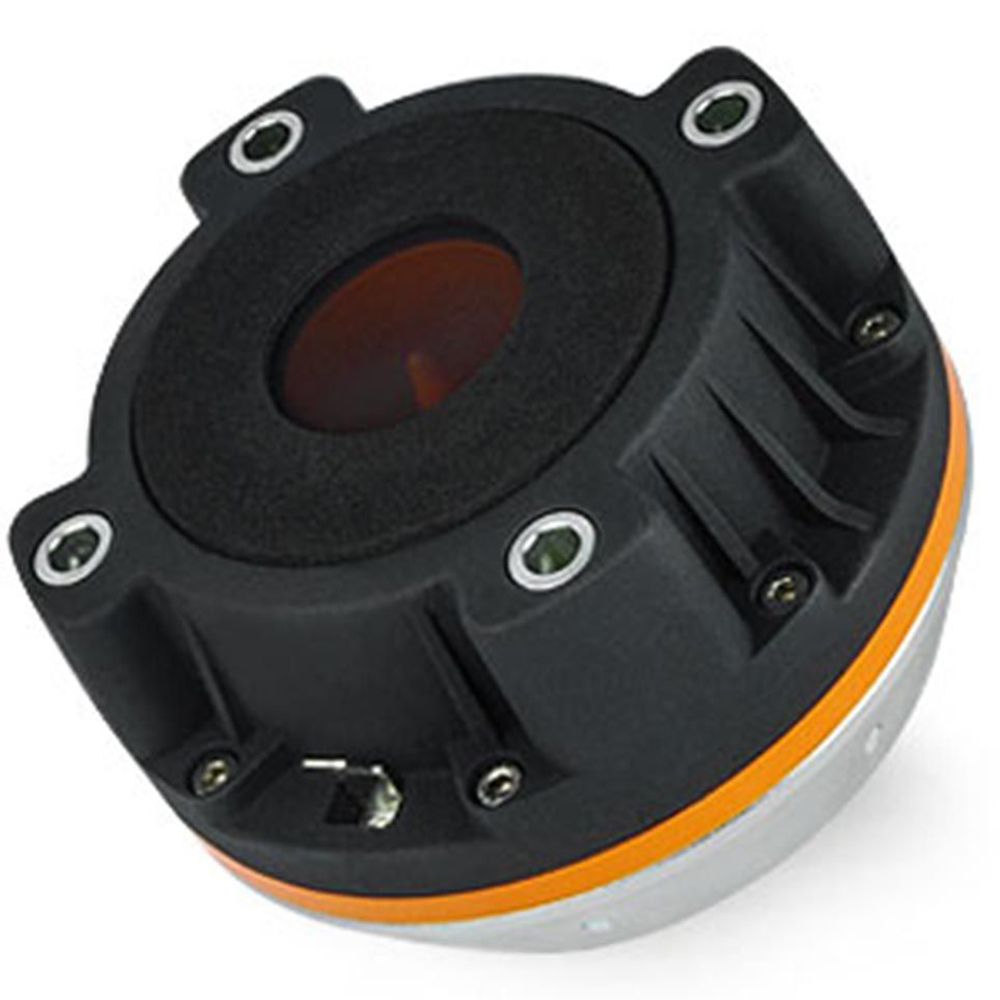

Faital Pro HF1440 1.4 Inch HF Compression Driver
RRP: $749.00 ex. GST
Key Features:
- 109 dB sensitivity for high output with low amplifier demand
- 120 W AES / 240 W peak handling with 0.5–20 kHz bandwidth
- Neodymium ring magnet and 86 mm aluminum voice coil on Kapton former
- Ketone polymer annular diaphragm and radial phase plug for low-distortion high frequencies
Technical Data
| Nominal Impedance | 8 |
| AES Power Handling | 120 W |
| Maximum Power Handling | 240 W |
| Minimum Crossover Frequency | 0.7 kHz (12 dB/octave or higher) |
| Sensitivity (1 W/1 m) | 109 dB |
| Frequency Range | 0.5–20 kHz |
| Voice Coil Diameter | 86 mm (3.4 in) |
| Voice Coil Material | Aluminum |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer (annular) |
| Magnet Type | Neodymium ring |
| Throat Diameter | 35.8 mm (1.4 in) |
| Overall Diameter | 124 mm (4.9 in) |
| Depth | 75 mm (3 in) |
| Net Weight | 2.1 kg (4.5 lb) |
