The Faital Pro HF148C (8 Ohm) is a professional high-frequency loudspeaker driver for audio applications. It has a nominal impedance of 8 Ohm, 100 W AES power above 0.9 kHz, and a sensitivity of 110 dB. The driver uses a titanium diaphragm and covers a frequency range of 0.6 to 18 kHz. Its 35.8 mm throat diameter, 15° conical exit angle, and 1.9 kg net weight suit integration into professional loudspeaker systems.

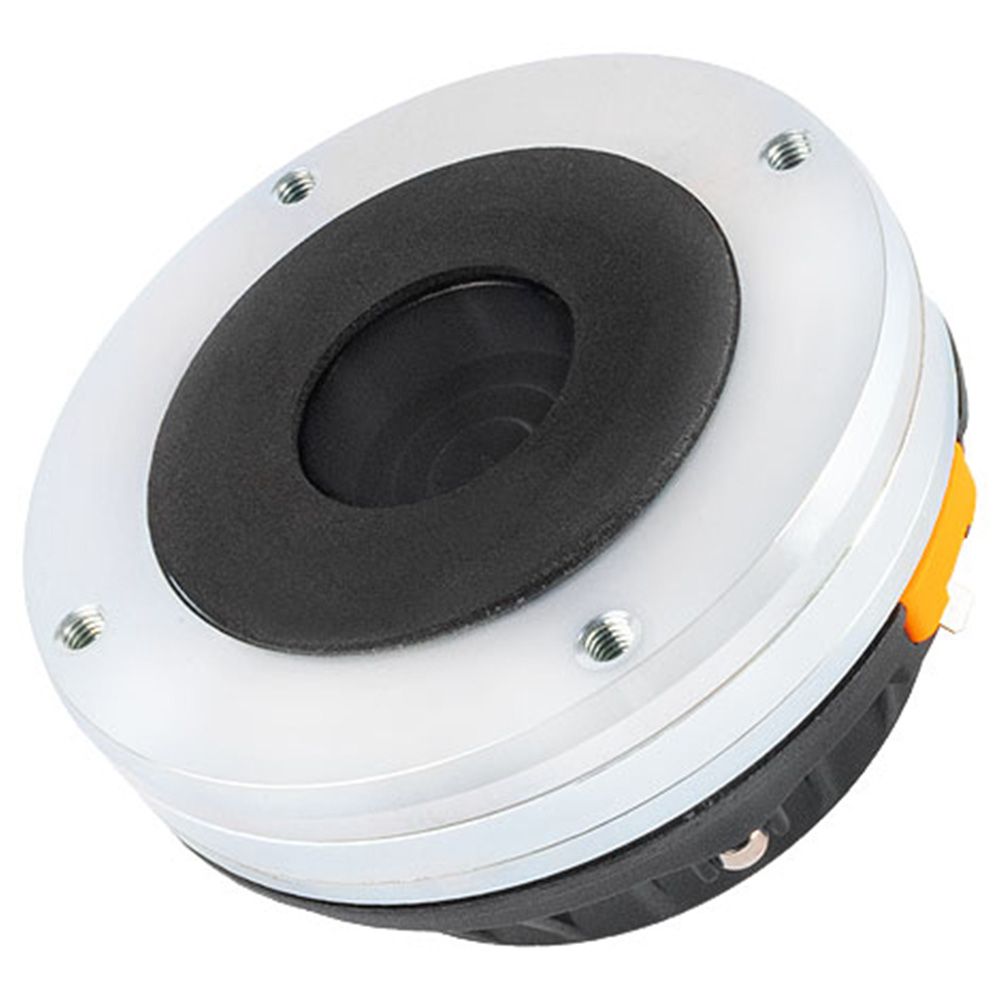

Faital Pro HF148C (8 Ohm) High-Frequency Loudspeaker Driver
RRP: $699.00 ex. GST
Key Features:
- Nominal Impedance: 8 Ohm
- AES Power above 0.9 kHz: 100 W
- Sensitivity (1W/1m): 110 dB
- Frequency Range: 0.6 to 18 kHz
- Diaphragm Material: Titanium
- Phase Plug Design: Annular
Technical Data
| Minimum Crossover Frequency | 0.9 kHz |
| AES Power above 0.65 kHz | 50 W |
| Maximum Power above 0.65 kHz | 100 W |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Winding Depth | 3.5 mm (0.14 in) |
| Magnetic Gap Depth | 4.2 mm (0.17 in) |
| Flux Density | 1.75 T |
| Re | 5.6 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 15° Conical |
| NET Air Volume filled by HF Driver | 0.47 dm^3 (0.017 ft^3) |
| Throat Diameter | 35.8 mm (1.4 in) |
| Overall Diameter | 116 mm (4.6 in) |
| 90° Mounting Holes Diameter | 102 mm (4.02 in) |
| Depth | 55 mm (2.17 in) |
| Shipping Box Dimensions | 185 x 170 x 102 mm (7.3 x 6.7 x 4.0 in) |
| Shipping Weight | 2 kg (4.4 lb) |
