The Faital Pro HF200 (16Ω) 2-Inch High-Frequency Compression Driver is a high-frequency driver with a 16 Ohm nominal impedance and 50.8 mm (2 in) throat diameter. It provides 109 dB sensitivity and a frequency range of 0.5÷18 kHz. The driver uses a titanium dome diaphragm with an annular phase plug design. AES power is 70 W above 0.9 kHz, with a minimum crossover frequency of 0.9 kHz.

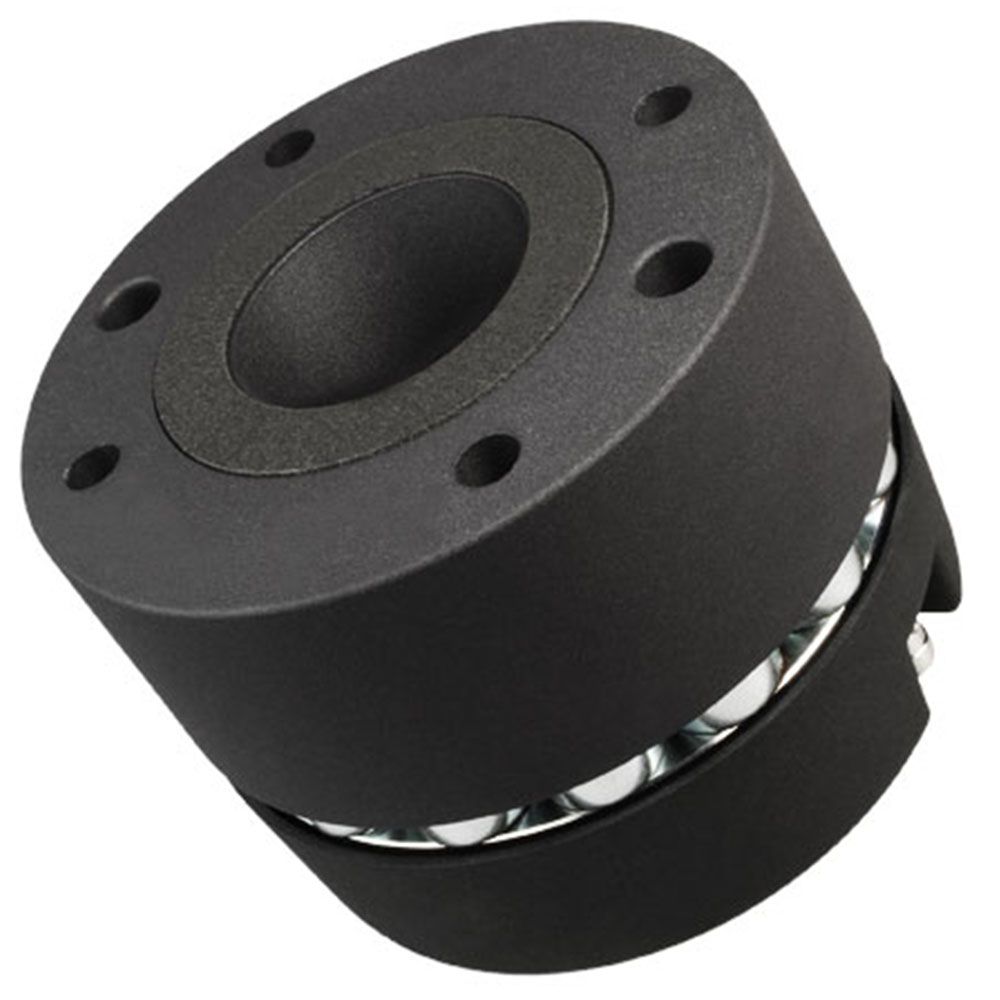

Faital Pro HF200 (16Ω) 2-Inch High-Frequency Compression Driver
RRP: $579.00 ex. GST
Key Features:
- 16 Ohm nominal impedance
- 70 W AES power above 0.9 kHz
- 109 dB sensitivity (1W/1m)
- 0.5÷18 kHz frequency range
- Titanium dome diaphragm
- 50.8 mm (2 in) throat diameter
- Annular phase plug design
Technical Data
| Throat Diameter | 50.8 mm (2 in) |
| Overall Diameter | 130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) | 102 mm (4.02 in) |
| Depth | 95 mm (3.74 in) |
| Net Weight | 3.2 kg (7.1 lb) |
| Shipping Box (Single carton box) | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 3.4 kg (7.5 lb) |
