The Faital Pro HF200 (8Ω) is a 2-inch compression driver with a nominal impedance of 8 Ohm and 70 W AES power above 0.9 kHz. It provides 109 dB sensitivity at 1W/1m and a frequency range of 0.5÷18 kHz. The driver uses a titanium dome diaphragm, annular phase plug design and 1.8 T flux density. Its 50.8 mm (2 in) throat diameter and 102 mm mounting-hole diameter support installation in compatible horn assemblies.

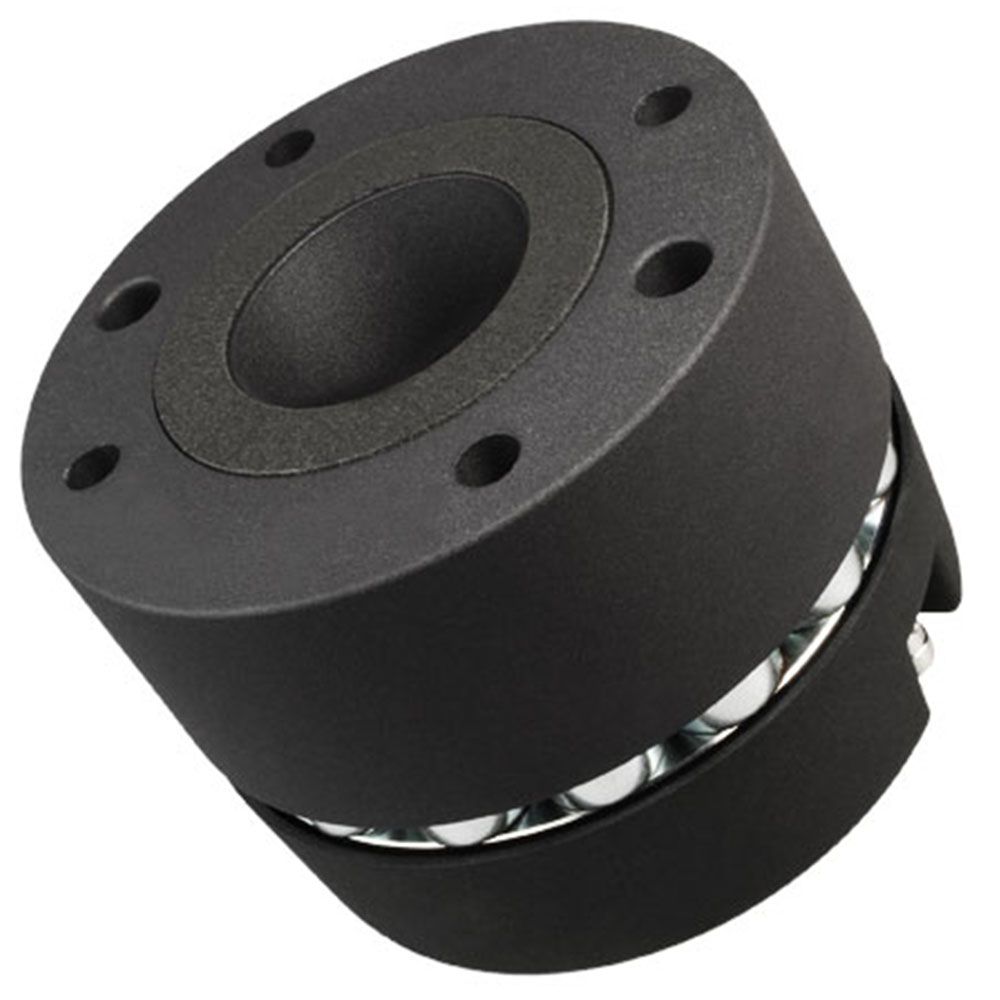

Faital Pro HF200 (8Ω) 2-Inch Compression Driver
RRP: $579.00 ex. GST
Key Features:
- 50.8 mm (2 in) throat diameter
- 70 W AES Power above 0.9 kHz
- 109 dB sensitivity (1W/1m)
- Titanium dome diaphragm
- Annular phase plug design
- Minimum crossover frequency: 0.9 kHz
Technical Data
| Throat Diameter | 50.8 mm (2 in) |
| Overall Diameter | 130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) | 102 mm (4.02 in) |
| Depth | 95 mm (3.74 in) |
| Net Weight | 3.2 kg (7.1 lb) |
| Shipping Box (Single carton box) | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 3.4 kg (7.5 lb) |
