The Faital Pro HF2000 (8Ω) 2-Inch High-Frequency Driver is an 8 Ohm high-frequency driver for loudspeaker applications. It has an AES power rating of 100 W above 0.9 kHz and a maximum power rating of 200 W above 0.9 kHz. The driver provides 110 dB sensitivity and a frequency range of 0.5÷18 kHz. It features a titanium dome diaphragm, annular phase plug design and a neodymium ring magnet.

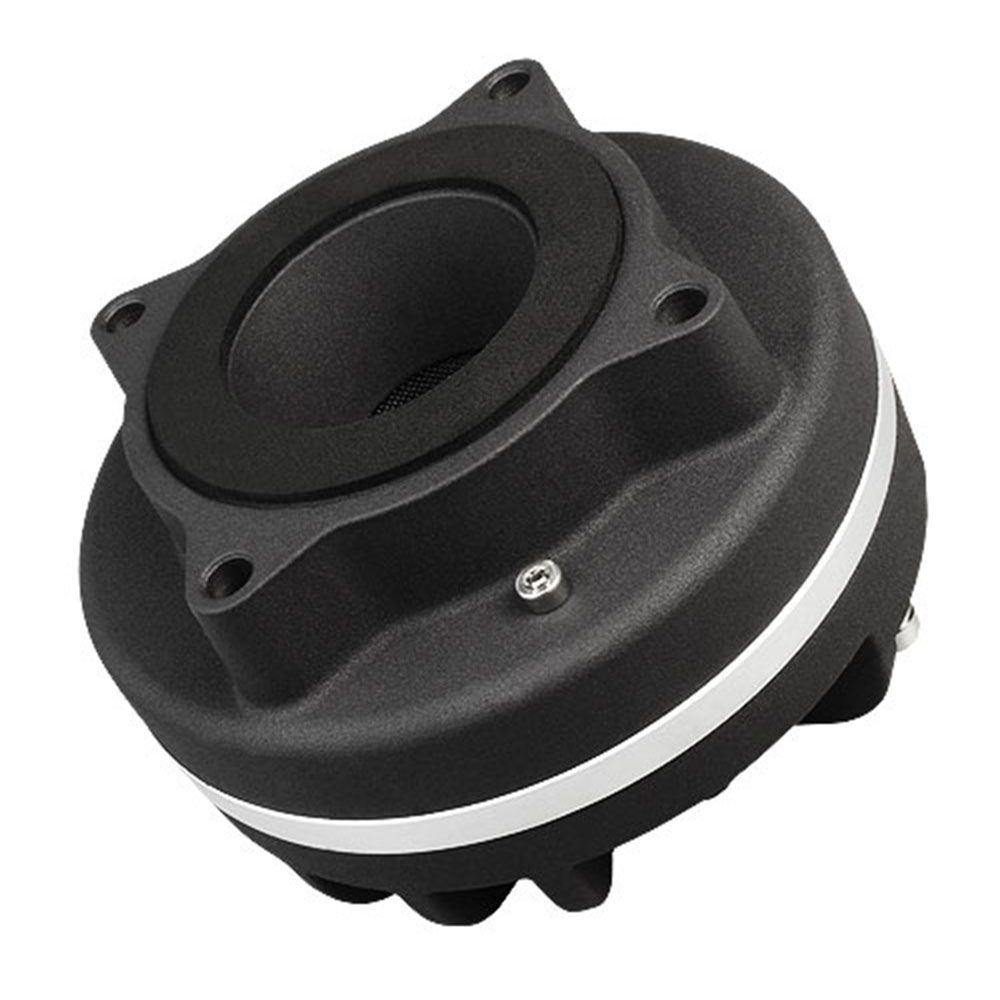

Faital Pro HF2000 (8Ω) 2-Inch High-Frequency Driver
RRP: $869.00 ex. GST
Key Features:
- Nominal Impedance: 8 Ohm
- AES Power above 0.9 kHz: 100 W
- Maximum Power above 0.9 kHz: 200 W
- Minimum Crossover Frequency: 0.9 kHz
- Sensitivity (1W/1m): 110 dB
- Frequency Range: 0.5÷18 kHz
- Throat Diameter: 50.8 mm (2 in)
- Diaphragm Material: Titanium
- Diaphragm Shape: Dome
- Magnet: Neodymium Ring
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7 Ohm |
| AES Power above 0.9 kHz (1) | 100 W |
| AES Power above 0.65 kHz | 50 W |
| Maximum Power above 0.9 kHz (2) | 200 W |
| Maximum Power above 0.65 kHz | 100 W |
| Minimum Crossover Frequency (3) | 0.9 kHz |
| Sensitivity (1W/1m) (4) | 110 dB |
| Frequency Range | 0.5÷18 kHz |
| Voice Coil Diameter | 74 mm (2.91 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Titanium |
| Diaphragm Shape | Dome |
| Winding Depth | 2.35 mm (0.09 in) |
| Magnetic Gap Depth | 3.2 mm (0.13 in) |
| Flux Density | 1.95 T |
| Magnet | Neodymium Ring |
| Re | 5.6 Ohm |
| Phase Plug Design | Annular |
| Exit Angle (5) | 30° Conical |
| NET Air Volume filled by HF Driver | 0.6 dm^3 (0.021 ft^3) |
| Throat Diameter | 50.8 mm (2 in) |
| Overall Diameter | 130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) | 102 mm (4.02 in) |
| Depth | 83.5 mm (3.29 in) |
| Net Weight | 2.75 kg (6.1 lb) |
| Shipping Box (Single carton box) | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 2.9 kg (6.4 lb) |
