The Faital Pro HF201 (16 Ohm) is a professional high-frequency driver for high-performance audio applications and sound reinforcement. It has a nominal impedance of 16 Ohm, sensitivity of 108 dB (1W/1m), and a frequency range of 0.5 to 18 kHz. The driver uses a 74 mm titanium dome diaphragm, with a minimum crossover frequency of 0.9 kHz and maximum power above 0.9 kHz of 200 W. Its 50.8 mm throat diameter, 36° conical exit angle and 4.6 kg net weight support integration into compatible loudspeaker systems.

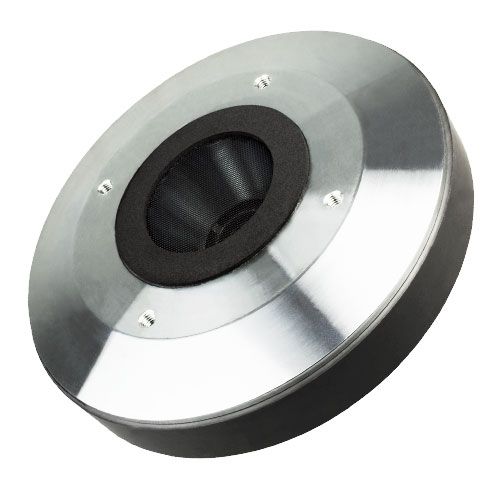

Faital Pro HF201 (16 Ohm) High-Frequency Driver
RRP: $549.00 ex. GST
Key Features:
- Nominal Impedance: 16 Ohm
- Sensitivity: 108 dB (1W/1m)
- Frequency Range: 0.5 to 18 kHz
- Voice Coil Diameter: 74 mm (2.91 in)
- Diaphragm Material: Titanium
- Maximum Power above 0.9 kHz: 200 W
- Minimum Crossover Frequency: 0.9 kHz
Technical Data
| Minimum Impedance | 10.2 Ohm |
| AES Power above 0.9 kHz | 100 W |
| AES Power above 0.65 kHz | 50 W |
| Maximum Power above 0.65 kHz | 100 W |
| Voice Coil Diameter | 74 mm (2.91 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Winding Depth | 2.7 mm (0.11 in) |
| Magnetic Gap Depth | 3.2 mm (0.13 in) |
| Flux Density | 1.7 T |
| Magnet | Ferrite Ring |
| Re | 8.2 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 36° Conical |
| NET Air Volume filled by HF Driver | 1.05 dm^3 (0.037 ft^3) |
| Throat Diameter | 50.8 mm (2 in) |
| Overall Diameter | 170 mm (6.69 in) |
| 90° Mounting Holes Diameter | 102 mm (4.02 in) |
| Depth | 66 mm (2.60 in) |
| Net Weight | 4.6 kg (10.2 lb) |
| Shipping Box | 195 x 195 x 141 mm (7.7 x 7.7 x 5.6 in) |
| Shipping Weight | 4.8 kg (10.6 lb) |
