The Faital Pro HF204 (8Ω) High-Frequency Driver is a 2-inch, 8 Ohm high-frequency driver for loudspeaker applications. It provides 108 dB sensitivity and an AES power rating of 80 W above 0.9 kHz. The driver has a 0.5÷18 kHz frequency range, a 65 mm (2.56 in) voice coil and a 0.9 kHz minimum crossover frequency. Its construction includes a Ketone Polymer dome diaphragm, Annular phase plug design and Neodymium Slug Crown magnet.

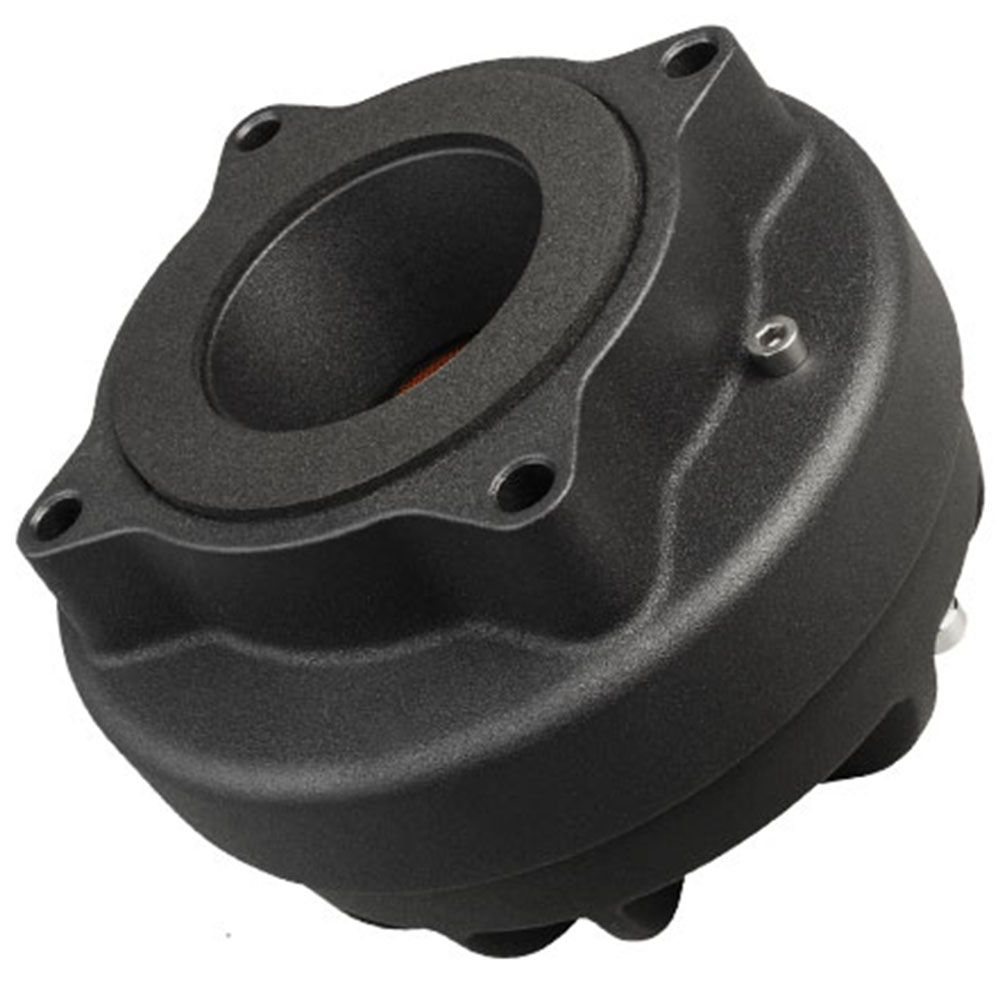

Faital Pro HF204 (8Ω) High-Frequency Driver
RRP: $549.00 ex. GST
Key Features:
- 8 Ohm nominal impedance
- 80 W AES power above 0.9 kHz
- 108 dB sensitivity (1W/1m)
- 0.5÷18 kHz frequency range
- 65 mm (2.56 in) voice coil diameter
- Ketone Polymer dome diaphragm
- Neodymium Slug Crown magnet
- 50.8 mm (2 in) throat diameter
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7.2 Ohm |
| AES Power above 0.9 kHz | 80 W |
| AES Power above 0.65 kHz | 40 W |
| Maximum Power above 0.9 kHz | 160 W |
| Maximum Power above 0.65 kHz | 80 W |
| Minimum Crossover Frequency | 0.9 kHz |
| Sensitivity (1W/1m) | 108 dB |
| Frequency Range | 0.5÷18 kHz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 3 mm (0.12 in) |
| Magnetic Gap Depth | 4.2 mm (0.17 in) |
| Flux Density | 1.7 T |
| Magnet | Neodymium Slug Crown |
| Re | 5.5 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 30° Conical |
| NET Air Volume filled by HF Driver | 0.75 dm^3 (0.026 ft^3) |
| Throat Diameter | 50.8 mm (2 in) |
| Overall Diameter | 130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) | 102 mm (4.02 in) |
| Depth | 91.5 mm (3.60 in) |
| Net Weight | 2.3 kg (5.1 lb) |
| Shipping Box (Single carton box) | 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 2.6 kg (5.7 lb) |
