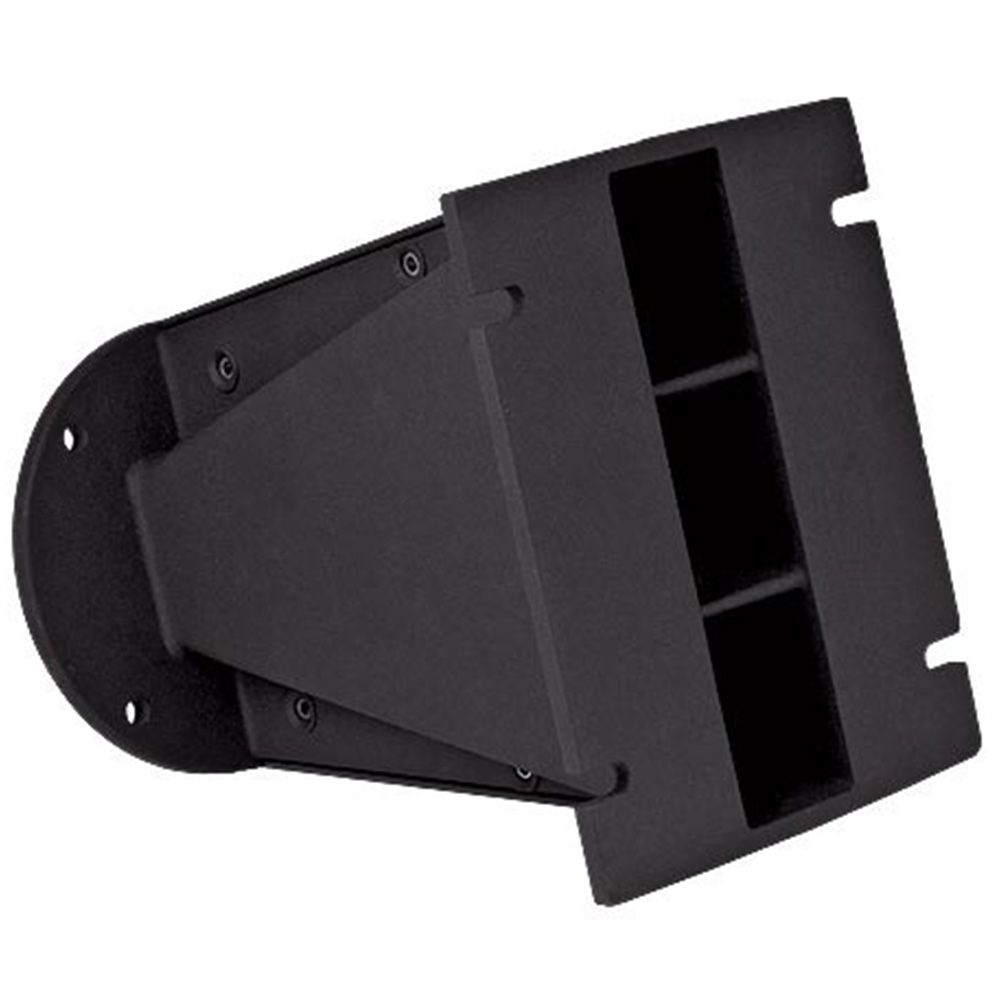

The Faital Pro WG141 1.4″ Plane Wave Guide is an aluminium plane wave guide for use with compatible HF horn applications. It has a 36.5 mm (1.4 in) throat diameter and operates across a 0.8÷20 kHz frequency range. The recommended crossover frequency is 0.8 kHz, with 110° horizontal nominal coverage (-6dB). The guide measures 163 mm (6.4 in) high at the mouth, 130 mm (5.1 in) wide, and 200 mm (7.9 in) deep.
Faital Pro WG141 1.4″ Plane Wave Guide
RRP: $239.00 ex. GST
Key Features:
- Plane Wave Guide
- 36.5 mm (1.4 in) throat diameter
- 0.8÷20 kHz frequency range
- 0.8 kHz recommended crossover frequency
- 110° horizontal nominal coverage (-6dB)
- Al material
Technical Data
| Type | Plane Wave Guide |
| Throat Diameter | 36.5 mm (1.4 in) |
| Frequency Range | 0.8÷20 kHz |
| Recommended Crossover Freq. | 0.8 kHz |
| Horizontal Nominal Coverage (-6dB) | 110° |
| Material | Al |
| Mouth Height | 163 mm (6.4 in) |
| Mouth Width | 130 mm (5.1 in) |
| Depth | 200 mm (7.9 in) |
| Mouth Mounting Holes (4x) | 7 mm (0.28 in) |
| Net Weight | 1.4 kg (3.1 lb) |
| Shipping Box | 232 x 179 x 142 mm (9.1 x 7.0 x 5.6 in) |
| Shipping Weight | 1.65 kg (3.6 lb) |
| NET Air Volume filled by HF Horn | 1.0 dm^3 (0.035 ft^3) |
