The Chamsys GeNetix 10Scene Gateway acts as the essential bridge between 10Scene wall plates and ChamSys MagicQ or QuickQ lighting systems. It converts 10Scene control signals into the ChamSys remote protocol, enabling smooth and intuitive integration across your lighting network. Designed for scalability, the gateway features two 10Scene ports, supporting up to 20 wall plates per unit. This allows flexible installation layouts, giving users accessible, hands-on control throughout a venue — from performance spaces to architectural lighting environments. For added convenience, the 10Scene Gateway can be powered either through a standard external power supply or via Power over Ethernet (PoE), ensuring simple and adaptable setup options.
GeNetix 10Scene GeNetix 10Scene Gateway QuickQ/MagicQ Network Adapter
RRP: $999.00 ex. GST
Key Features:
- Interface between 10Scene wall plates and MagicQ/QuickQ systems
- Converts 10Scene protocol to ChamSys Remote Protocol

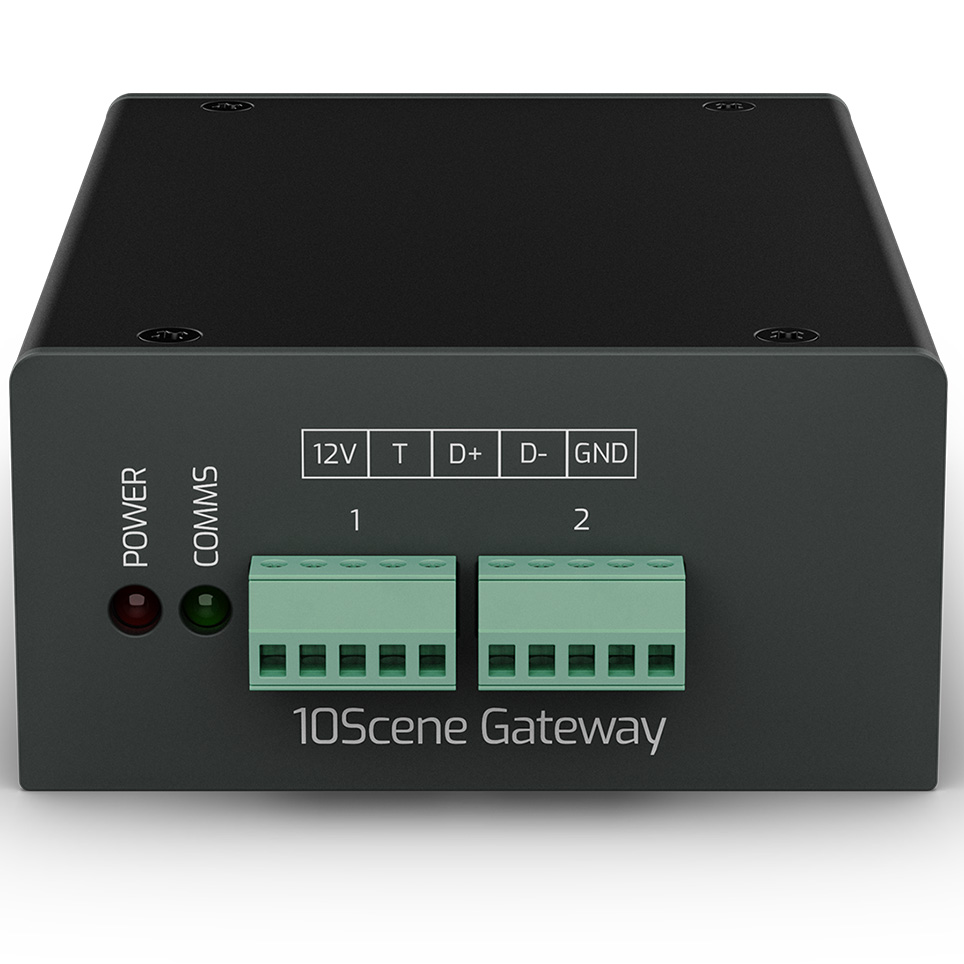

- Two 10Scene ports supporting up to 20 wall plates
- Powered via external PSU or Power-over-Ethernet (PoE)
- Compact design with DIN rail mount capability
- Ideal for professional installations and architectural lighting control
- Compatible with multiple PoE standards (802.3af/at/bt)
Technical Data
| 10Scene Ports: | 2 |
|---|---|
| Max No. of Wall Plates Supported: | 20 |
| Contact Trigger Inputs: | 2 |
| Network Port: | 1 |
| Unlocks MagicQ PC from Demo Mode: | No |
| PoE Voltage Supported: | 37–57V |
| PoE Standards: | 802.3af Type 1, 802.3at Type 2, 802.3bt Type 3 & 4 |

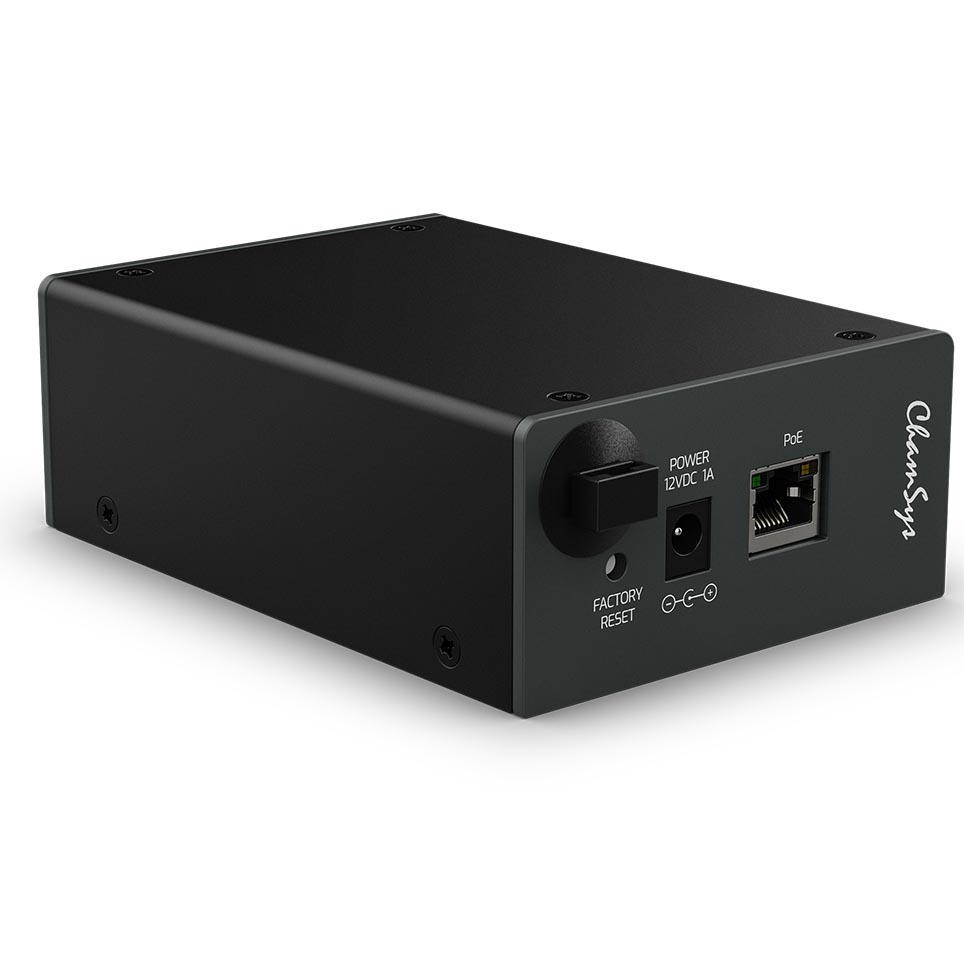

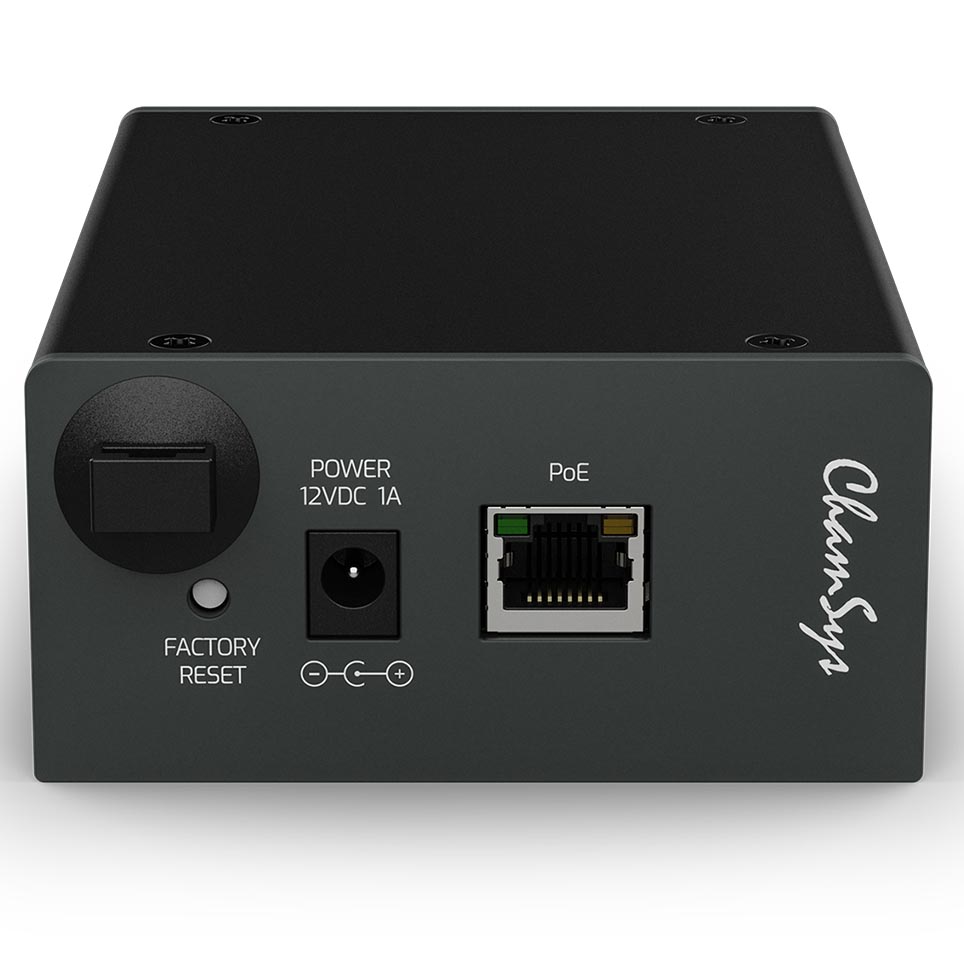

| Power Supply: | 12V DC (included) or PoE |
| Mounting: | DIN rail mountable |
| Width: | 133 mm (5.3 in) |
| Depth: | 88 mm (3.4 in) |
| Height: | 45 mm (1.7 in) |
| Weight: | 0.175 kg (0.3 lb) |
| Included Accessories: | 12V power supply |
