The Chamsys GeNetix GD10 is a 10-port RDM E1.20-compliant DMX splitter for installations and live events. It provides two 5-pin DMX inputs and ten 5-pin opto-isolated DMX outputs. Selectable operating modes support either 1 input to 10 outputs or 2 inputs to 5 outputs. An RDM enable/disable option can strip RDM data and retime the DMX signal, while the unit uses a Neutrik powerCON TRUE1 mains input.

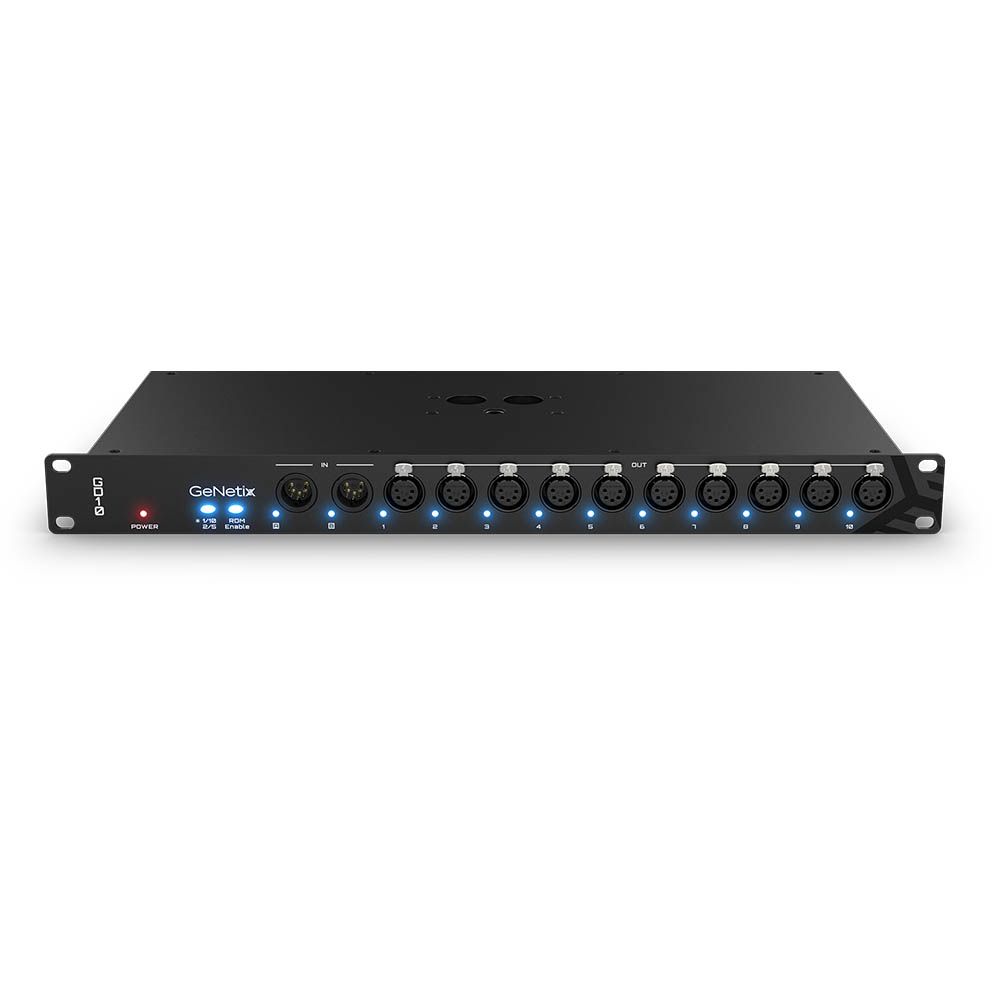

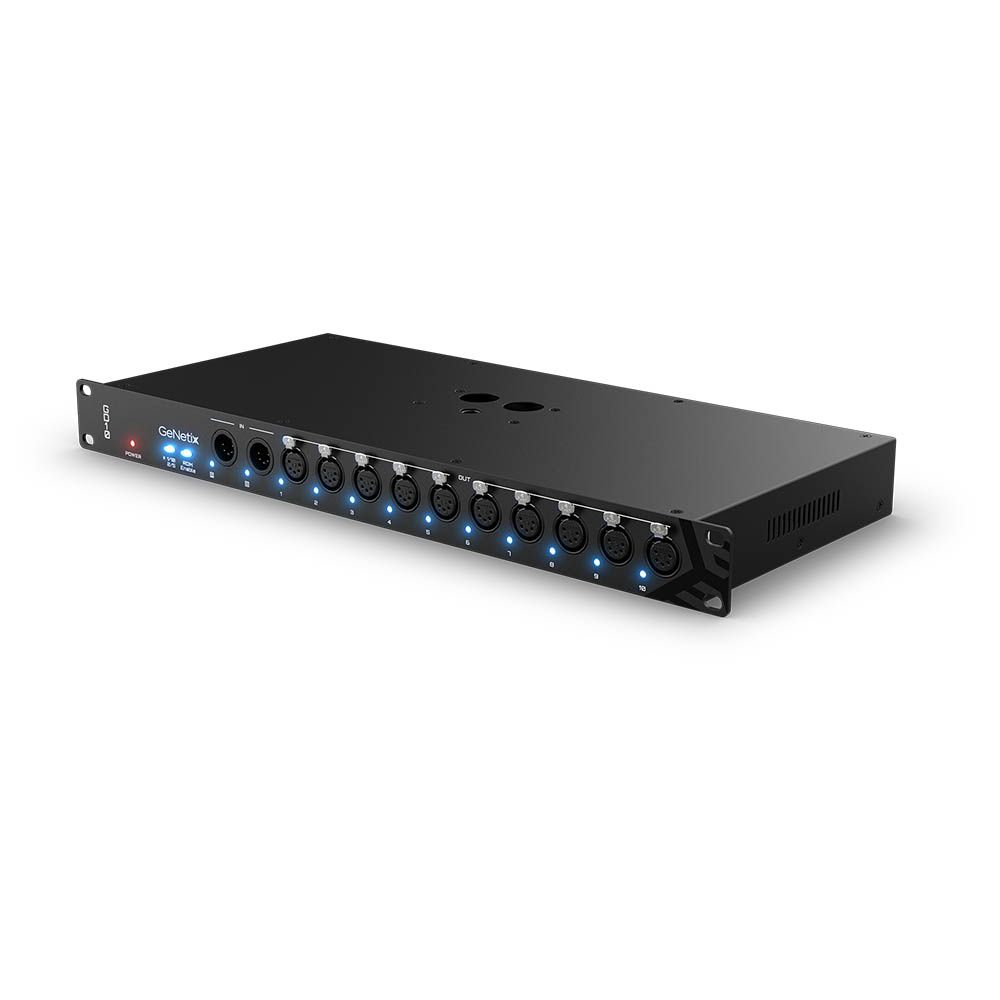

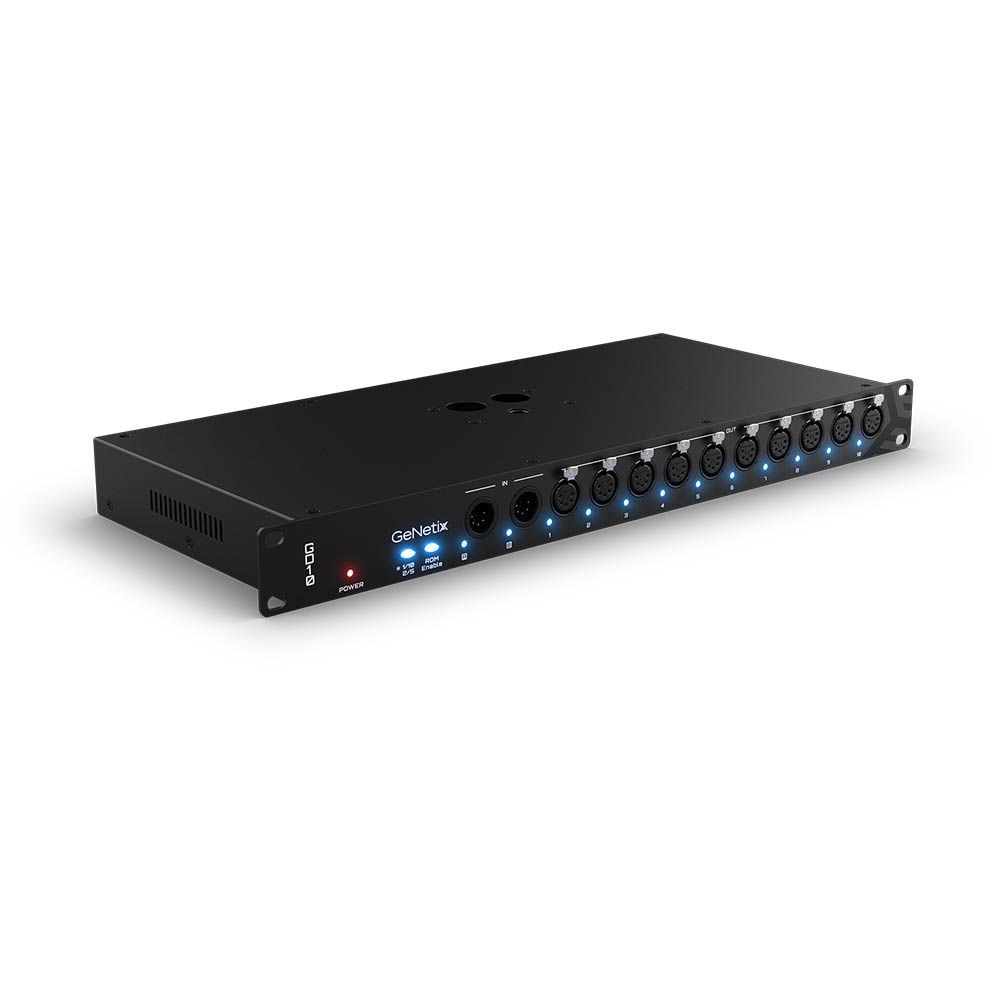

Chamsys GeNetix GD10 10-Port DMX Splitter
RRP: $1,199.00 ex. GST
Key Features:
- 10 Port RDM E1.20 Compliant DMX Splitter
- 2 Input / 10 Output DMX Splitter
- 1 In to 10 Output or 2 In to 5 Output Mode
- 5 Pin opto-isolated DMX Output Ports: 10
- RDM Enable/Disable Option: Yes
- 19” 1U Rack Mountable
Technical Data
| 5 Pin opto-isolated DMX Output Ports | 10 |
| 5 Pin DMX Input Ports | 2 |
| RDM Enable/Disable Option | Yes |
| M12 Clamp Fixing | Yes |

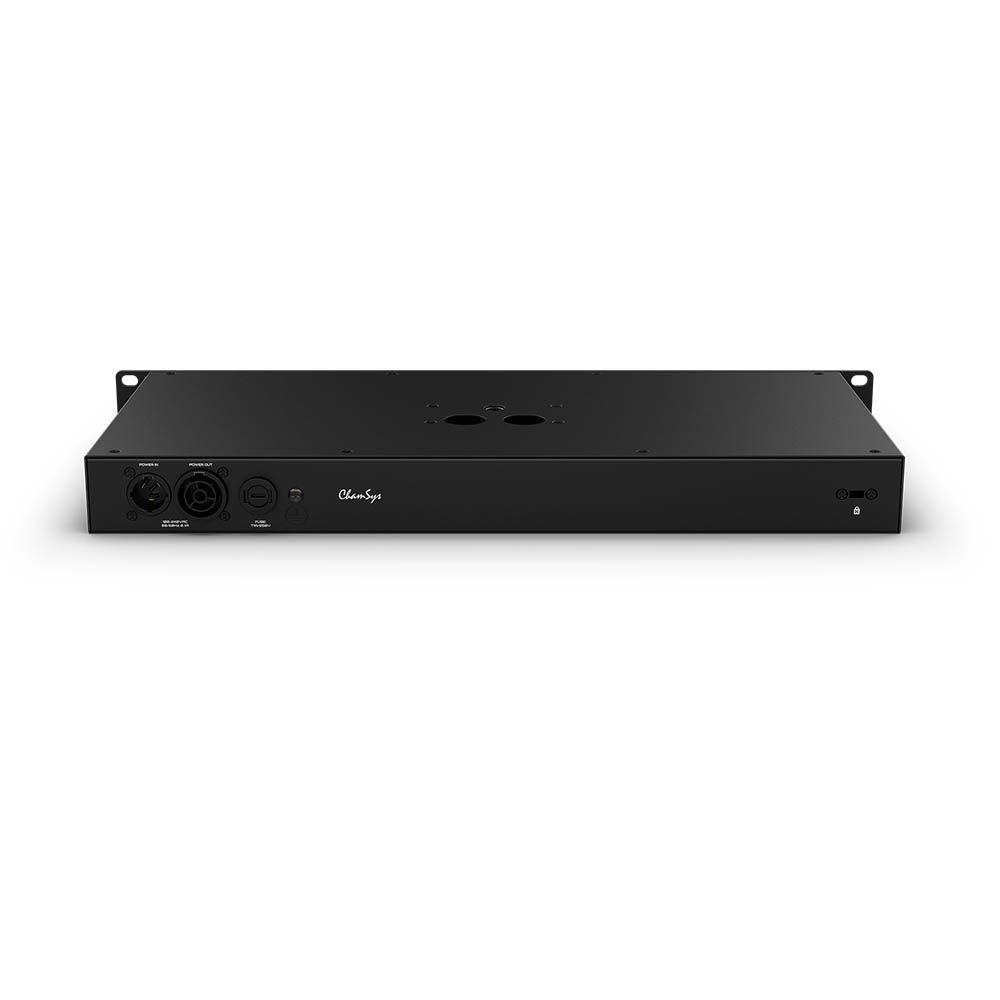

| Power Input | Neutrik powerCON TRUE1 110 to 240 VAC |
| Max Power Consumption (mains) | 6.5w |
| RDM E1.20 Compliant | Yes |
| Included Accessories | Neutrik powerCON TRUE1 Power Cable: 1 |
| Width | 480mm (18.9 inches) |
| Depth | 218mm (8.59 inches) |
| Height | 44.4mm (1.75 inches) |
| Weight | 2.75 kg (6.06 lb) |
