The Laserworld CS-1000RGB MK4 is a compact yet powerful RGB show laser projector designed for clubs, DJs, live productions and permanent installations. Featuring a 1 W analog-modulated diode laser engine, it delivers vivid colour mixing with crisp beam effects, aerial projections and smooth graphics. Built-in Auto, Sound-to-Light, DMX and Master-Slave modes provide flexible operation for beginners and professionals alike, while the ILDA interface unlocks advanced custom laser programming. Around 130 preloaded effects including tunnels, waves and layered animations are ready straight out of the box. Precision 25 kpps scanners ensure fluid graphics performance, while the rugged lightweight housing with 360° mounting bracket makes setup easy for touring and fixed applications. Additional safety features including a key switch, interlock connector and beam masking plate provide reliable operation in professional environments.

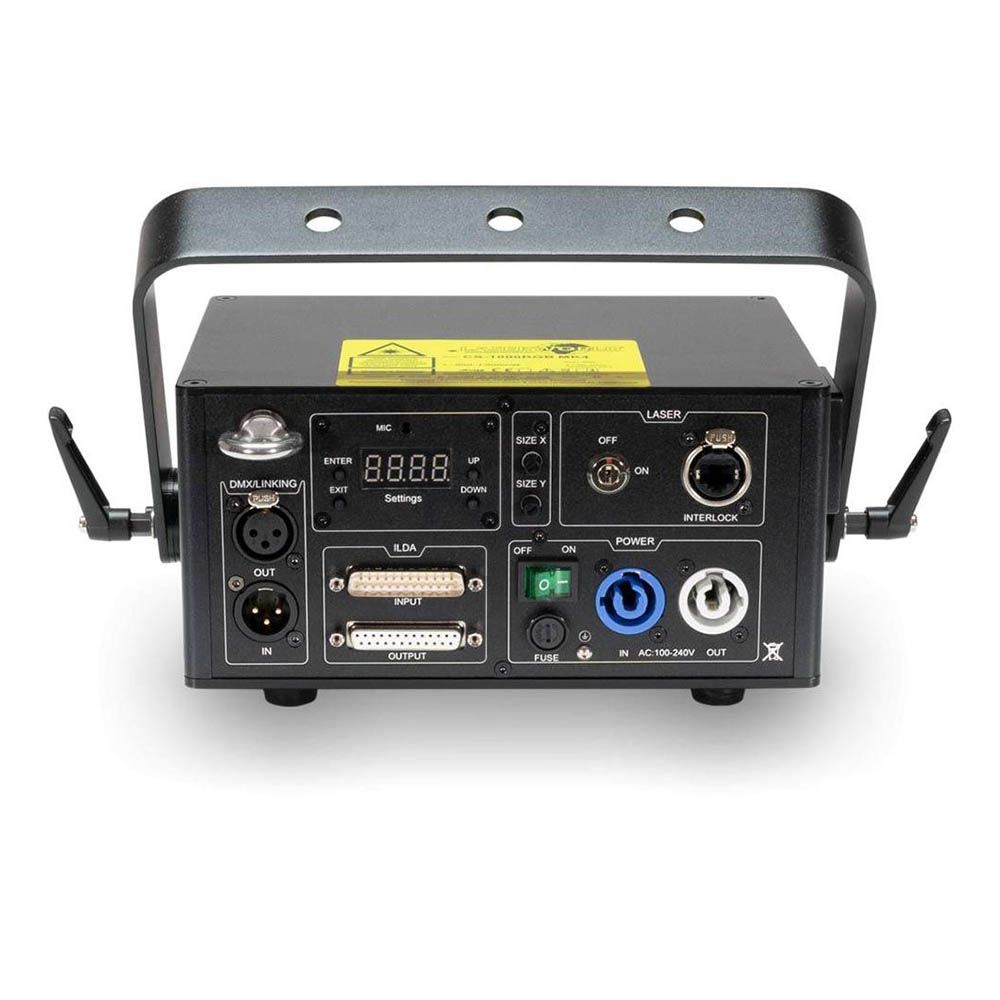

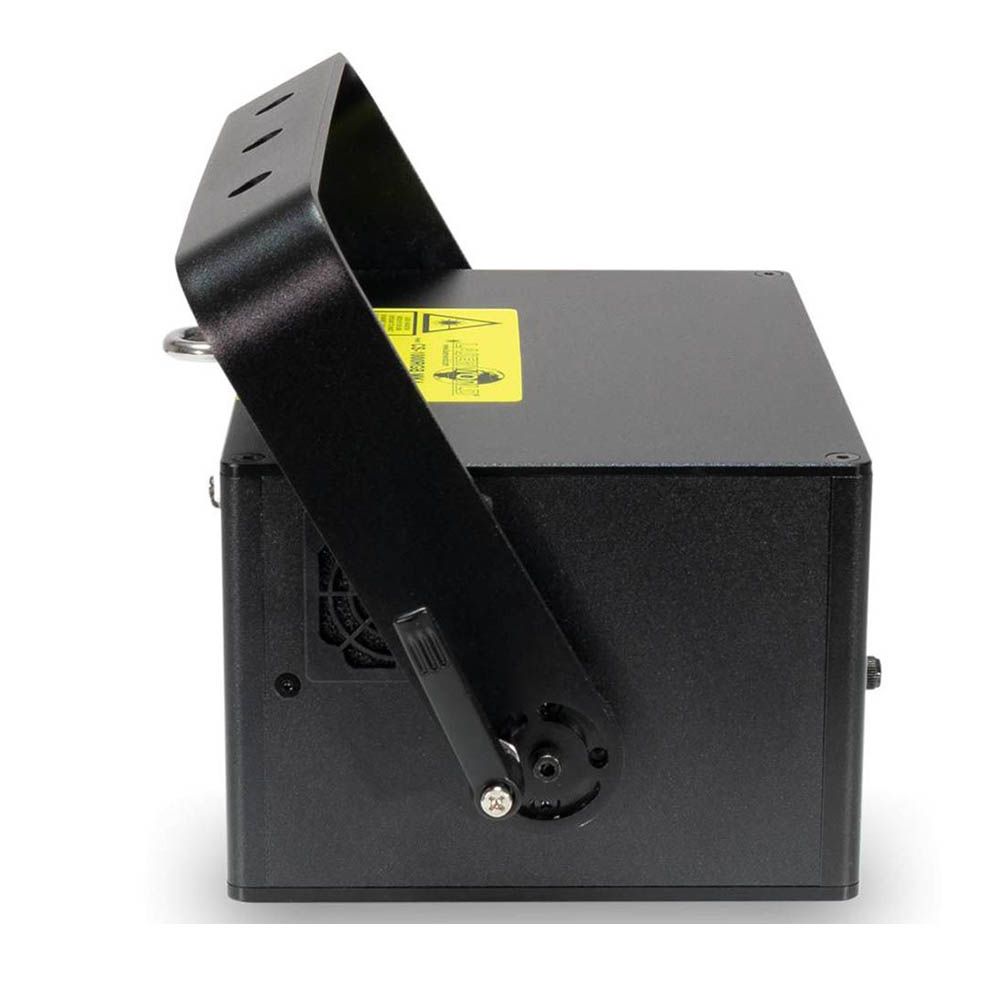

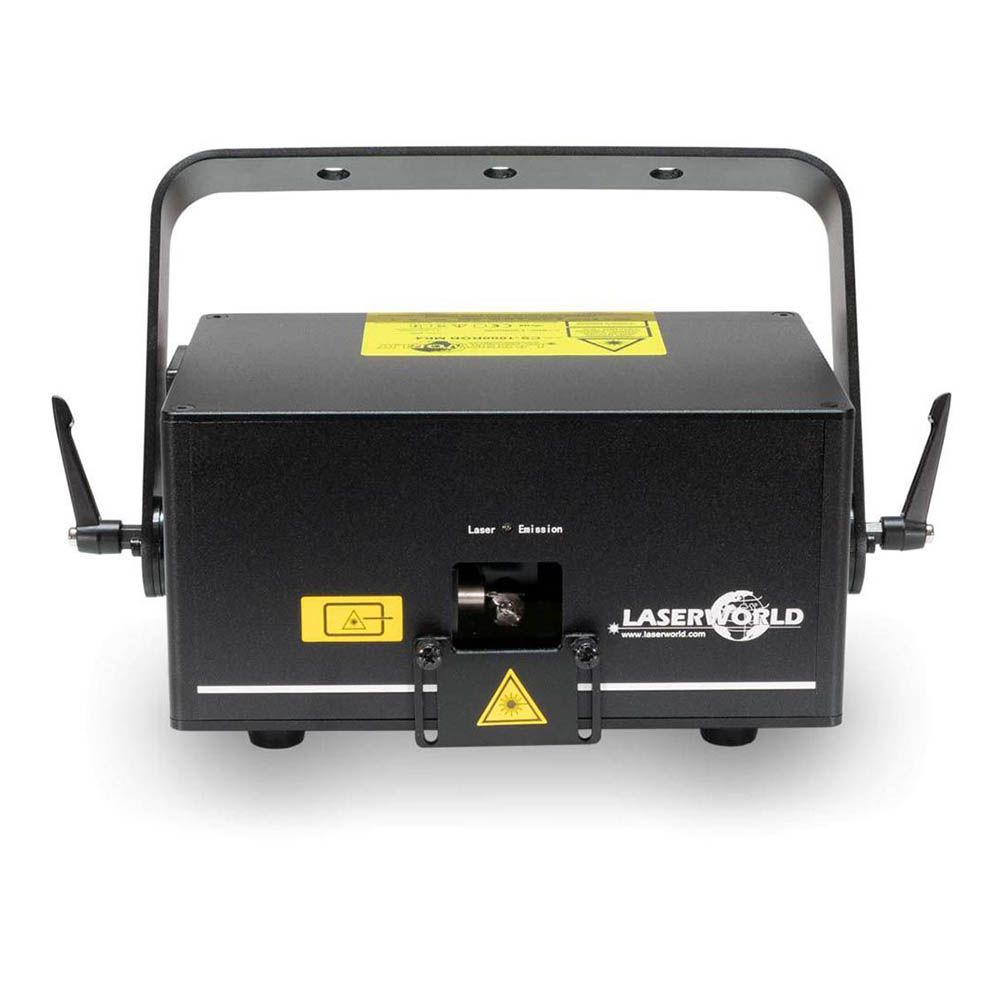

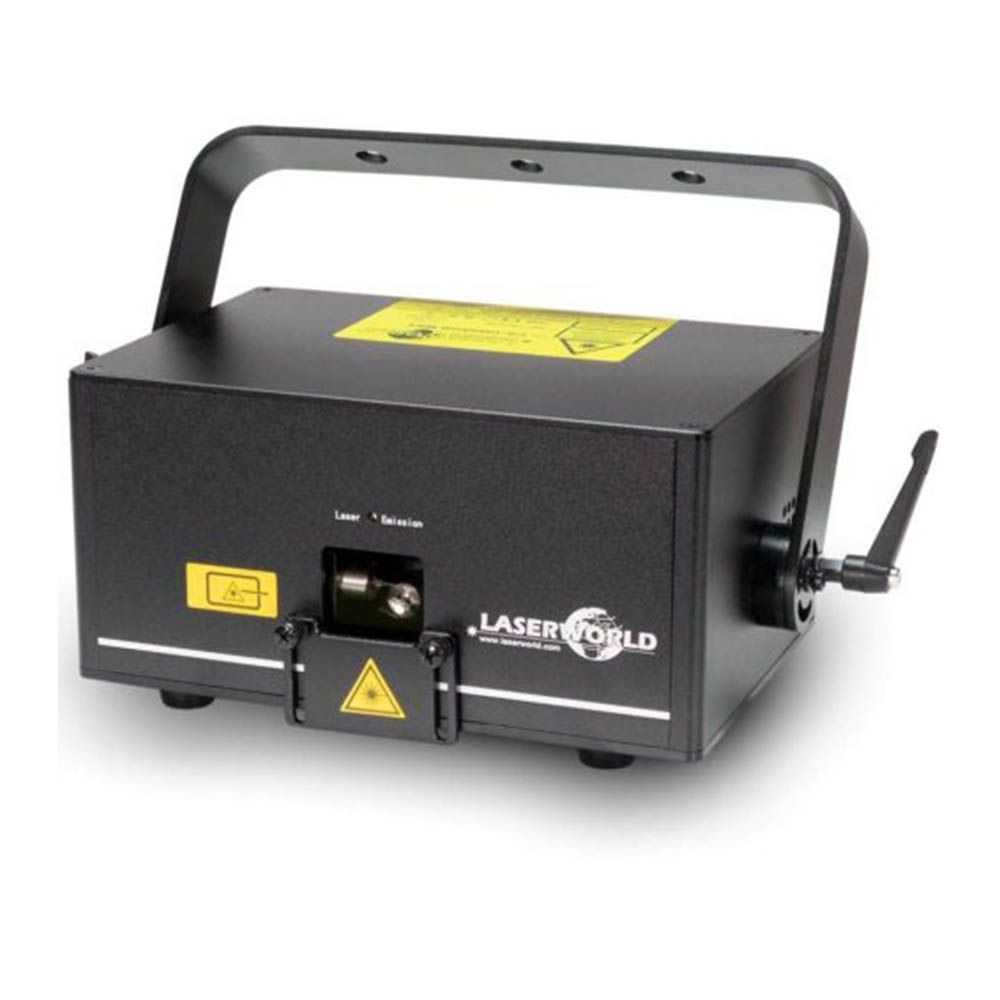

Laserworld CS-1000RGB MK4 Show Laser Projector
RRP: $799.00 ex. GST
Key Features:
- 1 W analog-modulated RGB diode laser with vivid colour mixing
- 130 built-in patterns for instant laser shows
- ILDA interface for custom graphics, logos and animations
- DMX, Auto, Sound-to-Light and Master-Slave operation modes
- Precision 25 kpps scanners for smooth graphics projection
- Tight beam specifications for crisp aerial effects and projections
- Compact rugged housing with integrated 360° mounting bracket
- Separate cooling-fin compartment reduces dust contamination
- Includes safety key switch, interlock connector and beam masking plate
- Ideal for clubs, DJs, live productions and fixed installations
Technical Data
| Total Output Power | 1000 mW |
|---|---|
| Red Laser Power / Wavelength | 200 mW / 650 nm |
| Green Laser Power / Wavelength | 100 mW / 520 nm |
| Blue Laser Power / Wavelength | 700 mW / 450 nm |
| Beam Specifications | ca. 4 mm / 1.1 mrad |
| Scanner Speed | 25 kpps @ 8° |
| Laser Source | Pure diode, analog modulation |
| Laser Class | Class 4 |
| Operation Modes | Stand-alone, Sound-to-Light, DMX, ILDA, Master-Slave |
| Built-in Patterns | Approx. 130 presets |
| Power Supply | 85–250 V AC, 50/60 Hz |
| Power Consumption | 20 W |
| Dimensions (W × D × H) | 220 × 150 × 116 mm |
| Weight | 2.5 kg |
| Included Accessories | Power cable, manual, interlock, key |
