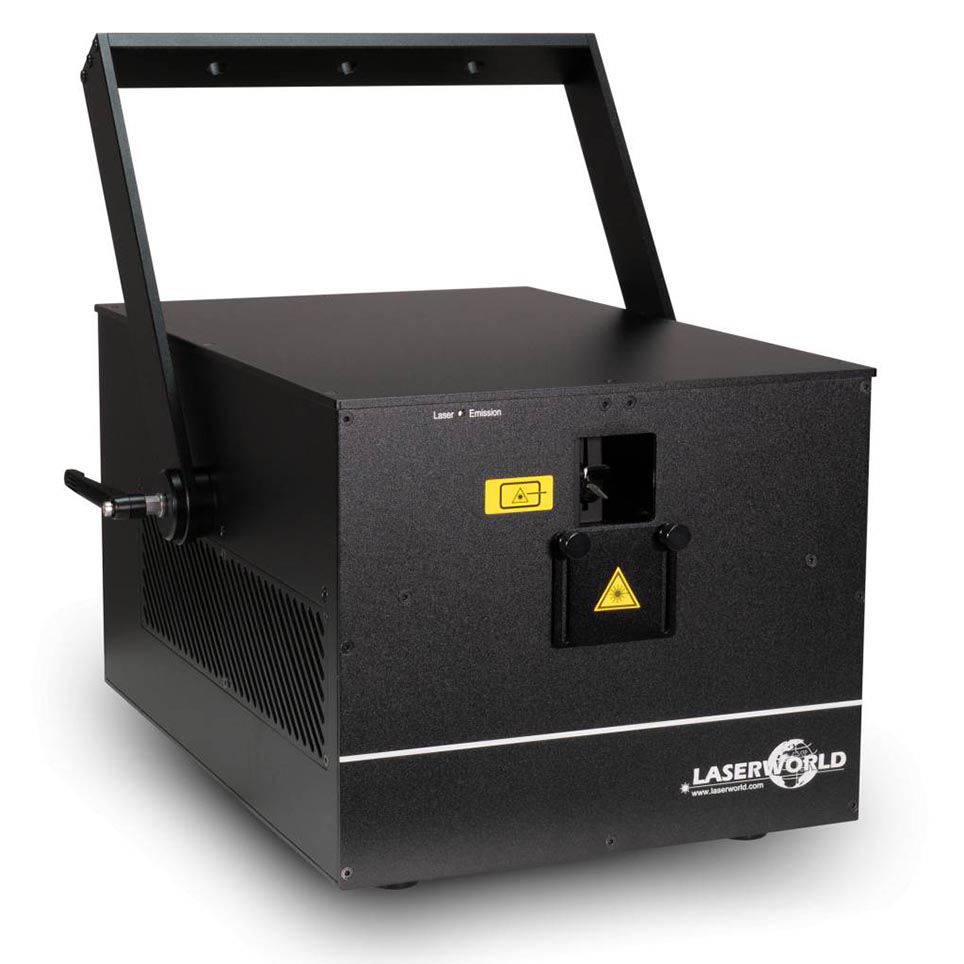

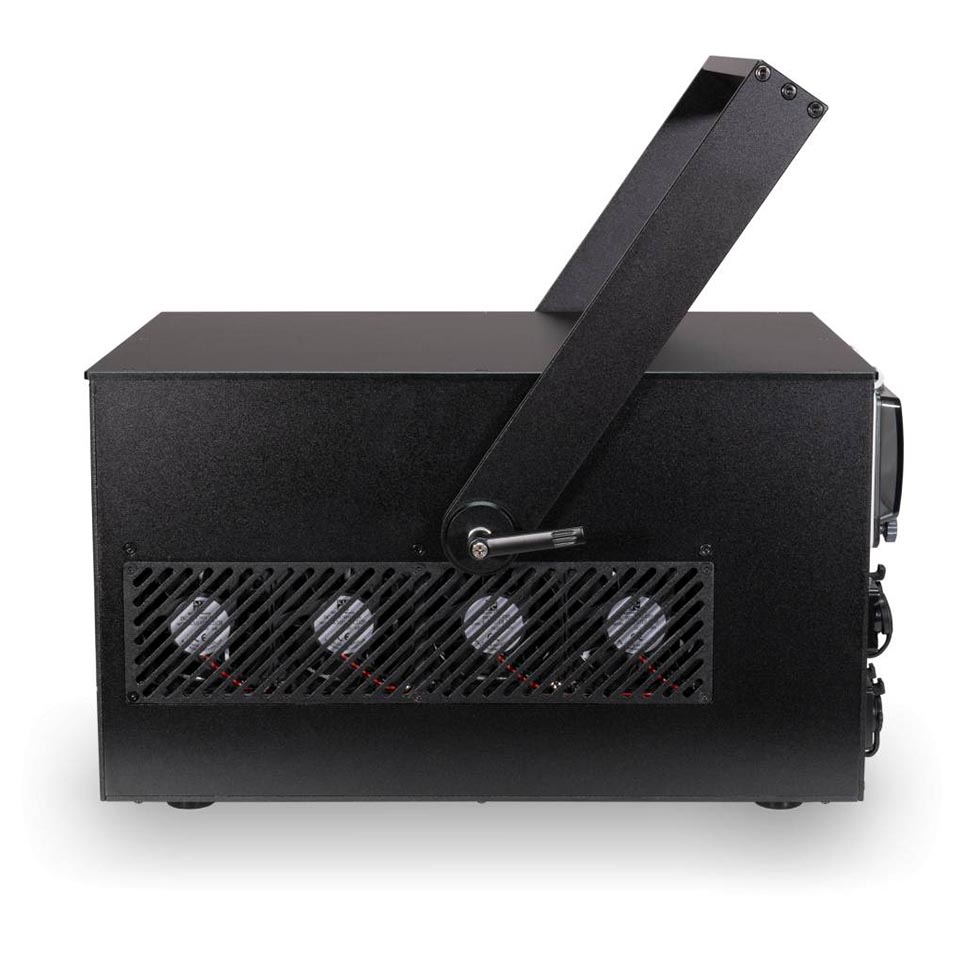

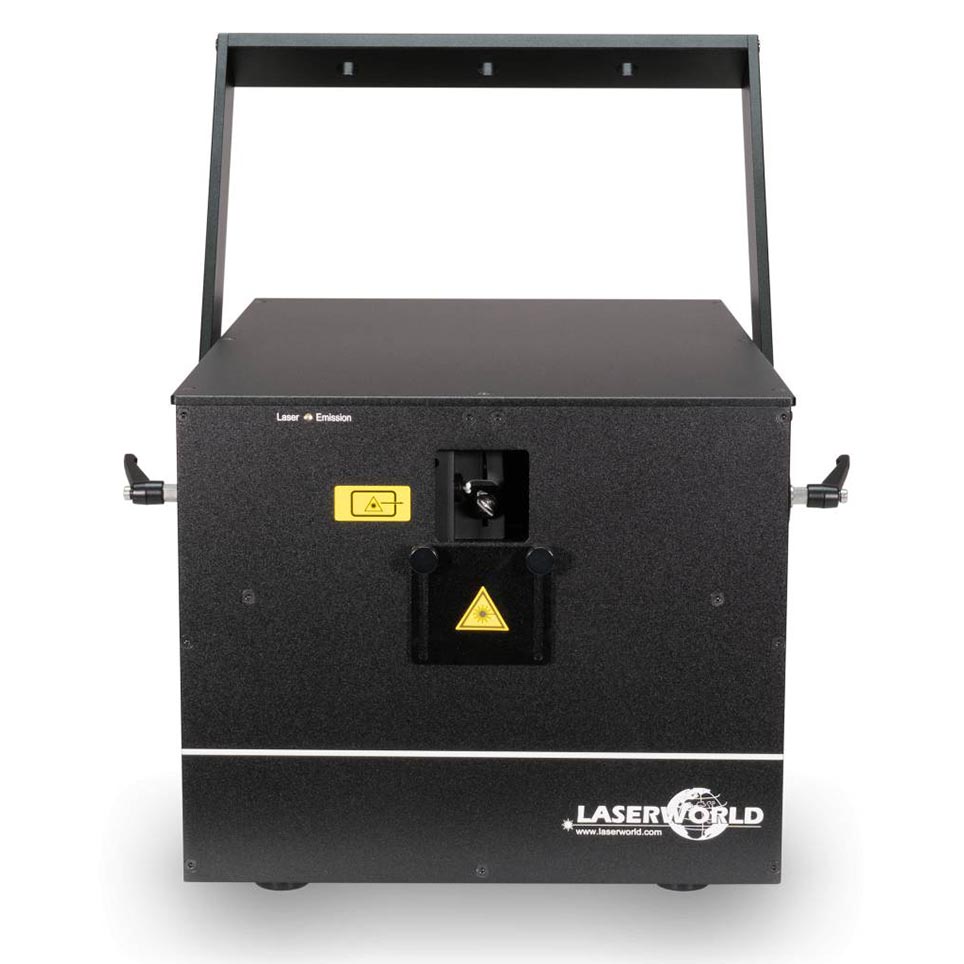

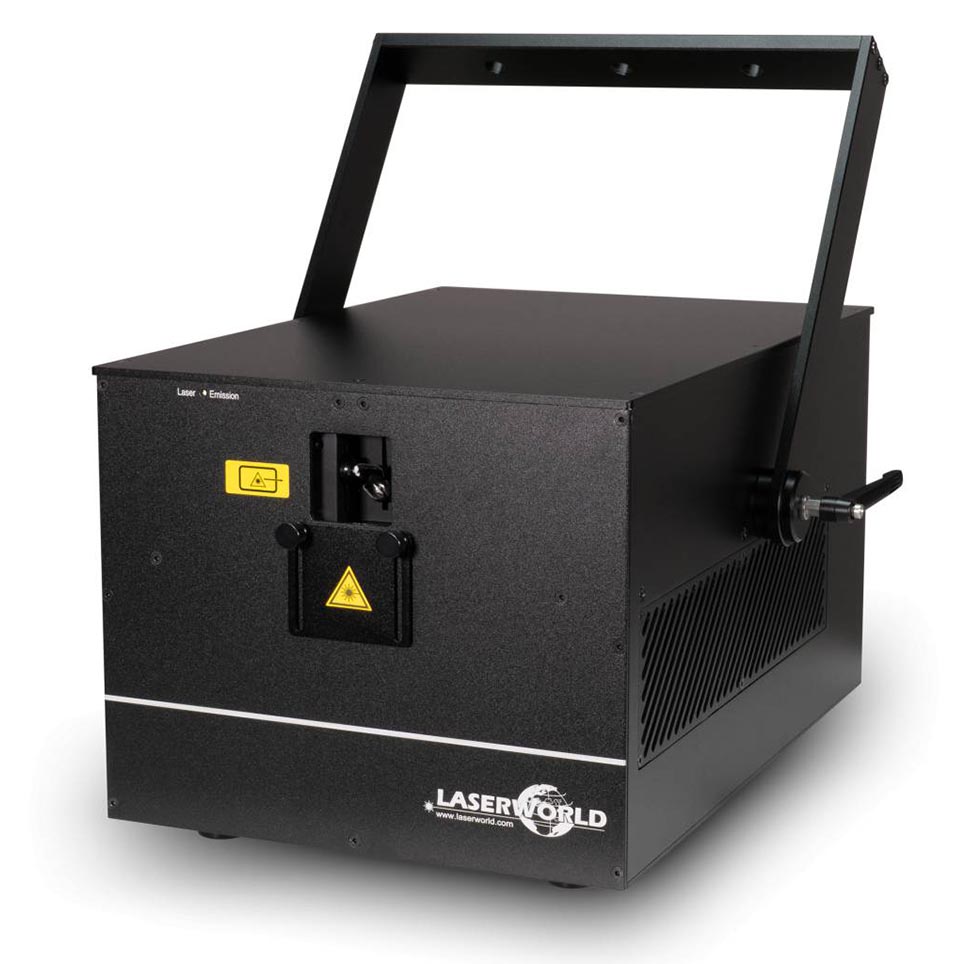

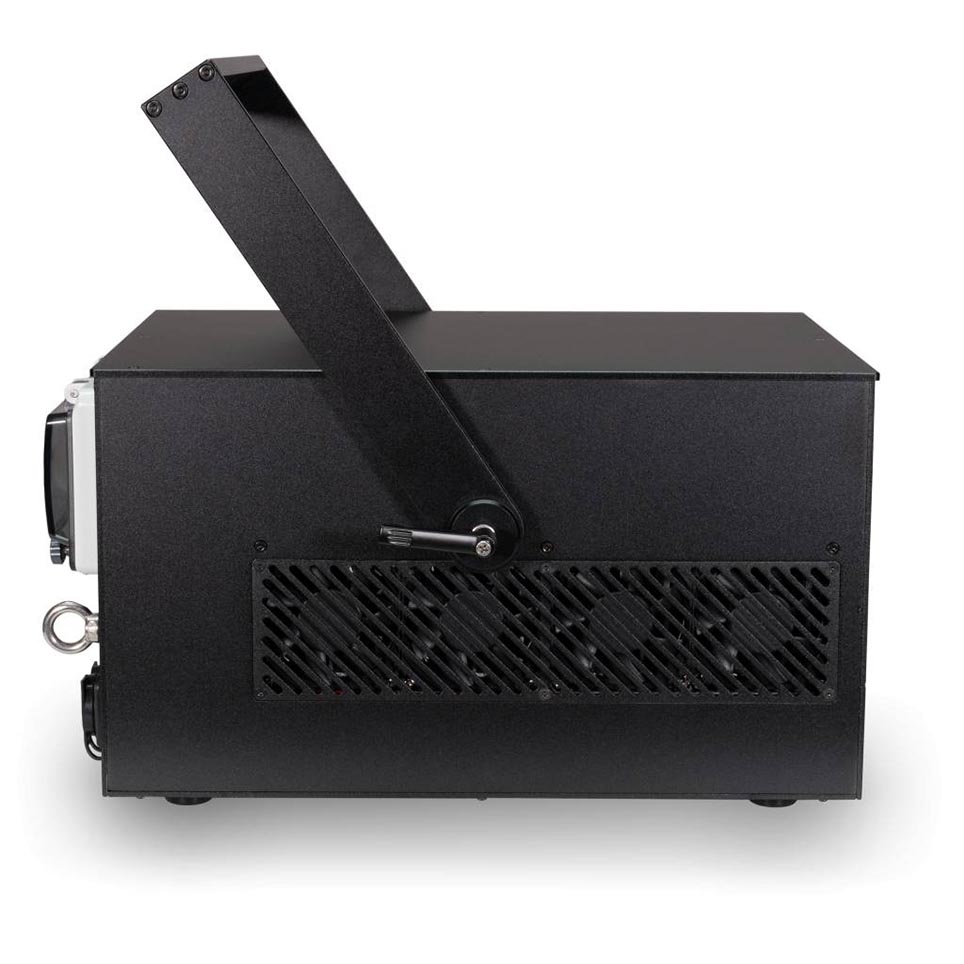

The Laserworld CS-24.000RGB ShowNET is a high-performance RGB laser projector designed to deliver breathtaking visual experiences in medium to large venues. With an impressive 24 W of pure-diode output—featuring 5,500 mW red, 6,500 mW green, and 12,000 mW royal-blue sources—it produces brilliant full-colour projections with a tight 6 mm beam and minimal 1.3 mrad divergence. Advanced scanners provide up to 30 kpps at 8°, ensuring crisp text, logos, and animations across a wide 50° field. The integrated ShowNET mainboard adds unmatched versatility, supporting DMX, ArtNet, ILDA streaming, LAN, and direct operation via Showeditor or Showcontroller software, while also allowing custom content storage for instant recall. Operators can run the unit stand-alone, in master-slave setups, or seamlessly integrate it with lighting consoles. Engineered for durability, the CS-24.000RGB features an IP54-rated aluminium housing, passive optical-zone cooling, a 360° mounting bracket, and a front-panel masking plate for enhanced safety and reliability.
Laserworld CS-24.000RGB with ShowNET
RRP: $7,199.00 ex. GST
Key Features:
- 24,000 mW pure-diode RGB output for intense, full-colour projections

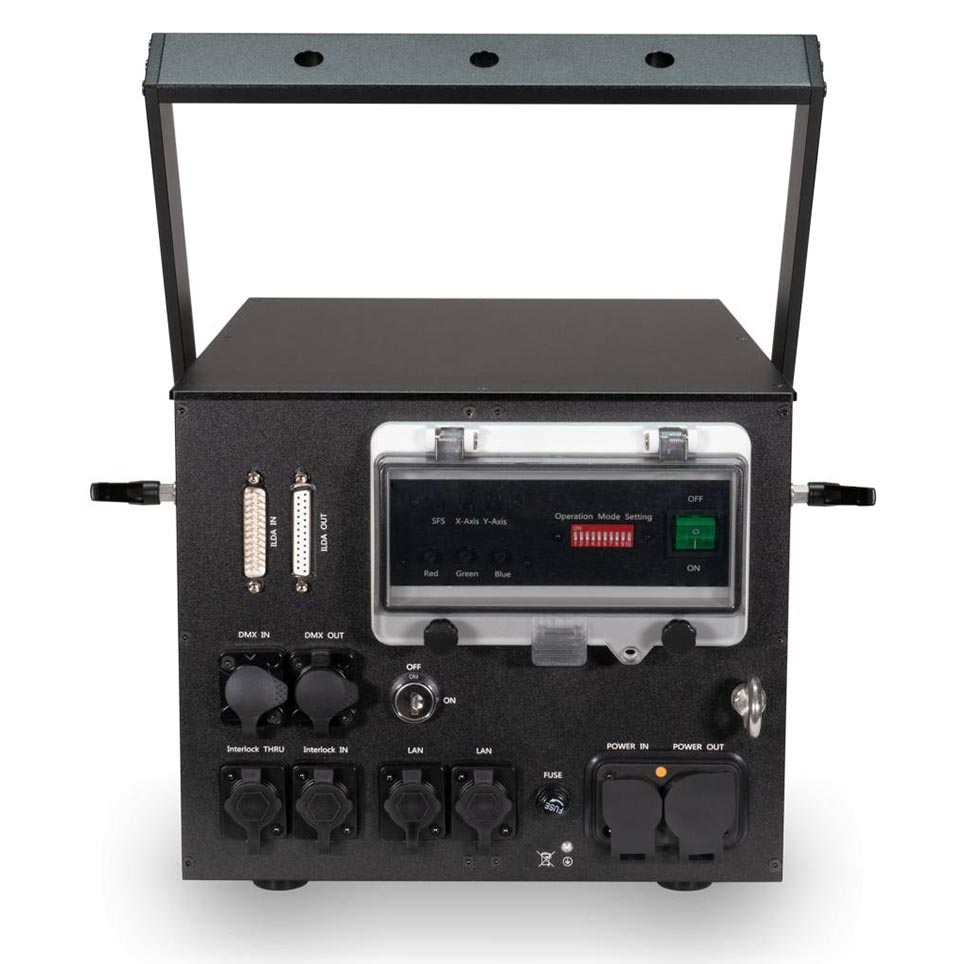

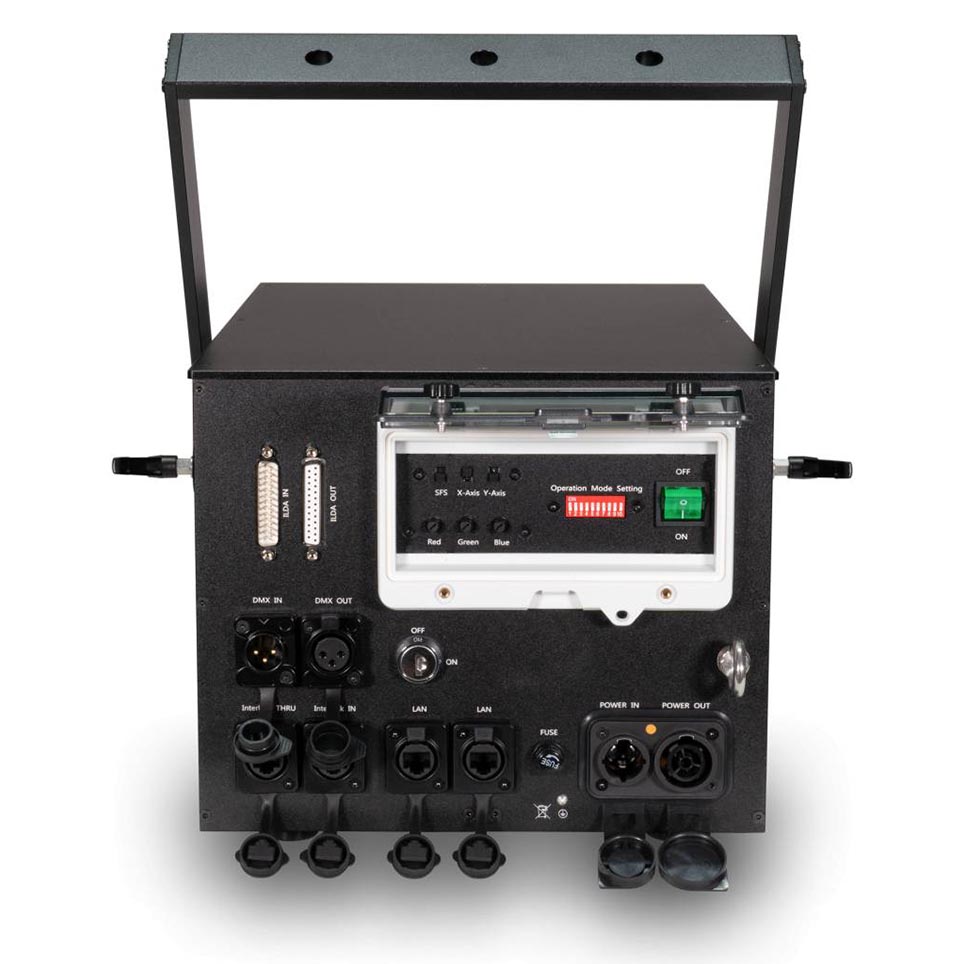

- Integrated ShowNET mainboard with DMX, ArtNet, LAN & stand-alone modes
- Graphic-capable 30 kpps @ 8° scanners, up to 50° scan angle
- ILDA port plus built-in DAC for direct PC control via Showeditor/Showcontroller
- IP54 aluminium housing with 360° mounting bracket for flexible installation
Technical Data
| Guaranteed Output: | 24,000 mW |
|---|---|
| Red Source: | 5,500 mW / 638 nm |
| Green Source: | 6,500 mW / 520 nm |
| Blue Source: | 12,000 mW / 450 nm |
| Beam Diameter: | ≈ 6 mm |
| Beam Divergence: | 1.3 mrad |
| Scanner Speed: | 30 kpps @ 8° |
| Max Scan Angle: | 50° |
| Modulation: | Analog |
| Control Options: | ILDA, DMX, ArtNet, LAN, Stand-alone, Master-Slave |
| Housing Protection: | IP54 |
| Power Supply: | 85–250 V AC, 50/60 Hz |
| Dimensions: | 400 × 240 × 220 mm |
| Weight: | 19 kg |
| Laser Class: | 4 |
