The Laserworld DS-1000RGB MK5 is a compact yet powerful 1 W pure-diode RGB laser projector designed for professional lighting setups, offering vibrant full-colour output, tight 4 mm beams with low divergence, and smooth 30 kpps scanning across a wide field. Its integrated ShowNET mainboard provides ILDA, DMX, Art-Net and LAN control plus over 120 internal patterns, enabling stand-alone, master-slave or full software-driven shows straight out of the box. Built in a silent, sealed, low-maintenance housing with scan-fail protection and stored safety parameters, it’s a lightweight 3.8 kg unit ideal for both mobile performers and fixed installations needing reliable, high-quality laser effects.
Laserworld DS-1000RGB MK5 Semi Professional Color Laser
RRP: $1,699.00 ex. GST
Key Features:
- 1 W pure-diode RGB output for brilliant full-colour projection

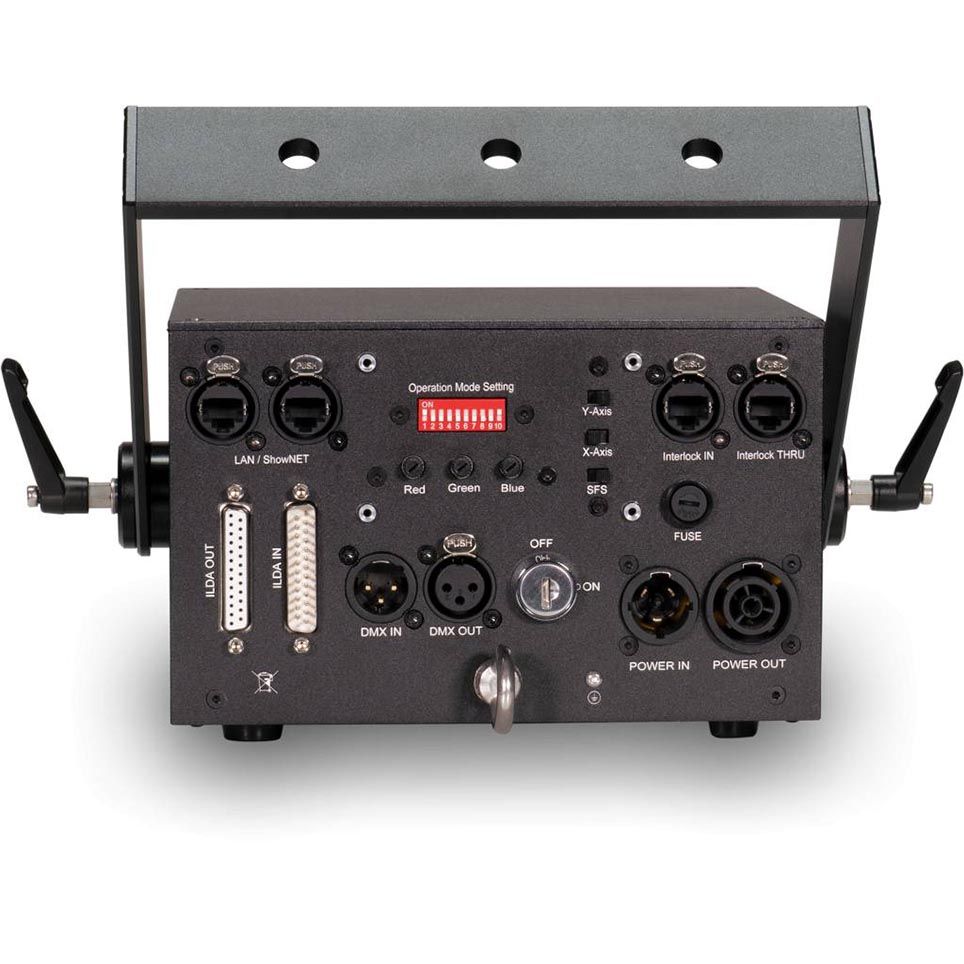

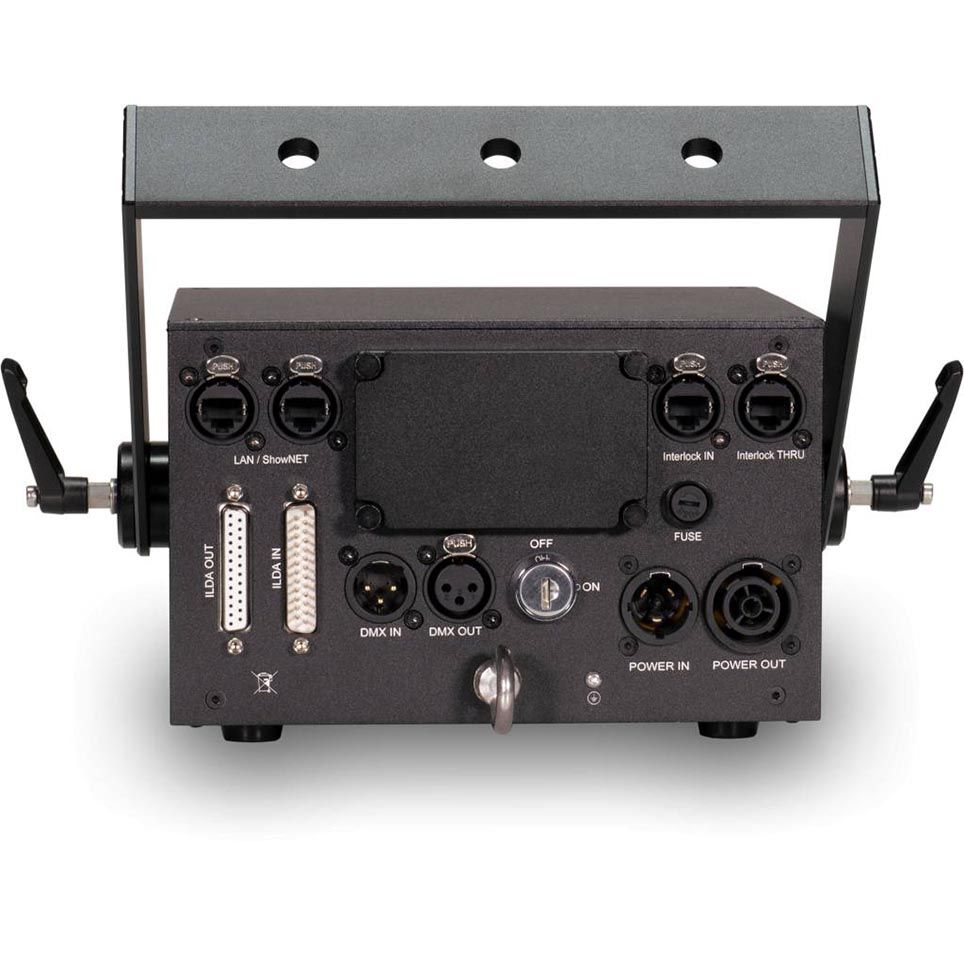

- Integrated ShowNET DAC with ILDA, DMX, Art-Net & LAN control
- 30 kpps @ 8° scanners & 40° max scan angle for crisp graphics
- Silent fanless sealed housing minimises maintenance
- 120+ built-in patterns, stand-alone, master-slave & SD playback
- Save safety settings directly in the projector for all modes
- Lightweight 3.8 kg chassis; link power, DMX & ILDA for multi-unit shows
Technical Data
| Guaranteed Output Power: | 1,000 mW |
|---|---|
| Red Laser Power: | 300 mW / 638 nm |
| Green Laser Power: | 300 mW / 520 nm |
| Blue Laser Power: | 700 mW / 450 nm |
| Beam Diameter: | ca. 4 mm |
| Beam Divergence: | 0.9 mrad (full angle) |
| Scanner Speed: | 30 kpps @ 8° |
| Max Scan Angle: | 40° |
| Laser Class: | 4 |
| Operation Modes: | ILDA, DMX, Art-Net, LAN, Stand-Alone, Master-Slave |
| Integrated Patterns: | 120+ |
| Power Supply: | 85–250 V AC, 50/60 Hz |
| Power Consumption: | 40 W |
| Dimensions: | 200 × 185 × 125 mm |
| Weight: | 3.8 kg |
| Included Software: | Showeditor full license (upgradeable to Showcontroller) |
| Housing: | Sealed, fanless |
