The Laserworld PL-10.000RGB FB4 IP65 is a 10 W full-colour professional show laser engineered for both indoor and outdoor use. With its IP65-rated sealed aluminium housing and passive cooling system, it resists dust, dirt and moisture, ensuring long-term reliability with minimal maintenance. This makes it ideal for clubs, festivals, live events and corporate shows where consistent, high-impact performance is essential. The laser delivers a tight 5.5 mm beam with just 0.9 mrad divergence, producing razor-sharp aerial effects and highly accurate projections. Fast 40 kpps scanners enable smooth animations, text, logos and graphics across wide scan angles up to 50°. Control flexibility is guaranteed with the integrated Pangolin FB4 interface. Users can run shows in standalone mode, trigger via DMX or ArtNet, or connect directly to QuickShow or BEYOND for advanced programming. Each unit includes a waterproof flightcase and 360° mounting bracket for professional touring use.

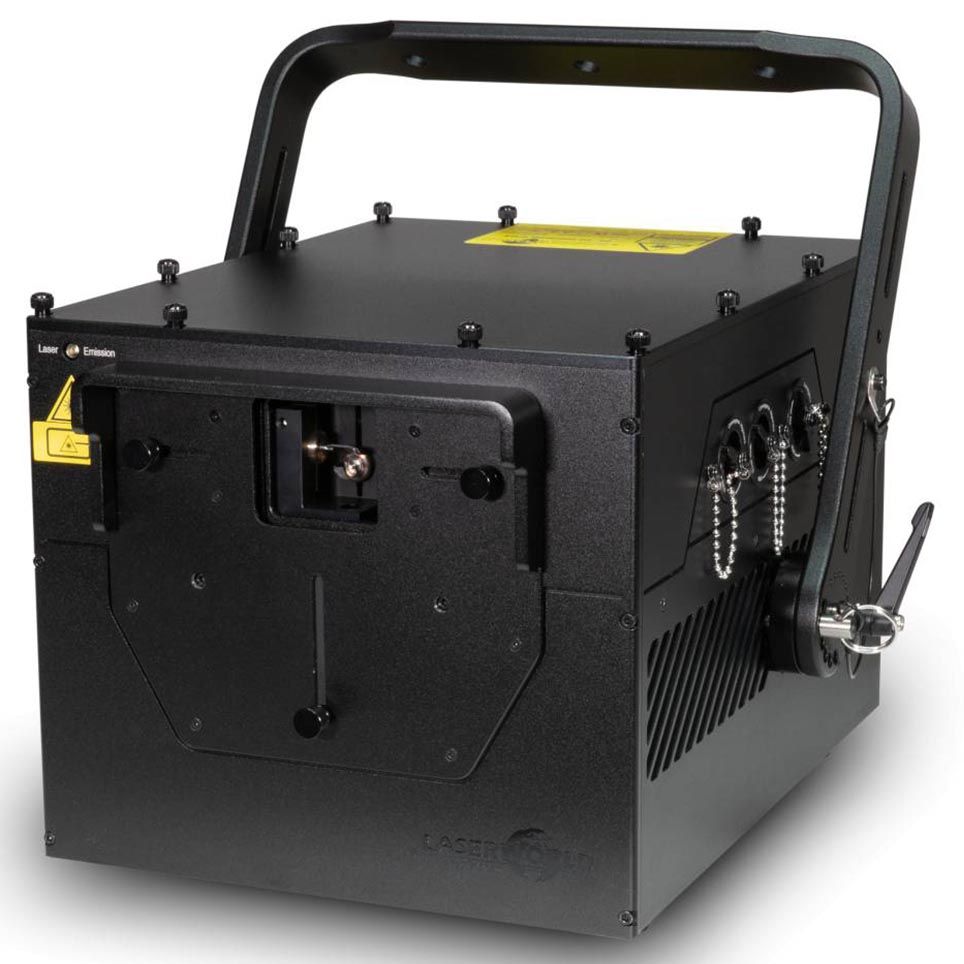

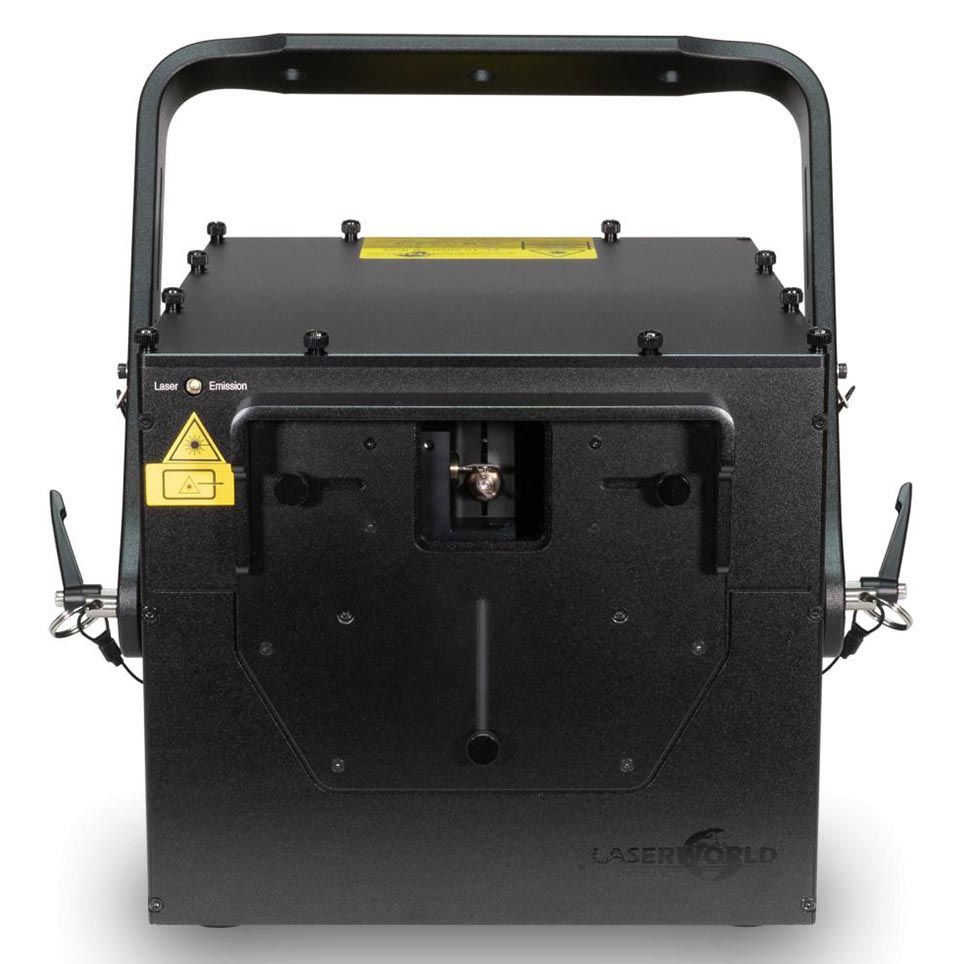

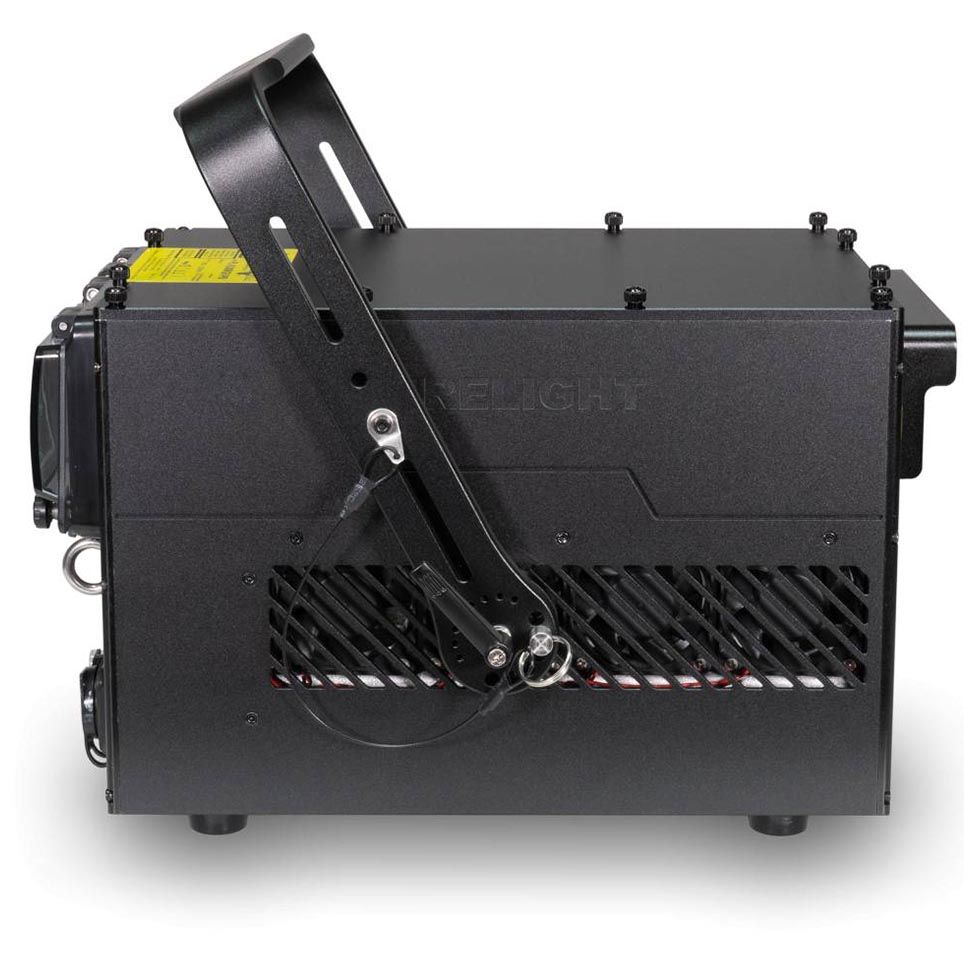

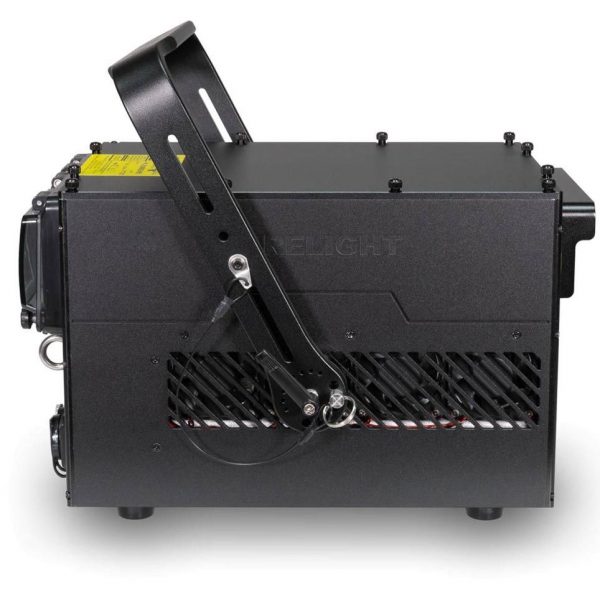

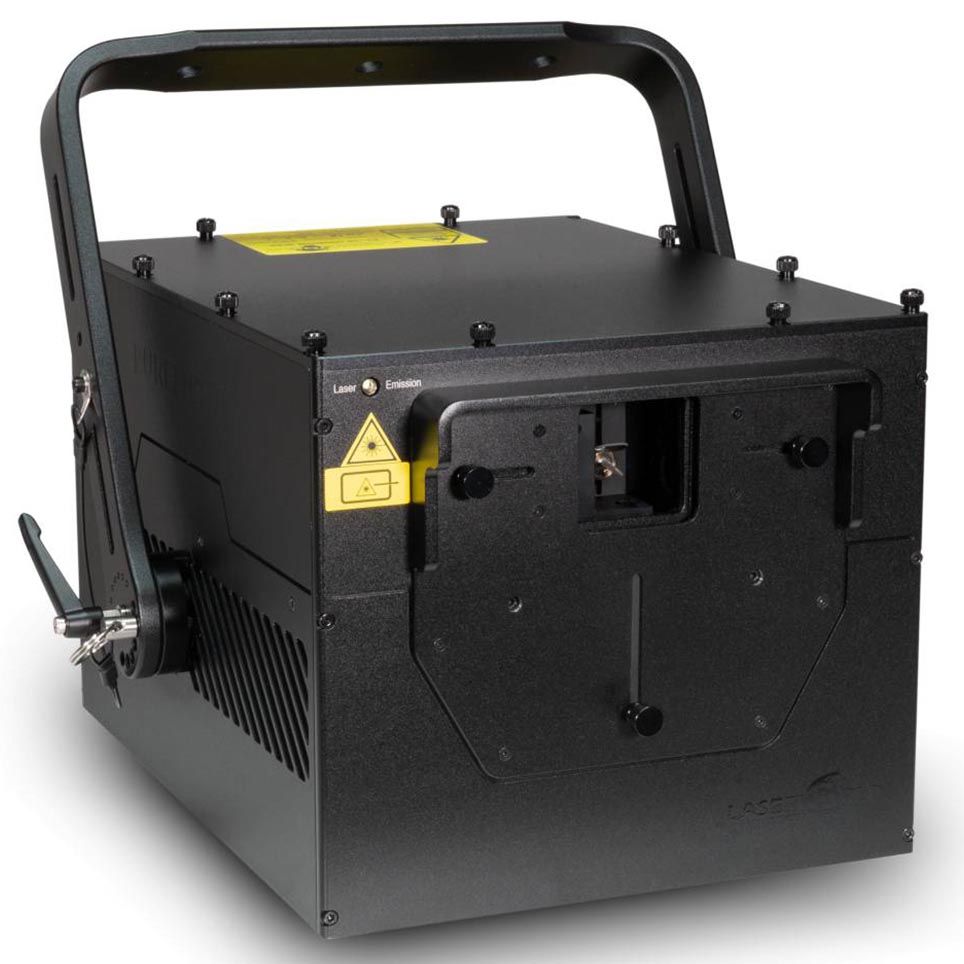

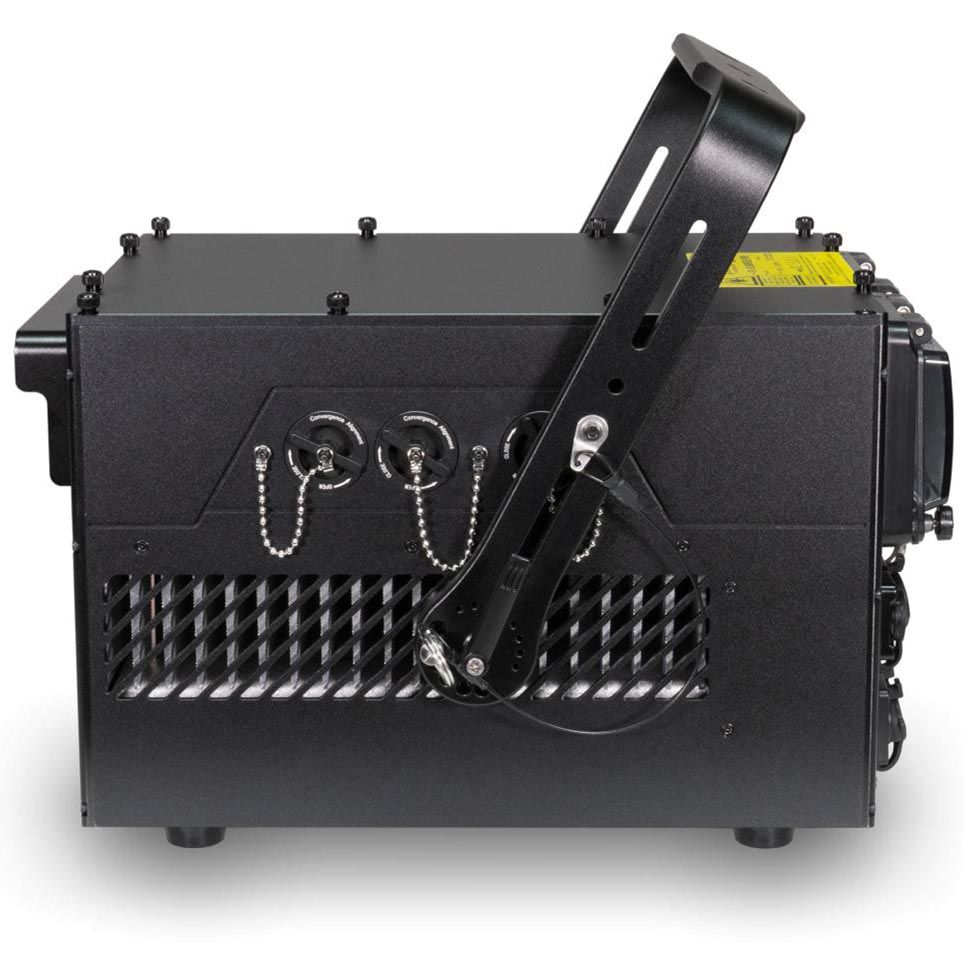

Laserworld PL-10.000RGB FB4 IP65
RRP: $10,999.00 ex. GST
Key Features:
- 10 W guaranteed full-colour output with analog modulation
- Super-sharp 5.5 mm beams, 0.9 mrad divergence
- 40kpps @ 8° scanners; max 50° scan angle
- Sealed IP65 aluminium housing with passive cooling fins
- Built-in Pangolin FB4 for DMX, ArtNet, ILDA & standalone
- Supplied in a waterproof flightcase for safe transport
Technical Data
Guaranteed Power: | 10,000 mW |
---|---|
Red Power: | 3,000 mW / 638 nm |
Green Power: | 4,000 mW / 520 nm |
Blue Power: | 4,000 mW / 450 nm |
Beam Diameter: | 5.5 mm |
Beam Divergence: | 0.9 mrad |
Scanner Speed: | 40 kpps @ 8° |
Max Scan Angle: | 50° |
Laser Source: | Diode |
Laser Class: | 4 |
Operation Modes: | ILDA, DMX, ArtNet, LAN, Stand-alone |
Control Interface: | Pangolin FB4 |
IP Rating: | IP65 |
Power Supply: | 85–250 V AC, 50/60 Hz |
Power Consumption: | 350 W |
Dimensions: | 330 × 250 × 216 mm |
Weight: | 15 kg |
Accessories: | Waterproof flightcase, power cable, manual, interlock, key |
