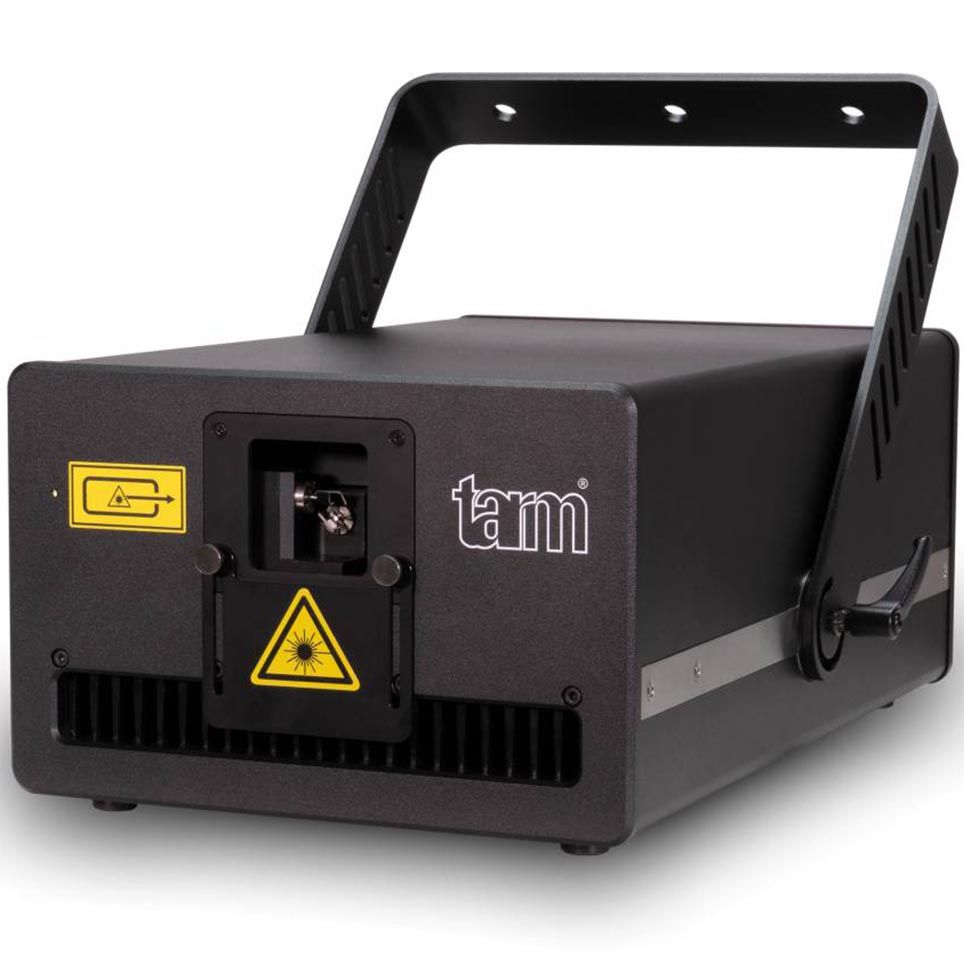

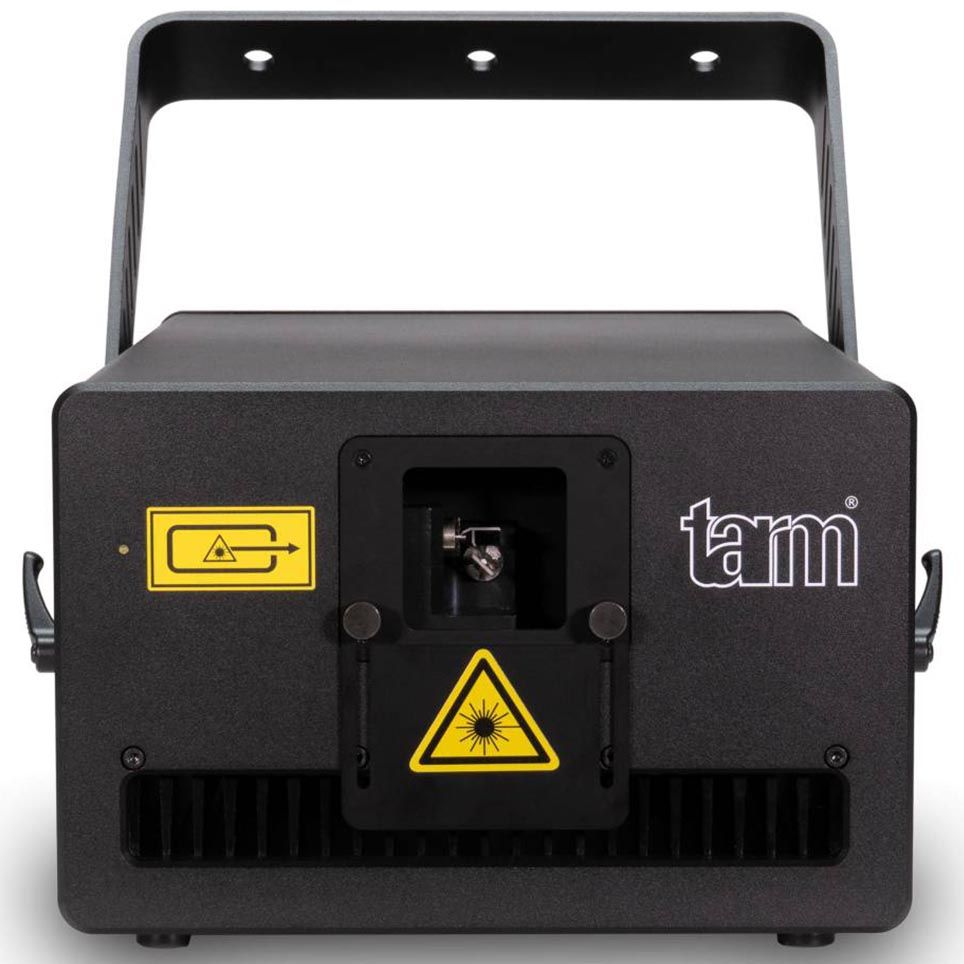

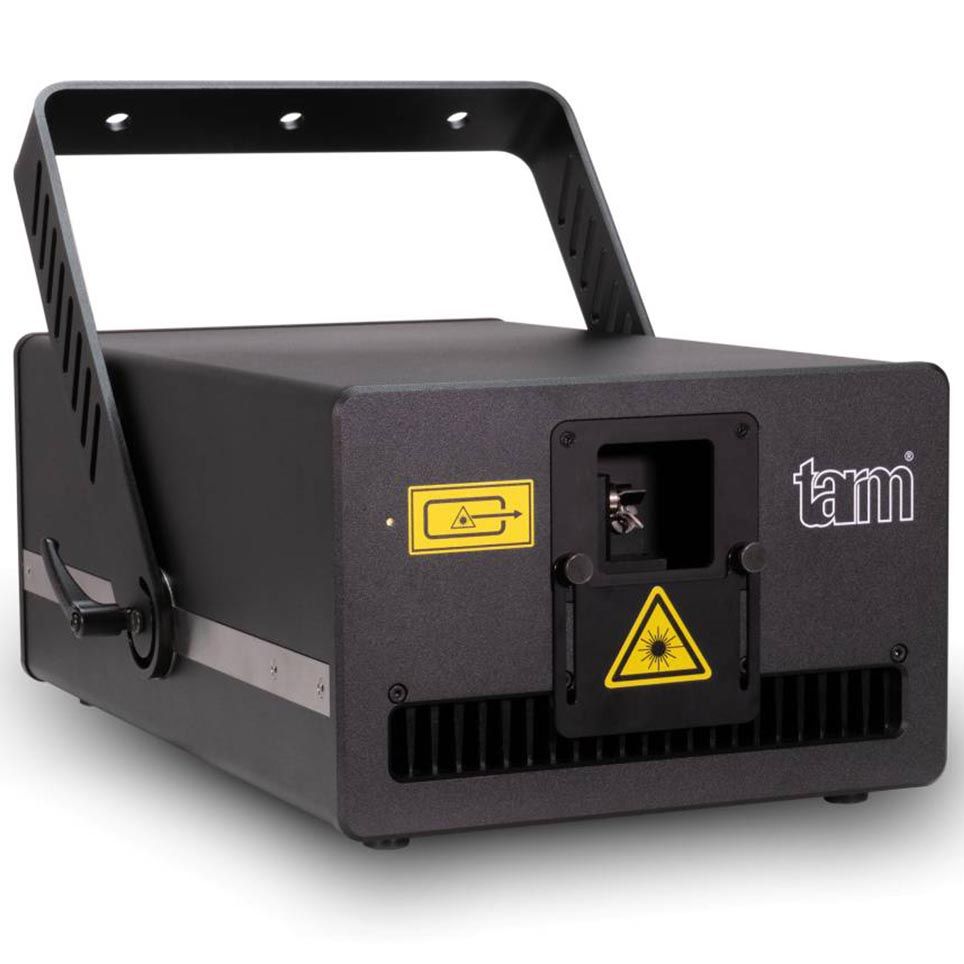

The Laserworld tarm 13 FB4 IP65 is a compact yet powerful professional show laser delivering 13 W of guaranteed RGB output with extreme precision. Built on RTI semiconductor module technology, it ensures ultra-fine beam quality with a tiny 5 mm diameter and <0.8 mrad divergence, making it perfect for both long-distance aerials and crisp graphical projections. Each wavelength is matched in spot size and divergence, producing uniform, brilliantly saturated colours without realignment needs. With 45 kpps scanning at 8° (upgradeable to 60 kpps), the tarm 13 renders flicker-free animations, logos and text at high speed. Its rugged IP65-rated aluminium housing resists dust, rain and festival grime, making it ideal for outdoor stages, architectural mapping and touring productions. At just 18 kg, it remains highly portable, shipping with a waterproof flightcase for safe transport. The integrated Pangolin FB4 with network switch allows versatile control via DMX, ArtNet, LAN or stand-alone playlists, while supporting seamless multi-unit setups.
Laserworld tarm 13 FB4 IP65
RRP: $26,999.00 ex. GST
Key Features:
- 13 W guaranteed RGB power with matched 637 nm red, 525 nm green and 455 nm blue
- Ultra-fine <0.8 mrad divergence on both axes for razor-sharp beams and graphics
- Rugged IP65-rated housing and only 18 kg—ready for indoor or outdoor touring

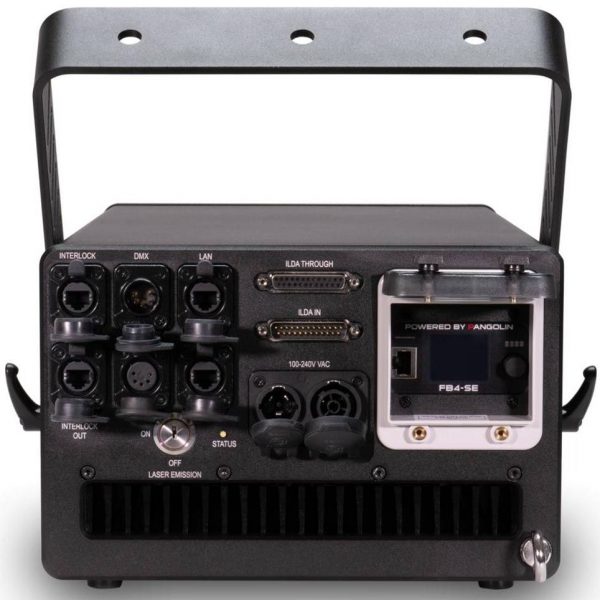

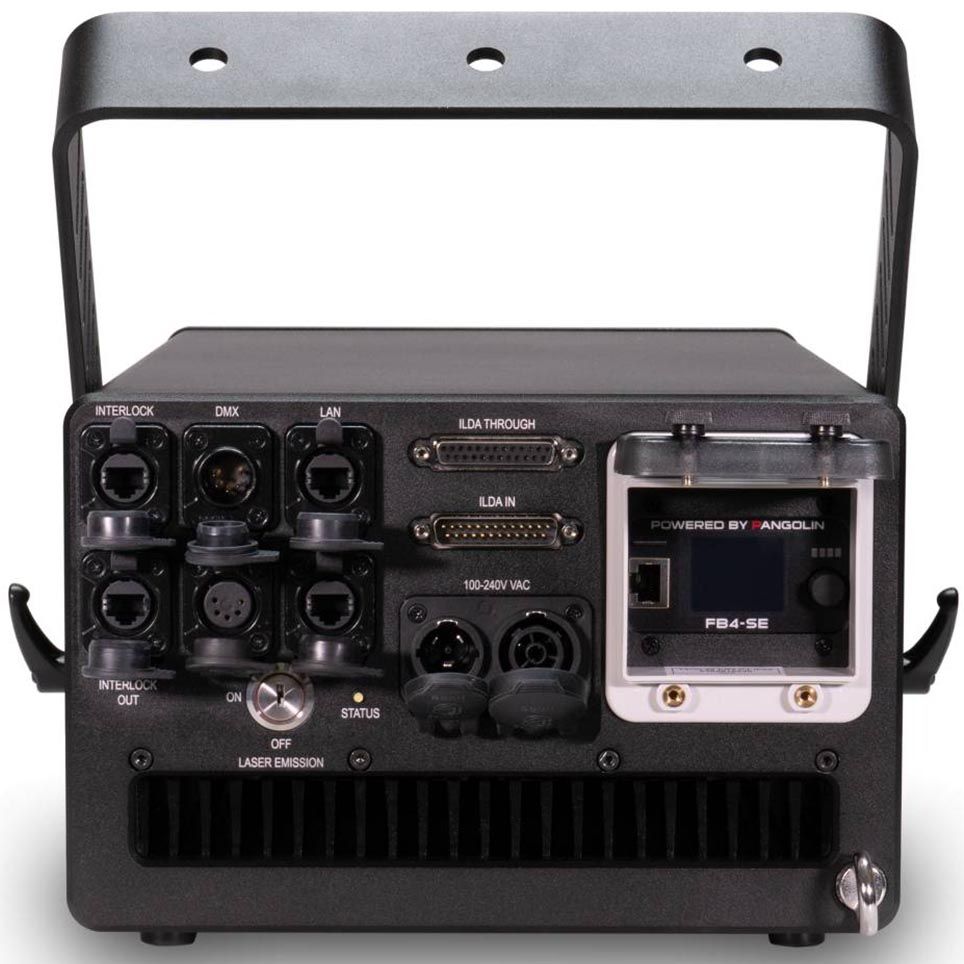

- Integrated Pangolin FB4 mainboard plus dual-port network switch for daisy-chain control
- RTI semiconductor laser modules stay maintenance-free and never lose alignment
- Fast 45 kpps @ 8° scanners, upgradable to 60 kpps for demanding graphics
- Compact footprint 441 × 260 × 153 mm fits tight rigs and installations
Technical Data
| Total Output Power: | 13,000 mW |
|---|---|
| Red Power: | 4,000 mW / 637 nm |
| Green Power: | 6,000 mW / 525 nm |
| Blue Power: | 5,000 mW / 455 nm |
| Beam Diameter: | ca. 5 mm |
| Divergence: | <0.8 mrad (both axes) |
| Scanner Speed: | 45 kpps @ 8°; optional 60 kpps |
| Max Scan Angle: | 50° |
| Laser Class: | 4 |
| Operation Modes: | Integrated Pangolin FB4 |
| Power Supply: | 85–250 V AC |
| Power Consumption: | 350 W |
| Dimensions: | 441 × 260 × 153 mm |
| Weight: | 18 kg |
| Housing Rating: | IP65 |
| Included Accessories: | Waterproof flightcase, rain cover, power cable, key, interlock, manual, Showeditor license |
