Laserworld tarm 13 is a compact show laser projector for professional laser show applications, including projections and beams. It provides 13W visible RGB output from RSL Modules, with matched beam size and divergence across all wavelengths. The unit supports ILDA and ILDA over LAN operation, with a maximum scanner speed of 45kpps and a maximum scan angle of 50°. It is made in Germany and weighs 17.5 kg.

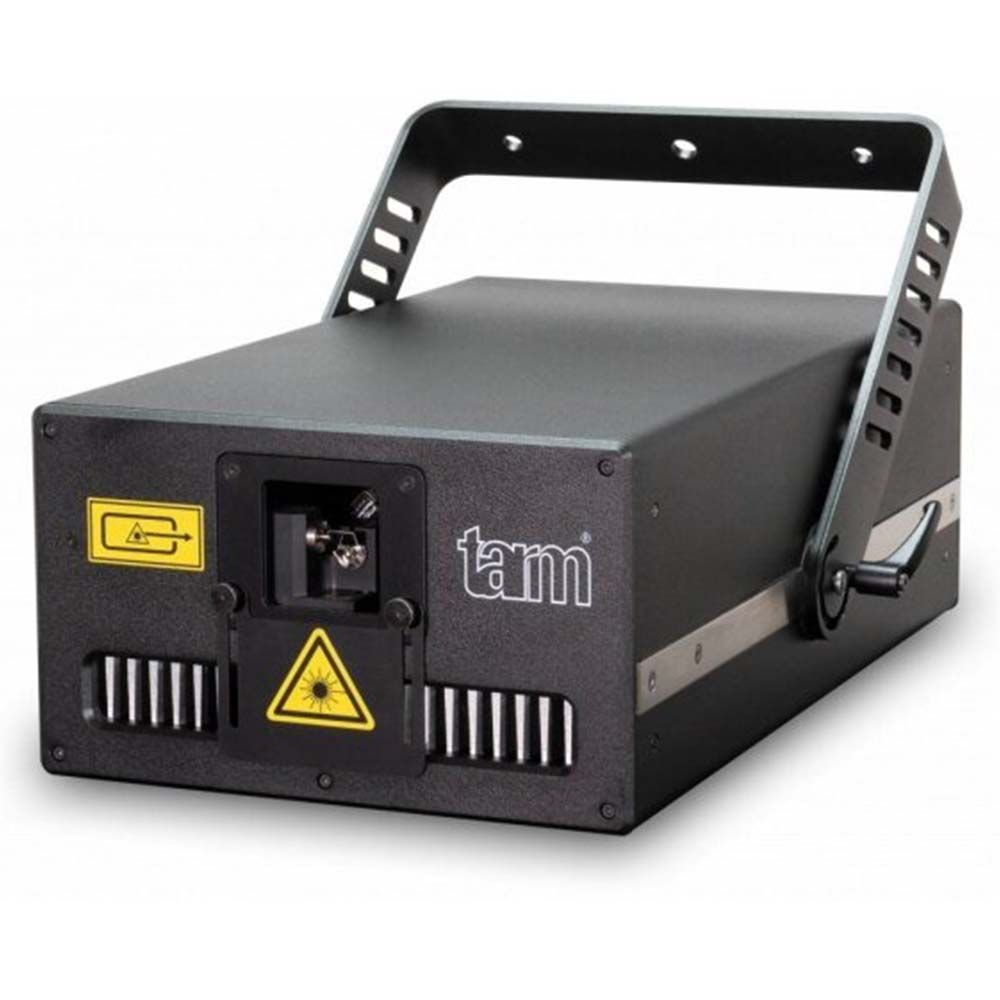

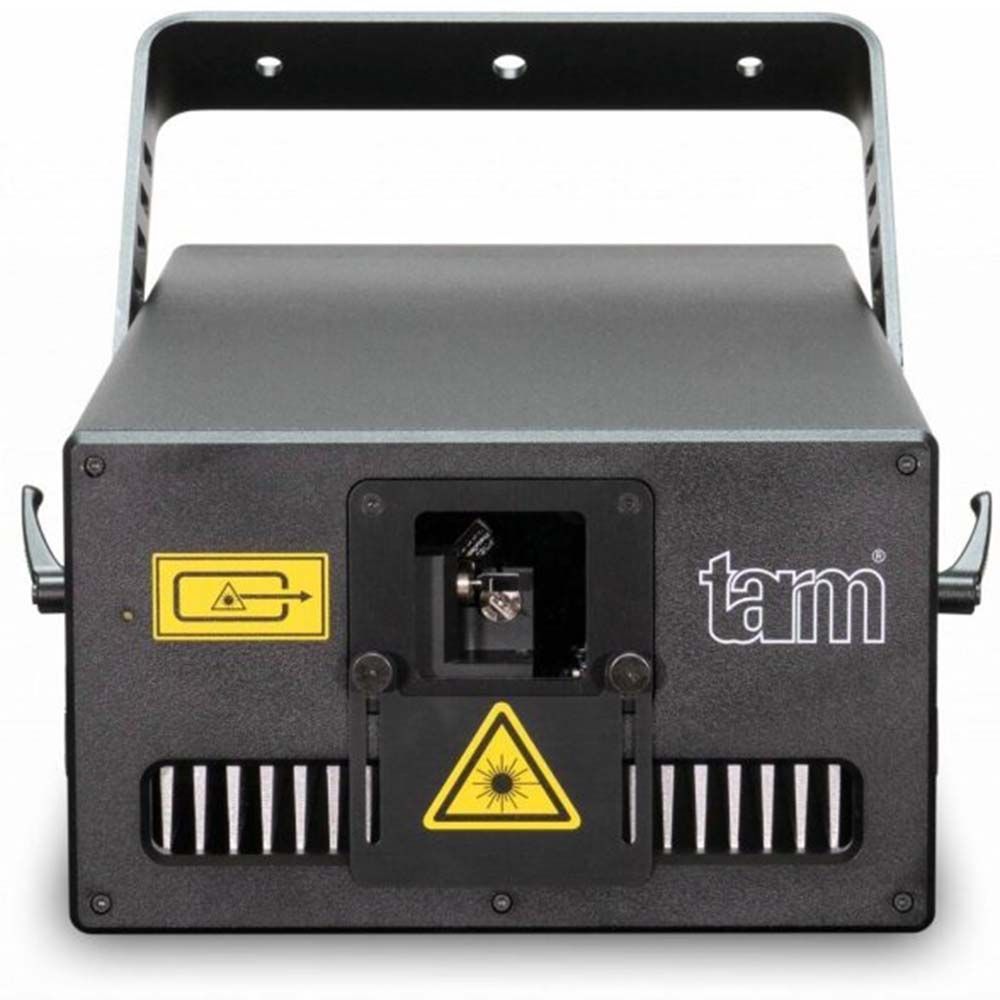

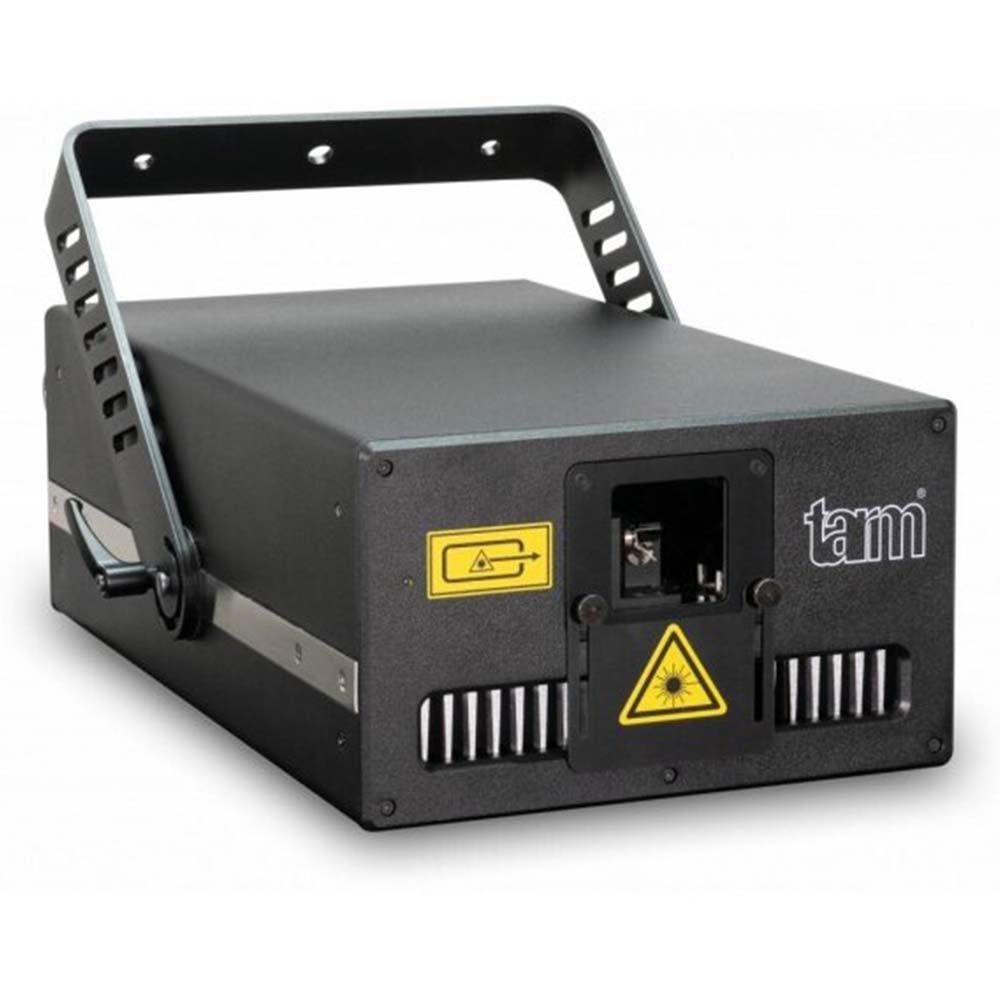

Laserworld tarm 13 Show Laser Projector
RRP: $14,999.00 ex. GST
Key Features:
- 13W total RGB power
- Analog color modulation
- Full Color output
- Full angle beam divergence of < 0.8mrad on both axes
- 5mm beam diameter
- 45kpps maximum scanner speed
- 50° maximum scan angle

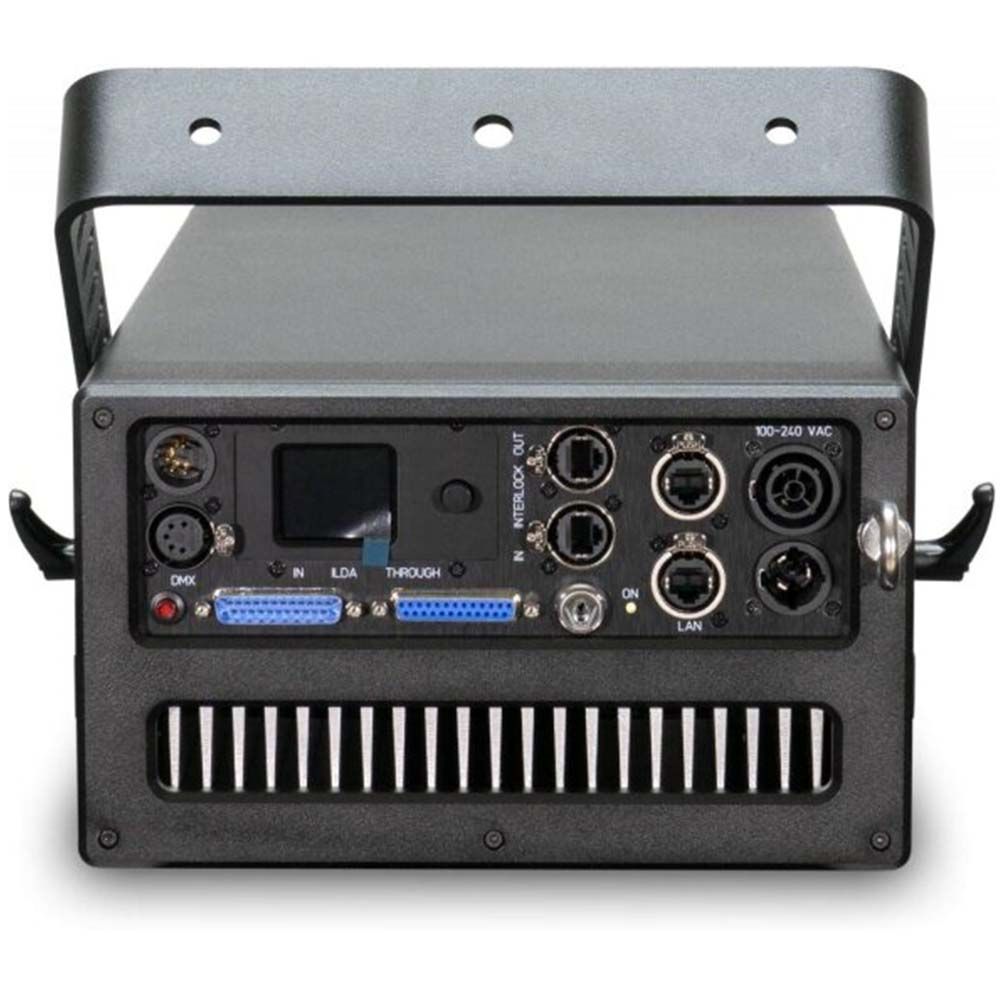

- ILDA and ILDA over LAN operation
- Integrated network switch for linking the control signal
- Laser Class 4
Technical Data
| Guaranteed Visible Power | 13W |
| Color Output | Full Color |
| Max Scanner Speed | 45kpps |
| Max Scan Angle | 50° |
| Red Module | 637nm 4W |
| Green Module | 525nm 6W |
| Blue Module | 455nm 5W |
| Manufacturer Stated Max Power | 15W |
| Full Angle Beam Divergence | < 0.8mrad |
| Beam Diameter | 5mm |
| Laser Source | RSL Modules |
| Laser Class | 4 |
| Scanner Type | Galvo |
| Operation Modes | ILDA, ILDA over LAN |
| Power Supply | 85 V – 250 V / AC |
| Power Consumption | 280W |
| Width | 10.2in |
| Height | 6in |
| Depth | 17.4in |
