The Power Dynamics PD12C is a 12-inch woofer for two-way speakers and bass reflex solutions. It uses a 4-inch (100mm) inside-outside copper voice coil, a ferrite magnet and a glass-fibre reinforced paper cone. The die-cast aluminium basket reduces magnetic interference, while the woofer provides 600 W RMS power and 1200 W peak power. It is suitable for a wide variety of applications requiring long excursion and control.

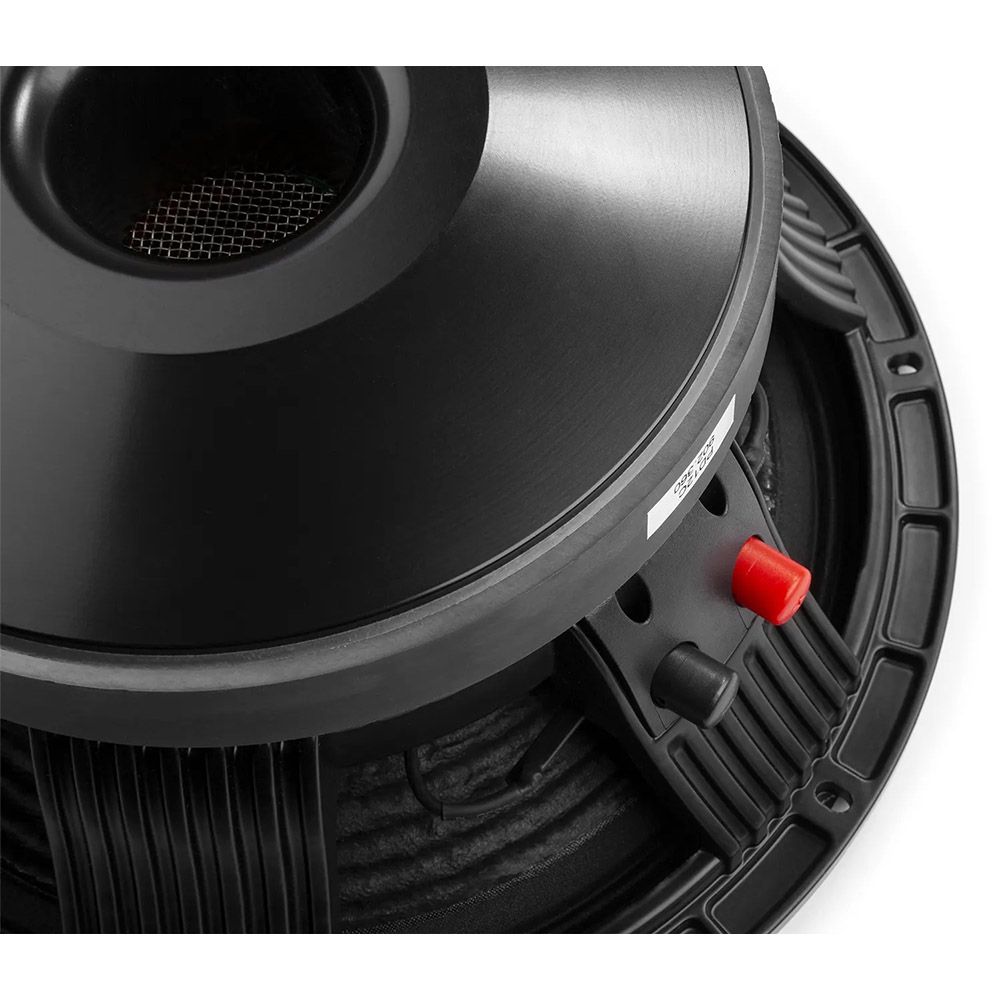

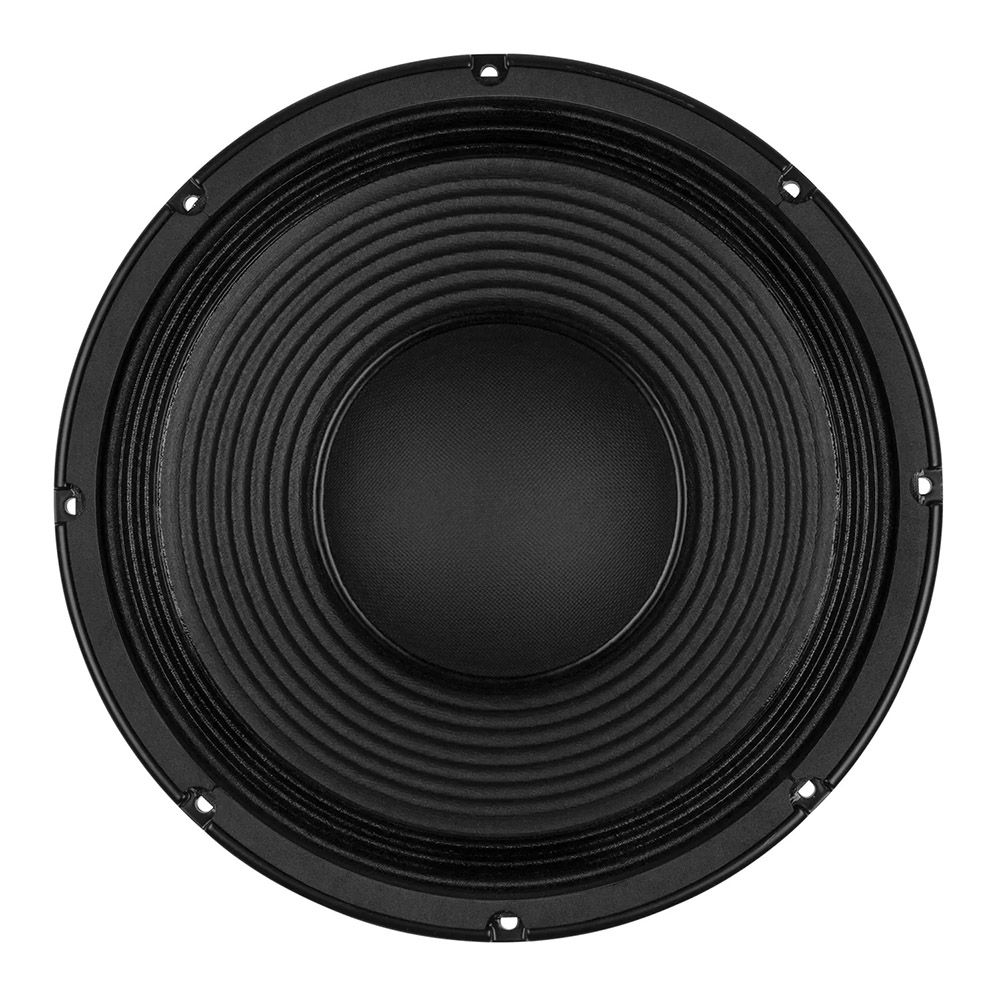

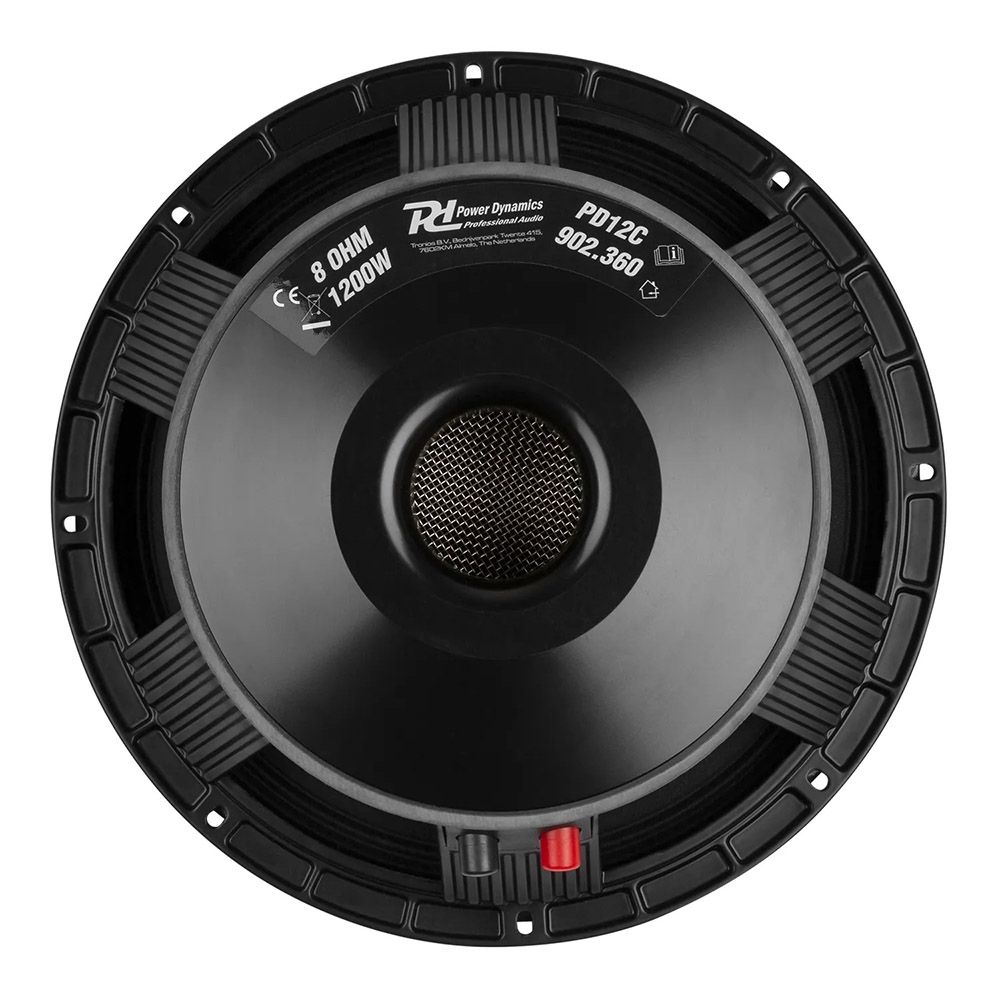

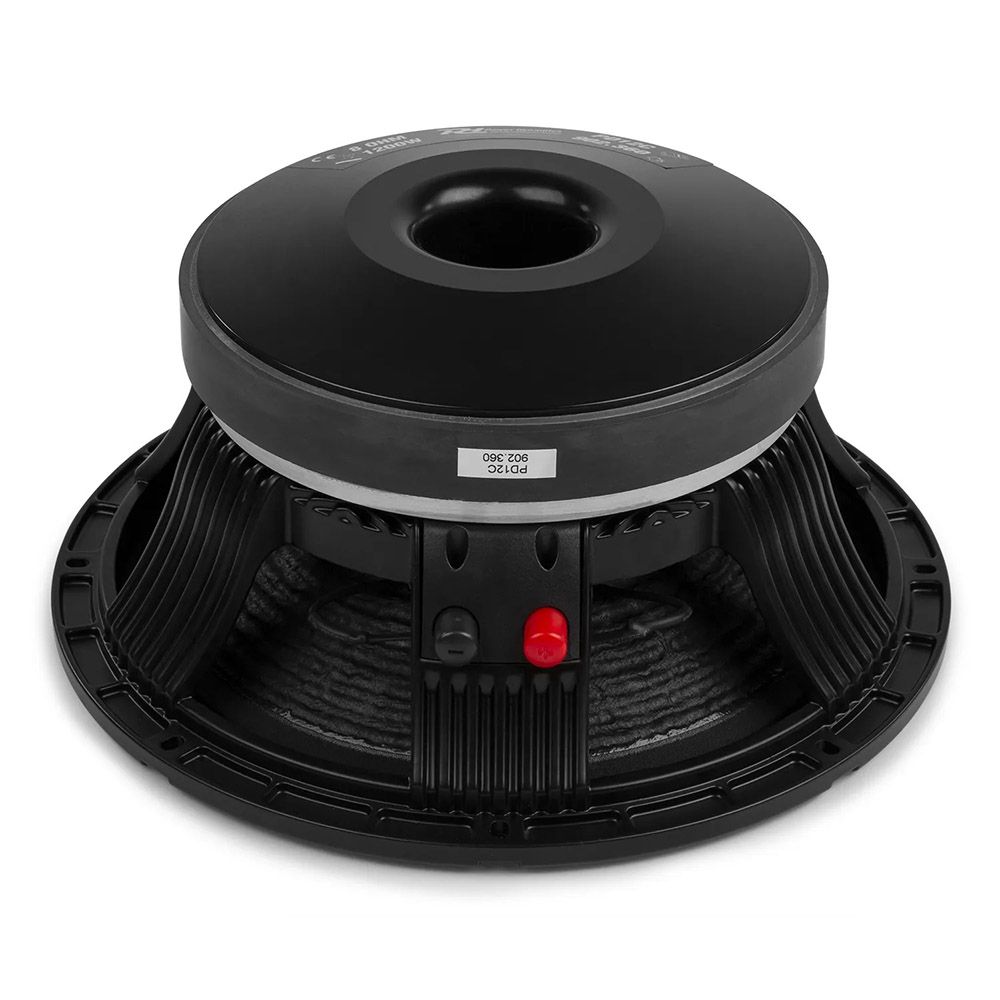

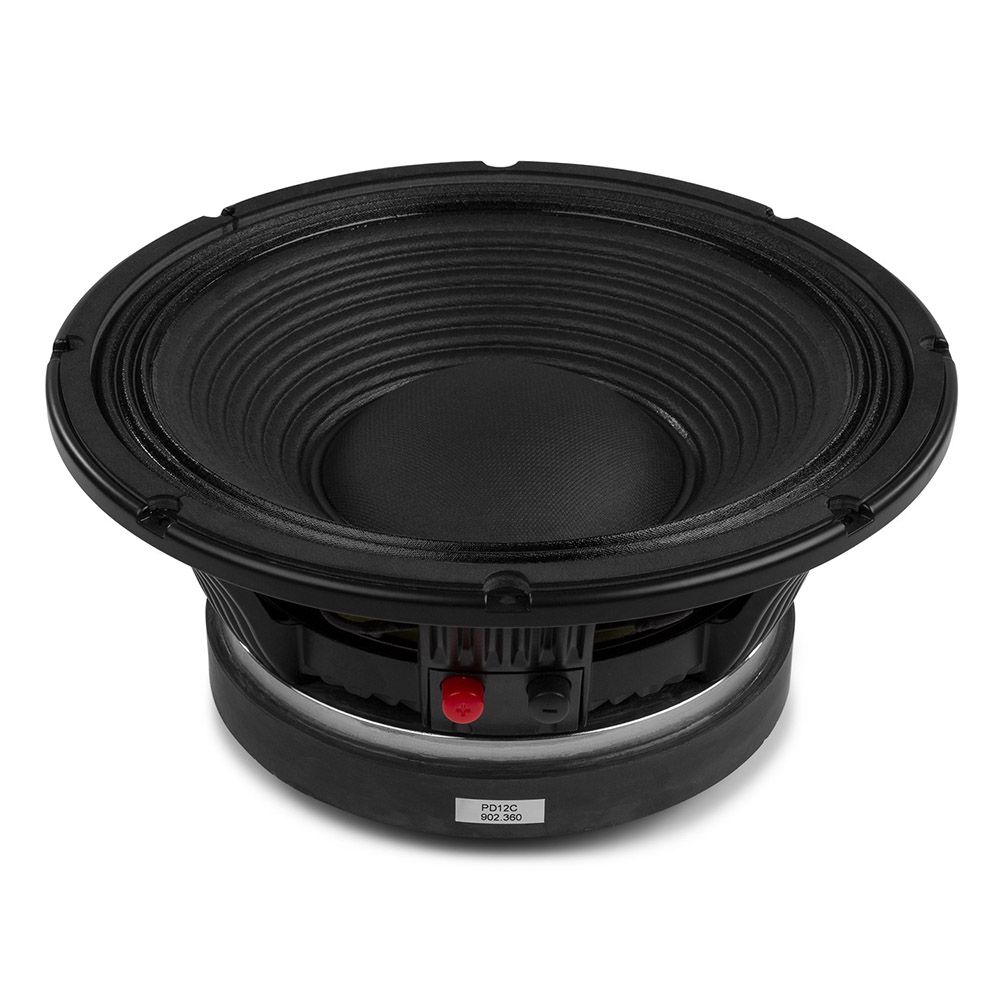

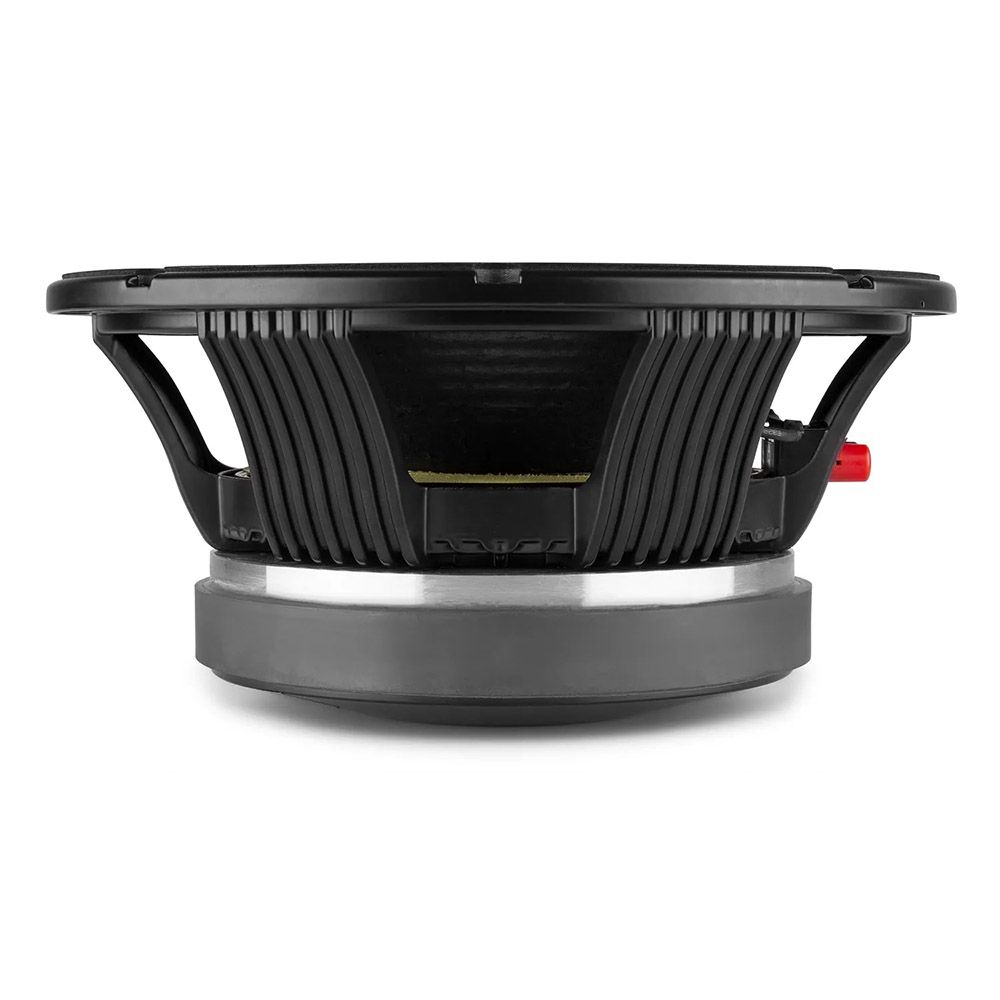

Power Dynamics PD12C 12-inch Woofer
RRP: $309.00 ex. GST
Key Features:
- 4″ (100mm) inside-outside copper voice coil
- Ferrite Magnet
- Aluminium basket reduces magnetic interference
- Glass-fibre reinforced paper cone
- Nominal Impedance Of 8 Ohms
- Radial cone shape
Technical Data
| Product serie | PD series |
| Colour | Black |
| Type | Woofer |
| Speaker Power Peak | 1200 W |
| Speaker Power RMS | 600 W |
| Frequency Response | 50 – 2,000 Hz |
| Sensitivity (1W/1m) | 97 dB |
| Impedance | 8 Ω |
| Woofer diameter | 12″ |
| Woofer Voice Coil | 4 “ |
| Woofer Magnet Weight | 125 oz |
| Mounting Dimensions | 239 x 138 mm (Ø x D) |
| Dimensions | 34 x 34 x 21 mm (W x D x H) |
| Weight | 11.2 kg |
