The Power Dynamics PD15C is a 15″ ferrite woofer with a 4″ (100mm) inside-outside copper voice coil and a glass-fibre reinforced paper cone. Its die-cast aluminium basket reduces magnetic interference. The woofer provides 1600W maximum output power, 800W RMS output power and a frequency response of 45Hz – 2000Hz. It is suitable for a wide variety of applications, including two-way speakers and bass reflex solutions.

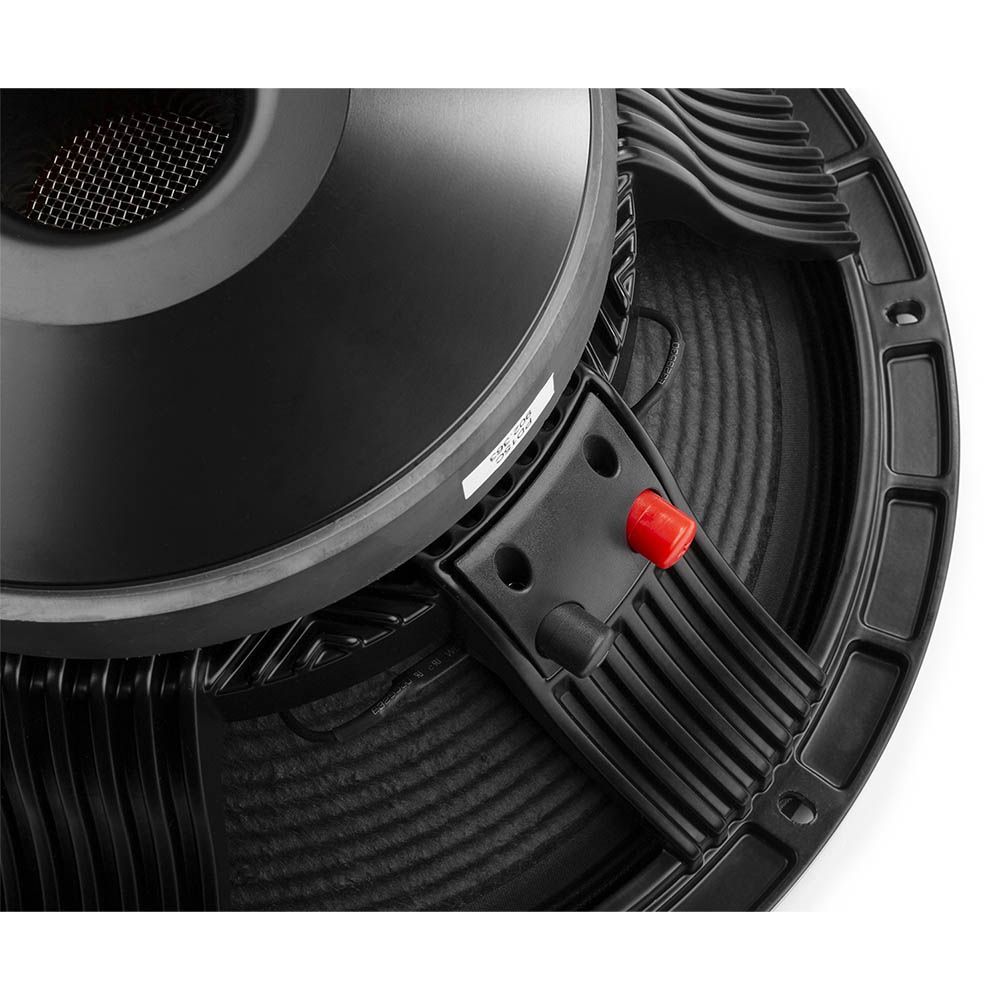

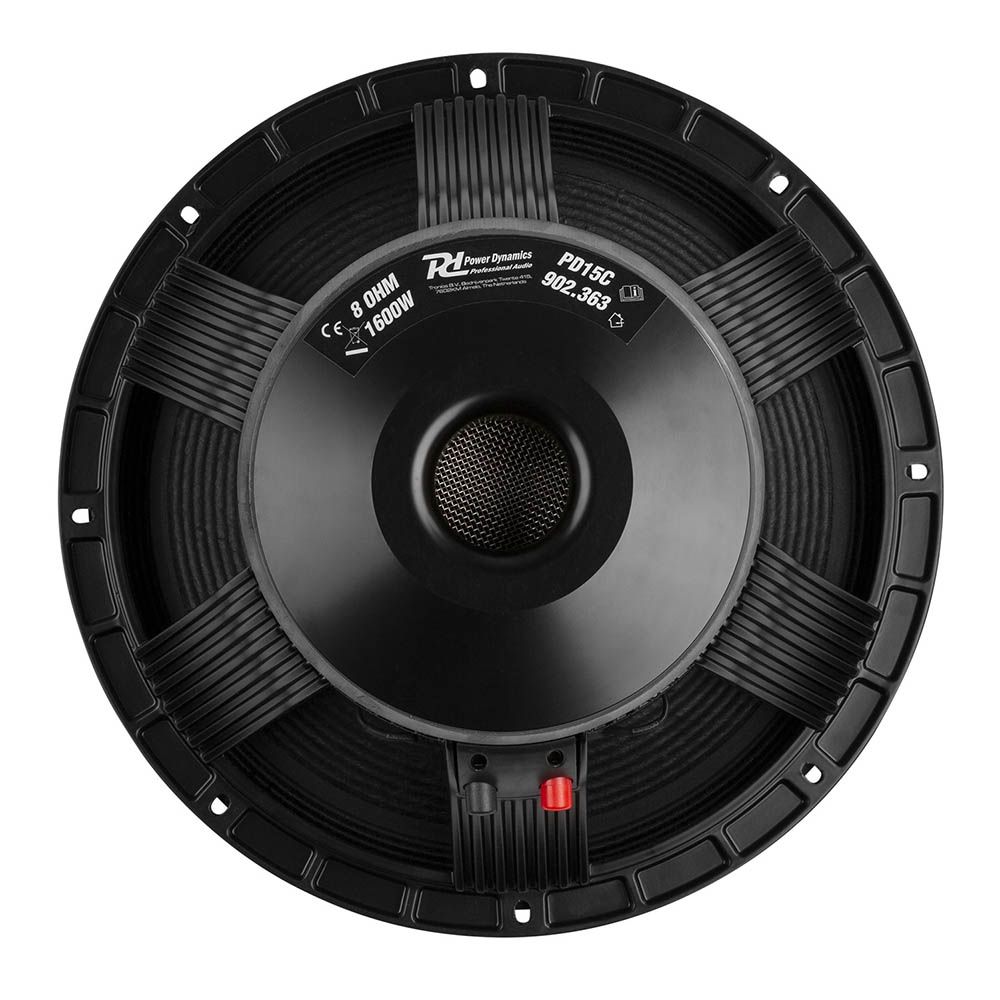

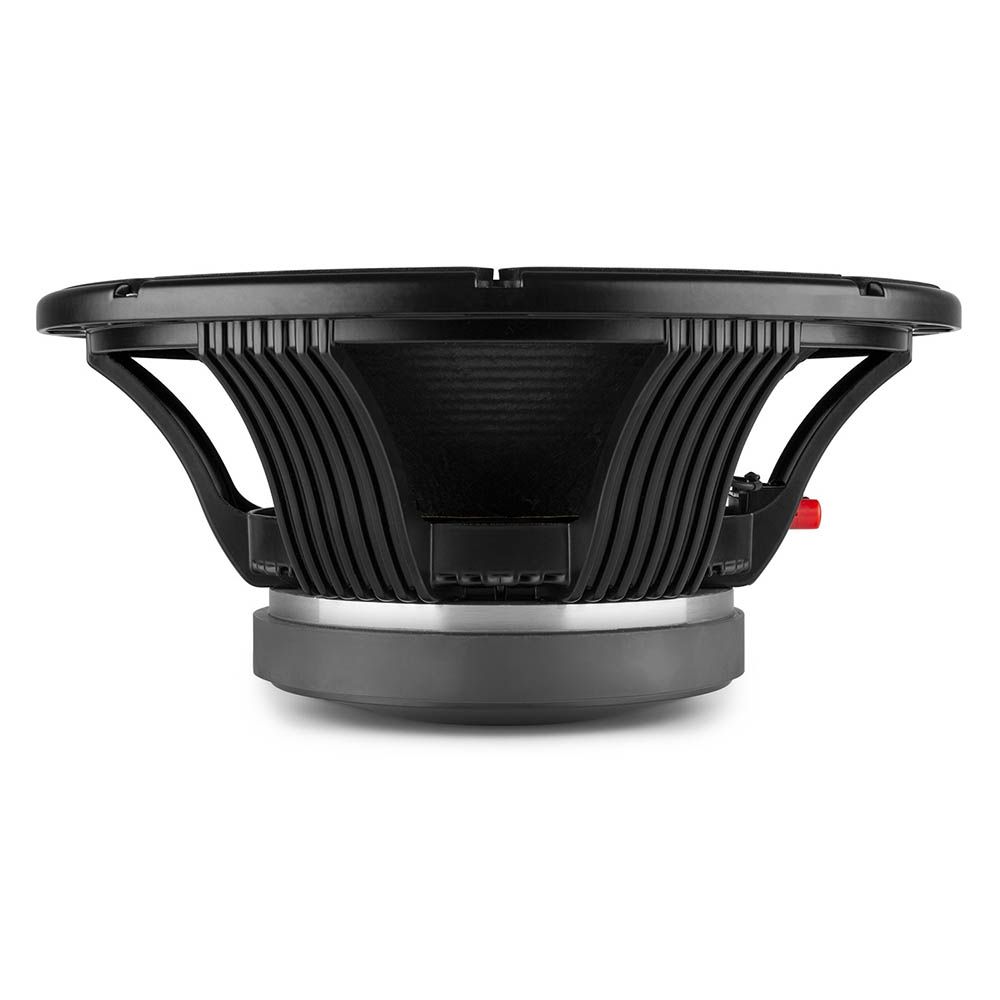

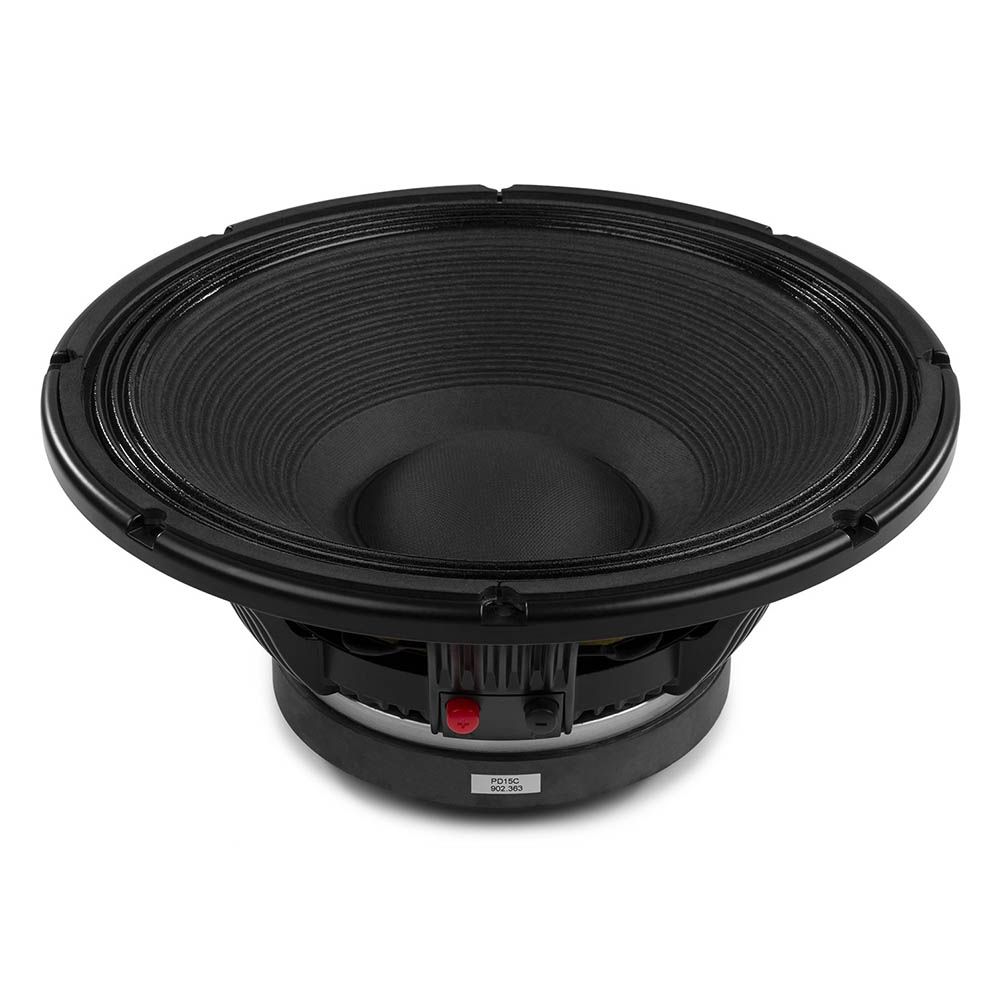

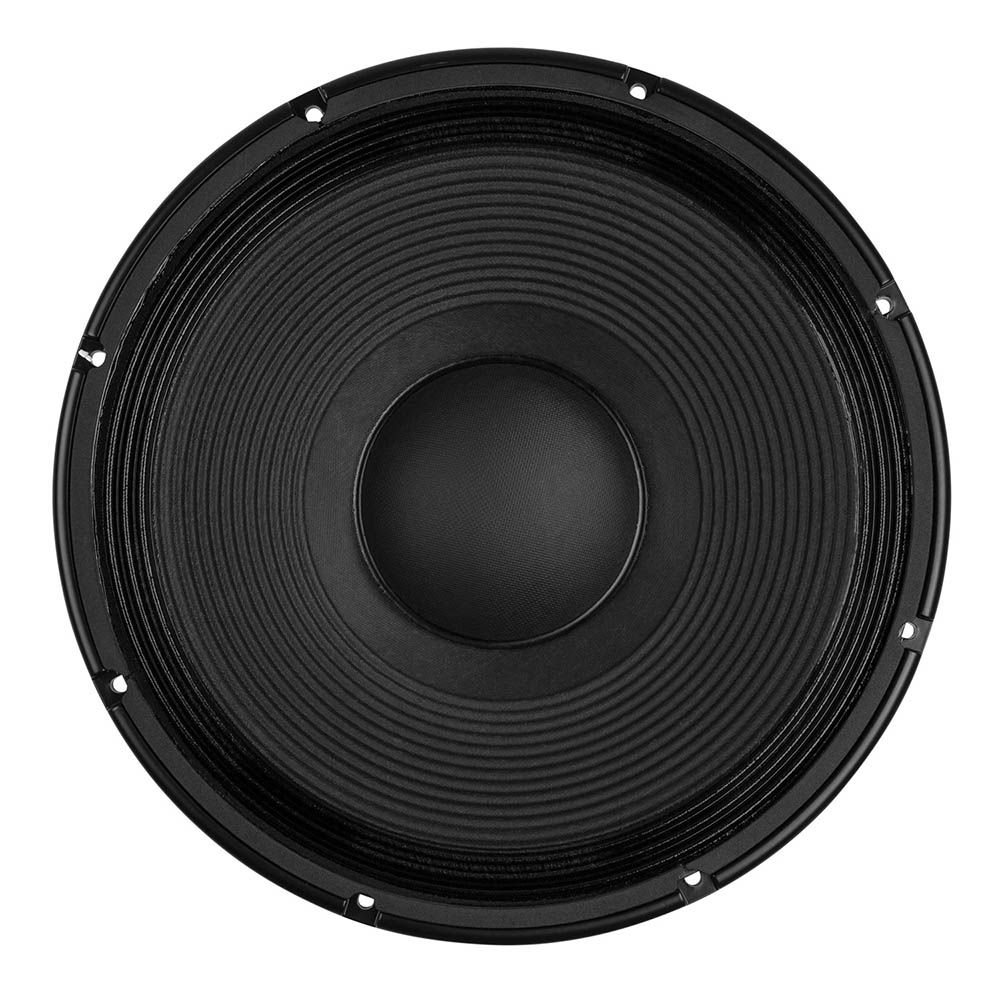

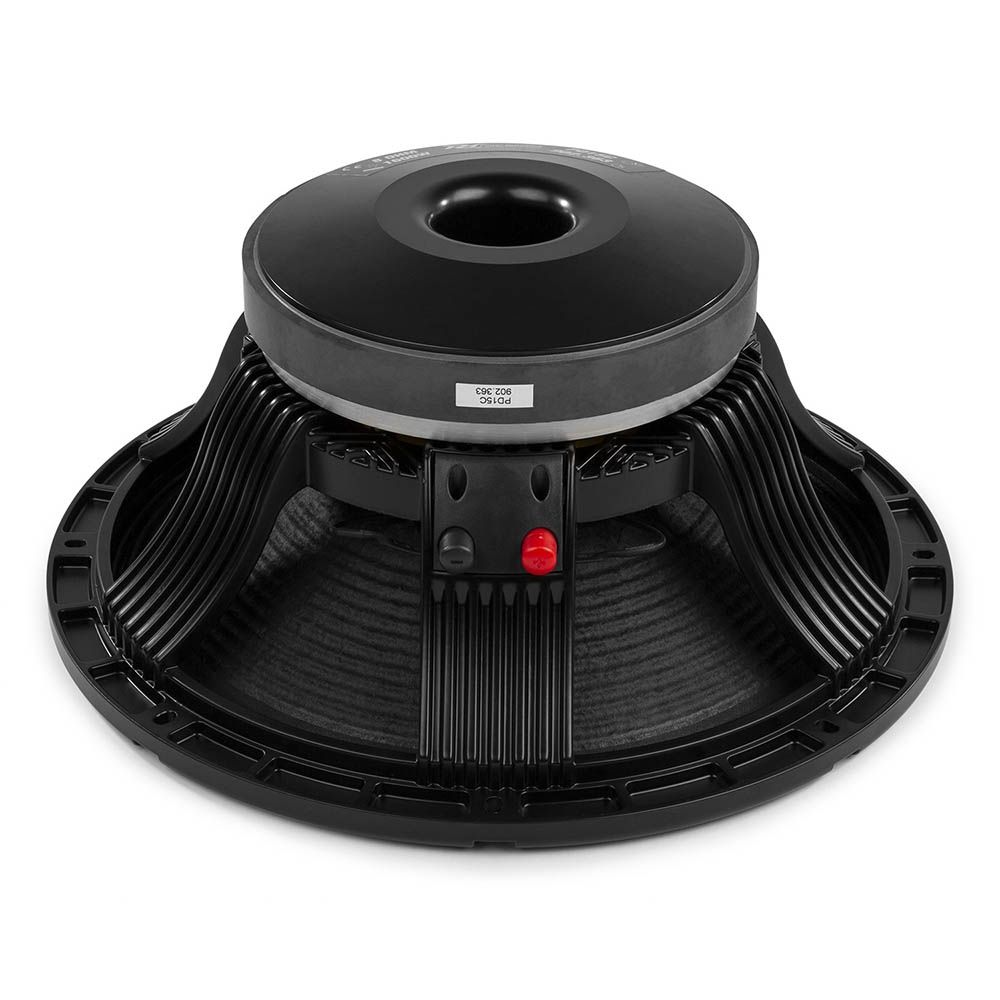

Power Dynamics PD15C 15″ Woofer
RRP: $349.00 ex. GST
Key Features:
- 1600W maximum output power and 800W RMS output power
- 4″ (100mm) inside-outside copper voice coil
- Ferrite magnet
- Aluminium basket reduces magnetic interference
- Glass-fibre reinforced paper cone
- Nominal impedance of 8 Ohms
- Suitable for a wide variety of applications
Technical Data
| Product colour | Black |
| Output power: Max | 1600W |
| Output power: RMS | 800W |
| Diameter woofer | 15″ |
| Voice coil | 4″ |
| Magnet weight | 125 oz |
| Frequency response | 45Hz – 2000Hz |
| SPL @ 1W/1m | 98dB |
| Impedance | 8 Ohm |
| Mounting diameter | 360mm |
| Mounting depth | 167mm |
| Dimensions (L x W x H) | 430 x 430 x 250 |
| Weight (kg) | 12.3000 |
