The Power Dynamics PDI101 Mono Passive DI Box is a portable one-channel direct injection box for connecting instruments to audio systems. It provides one XLR balanced output, one XLR Combo input and a 6.3 mm jack loop-through output. A 3-way attenuator switch offers 0, -20 or -40 dB settings, while the ground lift switch can help avoid noise from ground loops. The unit has a black metal housing.

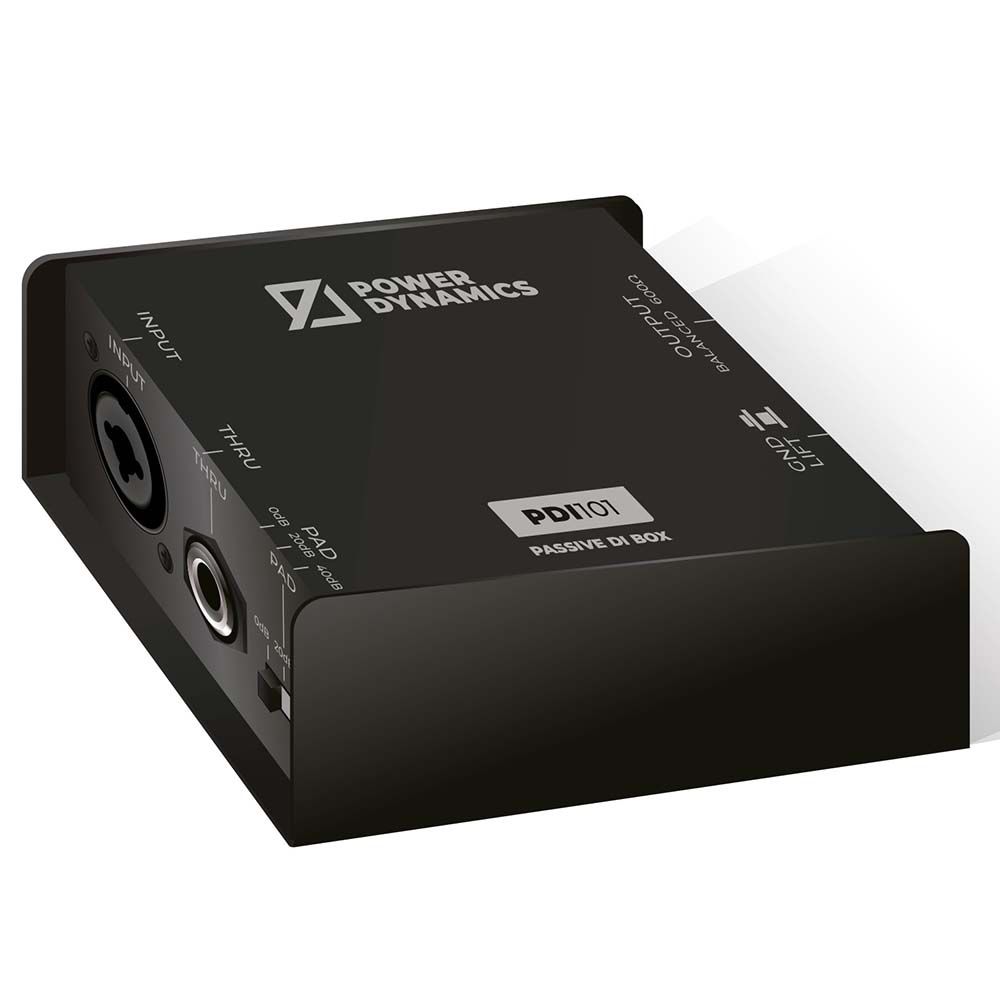

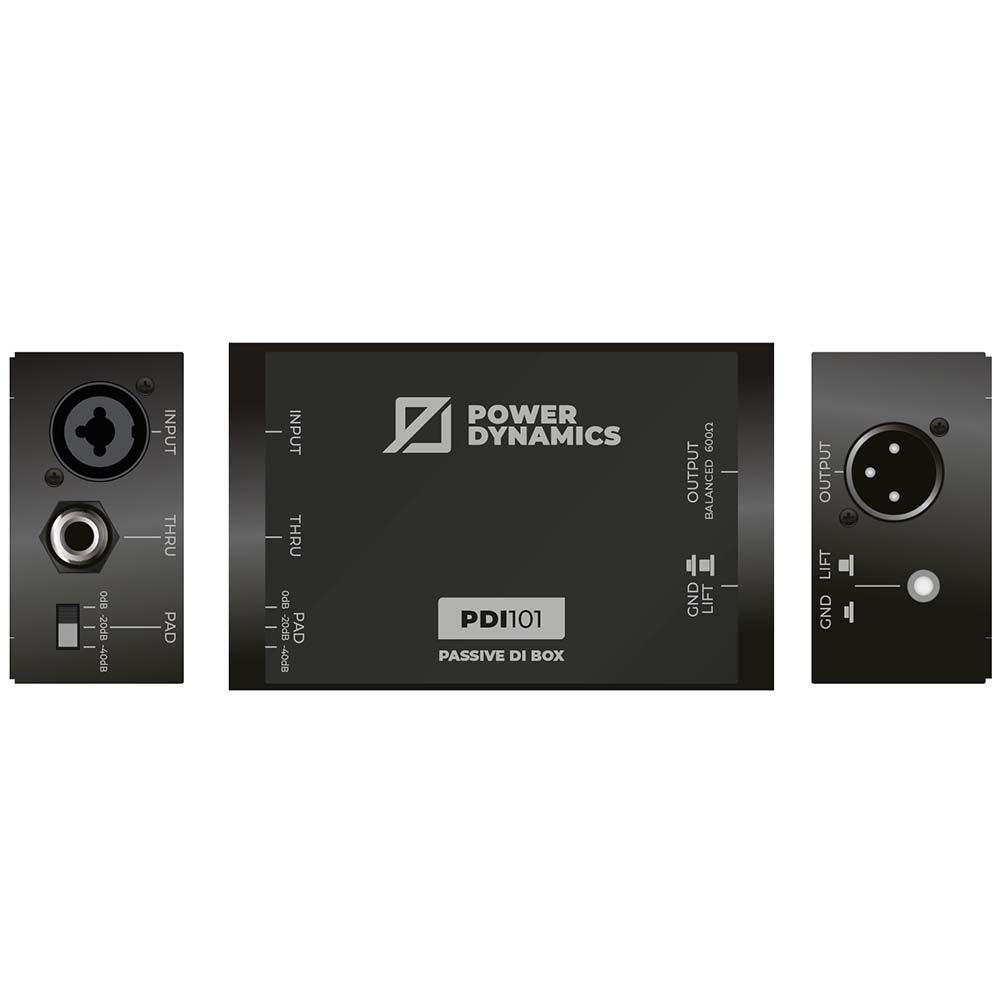

Power Dynamics PDI101 Mono Passive DI Box
RRP: $39.00 ex. GST
Key Features:
- Mono Direct Injection Box
- One XLR balanced output
- One XLR Combo input
- One 6.3 mm jack loop-through output
- 3-Way attenuator switch (0/-20/-40 dB)
- Ground lift switch
- Instrument loop-through output
- Metal housing
Technical Data
| Product colour | Black |
| Frequency response | 15Hz – 30.000Hz |
| Input connections | 6.3mm Jack, XLR (3-pin) |
| Output connections | XLR (3-pin) |
| Dimensions (L x W x H) | 120 x 40 x 77mm |
| Weight (kg) | 0,35 |
