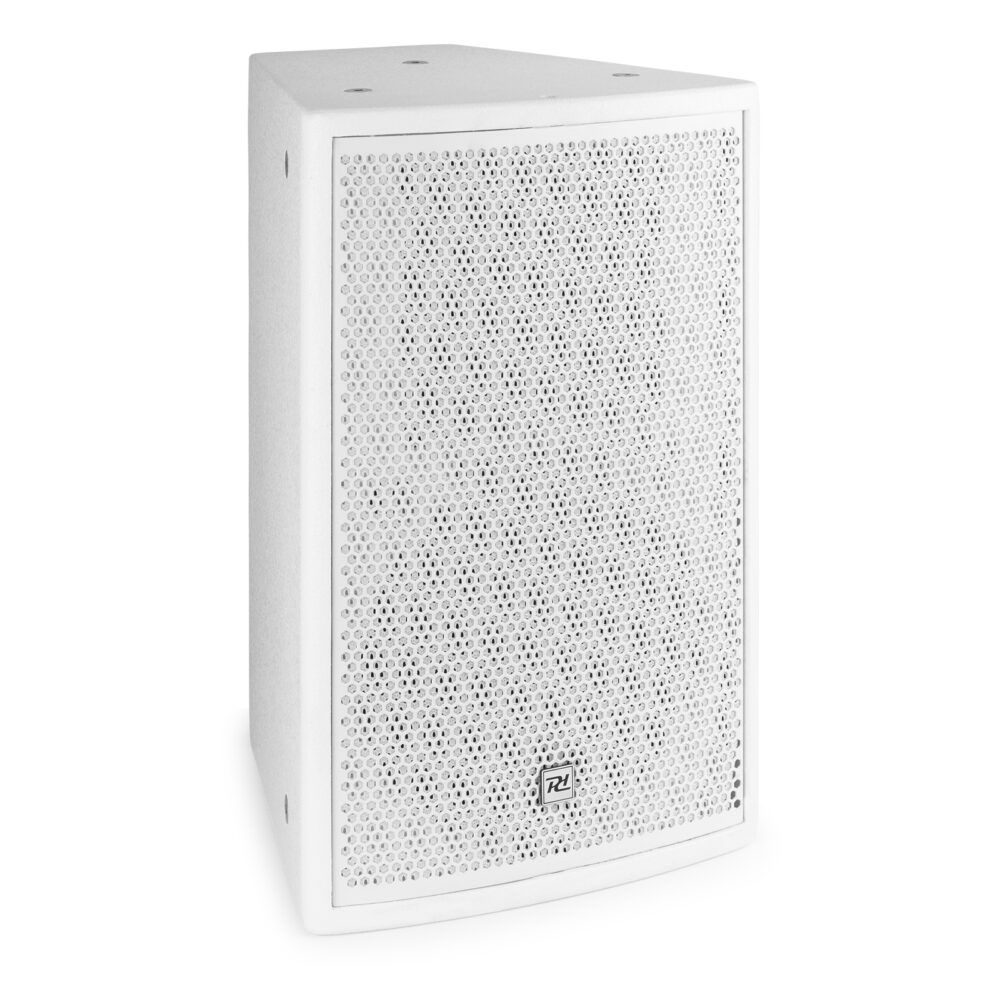

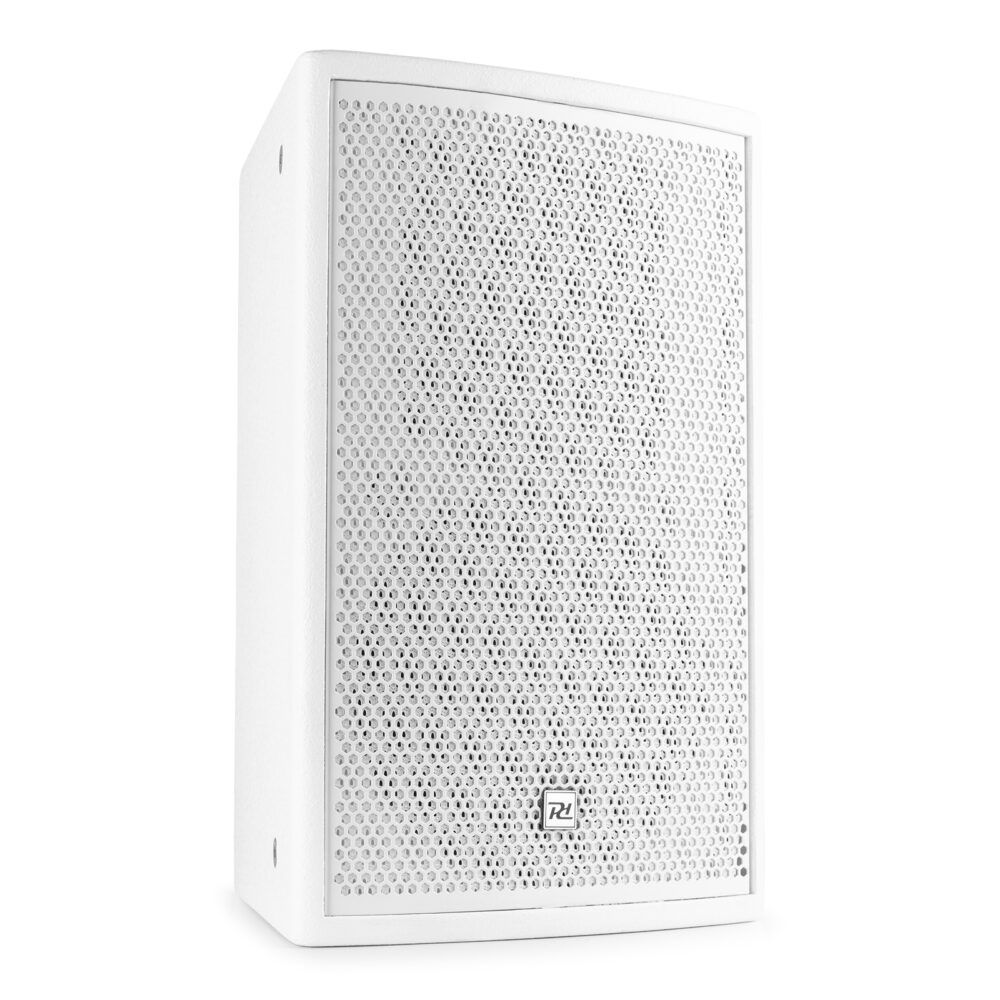

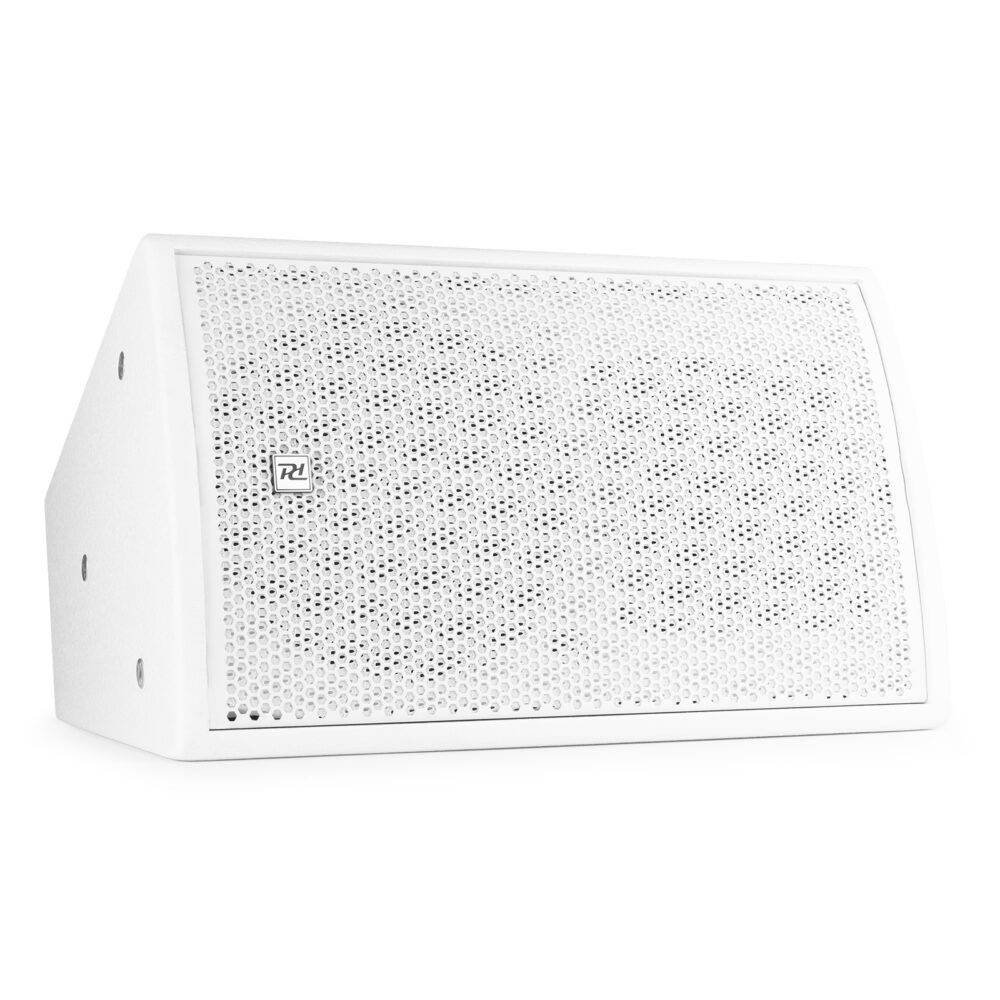

The Power Dynamics PDW8W 8-inch Passive Speaker is a passive 2-way full-range speaker for music and speech reproduction. It uses an internal passive crossover filter, an 8-inch woofer and a 1-inch titanium compression driver in a plywood bass-reflex cabinet. The trapezoidal cabinet supports install or array mounting, while the included metal wall mount provides a mounting option. Connections are provided through two NL4 connectors.

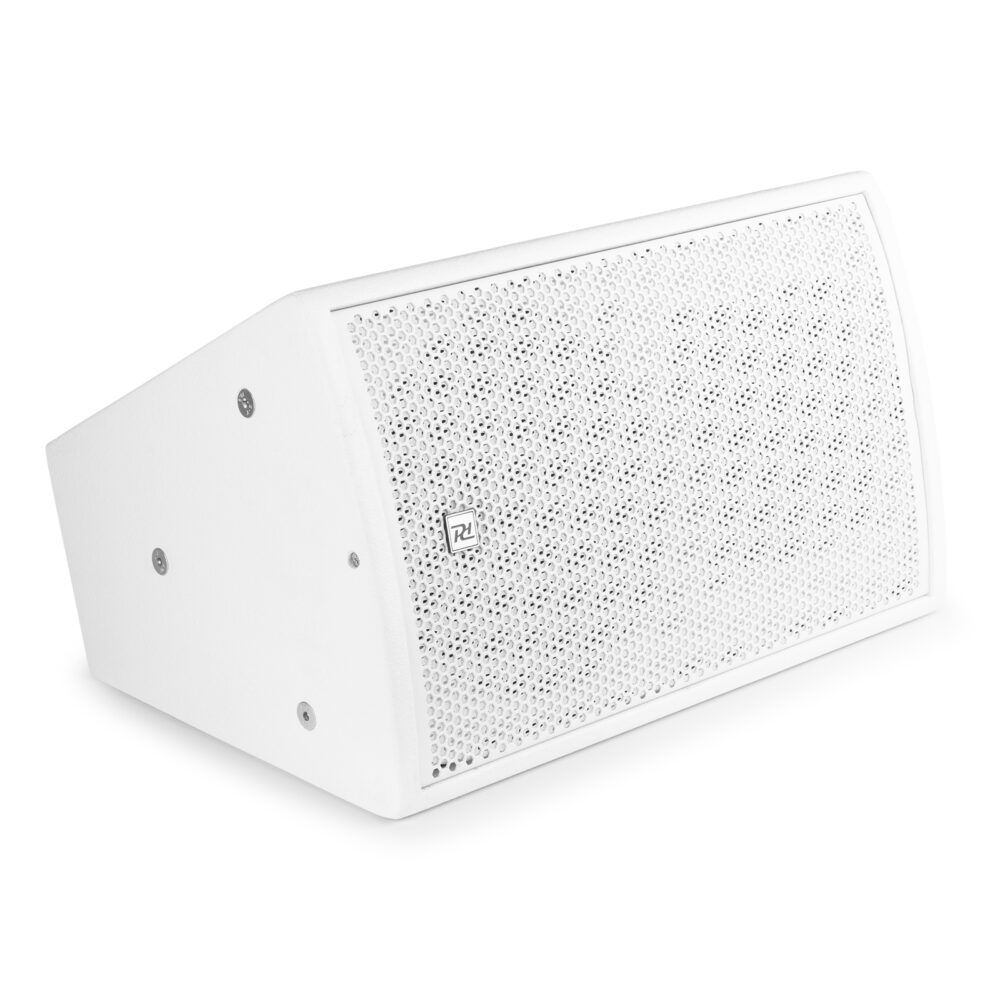

Power Dynamics PDW8W 8-inch Passive Speaker (White)
RRP: $400.00 ex. GST
Key Features:
- Passive 2-way bass-reflex speaker
- 150W RMS output power
- 1-inch titanium compression driver
- 8-inch woofer
- Internal passive crossover filter

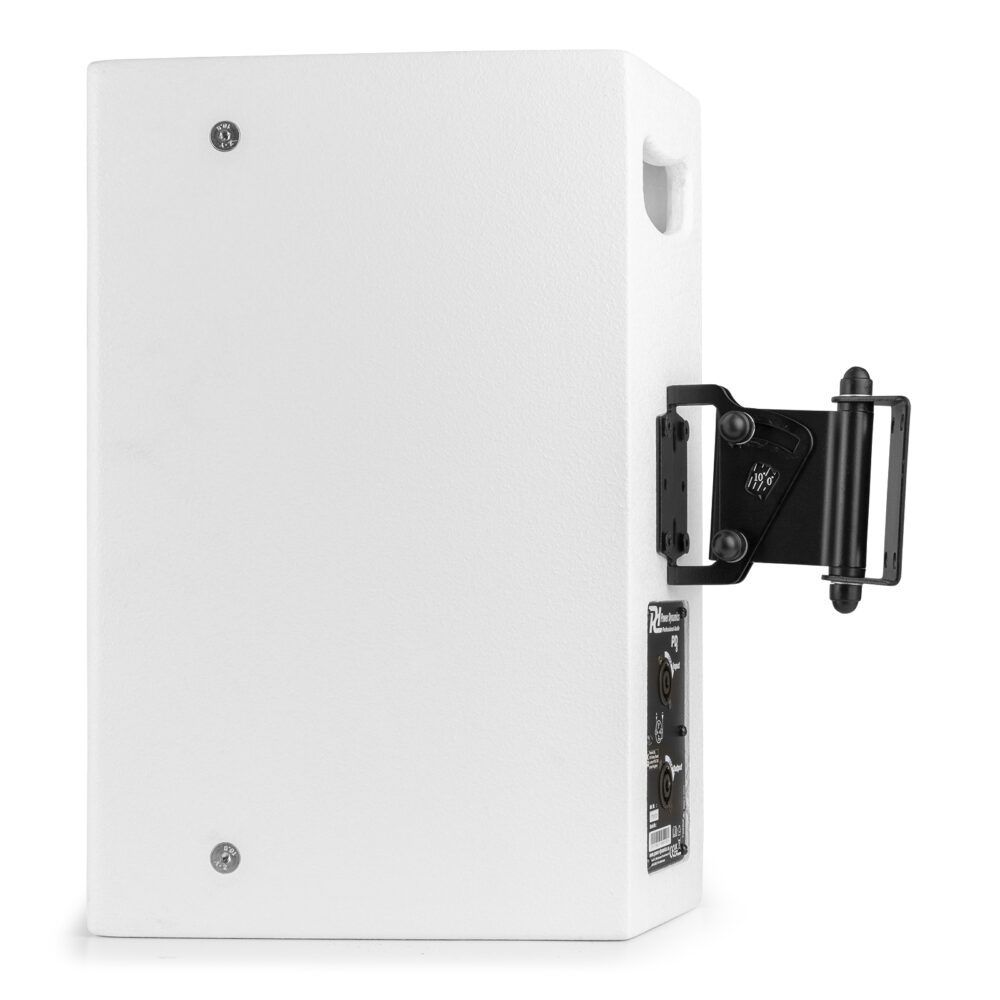

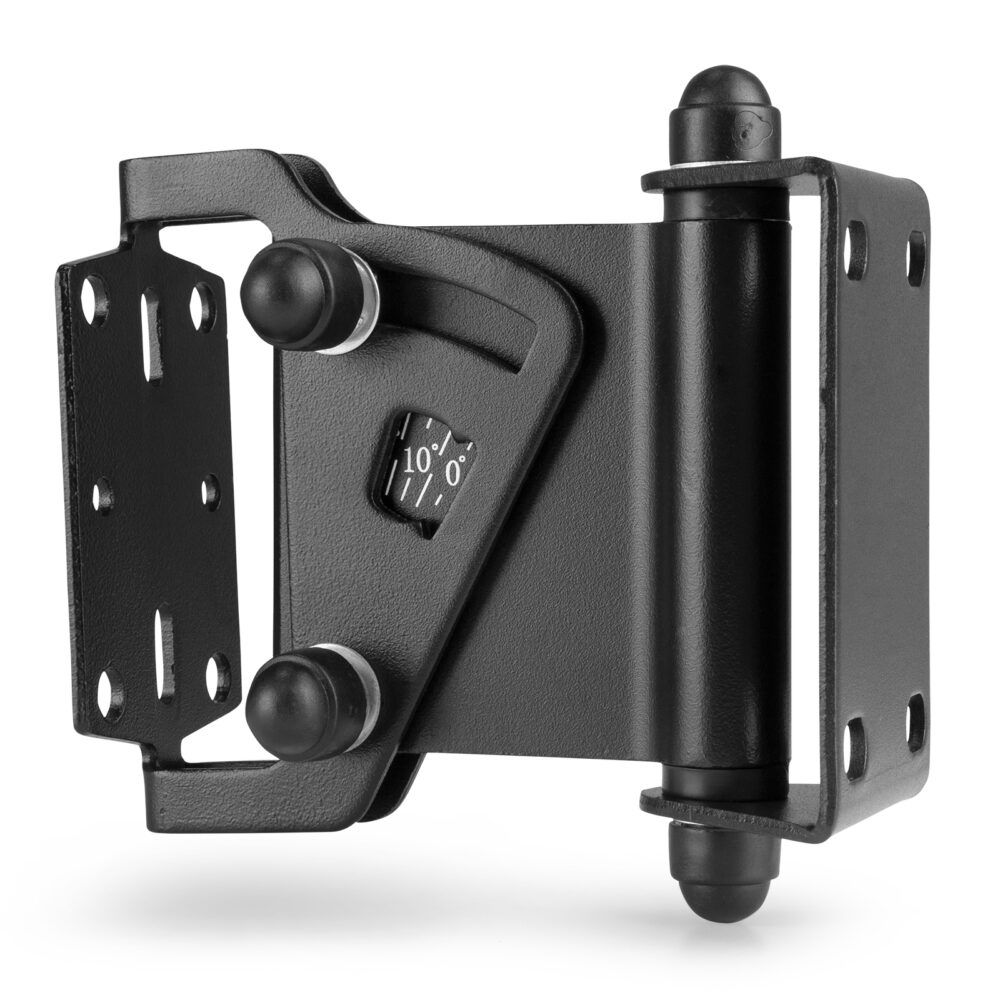

- Including metal wall mount
- Plywood cabinet with white textured paint finish

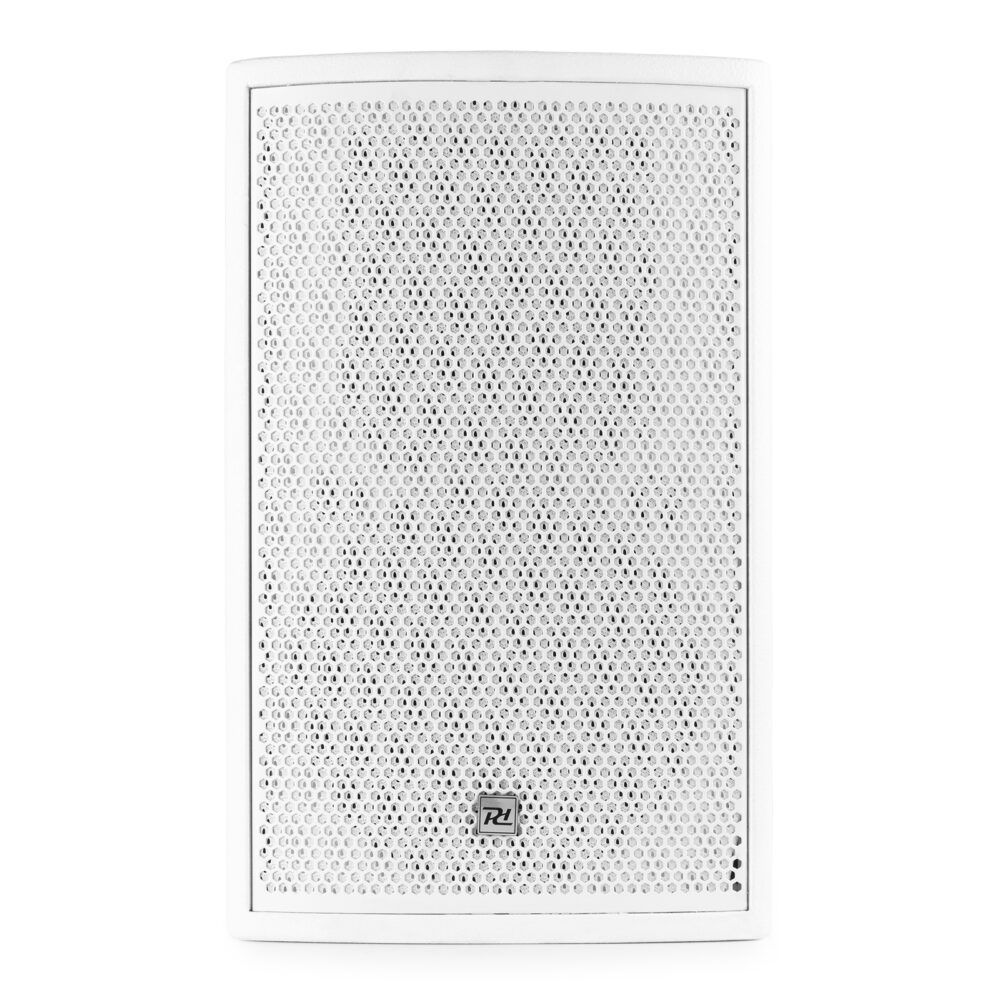

- Robust metal grille

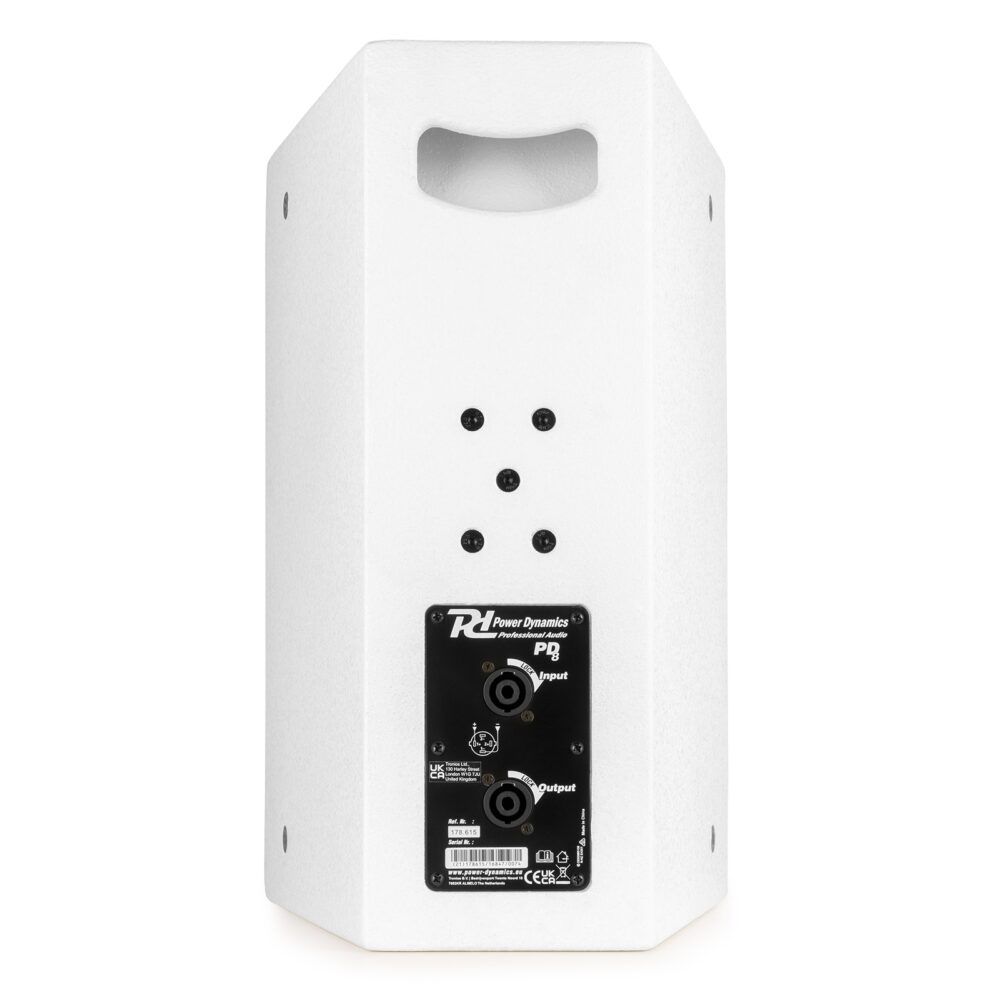

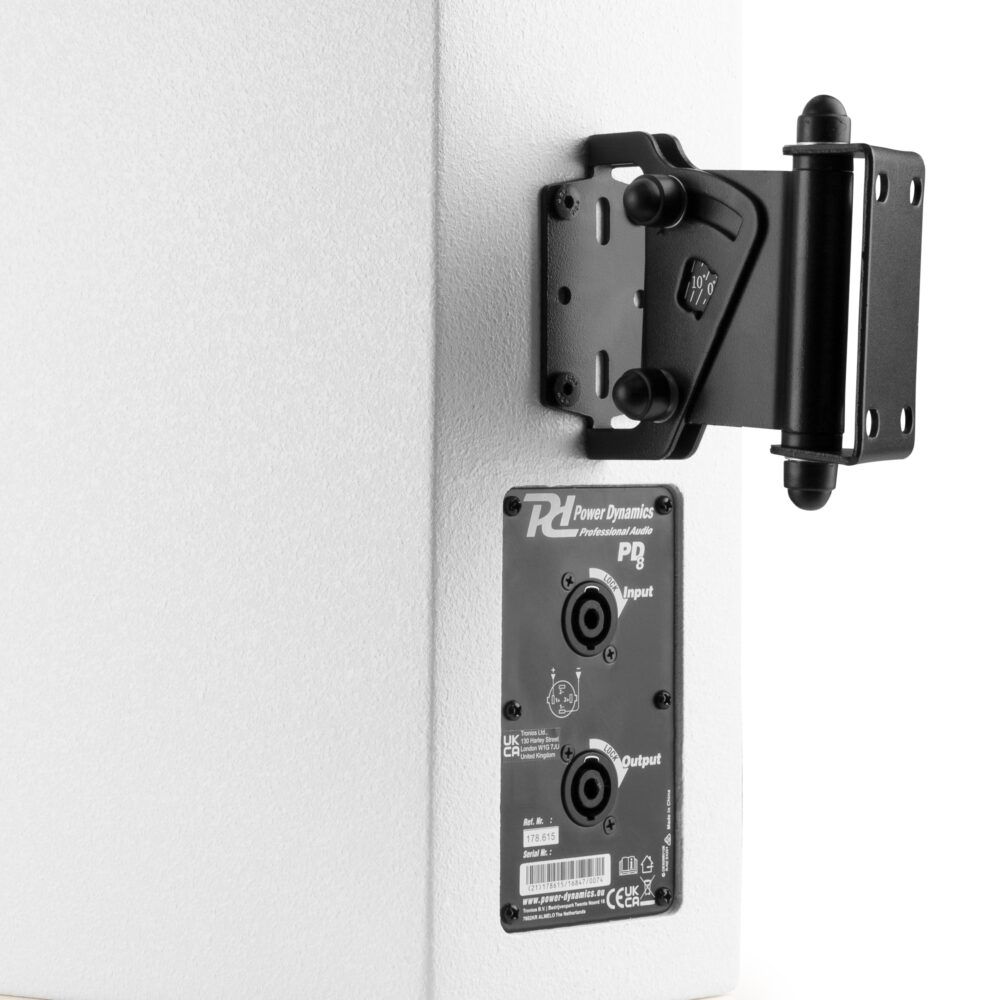

- Connections 2x NL4
- Supplied per piece
Technical Data
| Speaker type | Passive (non-amplified) |
| Product colour | White |
| Output power: Max | 300W |
| Output power: RMS | 150W |
| Tweeter type | Titanium Compression Driver |
| Diameter tweeter | 1″ |
| Diameter woofer | 8″ |
| Magnet type | Ferrite |
| Impedance | 8 Ohm |
| Frequency response | 80 Hz – 20.000 Hz |
| SPL @ 1W/1m | 92dB |
| SPL max | 116dB |
| Dispersion | 90° x 60° |
| IP rating | IP20 |
| Rigging Eye Thread | M8 |
| Dimensions (L x W x H) | 290 x 290 x 460mm |
| Weight (kg) | 8.8500 |
| Included accessories | Mounting bracket |
