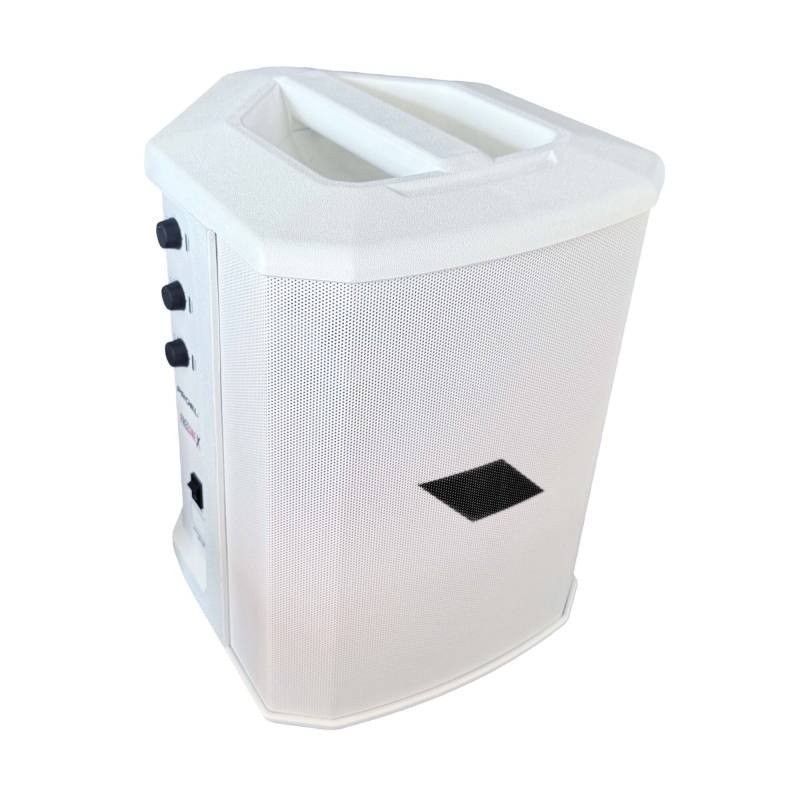

Proel Free One X Portable PA Speaker

SKU: FREEONEX Category: Tag
Proel Logo

Key Features:
  • Bluetooth 5.0
  • Battery Powered
  • Up to 10 Hours play time (at medium Level)
  • 2x XLR/TRS Combo MIC/LINE level input
  • 1x 3.5mm Stereo Jack LINE/BT level input
  • 32bit DSP & 24bit AD/DA Processing
  • Reverb Effect & Semi-Parametric EQ

FREEONEX is an all-in-one battery-powered personal PA system featuring multiple inputs and BLUETOOTH connectivity. Hosted in a compact, lightweight yet ultra-durable polypropylene cabinet with multiple aiming positions, it represents the perfect solution for musicians, DJs and general PA users.

An array of three high-definition 2” HF speakers coupled with a powerful 6” LF woofer provides a consistent tonal balance, a strong output level over distance and a wide coverage of large audiences.

The state-of-the-art electronics includes a sophisticated pre-amp section with DSP processor and a powerful 150W + 50W Class D power amplifier. The built-in 2 mono + 1 stereo channel digital mixer allows to connect two microphones or instruments and a stereo player, each one with independent level controls. A 2-band EQ and a studio-grade digital REVERB is also available for microphone/instrument inputs.

The built-in BLUETOOTH connection allows to stream high quality audio from portable devices without the need of any cable.

The built-in Li-ion battery provides up to 10 hours of mains-free continuous operation, for the maximum freedom of use.

Technical Data

System type 2-way vented enclosure with HF array
High Frequency Device 3 x 2 in
Low Frequency Device 1 x 6 in
Frequency response (-3 dB) 60 Hz – 18 kHz
Max. SPL 115 dB
Coverage angle (H x V) 120° x 50°
Total peak power 400 W
HF Continuous power HF = 50 W class D

LF = 150 W class D

INPUT 2 x XLR/TRS Combo (balanced) Connectors
1 x 3.5mm Jack Stereo Connector2x MIC/LINE Channels
1x LINE/BT Channel
OUTPUT 1 x 6.35mm Jack (unbalanced)
1 x USB type A Charge port
Mic/Line Controls Reverb, Low, High, Level
Reverb, Low, High, Level
Pair, Level
Processing 32bit DSP, 24bit AD/DA
Bluetooth Protocol 5.0, Audio Streaming
Enclosure material Polypropylene
Finish Black Textured
Grille material Powder coated steel
Mounting Pole 1 x bottom
Dimensions (H x W x D): 320 mm x 240 mm x 290 mm
Weight 7.5 kg
USB charging 2 A max
Power Supply 100 – 240 V~, 50 / 60 Hz
Consumption 150 W
Battery type Rechargeable Lithium-ion 6000mAh
Battery play time (at medium level) up to 10 hours
Recharging time less than 4 hours

Related Documents

FREEONEX User Manual
