Compact passive subwoofer for permanent installation systems that need extended low-frequency response. It uses a high-excursion 10″ woofer with 2″ voice coil in a band-pass enclosure to deliver impactful bass. The rugged MDF cabinet has an anti-scratch black finish, and the included wall or ceiling mounting brackets support fixed installation use. It is suitable as low-end extension for LTX series installations.

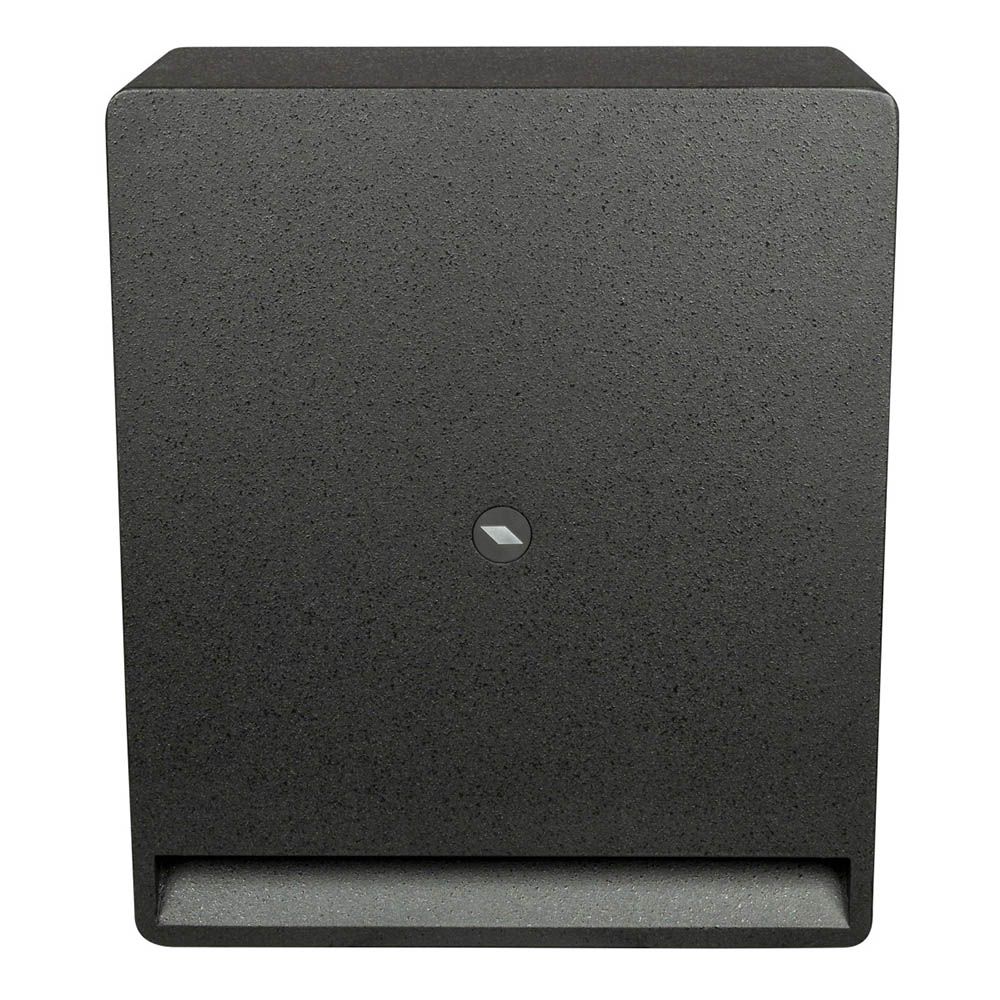

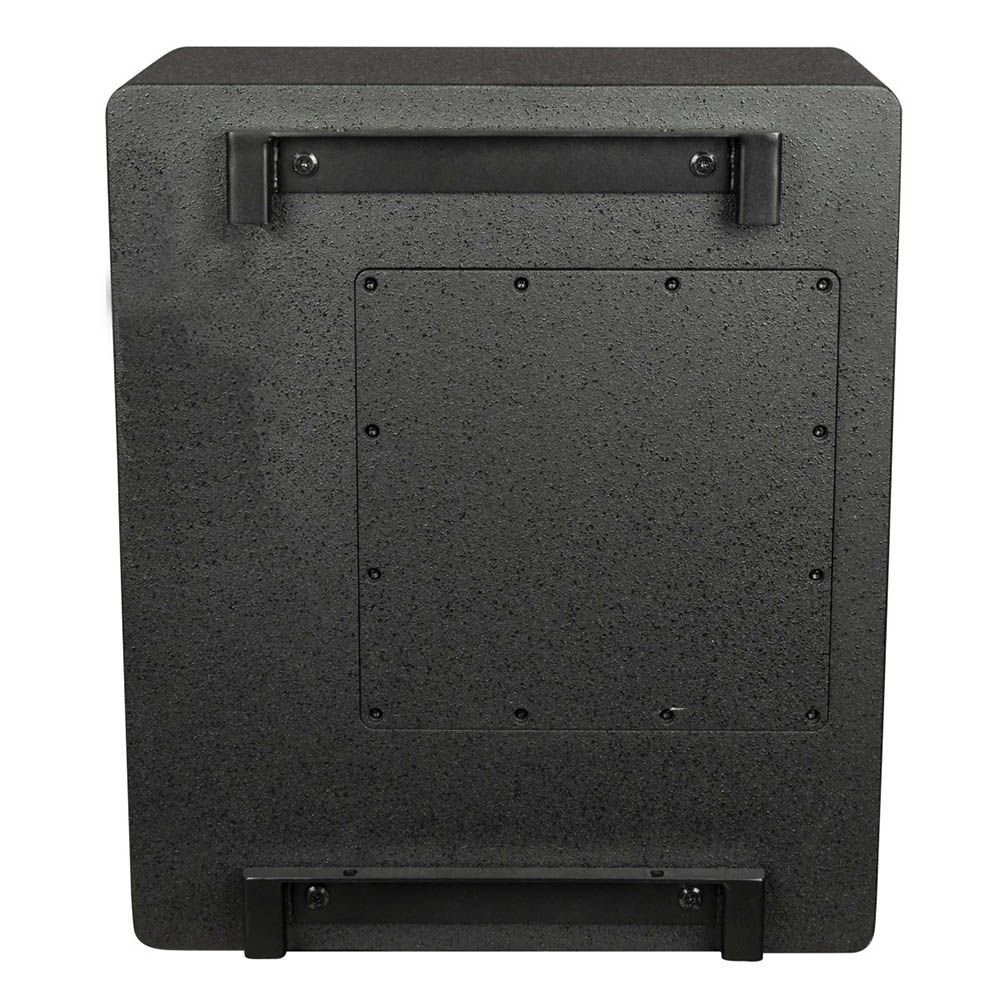

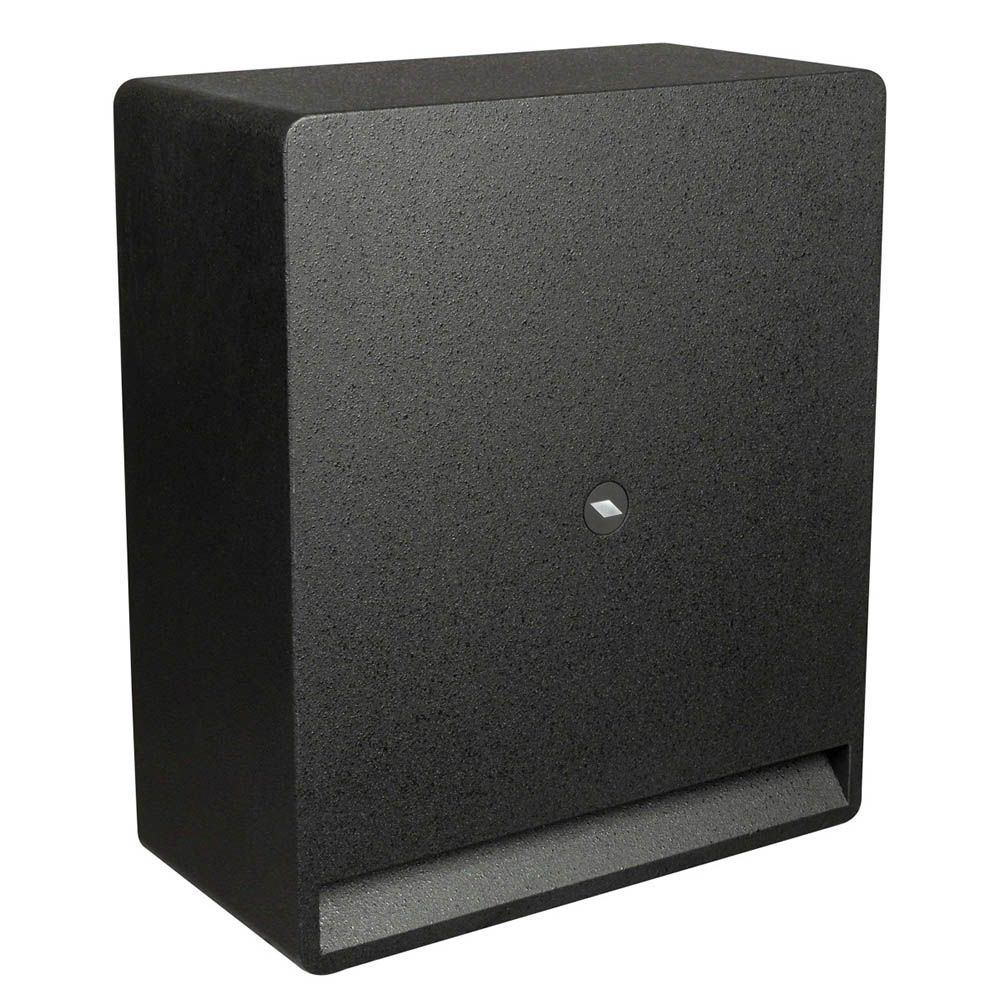

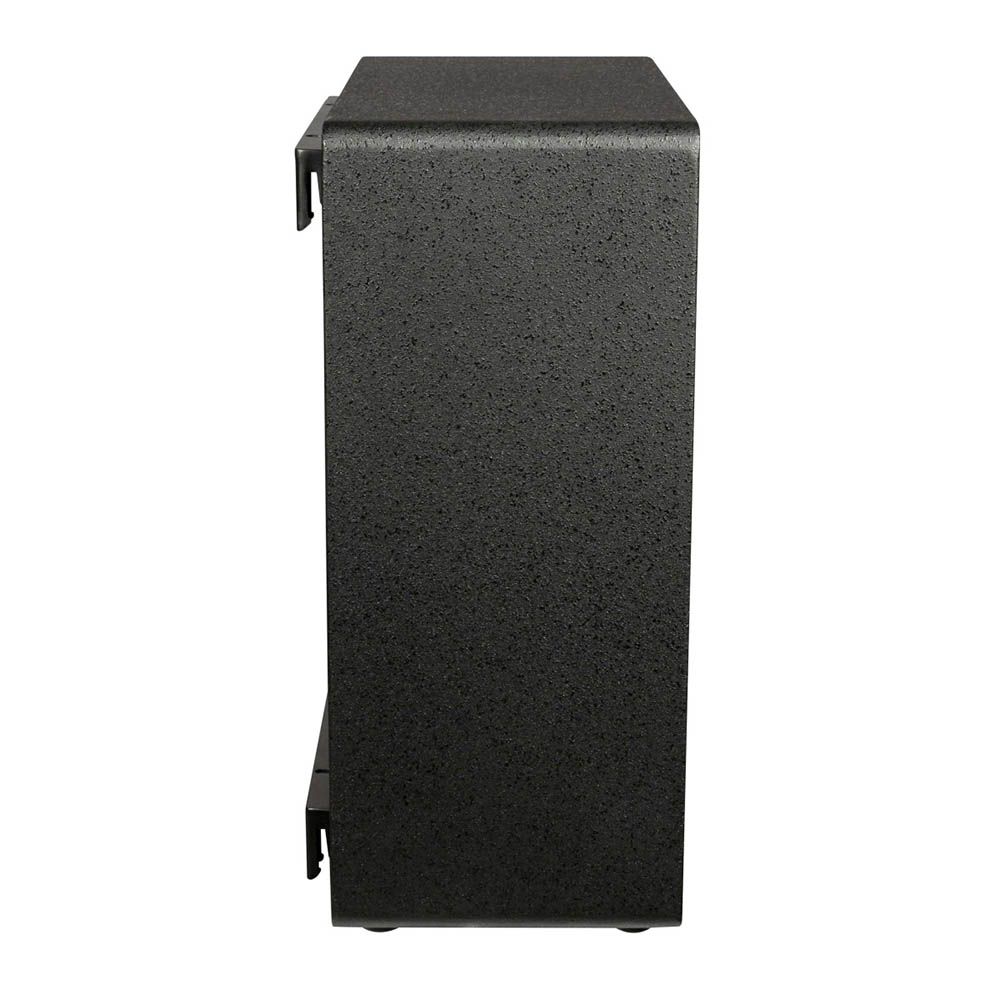

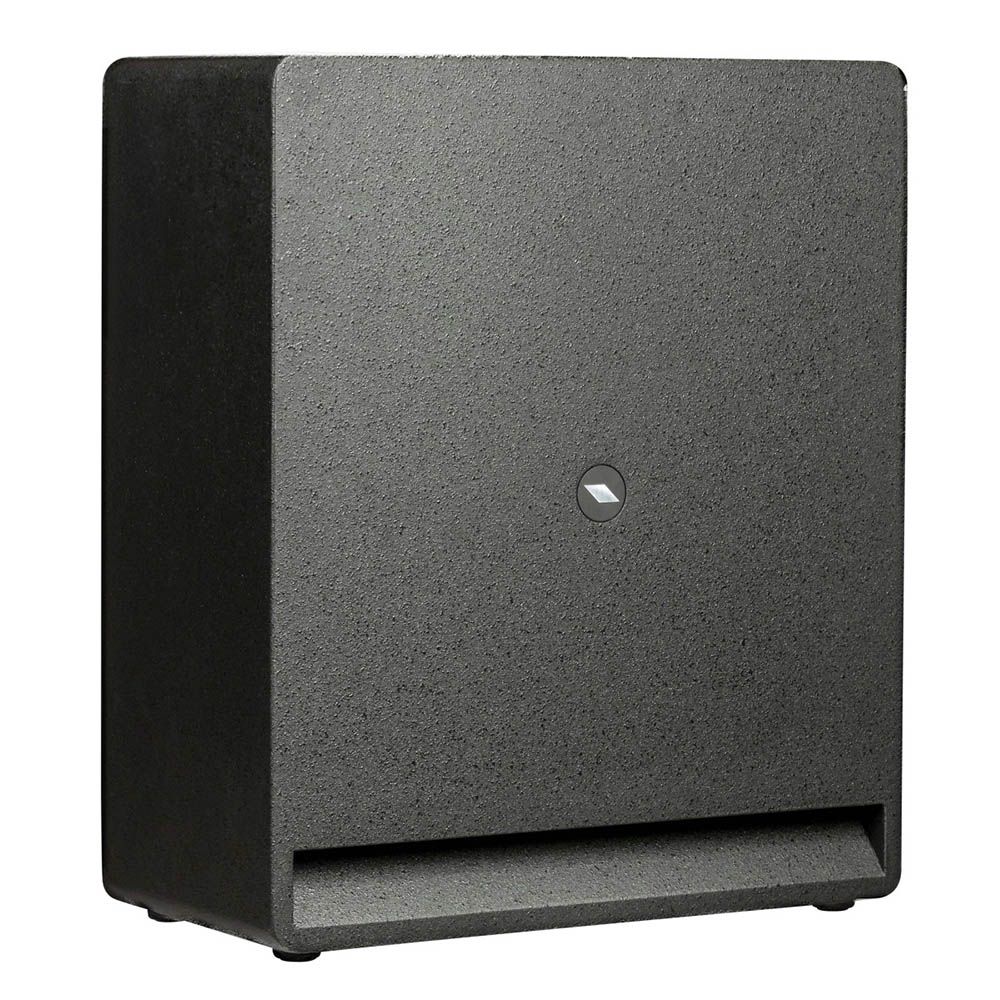

Proel LTXSUB10P 10 Inch Passive Subwoofer
RRP: $599.00 ex. GST
Key Features:
- Compact band-pass passive subwoofer
- High-excursion 10″ woofer with 2″ voice coil
- Wall or ceiling mounting brackets included
- Rugged MDF cabinet with anti-scratch finish
Technical Data
| System Type | Band-pass enclosure |
| Low Frequency Device | 10″ woofer with 2″ voice coil |
| Power Rating (Continuous/Peak) | 150 W / 300 W |
| Impedance | 8 Ω |
| Frequency Response | 45 – 150 Hz |
| SPL (1W/1m) | 95 dB |
| Connectors | Terminal blocks |
| Mounting System | 2 x wall/ceiling mounting brackets |
| Construction | MDF with anti-scratch black finish |
| Cabinet Colour | Black |
| Dimensions (W x H x D) | 480 × 570 × 253 mm |
| Weight | 20.0 kg (44.1 lbs) |
