The PROEL MQ1222X is a compact 12-channel mixer designed for musicians, performers and live sound applications that demand professional audio quality and flexible connectivity. Featuring six studio-grade mic preamps with one-knob compression, the mixer delivers clean and controlled sound for vocals and instruments alike. A built-in 24-bit DSP engine provides 99 high-quality effects including reverbs, delays and modulation processing, while the intuitive LED display ensures easy operation during performances. The integrated USB-C audio interface supports direct recording and playback from computers, complemented by Bluetooth 5.0 streaming and a USB media player for seamless playback from portable devices. Housed in a rugged and portable chassis with smooth 45 mm faders, the MQ1222X is built for both touring and fixed installation use, offering reliable performance and precise control in a compact footprint.

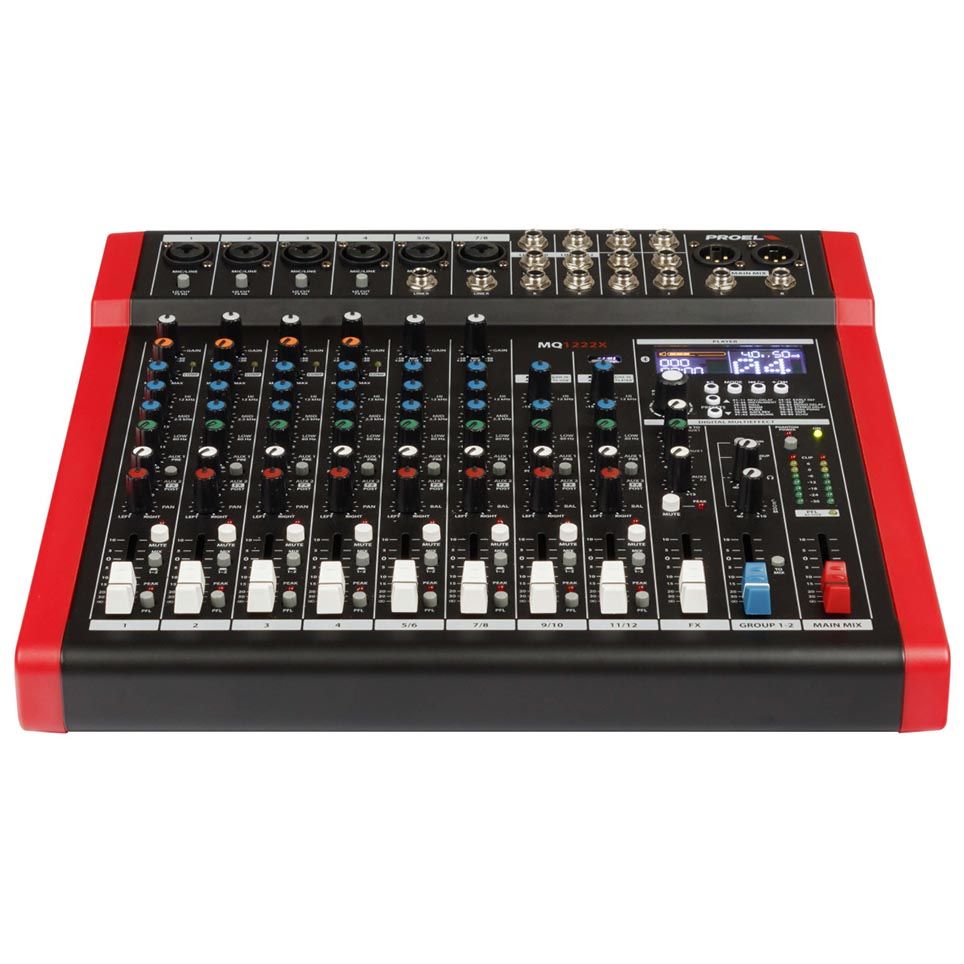

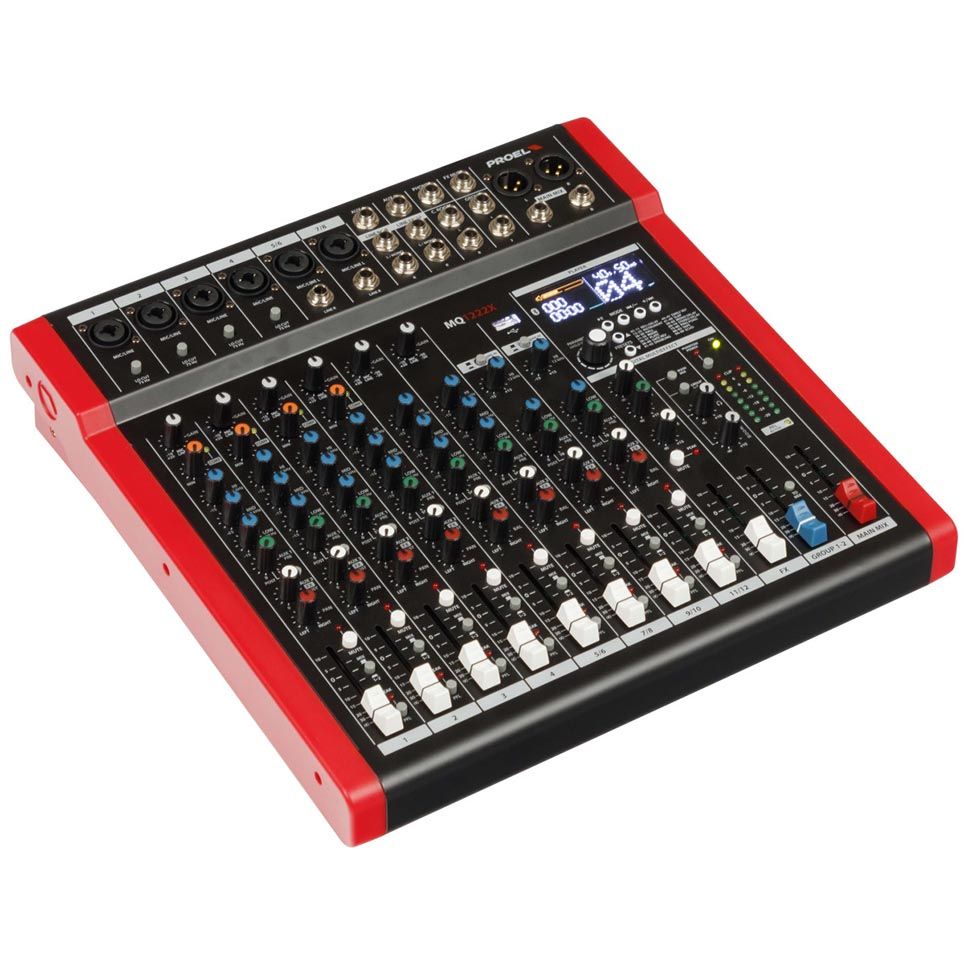

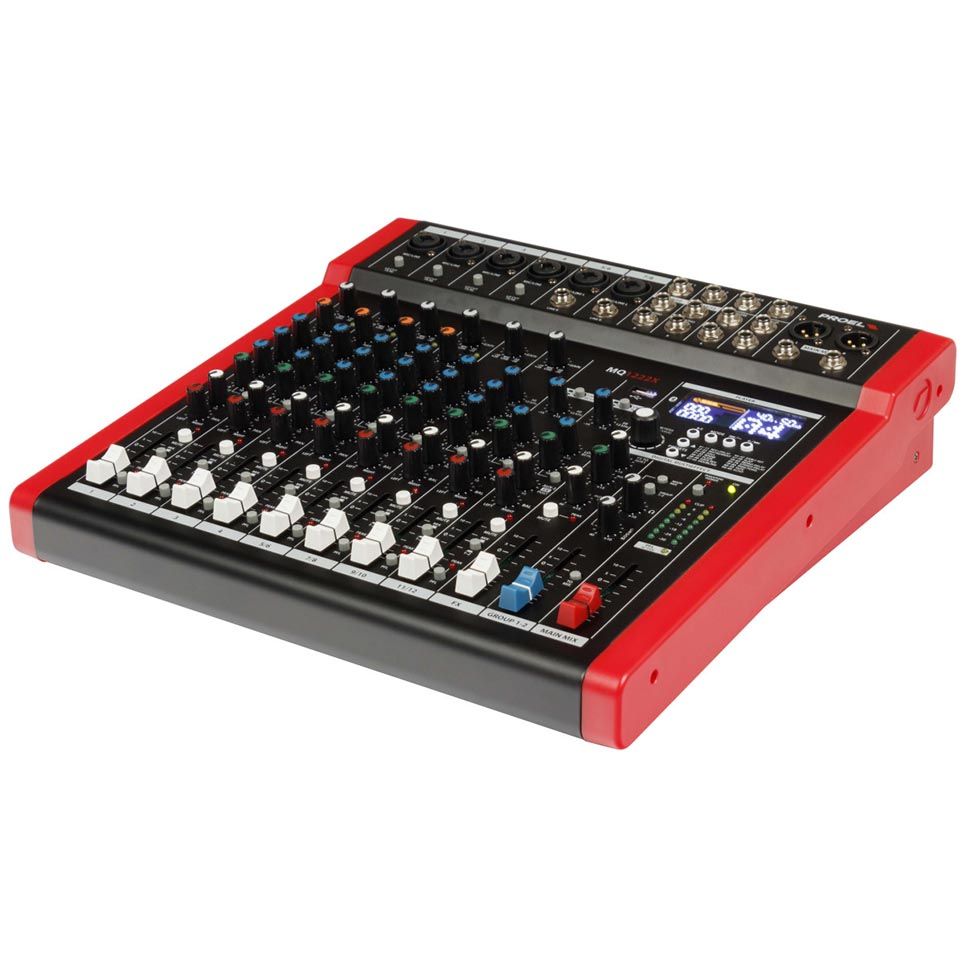

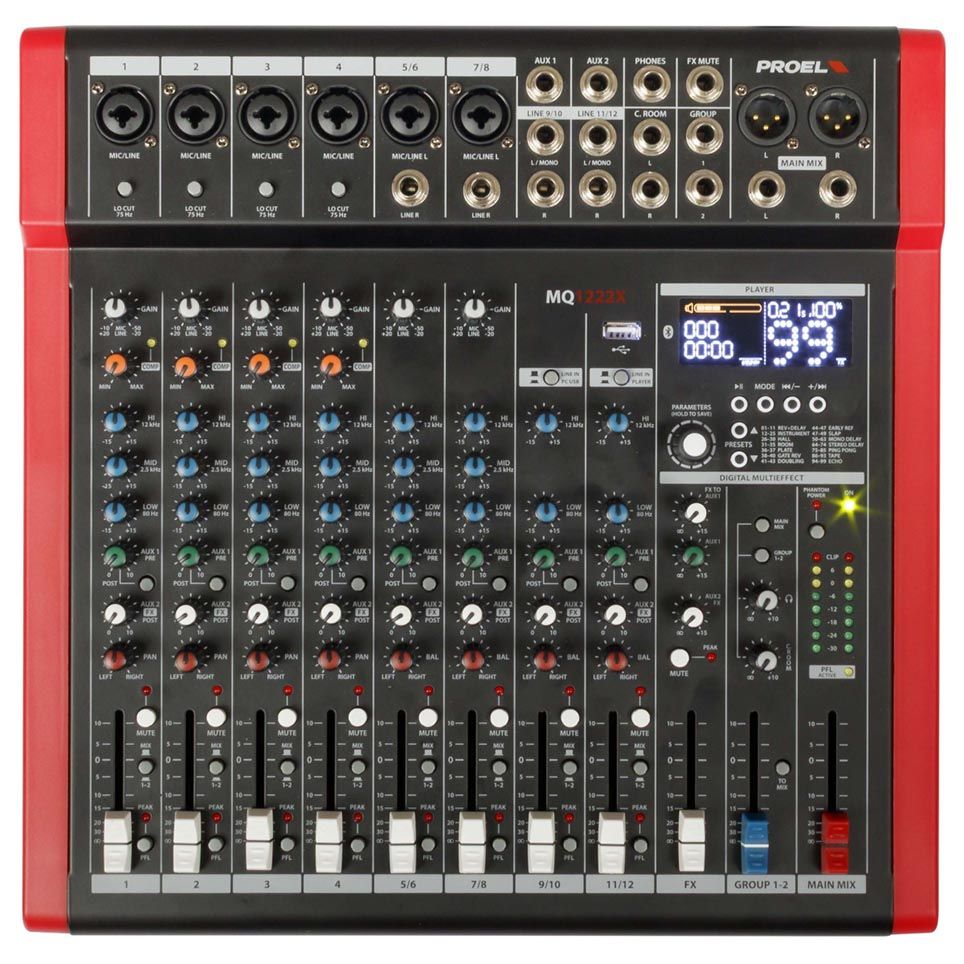

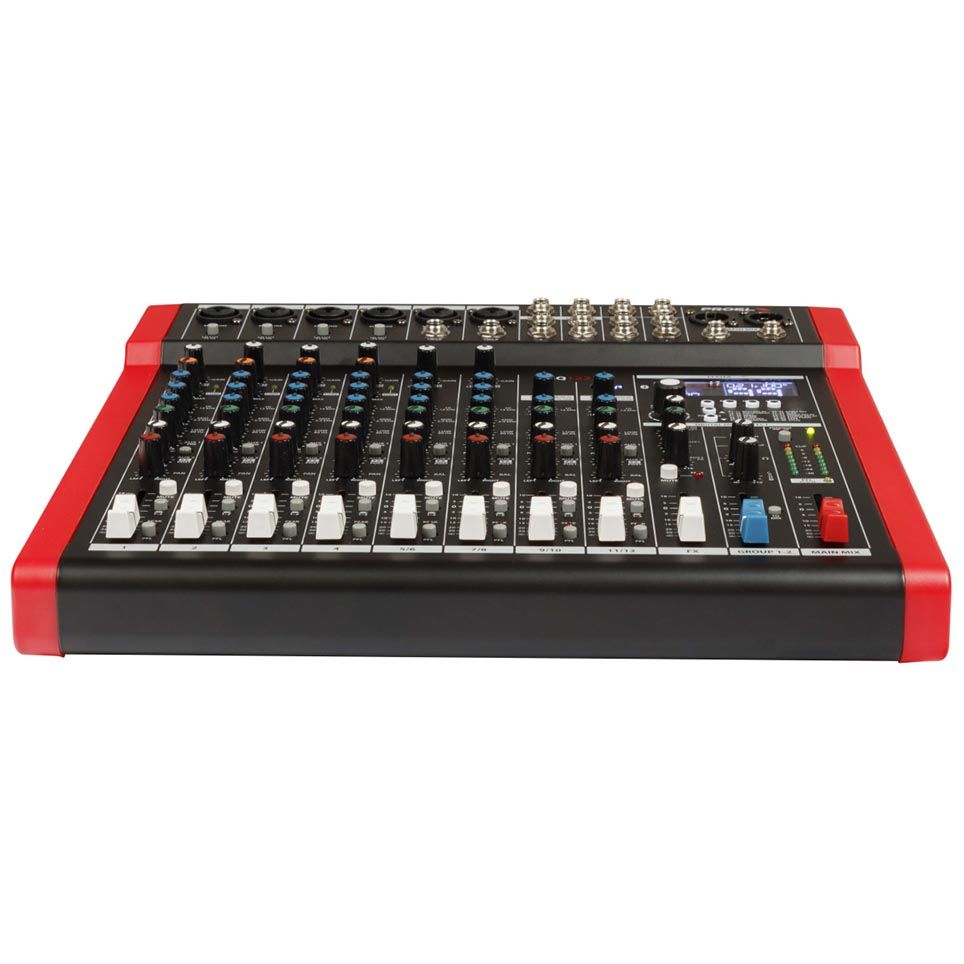

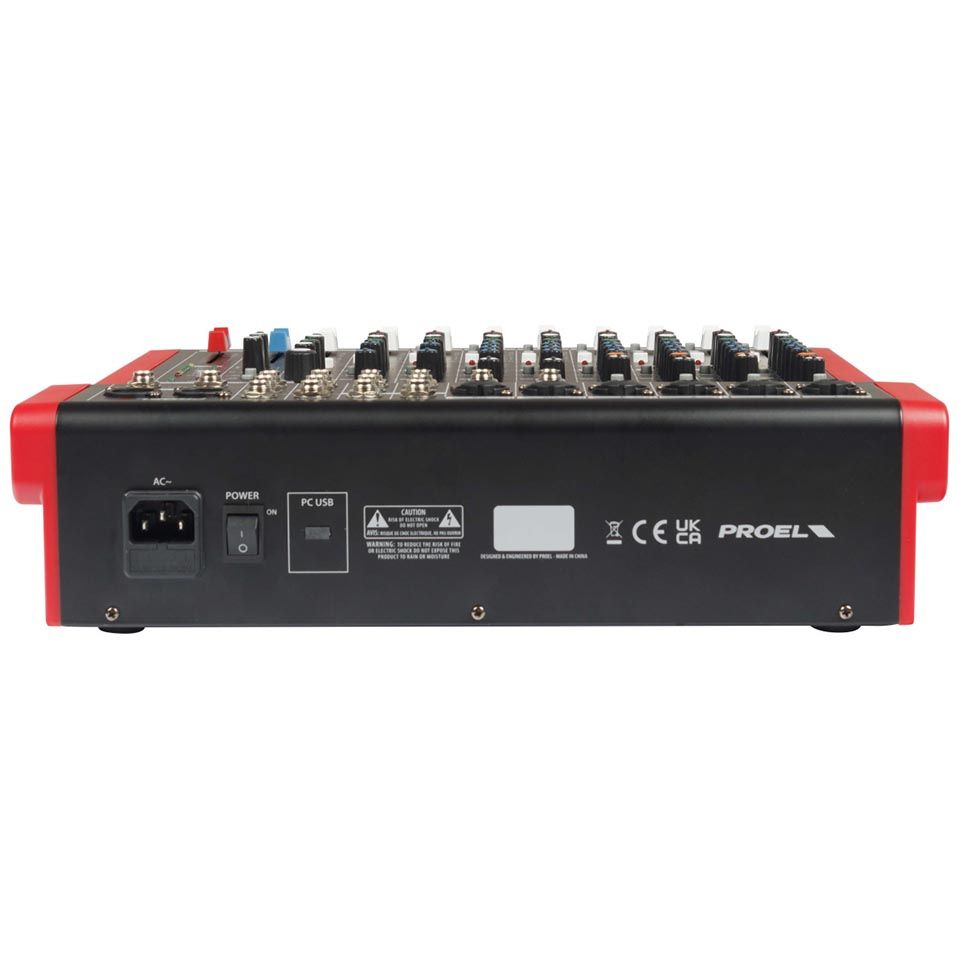

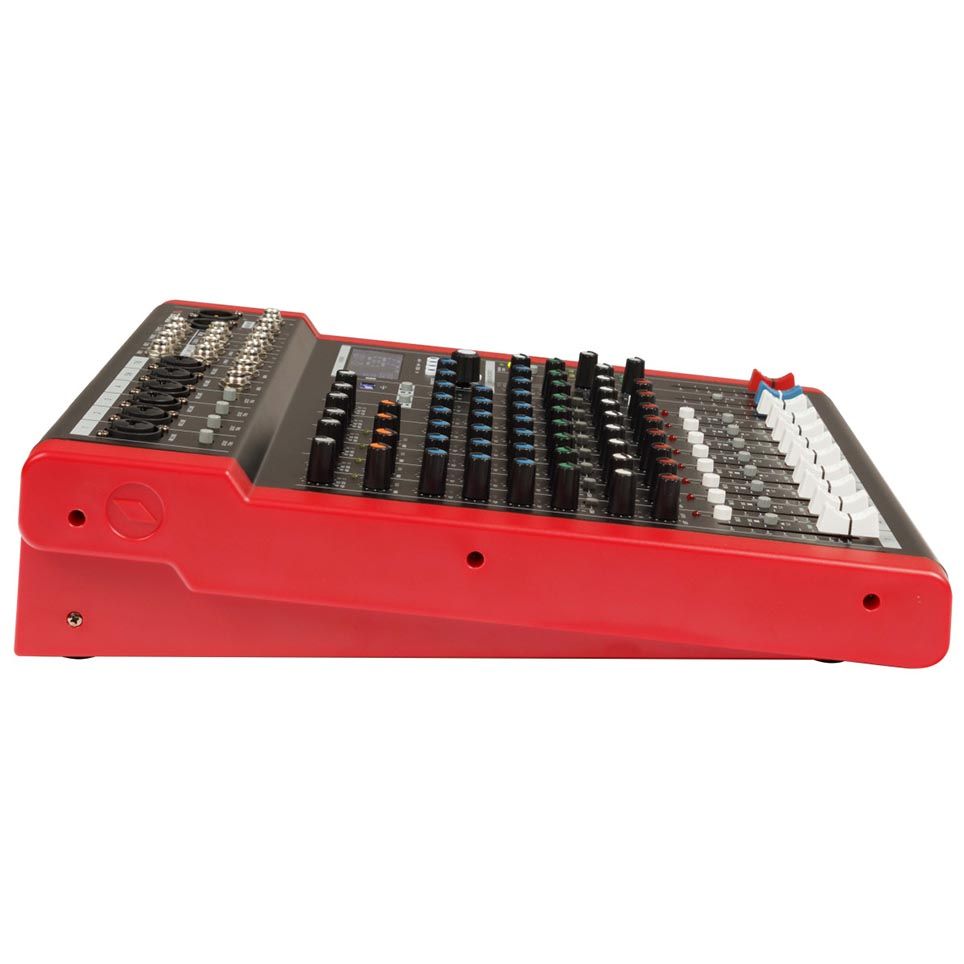

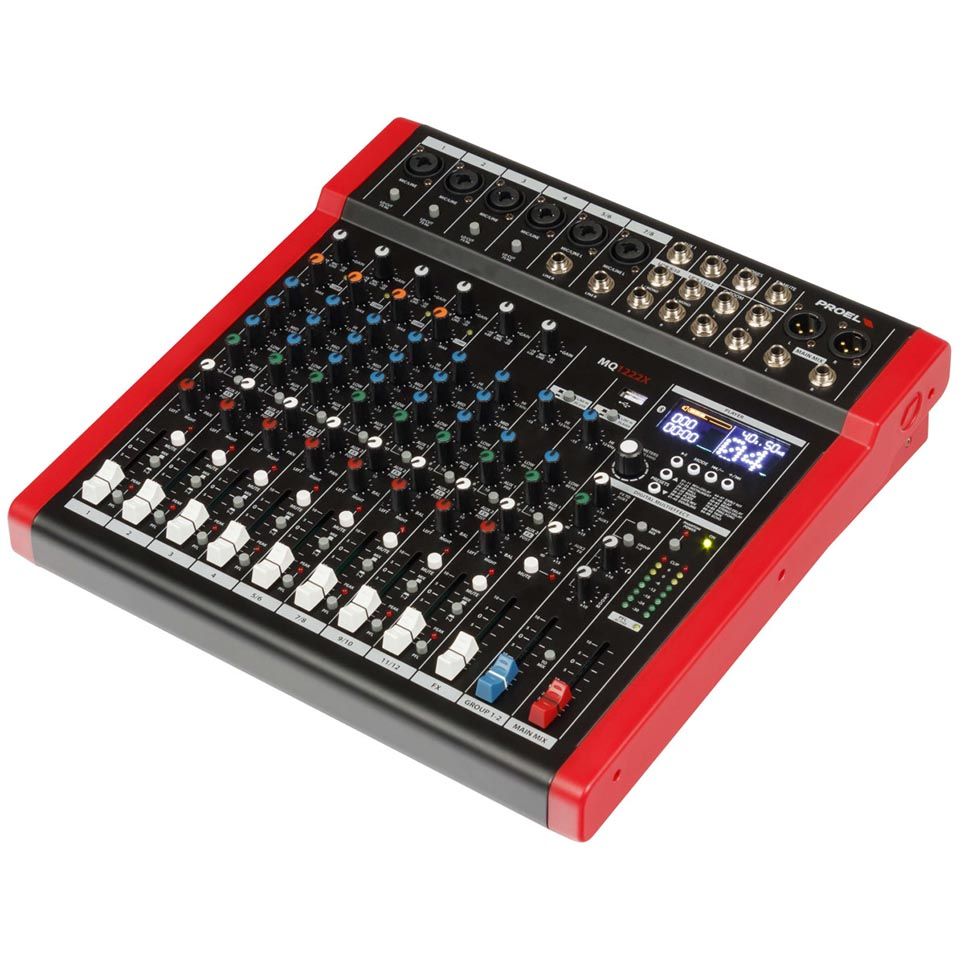

Proel MQ1222X 12 Channel Mixer with Effects
RRP: $699.00 ex. GST
Key Features:
- 12-channel compact mixer with 6 studio-grade mic preamps
- One-knob compressor for smooth and controlled vocal and instrument dynamics
- Built-in 24-bit DSP engine with 99 editable studio-quality effects
- USB-C audio interface for direct recording and playback
- Integrated Bluetooth 5.0 streaming for wireless audio playback
- USB media player for convenient playback from external devices
- 3-band EQ with independent low-cut filters for detailed sound shaping
- Smooth 45 mm faders for precise and responsive level control
- Rugged and portable chassis suitable for live and installed applications
- LED display for easy effect selection and system monitoring
Technical Data
| Mono Mic Input Sensitivity | from -10 to -50 dB |
|---|---|
| Mono Mic Input Connector | Balanced XLR-F |
| Mono Mic Input Impedance | 3 Kohm |
| Mono Line Input Sensitivity | from +20 to -20 dB |
| Mono Line Input Connector | Balanced JACK |
| Mono Line Input Impedance | 30 Kohm |
| Lo Cut Filter | 75Hz, 18dB/oct. |
| EQ High | ±15 dB @ 12 KHz |
| EQ Mid | ±15 dB @ 2.5 KHz |
| EQ Low | ±15 dB @ 80 Hz |
| Compressor | Fet CH 1-4, 1-knob |
| Stereo Mic Input Sensitivity | from -10 to -50 dB |
| Stereo Mic Input Connector | Balanced XLR-F |
| Stereo Mic Input Impedance | 3 Kohm |
| Stereo Line Input Sensitivity | from +20 to -20 dB |
| Stereo Line Input Connector | Balanced JACK |
| Stereo Line Input Impedance | 30 Kohm |
| Additional Line Input Sensitivity | -10 dBv |
| Additional Line Input Impedance | 10 Kohm |
| Main Mix Output Level | +4 dBu |
| Main Mix Connector | Balanced JACK and XLR-M |
| Control Room Output Level | 0 dBu |
| Group Output Level | +4 dBu |
| FX/AUX Output Level | 0 dBu |
| Headphones Minimum Impedance | 32 ohm |
| Headphones Maximum Output | (2x) 193 mW |
| Effects | 99 presets |
| FX DSP Resolution | 24 bit |
| Bluetooth | Version 5.0, Audio Streaming |
| PC USB Interface | USB 2.0 / 3.0 Type C |
| USB Player | USB 2.0 / 3.0 Type C |
| A/D and D/A Converters | 24 bit 48KHz |
| Controls | LCD, DIAL, PEAK LED, MUTE switch, MUTE footswitch |
| Maximum Output Level | +22 dBu |
| Crosstalk | > 82 dBu at 1 KHz |
| Hum & Noise | < -93 dBu |
| THD + Noise | < 0.008 % at +4dB, 1kHz |
| Dimensions (W x H x D) | 352 x 352 x 90 mm |
| Weight | 3.90 kg |
| Power Supply | 110-240 VAC (±10%) 50 / 60 Hz |
| Power Consumption | 50 W |
