The Vonyx WK10 is a wide-range hi-fi broadband speaker driver with a smoothly suspended woven cone. It provides 75W RMS output and has an 8 Ohm impedance. The driver includes a vented, heat-resistant voice coil, rubber surround and large ferrite magnet. It has a 66 – 9.000Hz frequency response and a 92mm mounting diameter.

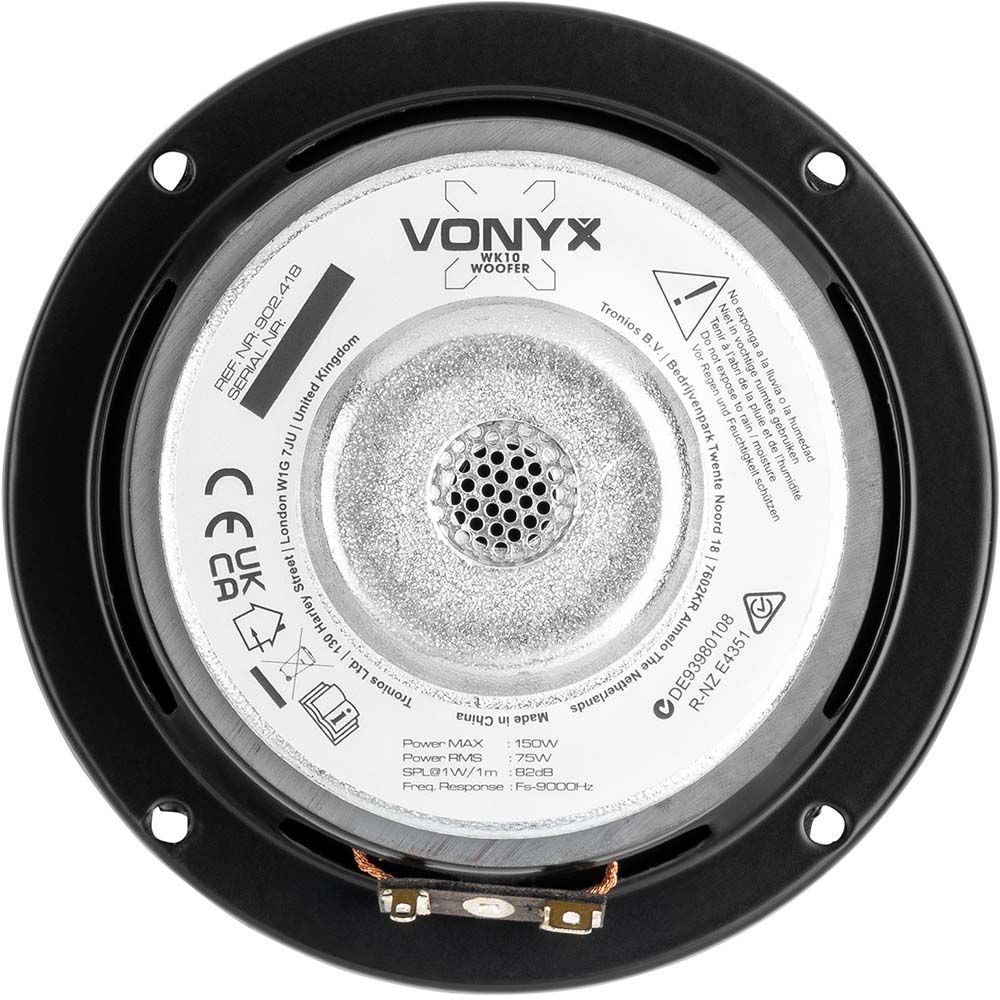

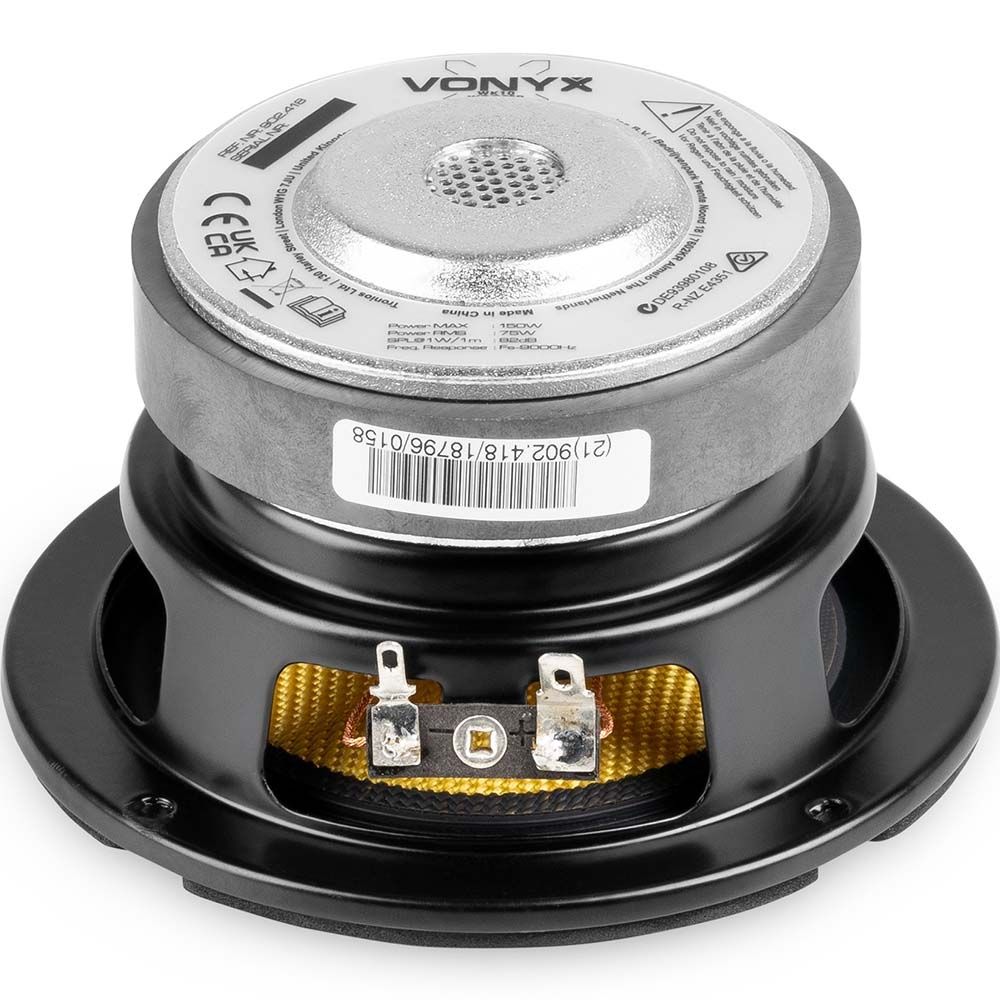

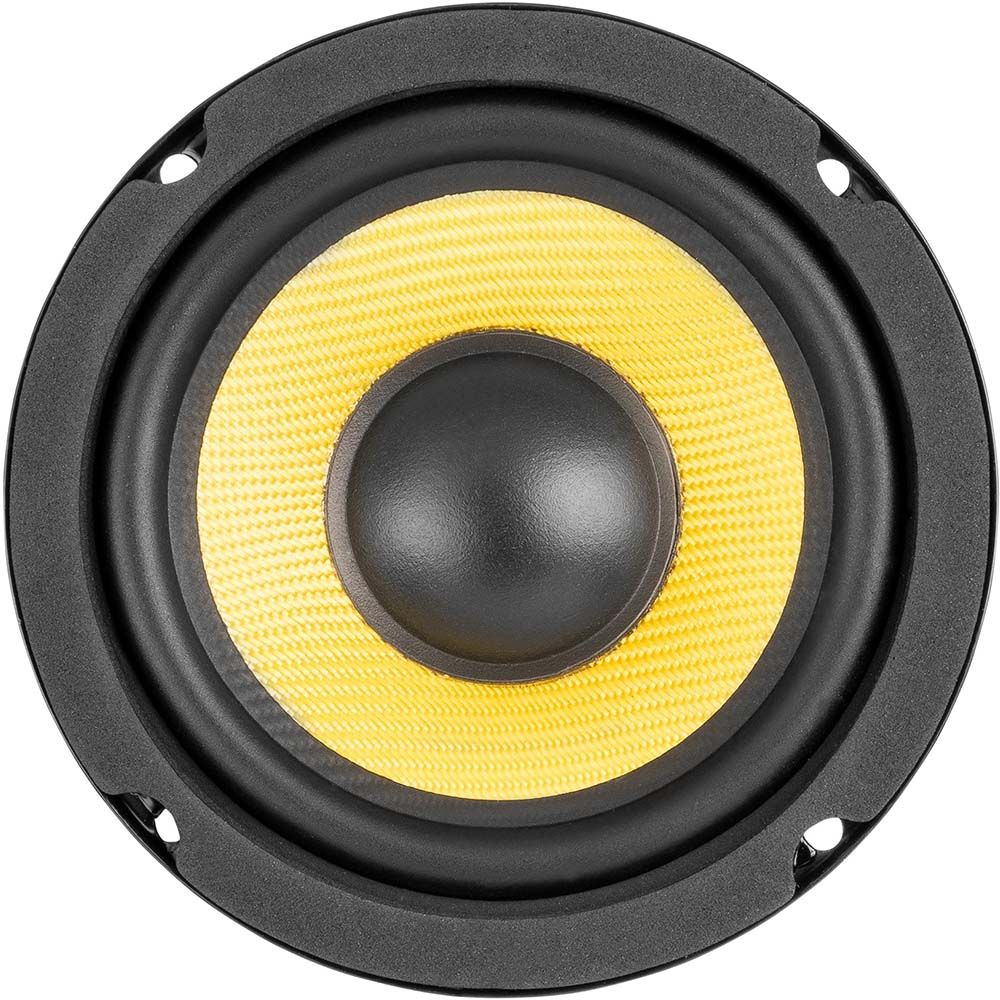

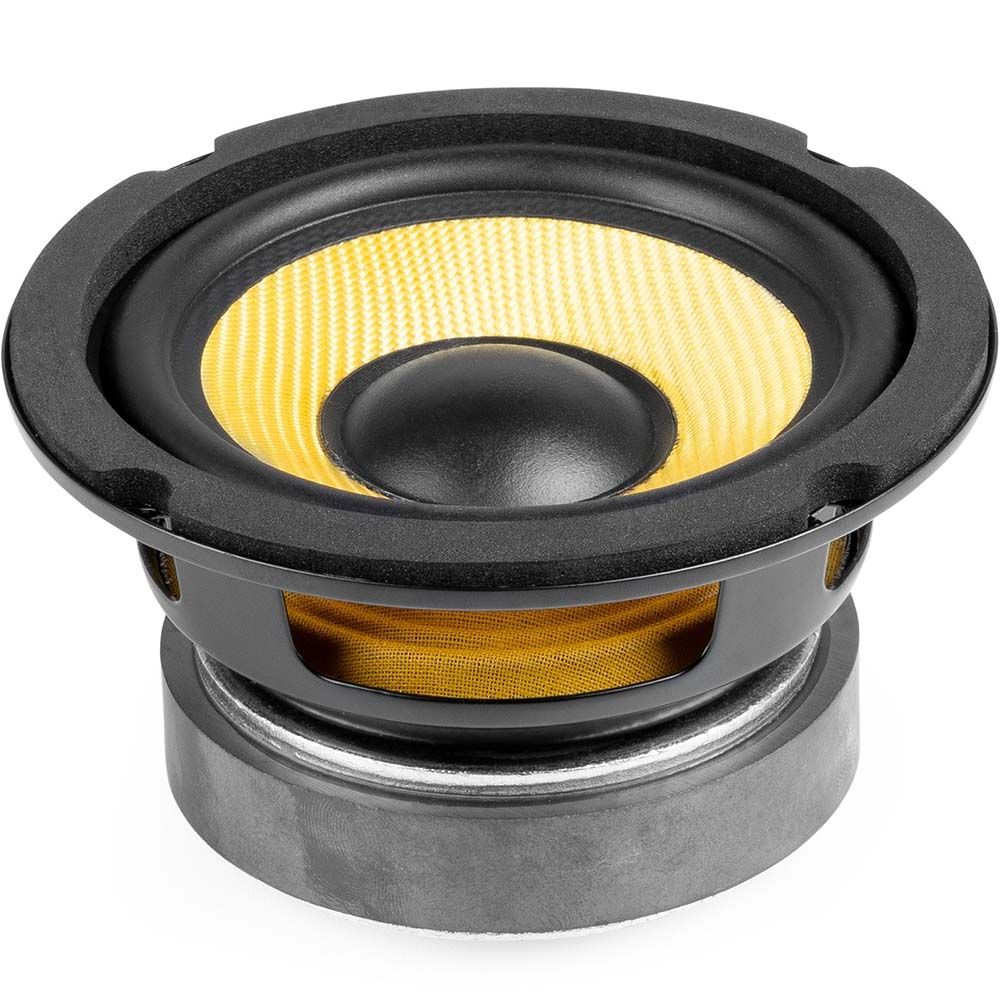

Vonyx WK10 Wide Range Woven Cone Speaker Driver Part
RRP: $25.00 ex. GST
Key Features:
- Woven cone
- Vented, heat-resistant voice coil
- Rubber surround
- Large magnet
- 75W RMS output
- 8 Ohm impedance
Technical Data
| Product colour | Yellow |
| Output power | Max: 150W |
| Output power | RMS: 75W |
| Diameter woofer | 4″ |
| Voice coil | 1″ |
| Magnet type | Ferrite |
| Magnet weight | 10 oz |
| Frequency response | 66 – 9.000Hz |
| SPL @ 1W/1m | 82dB |
| Impedance | 8 Ohm |
| Mounting diameter | 92mm |
| Mounting depth | 60mm |
| Dimensions (L x W x H) | Ø113 x 65mm |
| Weight (kg) | 0.65 |
