The Vonyx WP13 is a 5.25-inch woofer with a polypropylene cone for car radio and Hi-Fi applications. It has a very low resonance frequency and stiff bass response, with an 8 Ω impedance. The woofer uses a heat-resistant voice coil, flat semi-transparent polypropylene cone and double rolled foam edge.

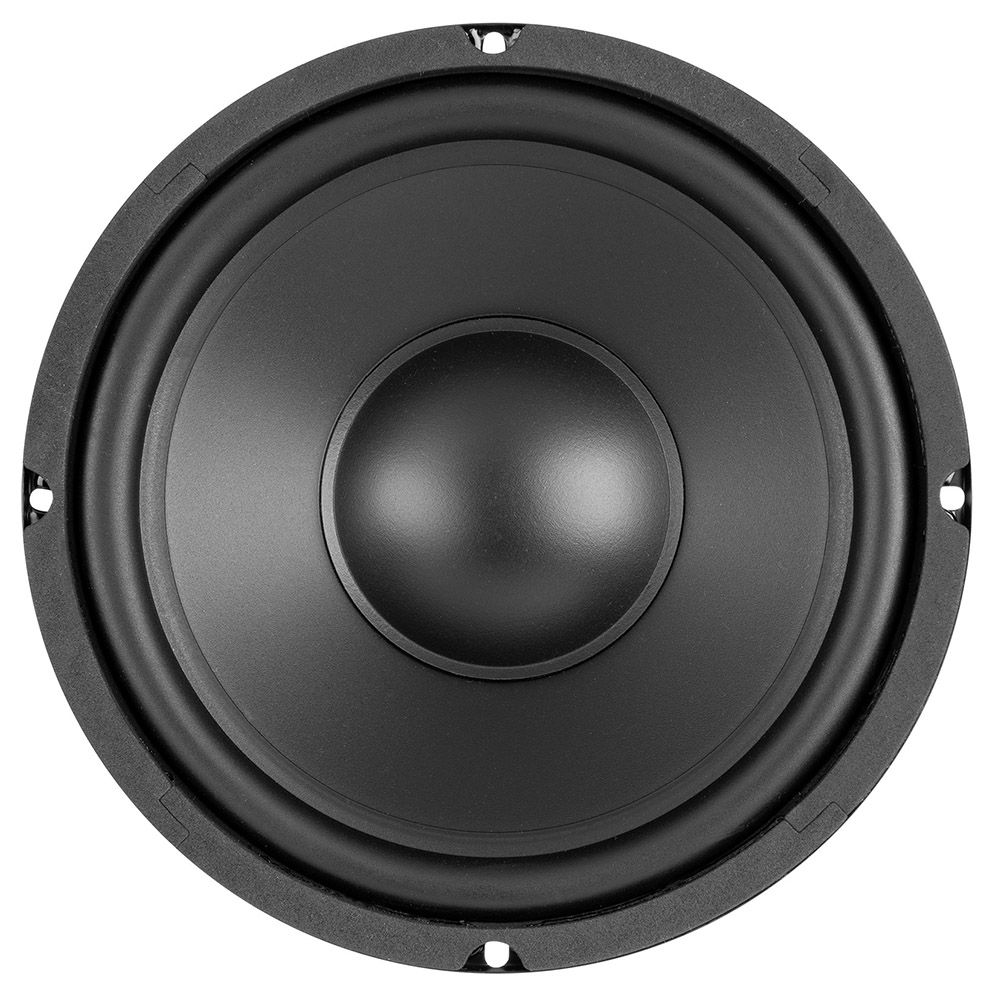

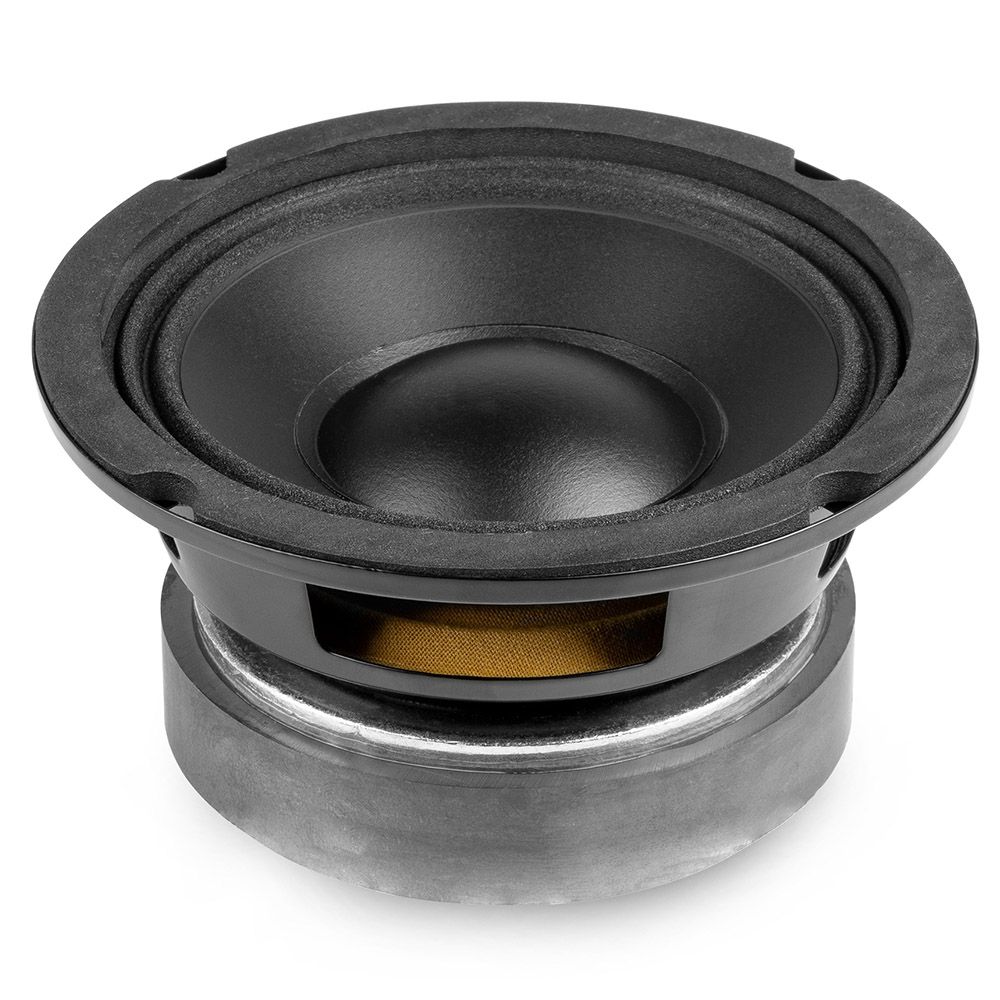

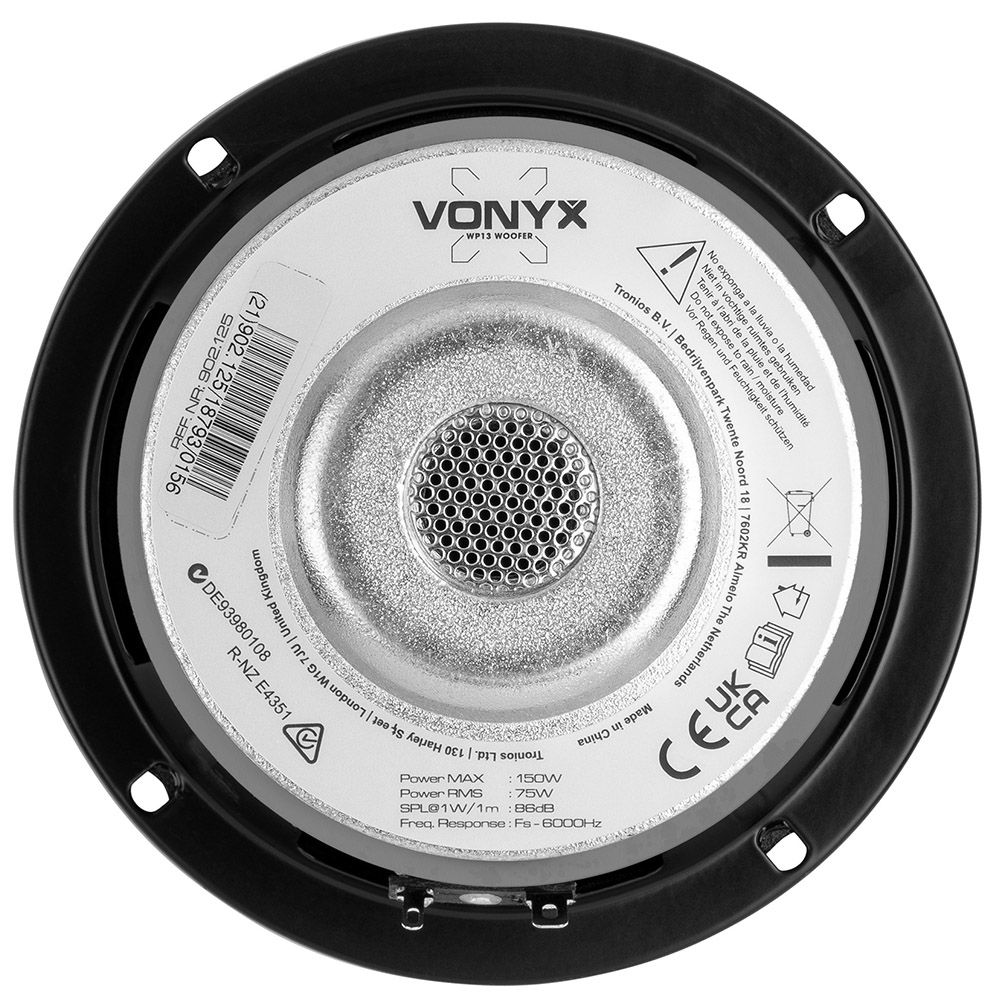

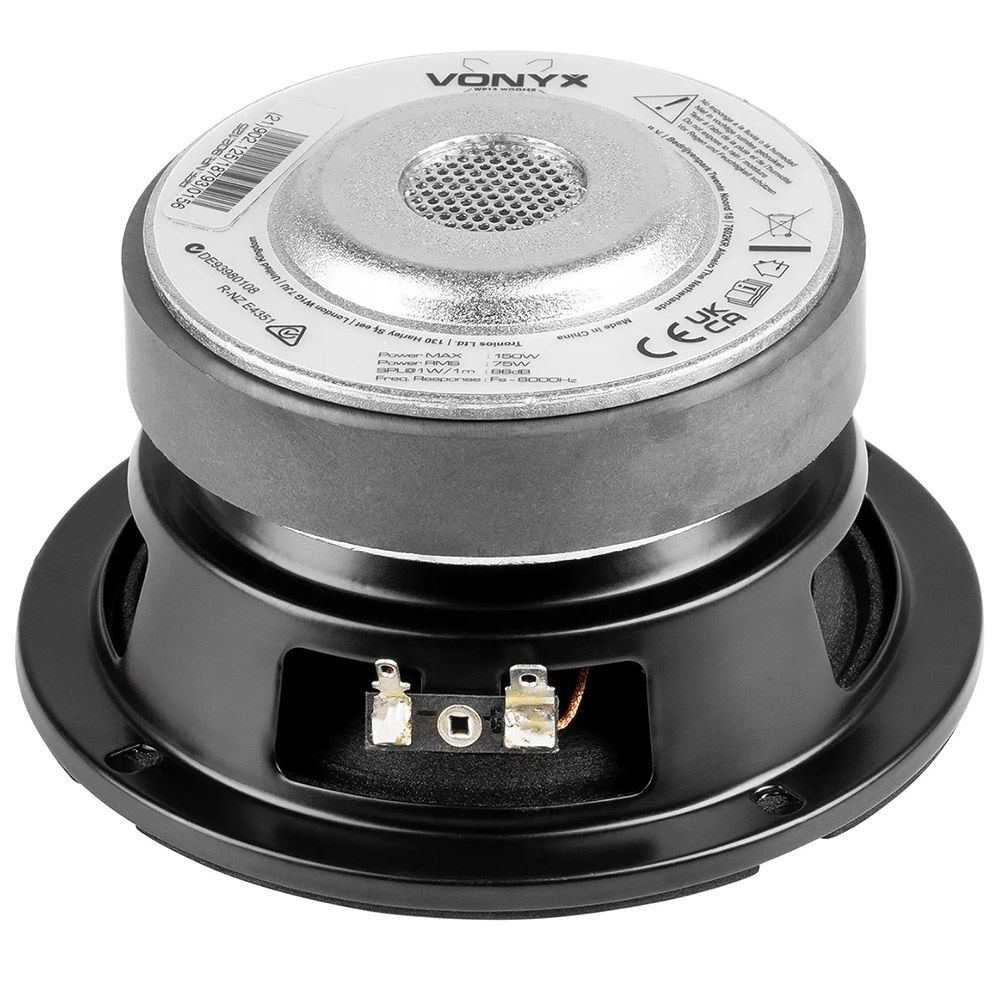

Vonyx WP13 5.25-inch Hi-Fi Woofer
RRP: $29.00 ex. GST
Key Features:
- Heat-resistant voice coil
- Flat, semi-transparent polypropylene cone
- Double rolled foam edge
- 75 W Speaker Power RMS
- 8 Ω impedance
Technical Data
| Brand | Vonyx |
| Product serie | WP series |
| Colour | Black |
| Type | Woofer |
| Speaker Power Peak | 150 W |
| Speaker Power RMS | 75 W |
| Frequency Response | 66 – 6,000 Hz |
| Sensitivity (1W/1m) | 86 dB |
| Impedance | 8 Ω |
| Woofer diameter | 5.25″ |
| Woofer Voice Coil | 1.5 “ |
| Woofer Magnet Type | Ferrite |
| Woofer Magnet Weight | 19 oz |
| Mounting Dimensions | 114 x 69 mm (Ø x D) |
| Dimensions | 13.3 x 7.7 mm (Ø x W) |
| Weight | 1.35 kg |
