The Vonyx WSD74 Silk Dome Tweeter 74mm is a soft silk dome tweeter designed for replacement purposes and hi-fi applications. It uses laminate technology, a neodymium magnet and a 25mm voice coil. The tweeter has a 1400Hz – 20KHz frequency response and 90dB SPL @ 1W/1m. Its ABS faceplate and 57.5mm mounting diameter support installation in compatible speaker assemblies.

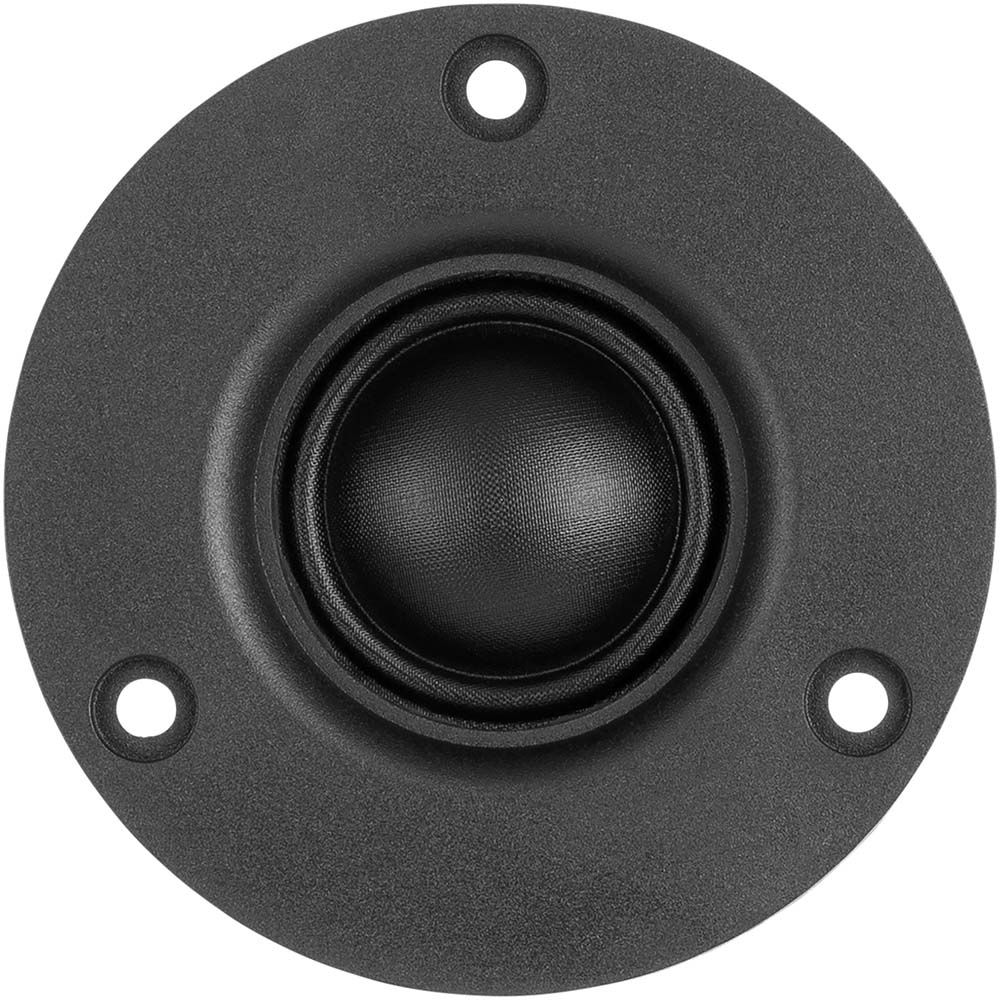

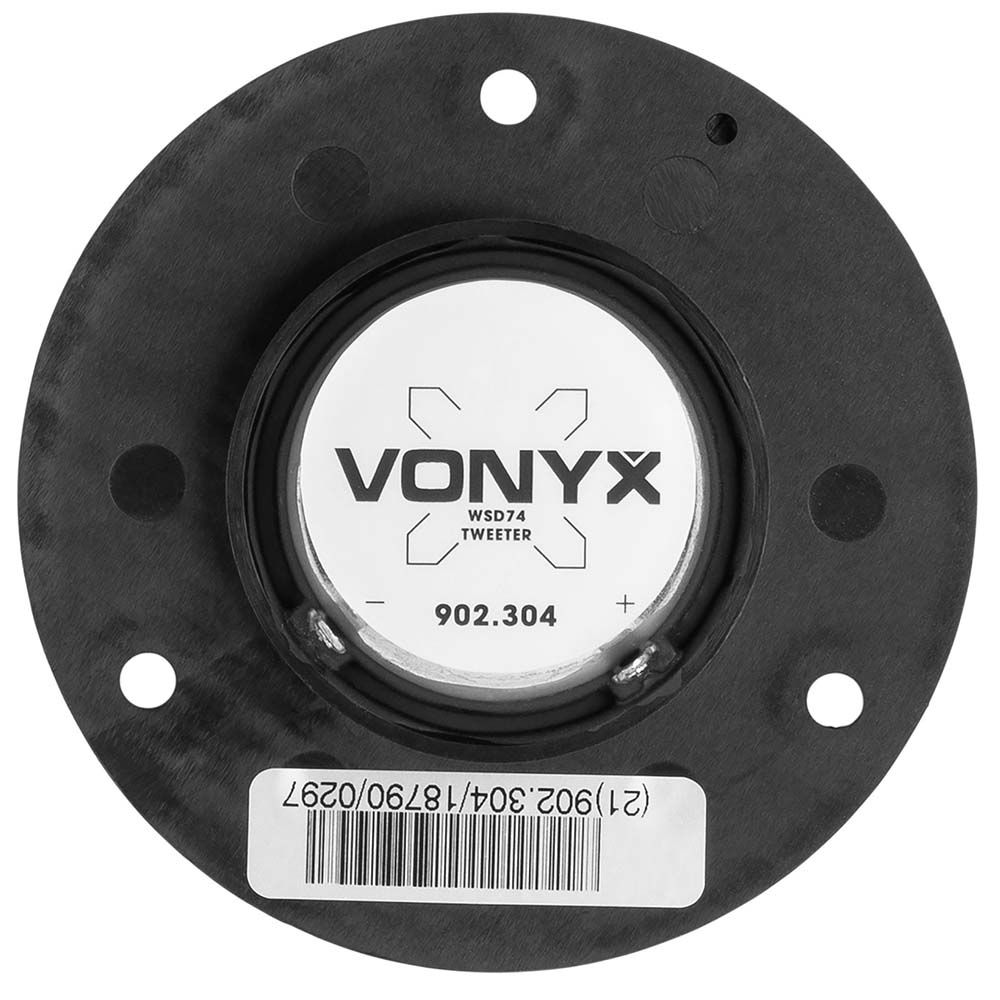

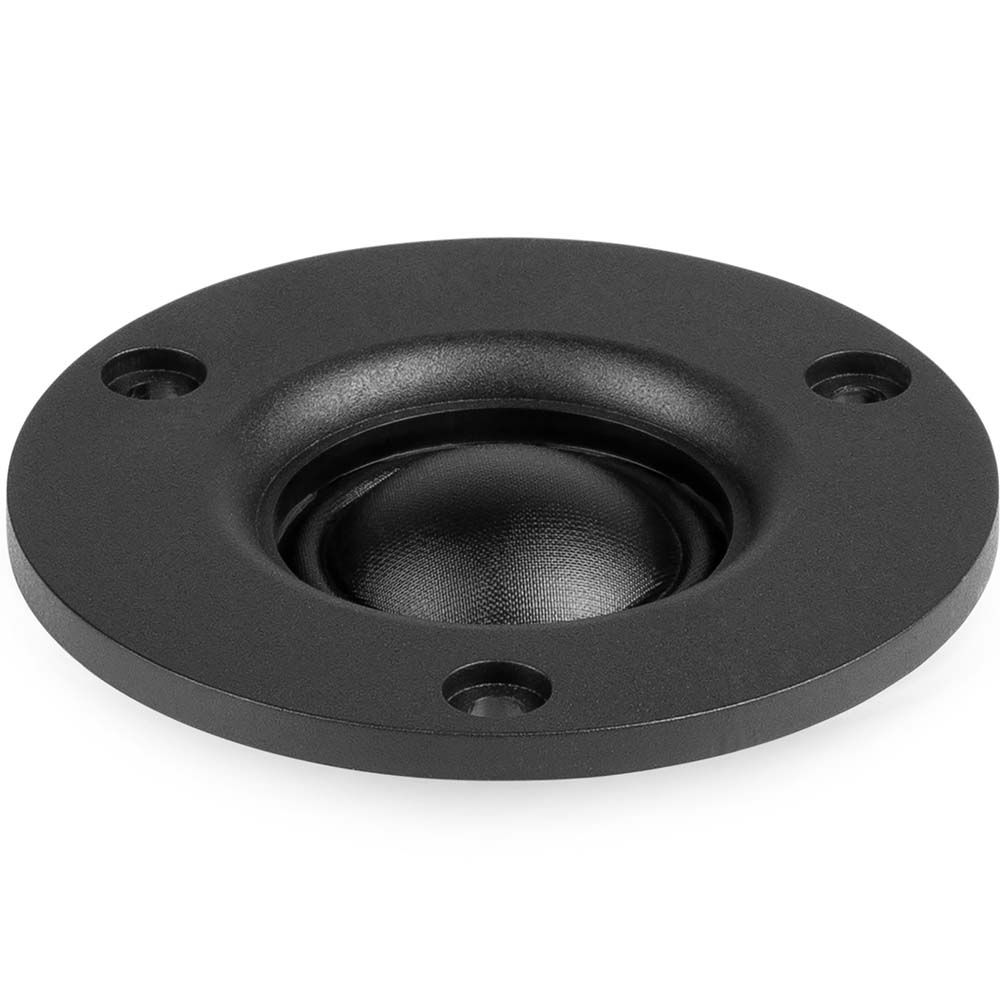

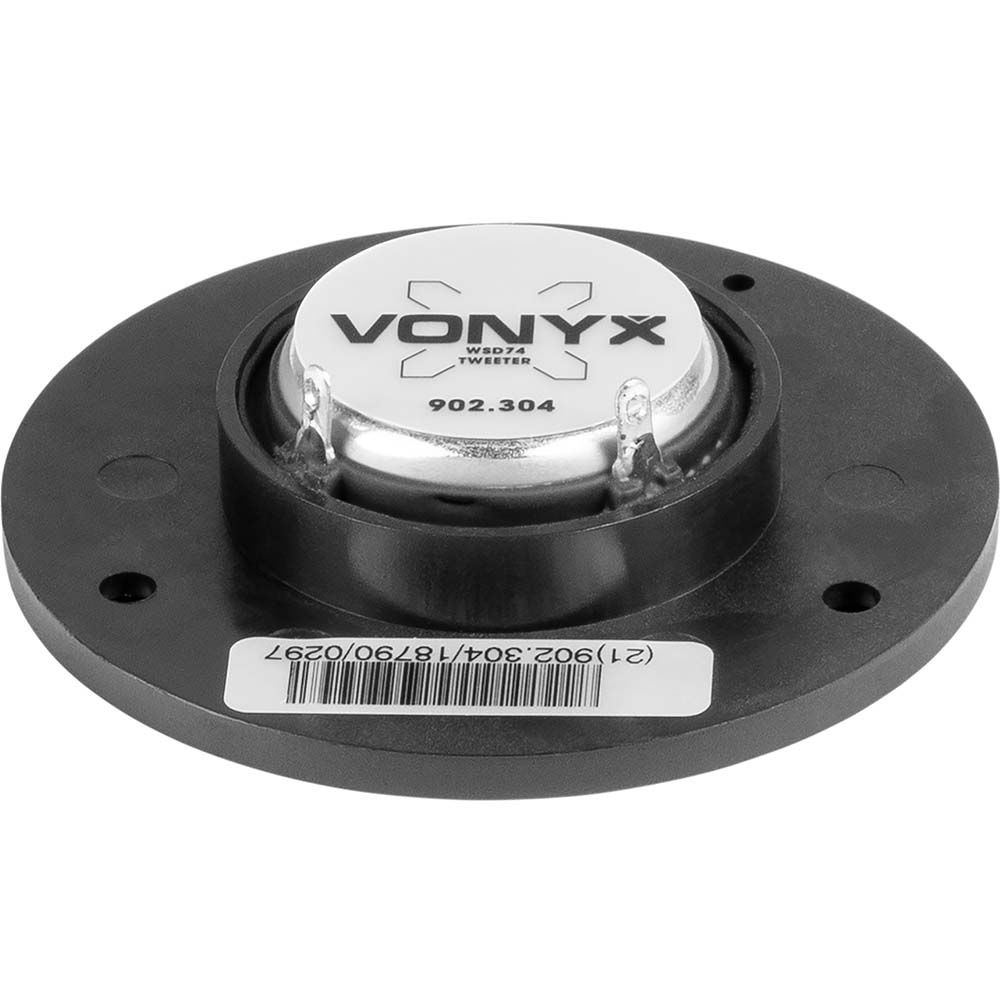

Vonyx WSD74 Silk Dome Tweeter 74mm
RRP: $25.00 ex. GST
Key Features:
- 74mm Soft Silk Dome Tweeter
- Laminate technology
- Excellent radiation
- 25mm Voice coil
- ABS faceplate
- For replacement purposes and hi-fi applications
Technical Data
| Product colour | Black |
| Output power: Max | 40W |
| Output power: RMS | 20W |
| Tweeter type | Dome |
| Voice coil | 25mm |
| Magnet type | Neodymium |
| Frequency response | 1400Hz – 20KHz |
| SPL @ 1W/1m | 90dB |
| Impedance | 8 Ohm |
| Mounting diameter | 57.5mm |
| Mounting depth | 14mm |
| Dimensions (L x W x H) | Ø74 x 18mm |
| Weight (kg) | 0.04 |
