The Outline STADIA 100-20 is a 2-way DPRWG constant-curvature array enclosure for permanent installation in very large spaces. Its eight 8” band-pass loaded woofers and four 3” compression drivers provide 20° vertical dispersion, coherent reproduction down to 300 Hz and full directional control. The enclosure has an IP55 rating, weatherproof design and a Baltic birch plywood cabinet finished with WP elasto-plastic coating. It includes eight M10 rigging points and delivers a maximum SPL of 151 dB with peak input power in excess of 8 kW.

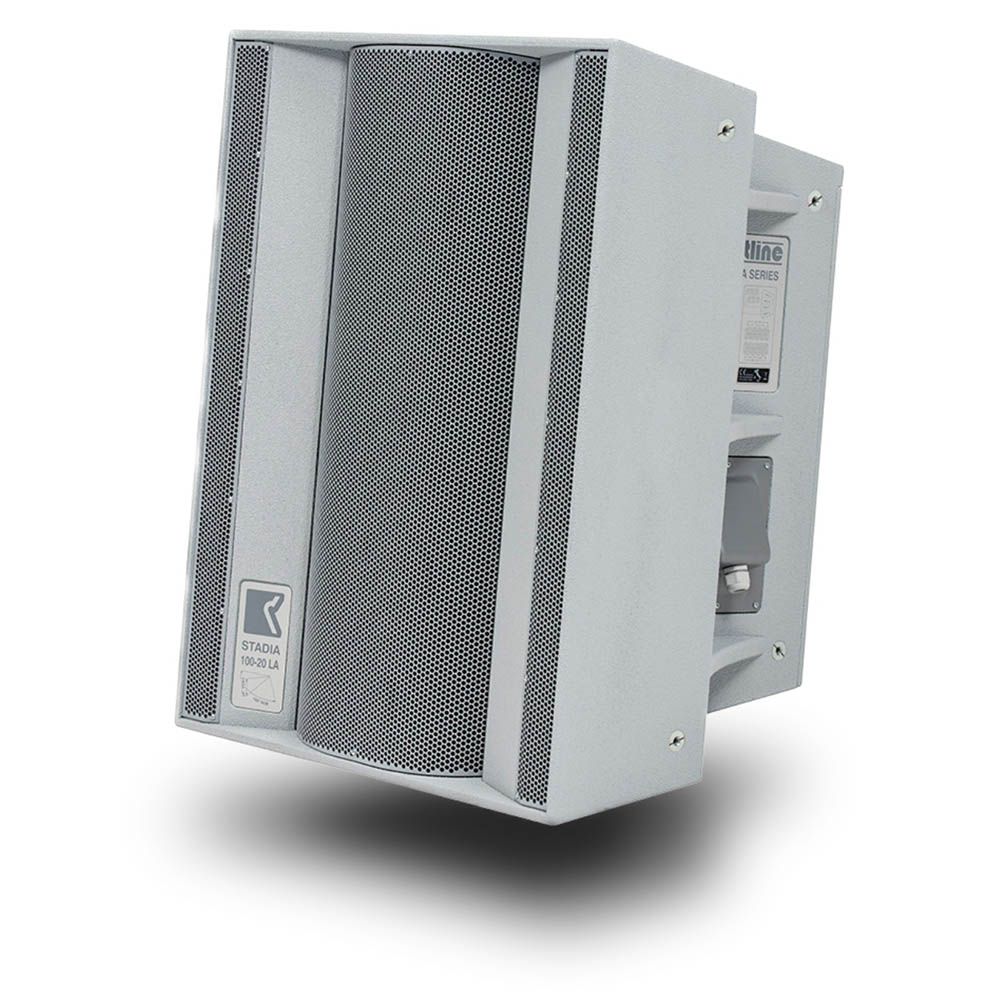

Outline STADIA 100-20 2-Way Line Array Loudspeaker
RRP: $19,999.00 ex. GST
Key Features:
- 2-way DPRWG constant-curvature array enclosure (20°v)
- 8 x 8″ LF + 4 x 3″ HF diaphragm
- IP55 rated
- 20° vertical dispersion
- Peak input power in excess of 8 kW
- Maximum SPL of 151 dB
- Coherent reproduction down to 300 Hz
- 8 x M10 rigging points
- Weatherproof design
- Constructed from birch plywood
- Finished with ‘outSIDE’ elastoplastic coating
Technical Data
| Frequency Response -10 dB | 65 Hz – 19 kHz |
| Operating configuration | Bi-amplified |
| Impedance Midrange (Nom/Min) | 4 Ω / 3.2 Ω |
| Impedance High (Nom/Min) | 8 Ω / 8.1 Ω |
| Watt AES Midrange (Continuous/Peak) | 1600 W / 6400 W |
| Watt AES High (Continuous/Peak) | 480 W / 1920 W |
| Shipping dimensions (H x W x D) | 1030 x 780 x 690 mm |
| Shipping weight | 79 kg |
| Component Midrange | 8 x 8” band-pass loaded woofer |
| Component High | 4 x 3” compression driver, DPRWG loaded |
| Connectors | 8 Pole parelled barrier strip |
| Cabinet Material | Baltic birch plywood |
| Cabinet Finish | WP elasto-plastic coated |
| Grill | Epoxy powder coated |
| Installation Points | 8 x M10 threaded points |
| Handles | 6 handles |
| Weight | 73 kg – 161 lb |
