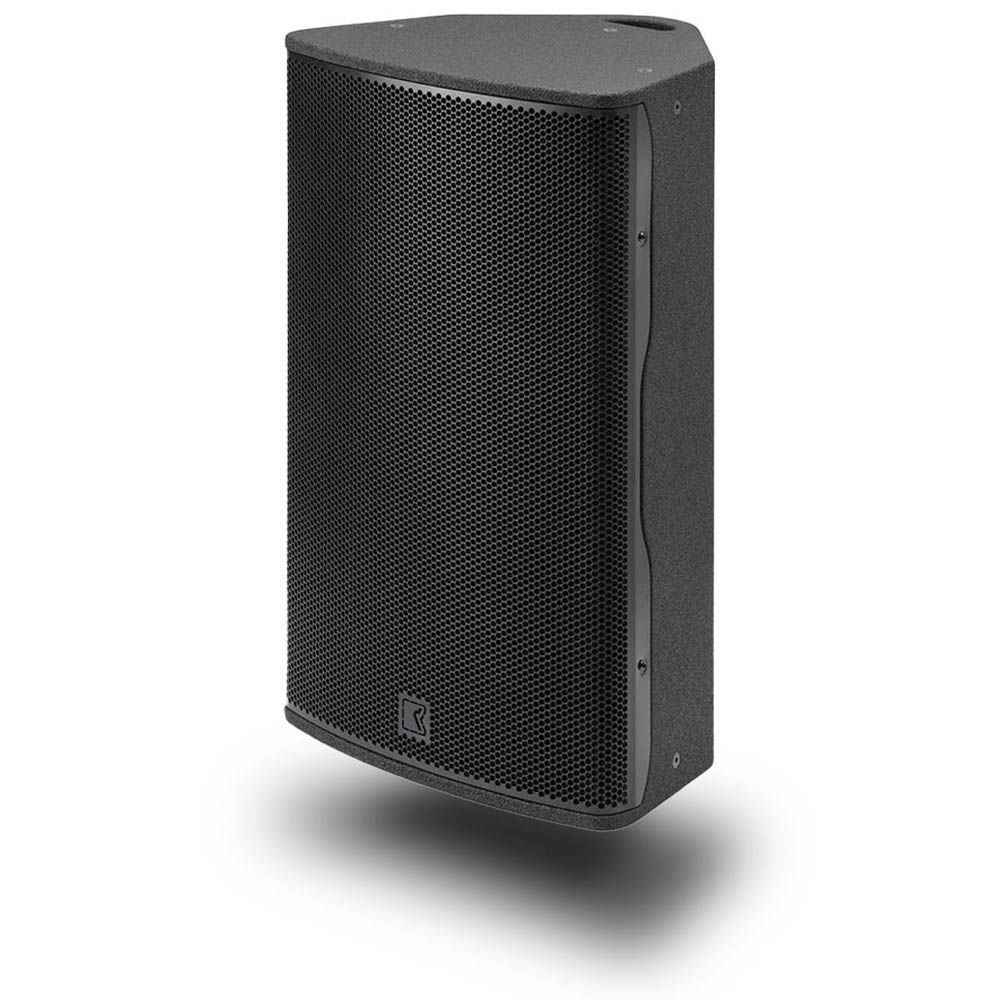

The Outline VEGAS 15 is a passive two-way loudspeaker enclosure for sound reinforcement and stage monitor applications. It uses a 15″ woofer, 1.75″ diaphragm compression driver and built-in passive crossover with top grade components. The rotatable 80° x 70° waveguide supports flexible cabinet orientation, while the cabinet includes M8 and M6 threaded installation points and a 35 mm pole socket. Internal cabinet bracing provides rigidity, and the enclosure has a maximum SPL output of 132 dB SPL.
Outline VEGAS 15 Passive Two-Way Loudspeaker
RRP: $5,699.00 ex. GST
Key Features:
- Two-way format with built-in passive crossover and 8 Ω nominal impedance
- Rotatable 80° x 70° waveguide
- 15″ woofer and 1.75″ diaphragm compression driver
- Internal cabinet bracing for maximum rigidity
- 12 x M8 and 4 x M6 threaded installation points
- 35 mm pole socket
- Maximum SPL output of 132 dB SPL
Technical Data
| Frequency Response (-10 dB) | 53 Hz – 20 kHz |
| Nominal Dispersion | 80° x 70° (H x V) |
| Impedance (Nom/Min) | 8 Ω / 7.3 Ω |
| Watt AES (Continuous/Peak) | 400 W / 1600 W |
| Maximum SPL Output | 132 dB SPL |
| Component Low | 15″ woofer |
| Component High | 1.75″ diaphragm compression driver |
| Loading Low | Bass-reflex |
| Loading High | Rotatable moulded horn |
| Connectors | 2 x NL4 in parallel Pins 1+/1- |
| Cabinet Material | Baltic birch plywood |
| Cabinet Finish | Black polyurea coating |
| Grill | Epoxy powder coated |
| Installation Points | 12 x M8, 4 x M6 threaded points |
| Pole Mount | 35 mm socket |
| Height | 750 mm – 29 17/32” |
| Width | 450 mm – 17 23/32” |
| Depth | 390 mm – 15 11/32” |
| Weight | 25.8 kg – 56.9 lb |
