The Outline Ai 41 is a 2-way passive ultra-slim column loudspeaker for discreet installation sound applications. It uses four 1.3” neodymium magnet full range drivers and one 0.7” treated silk dome tweeter, with a symmetrical MTM design for superior imaging and precision. The cabinet is made from HCDF and the unit weighs 0.6 kg, making it suitable for compact architectural layouts where low visual impact is important. It supports custom RAL colour options and uses a passive crossover with single and double protection for the drivers.

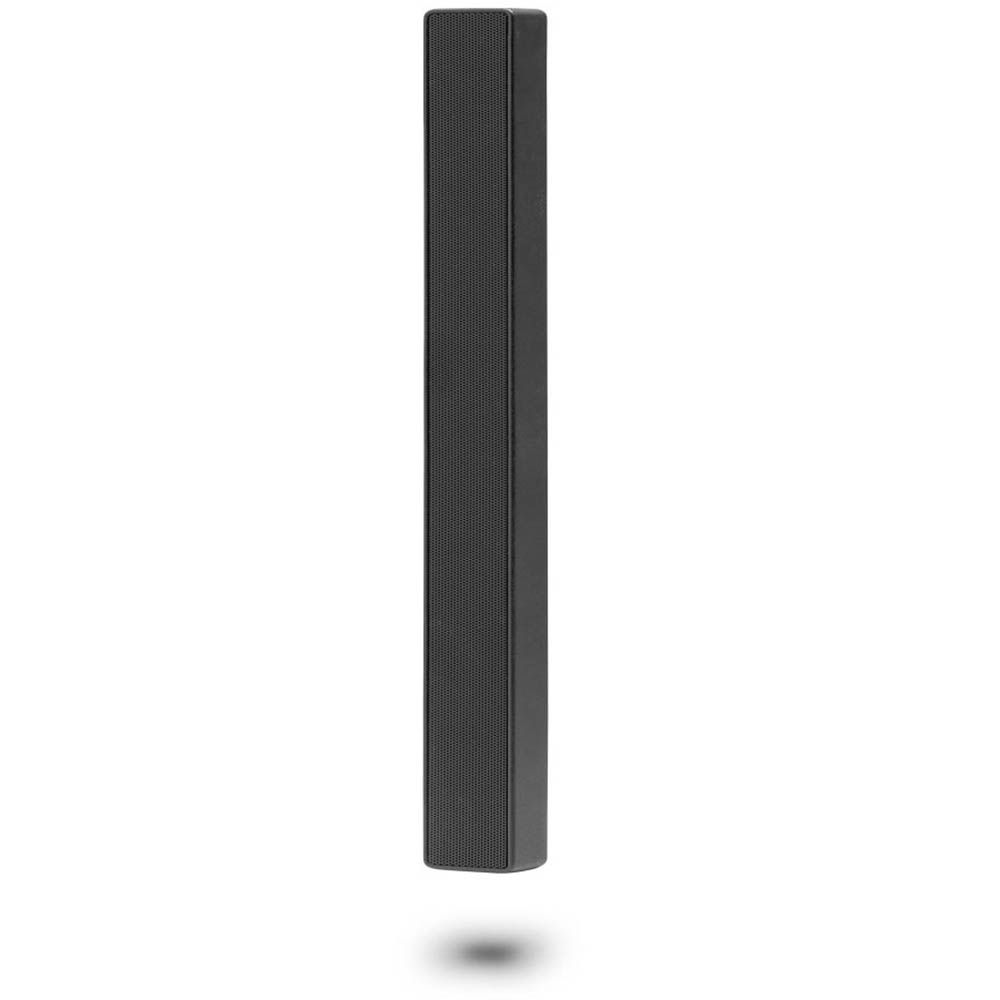

Outline Ai 41 Passive Column Loudspeaker
RRP: $1,699.00 ex. GST
Key Features:
- 2-way passive speaker
- Symmetrical MTM design for superior imaging and precision
- Four 1.3” neodymium magnet drivers and one 0.7” treated silk dome tweeter
- Maximum SPL peak of 107.5 dB
Technical Data
| Frequency Response (-10 dB) | 280 Hz – 20 kHz |
| Horizontal Dispersion | 160° |
| Vertical Dispersion | 60° |
| Impedance (Nom / Min) | 8 Ω / 9.2 Ω |
| Watt AES (Peak) | 160 W |
| Maximum SPL Output | 107.5 dB SPL |
| Component Low | 4 x 1.3” NdFeB Full Range driver |
| Component High | 0.7″ treated silk dome tweeter |
| Connector | 2-pin Euroblock |
| Cabinet Material | HCDF (Hydrophobic Compact Density Fiber) |
| Cabinet Finish | Black or White textured polyurethane paint (overpainted RAL colors on request) |
| Grill | Epoxy powder coated |
| Installation points | 2 through holes diam. 4 mm on front / 2 x M4 on back |
| Height | 350 mm – 13 6/8” |
| Width | 46 mm – 1 6/8” |
| Depth | 25 mm – 1” |
| Weight | 0.6 kg – 1.3 lb |
