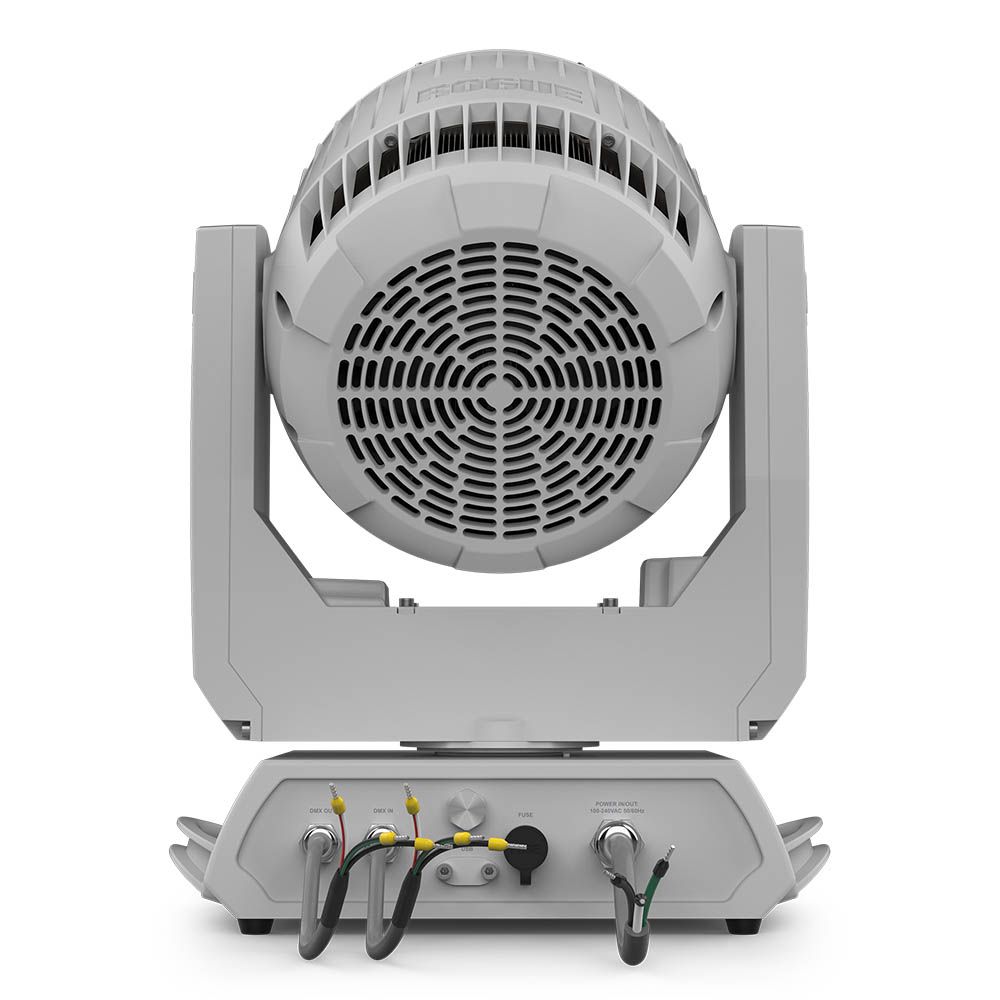

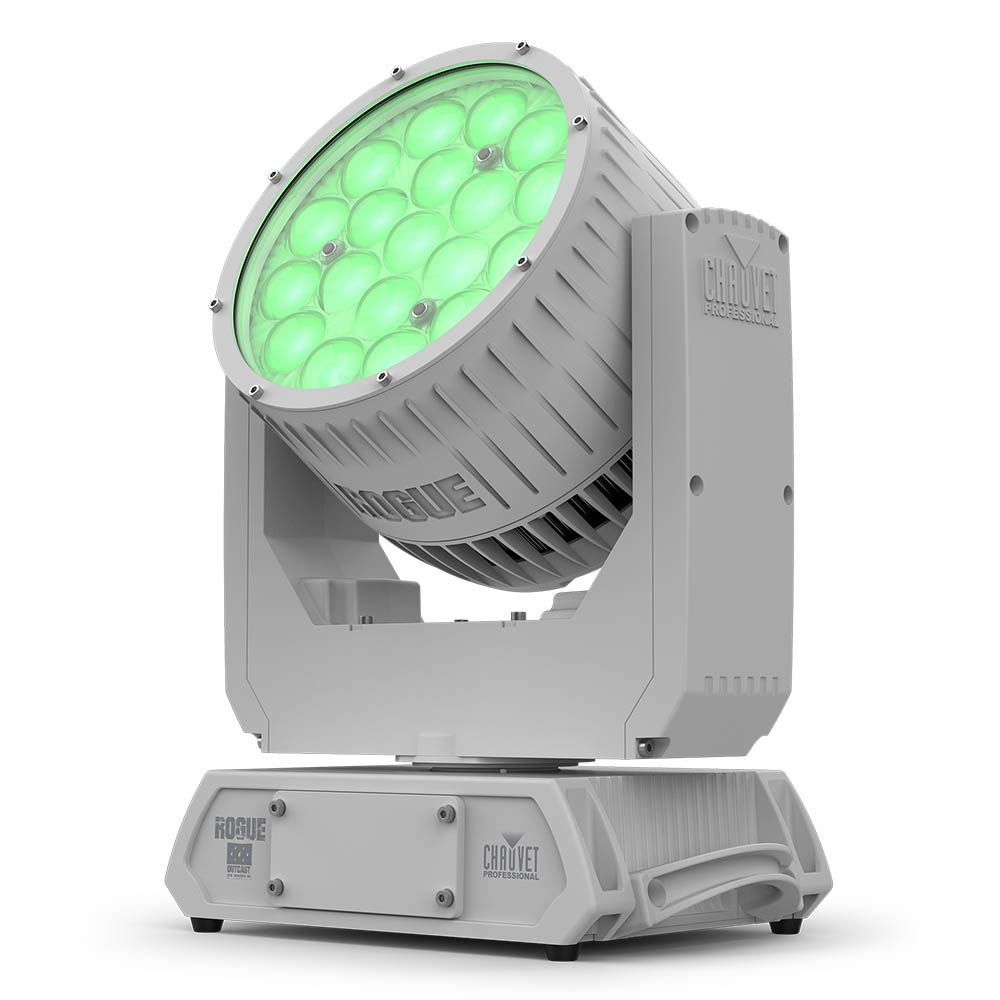

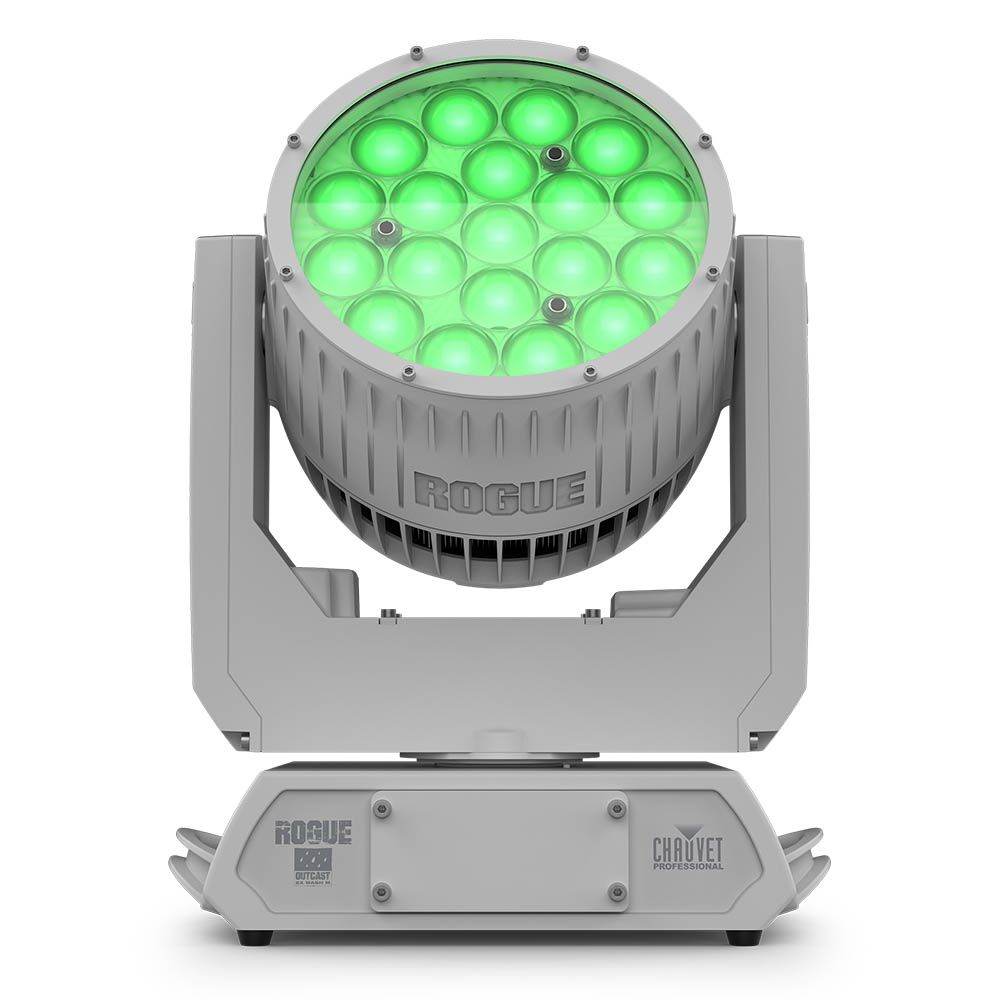

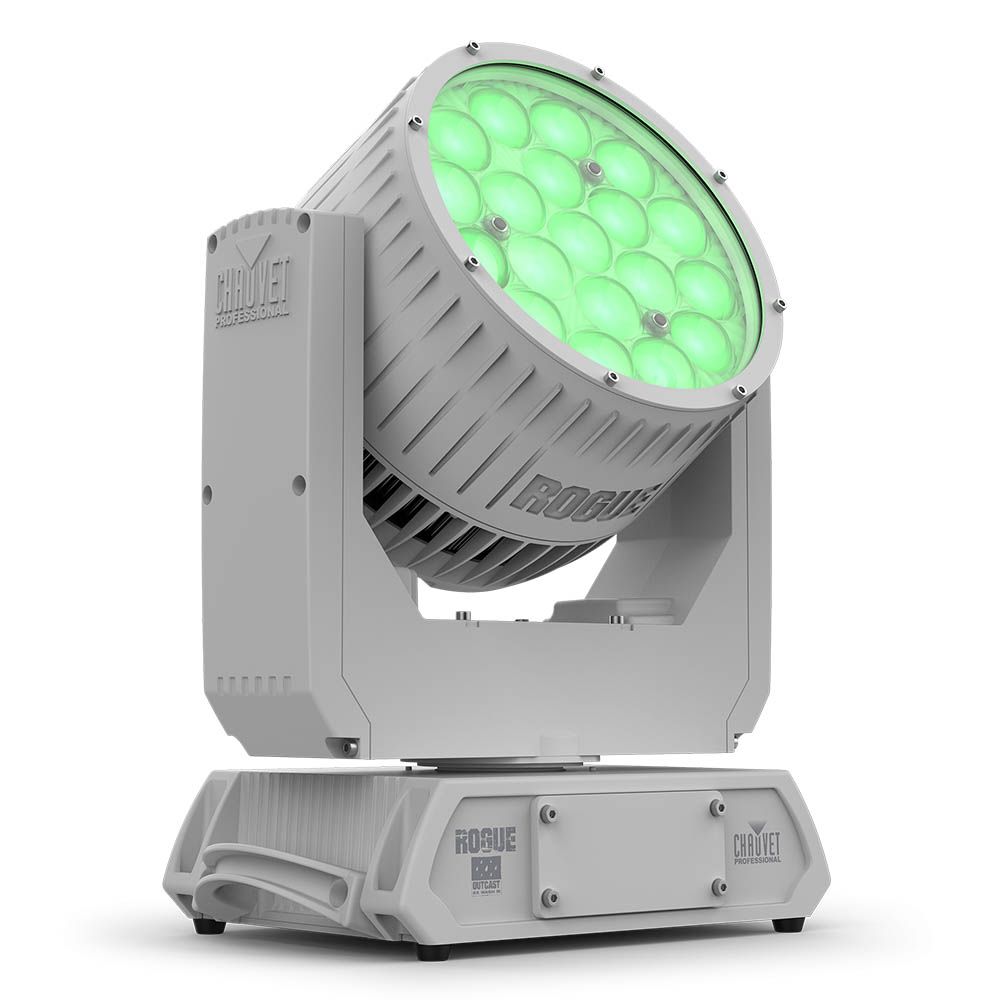

Chauvet Pro Rogue Outcast 2X Wash M Moving Head Wash Light is an IP66-rated moving head wash fixture with an aluminum body and C5M marine-grade finish. It uses nineteen 25 W quad-color RGBW LEDs with five independently controllable zones for pixel-mapped effects. The motorized zoom ranges from 7.9° to 63.7°, with 16-bit dimming and a 2800 to 10000 K color temperature range. DMX and RDM control, selectable PWM settings and pan and tilt movement support touring, cruise ship, theme park and architectural exterior applications.
Chauvet Pro Rogue Outcast 2X Wash M (Moving Head Wash Light)
RRP: $5,606.00 ex. GST
Key Features:
- IP66-rated aluminum housing with C5M marine-grade finish
- Nineteen 25 W quad-color RGBW LEDs
- Five independently controllable LED zones for pixel-mapping effects
- 7.9° to 63.7° motorized zoom range
- 16-bit dimming and 2800 to 10000 K color temperature range
- Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
- DMX and RDM control
Technical Data
| Light Source | 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy |
| Color Temperature (range) | 2800 to 10000 K |
| Beam Angle | 7.9° to 35.3° |
| Field Angle | 11.6° to 50.5° |
| Cutoff Range | 18.5° to 63.7° |
| Zoom Range | 7.9° to 63.7° |
| Lumens – Output | 5,371 |
| Illuminance 7.9° | 7,632 lux @ 5 m |
| Illuminance 63.7° | 639 lux @ 5 m |
| Selectable PWM | 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 180°, 360°, 540° pan/90°, 180°, 270° tilt |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Zoom | Motorized |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Curves | 6 |
| Built-in Automated Programs | Yes |
| Customizable Programs | yes |
| Recall Custom Programs | yes |
| Dimensions | 11.92×8.58×14.1″ (303x218x361mm) |
| Weight | 21.2 lb. (9.6 kg) |
| Exterior Color | White |
| Housing Material | Aluminum |
| Power Connection | Termination-ready bare-ended |
| Data input/output | Termination-ready bare-ended |
| Cable Length (power input) | 5 ft (1.5 m) |
| Cable Length (signal in/out) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 15, 17, 22, 23, 33, 54, 55 or 56 |
| Modes/Personalities | 8 personalities (15CH, 17CH, 22CH,23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V |
| Power and Current 120V | 291 W, 2.47 A @ 120 V, 60 Hz |
| Power and Current 208V | 284 W, 1.41 A @ 208 V, 60 Hz |
| Power and Current 230V | 282 W, 1.28 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Compatible Accessories | Professional Clamps: CTC-50HC, CTC-50HCN; Safety Cable: SC-08; UPLOAD 08 software uploader |
