The Outline Ai 41 represents the perfect fusion of Italian engineering excellence and architectural elegance, delivering exceptional sound quality while maintaining minimal visual impact for installations where aesthetics matter as much as audio performance. Built around revolutionary Unibody HCDF Technology, the Ai 41 features a sophisticated 2-way passive design with four 1.3″ neodymium full-range drivers and a 0.7″ treated silk dome tweeter, while the symmetrical MTM configuration ensures superior imaging and pinpoint precision across the entire listening area. With a frequency response spanning 280 Hz to 20 kHz, this ultra-slim powerhouse delivers crystal-clear intelligibility and wide 160° horizontal dispersion, yet weighs just 0.6 kg and measures only 46mm wide, making it mountable virtually anywhere. Moreover, the 8-ohm nominal impedance enables cost-effective installations, allowing up to four units on a single amplifier channel. The HCDF (Hydrophobic Compact Density Fiber) cabinet with polyurethane coating guarantees reliable operation even in demanding environments, while the epoxy powder-coated galvanized steel grill comes in black or white finishes, with custom RAL colors available upon request. Additionally, versatile mounting options include front through-holes and rear M4 points for flexible installation configurations, making the Ai 41 perfect for restaurants, museums, conferences, and any discrete installation requiring professional audio performance without visual compromise.

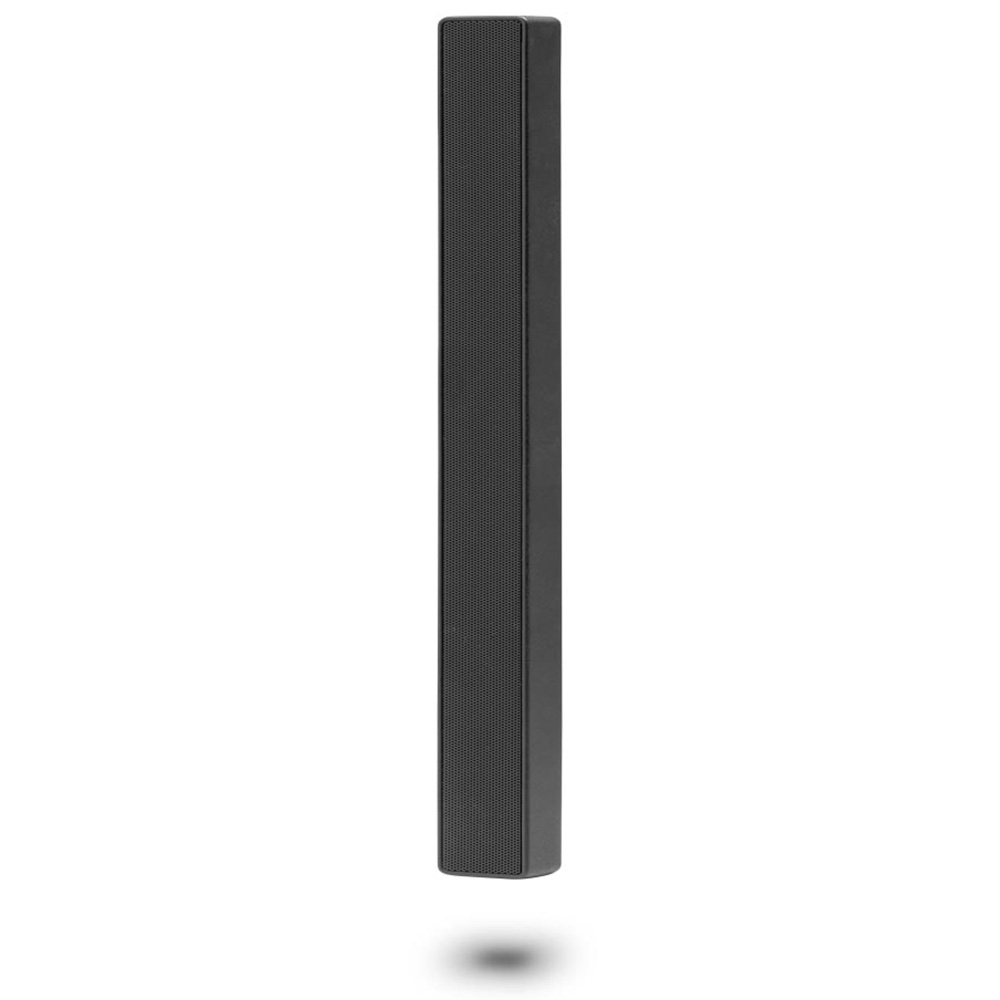

Outline Ai 41 2-Way Ultra-Slim Passive Column Loudspeaker (Black)
RRP: $1,299.00 ex. GST
Key Features:
- 2-way ultra-slim passive column loudspeaker system
- Four 1.3″ NdFeB full-range drivers with 0.7″ silk dome tweeter
- Symmetrical MTM design for superior imaging precision
- Ultra-compact dimensions at just 46mm width
- Lightweight construction weighing only 0.6 kg
- Unibody HCDF Technology cabinet construction
- 160W AES power handling with 107.5 dB maximum SPL
- Wide 160° horizontal dispersion pattern
- 8-ohm nominal impedance for parallel installations
- Hydrophobic cabinet with polyurethane coating
- Epoxy powder-coated galvanized steel grille
- Available in black or white with custom RAL options

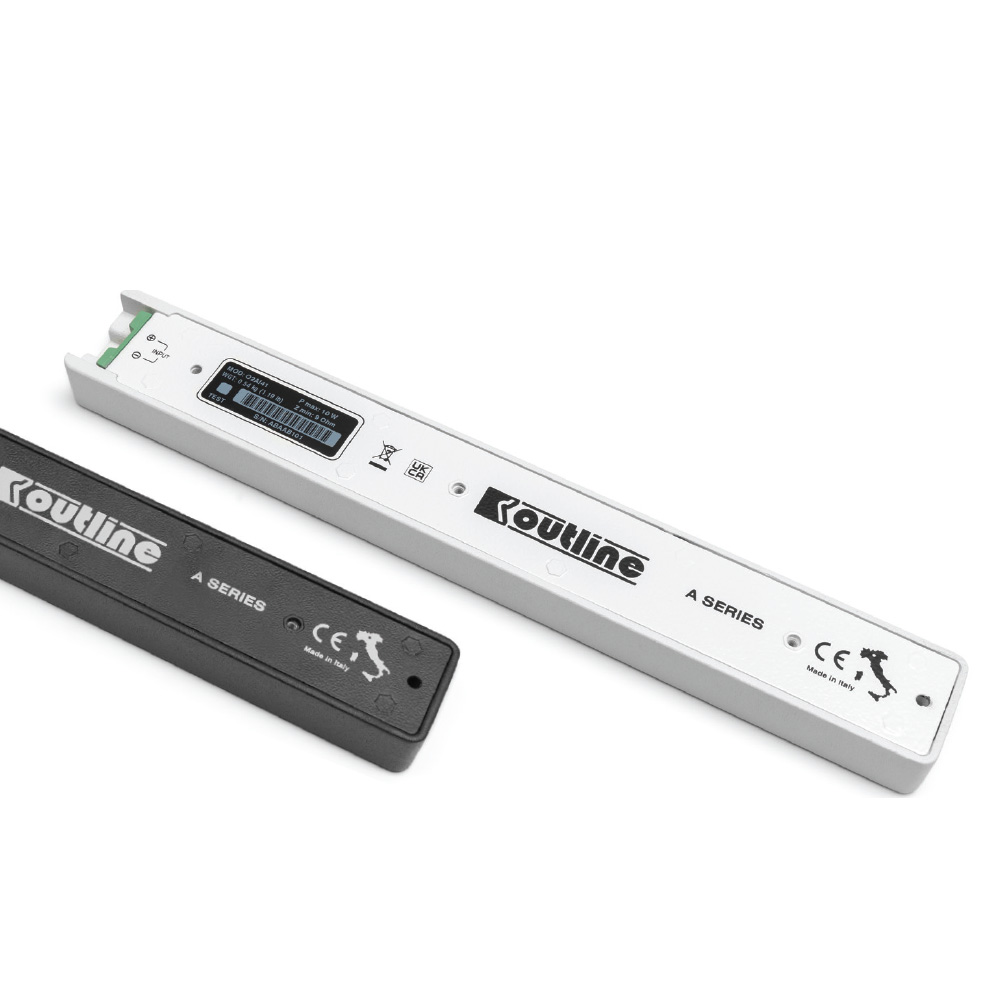

- Versatile mounting with front and rear installation points

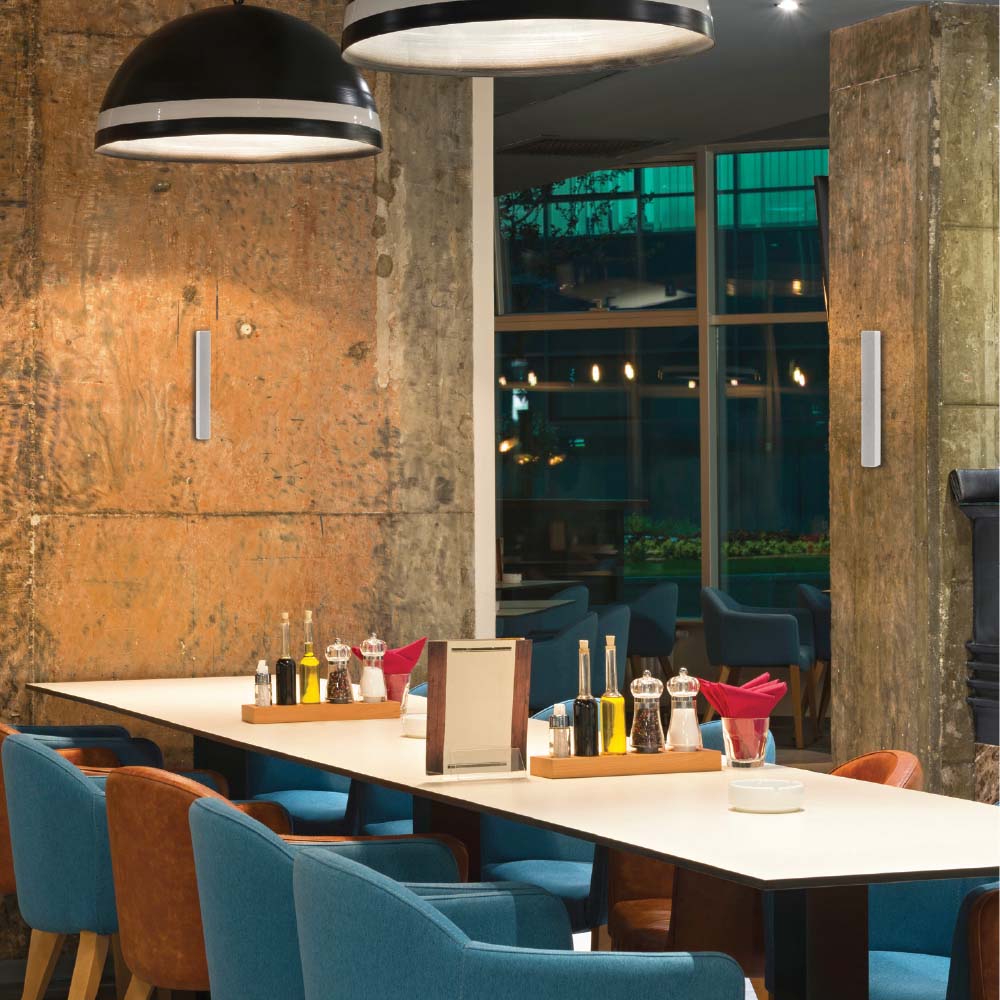

- Ideal for restaurants, museums, conferences, and discrete installations
- Italian-engineered with premium component quality
- Passive crossover with integrated driver protection
- Minimal visual impact for architectural integration
Technical Data
| System Type: | 2-way passive ultra-slim column loudspeaker |
| Low Frequency Drivers: | 4 x 1.3″ NdFeB full-range driver |
| High Frequency Driver: | 0.7″ treated silk dome tweeter |
| Frequency Response (-10 dB): | 280 Hz – 20 kHz |
| Horizontal Dispersion: | 160° |
| Vertical Dispersion: | 60° |
| Nominal Impedance: | 8 Ω |
| Minimum Impedance: | 9.2 Ω |
| Power Handling (AES): | 160 W |
| Maximum SPL Output: | 107.5 dB SPL (calculated using +12 dB Crest Factor signal, Half space) |
| Cabinet Material: | HCDF (Hydrophobic Compact Density Fiber) |
| Cabinet Finish: | Black or White textured polyurethane paint (custom RAL colors available on request) |
| Grill: | Epoxy powder coated galvanized steel |
| Installation Points: | 2 through holes diam. 4 mm on front / 2 x M4 on back |
| Height: | 350 mm (13 6/8″) |
| Width: | 46 mm (1 6/8″) |
| Depth: | 25 mm (1″) |
| Weight: | 0.6 kg (1.3 lb) |
| Shipping Dimensions: | 30 x 380 x 60 mm |
| Shipping Weight: | 0.8 kg |
