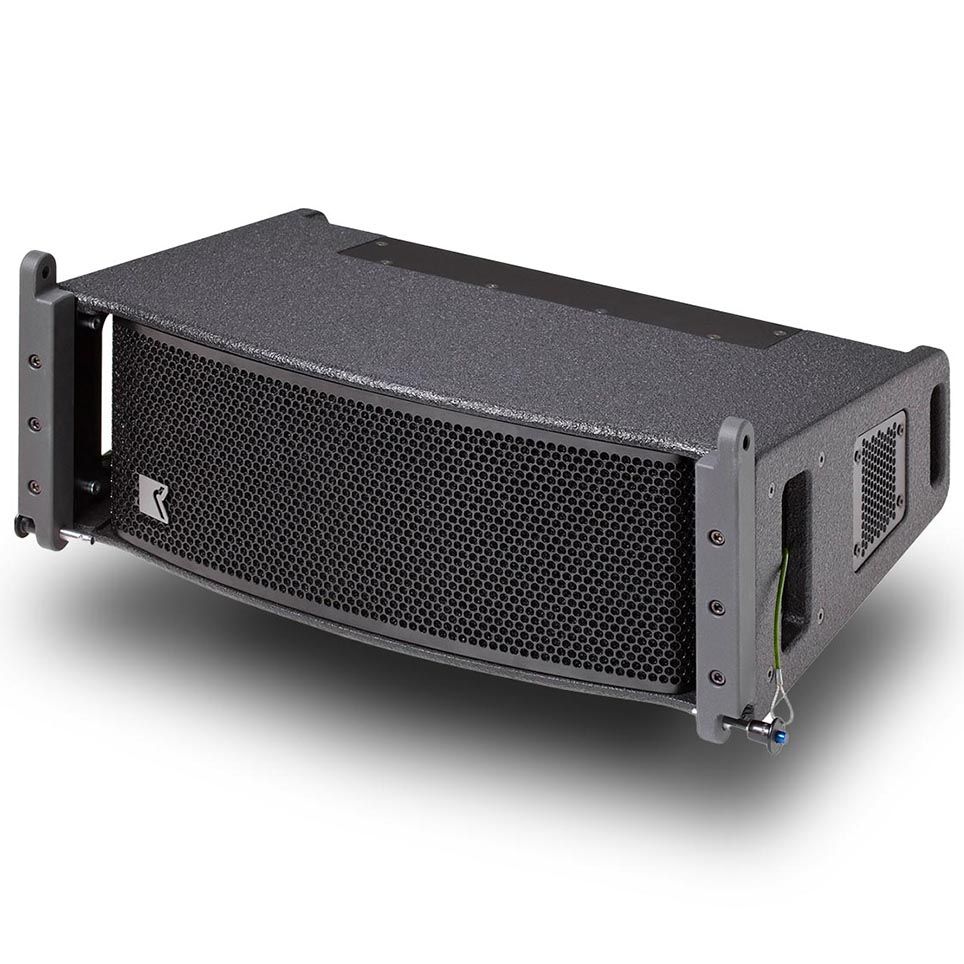

Outline EIDOS 265 LA 2-Way Line-Array Enclosure
Engineered for touring professionals, clubs and fixed installations, the Outline EIDOS 265 LA packs stunning output and fidelity into an exceptionally compact, easily rigged module. Its passive two-way design combines twin 6.5″ mid-woofers with a 2.5″ diaphragm compression driver on a proprietary waveguide, producing coherent 100° horizontal coverage and maximum 132 dB SPL—perfect for articulate speech and powerful music reinforcement.
Superior Performance in a Compact Footprint
Despite its modest dimensions, the EIDOS 265 LA reaches down to 63 Hz and extends smoothly to 20 kHz. Outline’s passive crossover employs premium components for minimal loss and phase accuracy, while the semi-direct radiation bass reflex design adds punch and definition. Four cabinets can be powered from a single channel of an Outline T5-DSP, keeping amp racks light and simplified.
Flexible Rigging & Deployment
An integrated aluminium suspension system lets you fly or stack up to sixteen EIDOS 265 LA enclosures, with inter-box angles selectable from 0° to 10° in 1° steps. The quick-lock mechanism accelerates setup, and the same hardware mates seamlessly with the FLYSUB 15 for extended low-frequency energy. Whether you need a tight vertical column or a curved array for wider throw, the EIDOS 265 LA adapts effortlessly.
Road-Ready Construction & Connectivity
Crafted from premium birch plywood and protected by a powder-coated steel grille backed with acoustic foam, each 21 kg cabinet endures the demands of constant touring. Two recessed NL4 connectors wired in parallel ensure swift cabling, while four recessed handles and optional flight cases simplify transport. Model O1EIDOS265 is built to withstand harsh weather, corrosion and the rigours of daily use.
Key Features
- Turnkey solution for mid-sized shows, worship venues and installations
- Two-way passive design with internal crossover for single-channel operation
- Fly or stack up to 16 enclosures with 0°–10° inter-box angles
- Compatible with Outline FLYSUB 15 for LF extension
- Rugged birch-ply cabinet, steel grille and recessed handles
- NL4 connectivity and 8 Ω impedance streamline system integration
